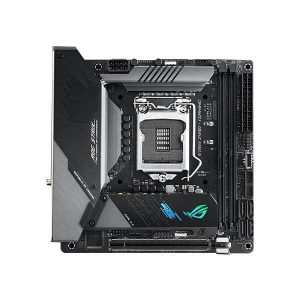

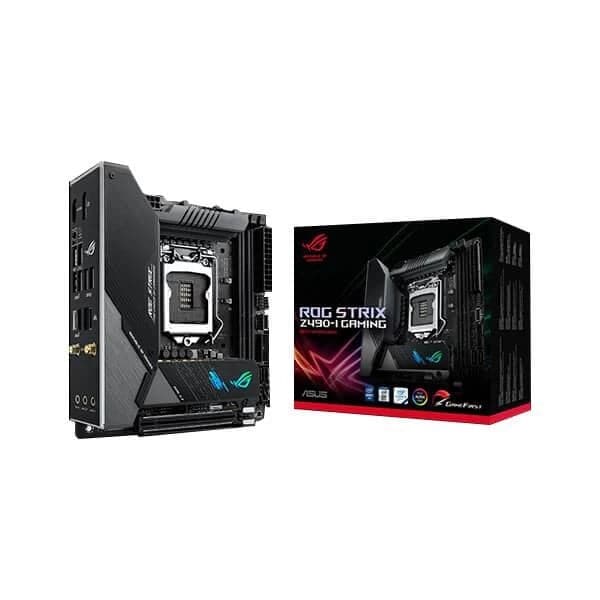

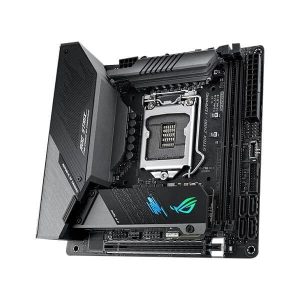

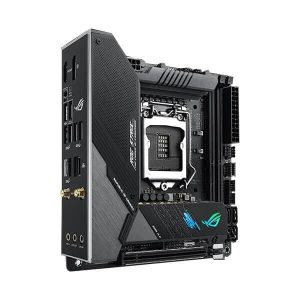

ASUS ROG Strix Z490-I Gaming DDR4 Intel Motherboard
MPN ASUS-ROG-STRIX-Z490-I-GAMING · Brand ASUS · Mini-ITX
The ASUS ROG Strix Z490-I Gaming is a Mini ITX (17 cm x 17 cm) Intel Z490 motherboard for LGA1200 CPUs, featuring Wi-Fi 6, 2.5Gb Ethernet, dual M.2 slots, up to 64 GB DDR4, and ROG SupremeFX audio in a compact form factor
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Strix Z490-I Gaming is a Mini ITX motherboard measuring 17 cm x 17 cm (6.7 x 6.7 inches), built around the Intel Z490 chipset and designed for Intel LGA1200 socket processors — covering 10th Generation Intel Core, Pentium Gold, and Celeron series. Despite its compact footprint, it delivers a feature set typically associated with larger form factors, making it a strong choice for high-performance small-form-factor builds. Memory support is a highlight: two DIMM slots accept up to 64 GB of DDR4 memory, with overclocked speeds reaching 4800 MHz via XMP profiles. ASUS OptiMem II trace-routing technology reduces signal interference to improve stability and compatibility at higher frequencies. Each slot supports up to 32 GB, matching the total capacity of many four-slot ATX designs. Storage options are generous for an ITX board. Two M.2 slots both support PCIe 3.0 x4 and SATA modes for Type 2242, 2260, and 2280 drives, complemented by four SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support. Intel Optane Memory is also supported. Connectivity is a clear strength. The onboard Intel I225-V controller delivers 2.5 Gb Ethernet with ASUS LANGuard surge protection, while the Intel Wi-Fi 6 AX201 module provides dual-band 802.11ax wireless with speeds up to 2.4 Gbps, OFDMA, MU-MIMO, and 1024-QAM. Bluetooth 5.1 is included. The rear I/O panel includes four USB 3.2 Gen 2 ports (three Type-A, one Type-C), two USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, DisplayPort 1.4 (max 4096×2304 @ 60 Hz), HDMI 2.0a, and three LED-illuminated audio jacks. An internal header adds one USB 3.2 Gen 2 front-panel connector alongside additional USB 3.2 Gen 1 and USB 2.0 headers. Audio is handled by the ROG SupremeFX S1220A codec — an 8-channel High Definition Audio solution with dual op-amplifiers, 120 dB SNR stereo playback, 113 dB SNR recording input, impedance sensing for headphone outputs, audio shielding, and premium Japanese audio capacitors. Software tools include ASUS AI Suite 3 with 5-Way Optimization and AI Overclocking, Armoury Crate with Aura Sync RGB control, GameFirst VI network prioritization, Sonic Studio III audio tuning, and full UEFI BIOS with BIOS FlashBack support for no-CPU BIOS updates. AURA Sync headers include one standard RGB and one Addressable Gen 2 header. Verified Specifications: - Form Factor: Mini ITX, 17 cm x 17 cm - Socket: Intel LGA1200 (10th Gen Intel Core / Pentium Gold / Celeron) - Chipset: Intel Z490 - Memory: 2x DIMM, DDR4, max 64 GB, up to 4800 MHz (O.C.), XMP, OptiMem II - Storage: 2x M.2 (PCIe 3.0 x4 / SATA), 4x SATA 6 Gb/s, RAID 0/1/5/10 - GPU Slot: 1x PCIe 3.0 x16 - LAN: Intel I225-V 2.5 Gb Ethernet - Wireless: Intel Wi-Fi 6 AX201 (802.11ax), up to 2.4 Gbps, Bluetooth 5.1 - Audio: ROG SupremeFX S1220A, 8-channel, 120 dB SNR playback, 32-bit/192 kHz - Rear USB: 4x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 2x USB 2.0 - Display: 1x DisplayPort 1.4, 1x HDMI 2.0a - BIOS: 256 Mb Flash ROM, UEFI AMI - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | Intel® Z490 |
| CPU Type | |
| Lan | Intel® I225-V 2.5Gb EthernetASUS LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/192kHz playback *LED-illuminated audio jacksAudio Feature :- Audio Shielding- Premium Japanese audio capacitors* Choose the chassis with HD audio module in front panel to support 8-channel audio output.* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio |
| Memory | 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800(O.C.)/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists) |
| Graphic | Integrated Graphics Processor1 x DisplayPort 1.4 **1 x HDMI 2.0a*Graphics specifications may vary between CPU types.**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to http://www.intel.com for any update |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® Z490 Chipset :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*24 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Optane™ Memory Ready |
| Bluetooth | Bluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later |
| USB Ports | Rear USB Port ( Total 8 )4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)2 x USB 3.2 Gen 1 port(s)(2 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 5 )1 x USB 3.2 Gen 2 front panel connector port(s)2 x USB 3.2 Gen 1 port(s)2 x USB 2.0 port(s) |
| Accessories | User's manual4 x SATA 6Gb/s cable(s)2 x M.2 Screw Package1 x Supporting DVD1 x CABLE TIE BLACK1 x ROG Strix stickers1 x Extension cable for Addressable LED1 x Panel cable1 x ROG Thank you card1 x Wi-Fi moving antenna1 ROG key chain |
| Manageability | WOL by PME, PXE |
| Back I/O Ports | 1 x Intel® I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)2 x USB 3.2 Gen 1 Type-A2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)1 x USB BIOS FlashBack™ Button(s)1 x ASUS Wi-Fi Module3 x LED-illuminated audio jacks |
| Expansion Slots | Intel® 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode) *1 |
| Operating System | Windows® 10 64-bit |
| Software Features | ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer- Sonic Radar III- DTS® Sound Unbound- Overwolf- Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- 5-Way Optimization with AI OverclockingTPUEPUDigi+ VRMXpert 4Turbo app- EZ updateWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeFlexKey |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x Aura RGB Strip Header1 x Addressable Gen 2 header(s)1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x Clear CMOS jumper(s)1 x Thermal sensor connector1 x USB 3.2 Gen 2 front panel connector1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
| Asus Special Features | ASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU , DRAM , VGA , Boot Device )- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Procool II- Pre- mounted I/O shield- SafeSlotAURA Sync- Standard RGB header- Addressable Gen 2 RGB header |
| Wireless Data Network | Intel® Wi-Fi 6 AX2012x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports CNVI interface |
