Asus ROG Strix Z890-F Gaming WIFI ATX Motherboard
MPN ROG-STRIX-Z890-F-GAMING-WIFI · Brand ASUS · ATX
The ASUS ROG Strix Z890-F Gaming WiFi is an ATX motherboard for Intel LGA1851 Core Ultra Series 2 processors, featuring the Z890 chipset, DDR5 up to 192 GB, Wi-Fi 7, Thunderbolt 4, PCIe 5.0, and five M.2 slots
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Strix Z890-F Gaming WiFi is a full-size ATX motherboard built on the Intel Z890 chipset, designed specifically for Intel Core Ultra Series 2 processors via the LGA1851 socket. It measures 12 x 9.6 inches (30.5 x 24.4 cm) and is backed by a 3-year warranty, making it a strong foundation for a high-performance gaming or content-creation PC. Memory support is handled by four DIMM slots accommodating up to 192 GB of DDR5 RAM in a dual-channel configuration. The board supports speeds beyond 8600 MT/s (OC) using Clocked Unbuffered DIMMs (CUDIMMs), and is compatible with Intel XMP and the proprietary ASUS Enhanced Memory Profile III (AEMP III). The DIMM Fit BIOS feature analyses individual modules to optimise performance and flag potential issues. Storage options are generous: five M.2 Key-M slots are provided, with M.2_1 running at PCIe 5.0 x4 (CPU-direct) and the remaining four operating at PCIe 4.0 x4 via the chipset or CPU. Four SATA 6 Gb/s ports round out legacy storage needs. On the expansion side, one PCIe 5.0 x16 slot handles the primary GPU, supplemented by a PCIe 4.0 x16 slot (x4 electrical) from the chipset. Connectivity is a standout area. Wireless is handled by a 2x2 Wi-Fi 7 (802.11be) module supporting 2.4, 5, and 6 GHz bands with up to 5.8 Gbps throughput and 320 MHz channel bandwidth, paired with Bluetooth 5.4. Wired networking uses an Intel 2.5 Gb Ethernet controller protected by ASUS LANGuard. The rear I/O panel provides 14 USB ports including two Thunderbolt 4 (USB Type-C) ports, six USB 10 Gbps ports (one with 30 W Power Delivery fast-charge), four USB 5 Gbps Type-A ports, and two USB 2.0 ports, plus DisplayPort 1.4 and HDMI 2.1 video outputs. Audio is delivered by the ROG SupremeFX subsystem using a Realtek ALC4080 codec with a Savitech SV3H712 amplifier, offering 120 dB SNR stereo output and 110 dB SNR recording input at up to 32-bit/384 kHz. Gold-plated audio jacks, audio shielding, premium capacitors, and a rear optical S/PDIF output complete the audio section. The board features AI Overclocking, AI Cooling II (one-click thermal and acoustic balance), AI Networking II, and ASUS AI Advisor for natural-language motherboard guidance. NPU Boost support enables AI-accelerated PC workflows on compatible processors. RGB aesthetics are managed via Aura Sync with three onboard Addressable Gen 2 headers. Verified Specifications: - Socket: LGA1851 | Chipset: Intel Z890 - Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm) - Memory: 4x DIMM, DDR5, max 192 GB, up to 8600+ MT/s (OC), Dual Channel, XMP / AEMP III - Storage: 5x M.2 (1x PCIe 5.0 x4, 4x PCIe 4.0 x4) + 4x SATA 6 Gb/s - GPU Slot: 1x PCIe 5.0 x16 + 1x PCIe 4.0 x16 (x4 mode) - Wireless: Wi-Fi 7 (802.11be), 2.4/5/6 GHz, up to 5.8 Gbps; Bluetooth 5.4 - Ethernet: Intel 2.5 Gb - Rear USB: 2x Thunderbolt 4 (Type-C), 6x USB 10 Gbps, 4x USB 5 Gbps, 2x USB 2.0 - Audio: ALC4080, 7.1 Surround, 120 dB SNR playback, 32-bit/384 kHz - Display: 1x DisplayPort 1.4 (8K@60Hz), 1x HDMI 2.1 (4K@60Hz) - BIOS: 256 Mb Flash ROM, UEFI AMI - OS Support: Windows 11 (22H2 and later) - Warranty: 3 Years

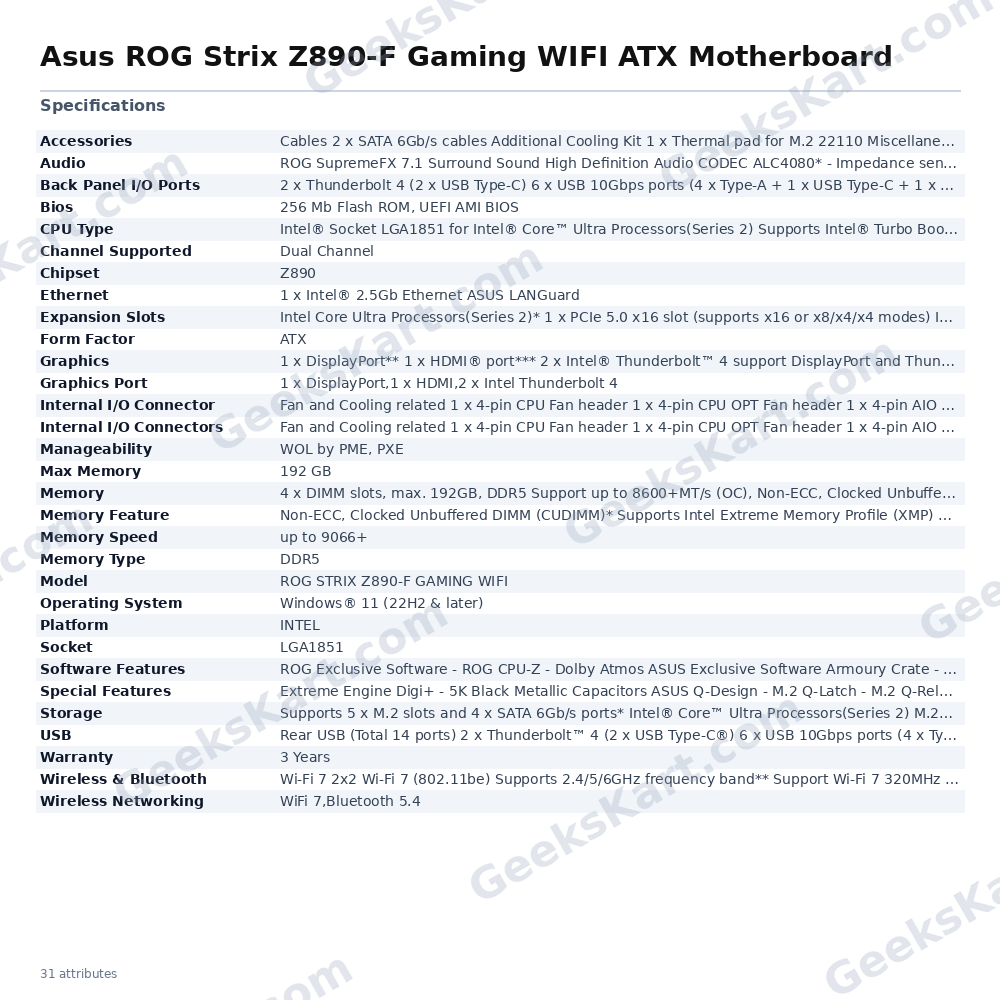

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | Z890 |
| Socket | LGA1851 |
| CPU Type | Intel® Socket LGA1851 for Intel® CoreTM Ultra Processors(Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3 |
| Max Memory | 192 GB |
| Memory Speed | up to 9066+ |
| USB | Rear USB (Total 14 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports Front USB (Total 9 ports) 1 x USB 20Gbps connector (1 x USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – Audio Shielding – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. ***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. ****** VGA resolution support depends on processors' or graphic cards' resolution. *******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| Platform | INTEL |
| Model | ROG STRIX Z890-F GAMING WIFI |
| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS Wi-Fi Q-Antenna 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 3 x M.2 rubber packages Documentation 1 x Quick start guide |
| Graphics Port | 1 x DisplayPort,1 x HDMI,2 x Intel Thunderbolt 4 |
| Manageability | WOL by PME, PXE |
| Memory Feature | Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Expansion Slots | Intel Core Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Operating System | Windows® 11 (22H2 & later) |
| Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – M.2 heatsink backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen2 headers |
| Channel Supported | Dual Channel |
| Software Features | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost FlexKey |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 2 x Thunderbolt 4 (2 x USB Type-C) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Wireless & Bluetooth | Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
