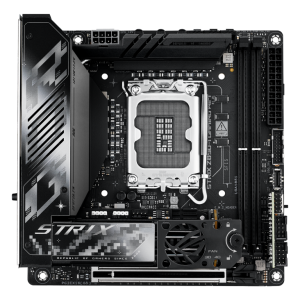

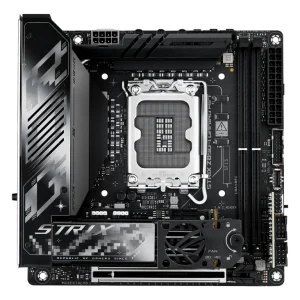

ASUS ROG STRIX Z890-I Gaming Wifi DDR5 Intel Motherboard
MPN ASUS-ROG-STRIX-Z890-I · Brand ASUS · Mini-ITX
The ASUS ROG STRIX Z890-I Gaming WiFi is a feature-packed Mini-ITX motherboard for Intel Core Ultra Series 2 processors, offering DDR5 up to 128 GB, dual PCIe 5.0 M.2 slots, Wi-Fi 7, Thunderbolt 4, and ESS DAC audio in a compact 6.7 x 6.7 inch form factor
Inclusive of GST · GST invoice available
Overview
The ASUS ROG STRIX Z890-I Gaming WiFi is a premium Mini-ITX motherboard engineered for Intel Core Ultra Processors (Series 2), delivering high-end gaming and AI workload performance within a compact 6.7 x 6.7 inch (17 cm x 17 cm) footprint. Built on the Intel Z890 chipset, it brings flagship-tier capabilities to small-form-factor builds without compromise. At the heart of its connectivity is Wi-Fi 7 (802.11be) with 2x2 antenna support across 2.4 GHz, 5 GHz, and 6 GHz bands, capable of up to 5.8 Gbps transfer rates, paired with Bluetooth 5.4 and a wired Intel 2.5Gb Ethernet port with ASUS LANGuard protection. Two Thunderbolt 4 ports on the rear I/O provide ultra-fast 40 Gbps data transfer and support DisplayPort video output at up to 8K@60Hz (with DSC) or dual 4K@60Hz. Memory support spans two DDR5 DIMM slots accommodating up to 128 GB, with overclocked speeds reaching 9200+ MT/s via XMP and ASUS Enhanced Memory Profile III (AEMP III), including support for Clocked Unbuffered DIMMs (CUDIMM) in dual-channel configuration. Storage is handled by two PCIe 5.0 x4 M.2 slots (types 2230/2242/2260/2280) and two SATA 6 Gb/s ports (available via the included ROG FPS Card), with Intel Rapid Storage Technology enabling PCIe RAID 0/1 and SATA RAID 0/1. Expansion is provided through a single PCIe 5.0 x16 slot. The rear USB panel offers 9 ports total: 2x Thunderbolt 4 (USB Type-C), 1x USB 20 Gbps (Type-C), 3x USB 10 Gbps (Type-A), 1x USB 5 Gbps (Type-A), and 2x USB 2.0 (Type-A). The included ROG STRIX HIVE II external controller adds ESS SABRE9260Q DAC-powered audio with ROG Hyper-Grounding Technology, silver-plated audio jacks, dedicated audio PCB layers, plus additional USB 10 Gbps ports and a volume knob with mute. The BIOS features NPU Boost for one-click NPU overclocking and AI Overclocking Guide support. Software includes Armoury Crate, Aura Sync (with Addressable Gen 2 headers), Fan Xpert 4 with AI Cooling II, ASUS AI Advisor, Dolby Atmos, and ROG CPU-Z among others. Verified Specifications: - Form Factor: Mini-ITX, 6.7 x 6.7 in (17 x 17 cm) - Chipset: Intel Z890 - CPU Support: Intel Core Ultra Processors (Series 2) - Memory: 2x DDR5 DIMM, max 128 GB, up to 9200+ MT/s (OC), dual-channel, XMP / AEMP III - Storage: 2x M.2 PCIe 5.0 x4 + 2x SATA 6 Gb/s (via ROG FPS Card) - Expansion: 1x PCIe 5.0 x16 - Wireless: Wi-Fi 7 (802.11be), 2x2, up to 5.8 Gbps; Bluetooth 5.4 - Ethernet: Intel 2.5Gb - Rear USB: 9 ports (2x TB4 Type-C, 1x 20Gbps Type-C, 3x 10Gbps Type-A, 1x 5Gbps Type-A, 2x USB 2.0) - Display Output: 1x HDMI 2.1 (4K@60Hz), 2x Thunderbolt 4 (DP, up to 8K@60Hz w/ DSC) - Audio: ESS SABRE9260Q DAC (via ROG STRIX HIVE II) - BIOS: 256 Mb Flash ROM, UEFI AMI BIOS with BIOS FlashBack

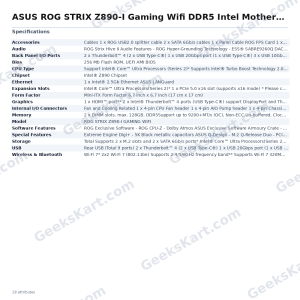

Datasheet
| Form Factor | Mini-ITX |
|---|---|
| Chipset | Intel® Z890 Chipset |
| CPU Type | |
| USB | Rear USB (Total 9 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 3 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports ROG STRIX HIVE II (Total 2 ports) 2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A) ROG FPS Card (Total 3 ports) 2 x USB 2.0 headers support additional 3 USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | ROG Strix Hive II Audio Features – ROG Hyper-Grounding Technology – ESS® SABRE9260Q DAC – Silver-plated audio jacks – Dedicated audio PCB layers * All audio functions on ROG STRIX Z890-I GAMING WIFI are supported through the ROG STRIX HIVE II |
| Model | ROG STRIX Z890-I GAMING WIFI |
| Memory | 2 x DIMM slots, max. 128GB, DDR5Support up to 9200+MT/s (OC), Non-ECC,Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme Memory Profile(XMP) memory moduleSupports DIMM FlexASUS Enhanced Memory Profile III (AEMP III)* Supported memory types, data rate(speed), and number of DRAM modules vary depending on the CPU and memoryconfiguration, for more information please refer to CPU/Memory Support listunder the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, un-buffered DDR5 memory supportsOn-Die ECC function |
| Storage | Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)** M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) 2 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports PCIe RAID 0/1, SATA RAID 0/1. ** M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run x8 only. *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. **** VGA resolution support depends on processors' or graphic cards' resolution. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |

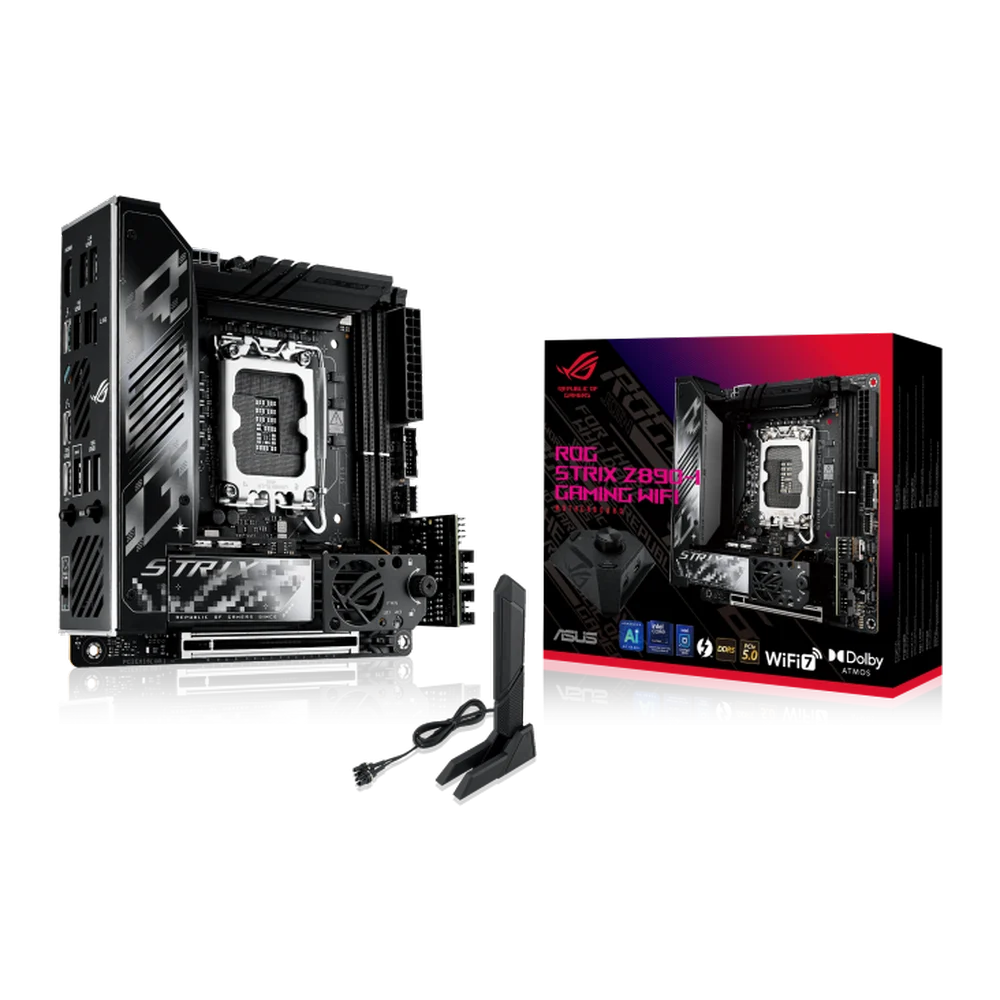

| Accessories | Cables 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables 1 x Panel Cable ROG FPS Card 1 x ROG FPS Card ROG STRIX HIVE II 1 x ROG STRIX HIVE II 1 x USB Type-C® power connection cable Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x ROG key chain 1 x ROG Strix stickers Documentation 1 x Quick start guide |
| Expansion Slots | Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| Special Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Release Duo – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design – Fan bracket ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeDIMM – Backplate Aura Sync – Addressable Gen 2 headers ROG STRIX HIVE II 1 x USB Type-C® connects to motherboard 2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A) 1 x Headphone jack with mic in 1 x FlexKey button 1 x Power button 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Software Features | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – Power Saving HWiNFO AIDA64 Extreme (60 days free trial) ASUS AI Advisor ASUS Driver Hub ASUS GlideX Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x BIOS FlashBack™ button |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header 1 x Extra Flow Fan header Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports Miscellaneous 2 x Addressable Gen 2 headers 1 x 2-pin Power Button header 1 x Thermal Sensor header 2 x USB Type-C® connectors to install ROG FPS card ROG FPS card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel header 1 x Alteration PCIe Mode switch 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
