Asus ROG Thor 1000 P2 1000 Watt 80 Plus Platinum SMPS
MPN ROG-THOR-1000P2-GAMING · Brand Asus

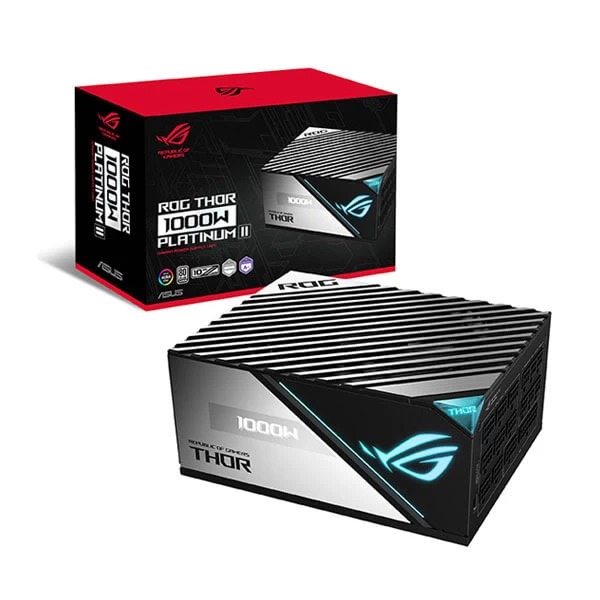

The Asus ROG Thor 1000P2 is a fully modular 1000W 80 Plus Platinum PSU featuring a 135mm Axial-tech fan, OLED power display, Aura Sync ARGB lighting, Cybenetics Lambda A++ noise certification, PCIe Gen 5.0 support, and a 10-year warranty
Inclusive of GST · GST invoice available
Overview
The Asus ROG Thor 1000P2 (model ROG-THOR-1000P2-GAMING) is a fully modular 1000W gaming power supply unit built for high-performance desktop systems. Holding an 80 Plus Platinum efficiency certification, this PSU is engineered to reduce wasted energy and keep operating temperatures in check — delivering up to 996W on its single +12V rail for demanding CPUs and GPUs. At the heart of its thermal design is a 135mm Axial-tech fan with PWM control, a configuration that manages airflow more precisely than conventional fan designs. The fan uses a dual ball bearing mechanism rated to outlast sleeve bearing alternatives, and it supports 0dB mode — shutting off entirely when system load stays at or below 50%, enabling near-silent operation during lighter workloads. ROG heatsinks with twice the volume of standard designs assist further in heat dissipation, extending the operational life of internal components. The ROG Thor 1000P2 earns a Cybenetics Lambda A++ noise level certification, reflecting verified acoustic performance under load. An integrated OLED panel provides a real-time readout of power draw, giving builders a straightforward way to monitor system efficiency without additional software. The PSU also features Aura Sync ARGB compatibility, allowing customisable lighting that can be synchronised with other compatible ROG and ASUS hardware. Each unit ships bundled with a 16-pin PCIe Gen 5.0 cable capable of delivering up to 600W to next-generation graphics cards, alongside a comprehensive set of sleeved cables and cable management accessories. ASUS also includes a 20% CableMod discount for users who wish to further customise cable aesthetics. Protection circuitry covers OPP, OVP, UVP, SCP, OCP, and OTP — safeguarding connected components against overvoltage, undervoltage, short circuits, and thermal events. The unit is RoHS compliant and carries a 10-year manufacturer warranty. — Verified Specifications — Model: ROG-THOR-1000P2-GAMING | Wattage: 1000W | Efficiency: 80 Plus Platinum | Modular: Fully Modular | Dimensions: 190 x 150 x 86 mm | Weight: 2.37 kg | AC Input: 100–240V AC | +12V Rail: 83A max / 996W combined | +3.3V: 25A | +5V: 25A | -12V: 0.3A | +5Vsb: 3A | Fan: 135mm Axial-tech PWM, dual ball bearing | Noise Certification: Cybenetics Lambda A++ | OLED Display: Yes | Aura Sync: ARGB | 0dB Fan Mode: Yes (≤50% load) | PCIe Gen 5.0: Yes (16-pin cable included) | SATA Connectors: 12 | PCIe 6+2-pin: 8 | CPU 4+4-pin: 2 | Peripheral 4-pin: 6 | Protection: OPP/OVP/UVP/SCP/OCP/OTP | Compliance: RoHS | Warranty: 10 Years
Datasheet
| Warranty | 10 Years |
|---|---|
| Model | ROG-THOR-1000P2-GAMING |
| Series | ROG SERIES |
| Weight | 2.37 KG |
| Modular | FULLY MODULAR |
| Wattage | 1000 Watt |
| Aura Sync | ARGB |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 12-pin x 1 PCI-E 6+2-pin x 8 SATA x 12 PERIPHERAL x 6 |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| Maximum Load | 25A 25A 83A 0.3A 3A |
| Total Output | 1000W |
| Certification | 80 Plus Platinum |
| Combined Load | 125W 125W 996W 3.6W 15W |
| 0Db Fan Button | Yes |
| Ac Input Range | 100-240Vac |
| Sata Connector | 12 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Thermal Features | ROG Thermal Solution |
| Dc Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Peripheral (4-Pin) | 6 |
| Hazardous Materials | ROHS |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| PCIE Connector (6+2) | 8 |
| Cybenetics Noise Level Certification | A++ |
