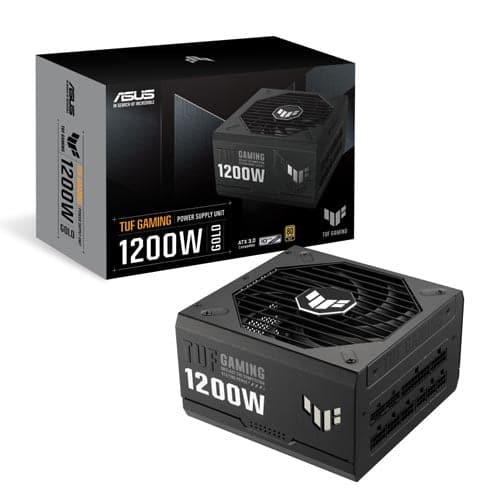

ASUS TUF Gaming 1200W 80 + Gold Fully Modular ATX 3.0 Power Supply ( 1200W )

The ASUS TUF Gaming 1200W Gold is a fully modular ATX 3.0 power supply designed to deliver stable, efficient power to demanding gaming and workstation builds. Carrying an 80 Plus Gold efficiency rating, it achieves up to 92% efficiency under typical loads, which translates to less waste heat, quieter fan operation, and greater long-term reliability for your system. At the core of the TUF Gaming 1200W Gold's durability story are components that pass military-grade certification standards, including Japanese capacitors rated for 105°C operation with a stated lifespan of up to 170,000 hours. The dual ball-bearing fan is rated to 80,000 hours — roughly twice the rated lifespan of typical sleeve-bearing designs — and operates on a 135 mm Axial-tech fan design. The Axial-tech configuration uses a smaller hub to enable longer fan blades and incorporates a barrier ring that directs airflow downward more efficiently, keeping temperatures in check even under sustained heavy loads. The PCB is protected by a conformal coating that guards against moisture, dust, and debris-induced short circuits, further extending the PSU's operational life. The high-performance copper-pin PCIe connectors are engineered for improved thermal conductivity, with ASUS citing up to a 29°C reduction in connector temperatures compared to standard designs — supporting stable delivery to power-hungry graphics cards. With ATX 3.0 compliance and two 16-pin PCIe Gen 5 cables included in the box, the TUF Gaming 1200W Gold is ready for current and next-generation GPUs requiring up to 600W through a single connector. The fully modular cabling system uses etched cables made from a premium flexible material, meeting UL1581 flame-test and UL758 safety certifications, and allows you to run only the cables your build actually needs. Protection features cover the full expected suite: OPP (over-power), OVP (over-voltage), UVP (under-voltage), SCP (short-circuit), OCP (over-current), and OTP (over-temperature). The unit accepts a wide AC input range of 100–240 V, making it compatible with global power standards. The PSU is RoHS-compliant and carries a 10-year warranty. Verified Specifications: - Model: TUF Gaming 1200W Gold (Product Code: TUF-GAMING-1200G-ATX-3-0) - Total Output: 1200 W - Efficiency: 80 Plus Gold (up to 92%) - Form Factor: ATX12V / ATX 3.0 - Dimensions: 150 × 150 × 86 mm - Weight: 2.66 kg - Fan: 135 mm Axial-tech, dual ball bearing (rated 80,000 hours) - AC Input: 100–240 Vac - Connectors: 24/20-pin MB ×1, CPU 4+4-pin ×2, PCIe 16-pin ×2, PCIe 8-pin ×3, SATA ×5, Peripheral ×4 - Protection: OPP / OVP / UVP / SCP / OCP / OTP - Compliance: RoHS, UL1581, UL758 (cables) - Modular: Fully modular - 0 dB Fan Button: No - Warranty: 10 years
