Features of ASUS TUF Gaming 750W 80 + Gold Fully Modular ATX 3.1 Power Supply
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular etched cables keep your rig neat and tidy.
- 10-year warranty included.
Built For The Long Haul
The ASUS TUF Gaming 750W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
MTBF
The ASUS TUF Gaming 750W Gold, enhanced with military-grade components, passes a stricter MTBF (mean time between failures) test to deliver up to twice the lifespan of standard power supplies, empowering you build with confidence.
DROP TEST
Replicating real-world drops from 75 cm height on all sides, this test helps to ensure every TUF Gaming 750W Gold can resist damage from unexpected falls, knocks and bumps during shipment and daily use.
VIBRATION TEST
Extensive vibration testing helps to ensure that every part of your TUF Gaming 750W Gold can stay in place and maintain functionality.
High-Performance Copper Pins
Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
80 Plus Gold Certification
The TUF Gaming 750W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and TUF Gaming 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Axial-tech Fan Design
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we’ve scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
A decade of power
We’re so confident about the reliability of the TUF Gaming 750W Gold that we back it with a 10-year warranty.
Specifications of ASUS TUF Gaming 750W 80 + Gold Fully Modular ATX 3.1 Power Supply
| Model | TUF Gaming 750W Gold |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 40°C |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| Total Output | 750W |
| Protection Features | |
| Abbreviation | Feature |
| OPP | Over Power Protection |
| OVP | Over Voltage Protection |
| UVP | Under Voltage Protection |
| SCP | Short Circuit Protection |
| OCP | Over Current Protection |
| OTP | Over Temperature Protection |

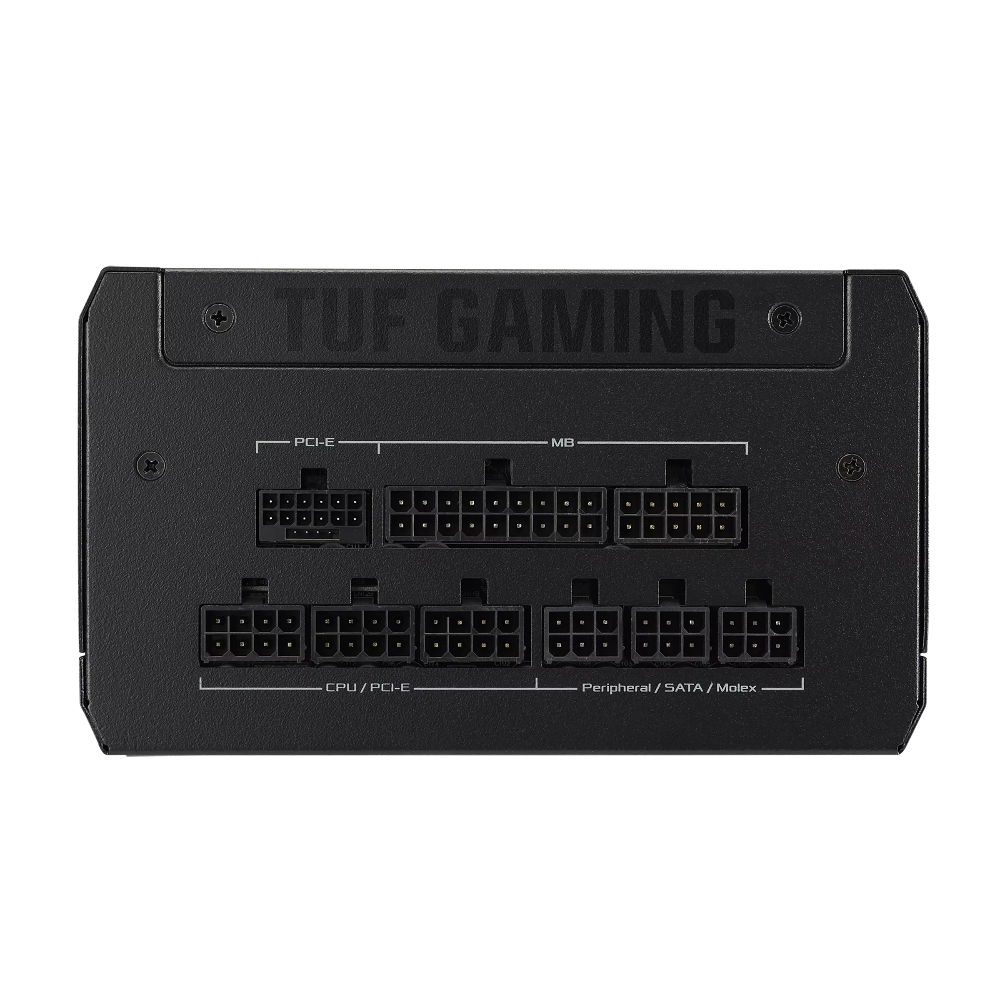

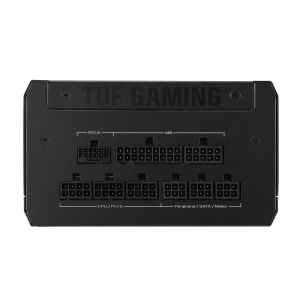

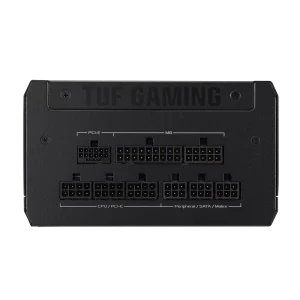

| Cable Connectors Available | |
| Connector Type | Quantity |
| MB 24/20-pin | x 1 |
| CPU 4+4-pin | x 2 |
| PCI-E 16-pin (PSU & component side) | x 1 |
| PCI-E 8-pin | x 3 |
| SATA | x 5 |
| PERIPHERAL | x 4 |
| Package Contents | |
| Item | Quantity |
| Power Cord | x 1 |
| Motherboard Power Cable (610mm) | x 1 |
| CPU Cable (650mm) | x 2 |
| PCI-E Gen 5.1 16-pin Cable (675mm) | x 1 |
| PCI-E (16-pin to 8-pin-8-pin) Cable (675mm) | x 1 |
| PCI-E 1-to-1 Cable (675mm) | x 1 |
| SATA 1-to-2 Cable (400+120mm) | x 1 |
| SATA 1-to-3 Cable (400+120+120mm) | x 1 |
| Peripheral 1-to-4 Cable (400+150+150+150mm) | x 1 |
| TUF Gaming Cable Tie | x 3 |
| User Manual | x 1 |
