ASUS TUF Gaming A620M-Plus WiFi DDR5 AMD Motherboard

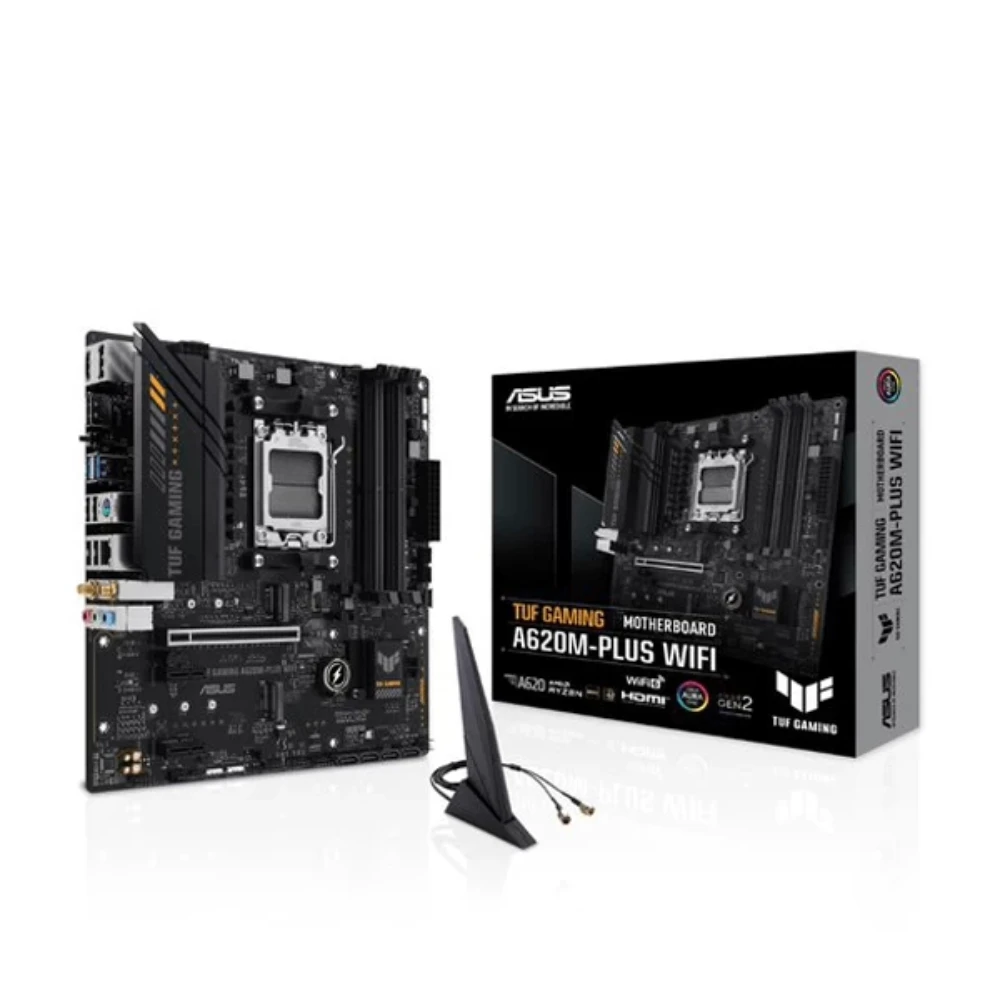

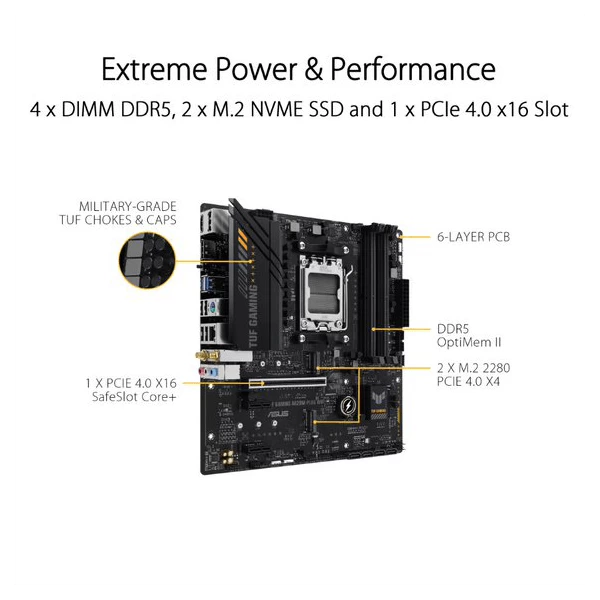

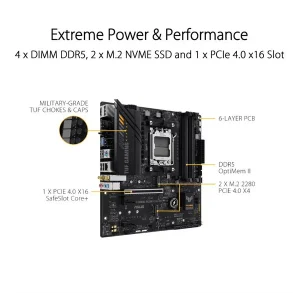

The ASUS TUF Gaming A620M-Plus WiFi is a Micro-ATX motherboard built on the AMD A620 chipset, designed for AMD Ryzen 7000 Series Desktop Processors via the AM5 socket. It pairs DDR5 memory support with a curated set of gaming-grade features to serve as a capable foundation for compact AMD builds without sacrificing connectivity or durability. On the memory side, four DIMM slots accommodate up to 128 GB of DDR5 RAM in dual-channel configuration, with native speeds of 4800, 5000, and 5200 MT/s and overclocked profiles reaching 6400+ MT/s via AMD EXPO. Storage is handled by two M.2 Key-M slots — both supporting PCIe 4.0 x4 for fast NVMe drives — and four SATA 6 Gb/s ports, offering ample room for a multi-drive setup. Wireless connectivity comes from an integrated Wi-Fi 6 (802.11 a/b/g/n/ac/ax) adapter covering 2.4 GHz and 5 GHz bands, paired with Bluetooth 5.3. Wired networking is handled by a Realtek 2.5 Gb Ethernet controller protected by ASUS TUF LANGuard surge protection. Display output options include two DisplayPort 1.4 ports (up to 8K at 60 Hz) and one HDMI 2.1 port (up to 4K at 60 Hz), useful when pairing with an iGPU-equipped Ryzen processor. A Realtek 7.1-channel HD audio codec with audio shielding, dedicated audio PCB layers, and premium capacitors rounds out the multimedia feature set, supporting up to 24-bit/192 kHz playback. Protection and build quality are addressed through ASUS TUF Protection features: ESD guards, DIGI+ VRM for stable power delivery, overvoltage protection, SafeSlot Core+ (a reinforced PCIe x16 slot), and a stainless-steel back I/O panel. A VRM heatsink helps manage thermals under sustained loads. The six-layer PCB design further aids heat dissipation for critical components. For builders, the board includes BIOS FlashBack for BIOS updates without a CPU or RAM installed, Q-DIMM for tool-free memory installation, M.2 Q-Latch for screwless M.2 drive retention, and Q-LED Core for rapid boot diagnostics. RGB customization is supported through one Aura RGB header and three Addressable Gen 2 headers, all compatible with Armoury Crate software. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in x 9.6 in (24.4 cm x 24.4 cm) - Socket: AMD AM5 - Chipset: AMD A620 - Memory: 4 x DDR5 DIMM, max 128 GB, DDR5 4800–6400+(OC), EXPO support - Storage: 2 x M.2 PCIe 4.0 x4 (2242/2260/2280), 4 x SATA 6 Gb/s - GPU Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 - Display Output: 2 x DisplayPort 1.4 (8K/60Hz), 1 x HDMI 2.1 (4K/60Hz) - LAN: Realtek 2.5 Gb Ethernet - Wireless: Wi-Fi 6 (802.11ax), 2.4/5 GHz, Bluetooth 5.3 - USB Rear: 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A - USB Front Headers: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers - Audio: Realtek 7.1-channel HD, 24-bit/192 kHz - BIOS: 256 Mb Flash ROM, UEFI AMI - OS Support: Windows 11, Windows 10 64-bit - Warranty: 3 Years
