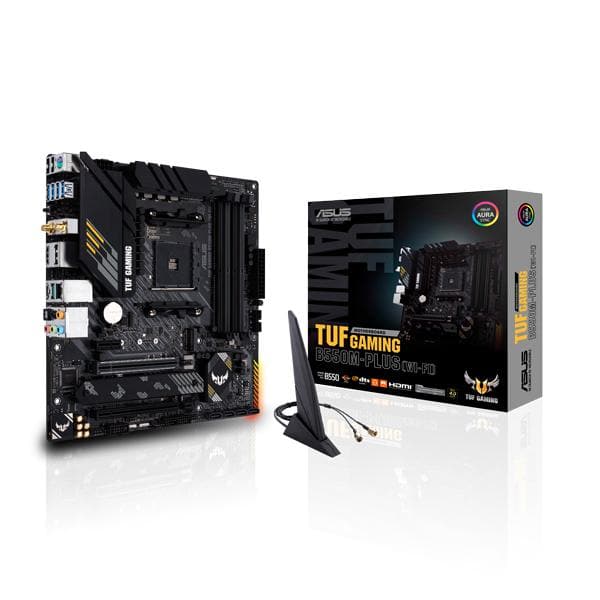

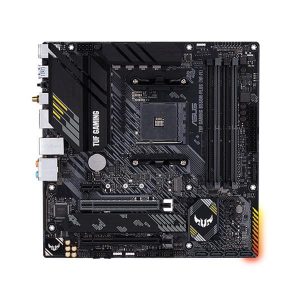

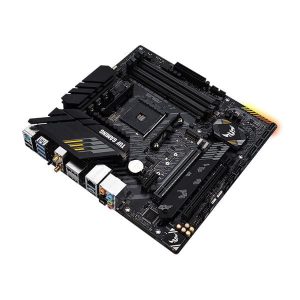

ASUS TUF Gaming B550M Plus Wifi DDR4 AMD Motherboard
MPN ASUS-TUFGAMING-B550M-PLUS-WI-FI-MOTHERBOARD · Brand ASUS · mATX
The ASUS TUF Gaming B550M-Plus (Wi-Fi) is an AMD AM4 Micro-ATX motherboard featuring PCIe 4.0, dual M.2 slots, Intel Wi-Fi 6, 2.5 Gb Ethernet, 8+2 DrMOS power stages, and Aura Sync RGB — built for stable, high-performance Ryzen gaming builds
Inclusive of GST · GST invoice available
Overview
The ASUS TUF Gaming B550M-Plus (Wi-Fi) is a Micro-ATX motherboard built on the AMD B550 chipset, designed for the AM4 socket and compatible with AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. Measuring 9.6 x 9.6 inches (24.4 x 24.4 cm), it fits compact and mid-tower cases while delivering a feature set typically associated with larger form factors. At the heart of the board is an 8+2 DrMOS power stage design paired with a ProCool connector and Digi+ VRM digital power control, providing stable voltage delivery for demanding multi-core workloads. Comprehensive thermal management is handled by dedicated VRM heatsinks, a fanless PCH heatsink, an aluminum M.2 heatsink, and multiple hybrid fan headers controllable via Fan Xpert 2+. Storage flexibility is a standout trait: two M.2 slots are provided — one via the CPU running PCIe 4.0 x4 or SATA (Type 2242/2260/2280), and one via the B550 chipset running PCIe 3.0 x4 or SATA (Type 2242/2260/2280/22110) — alongside four SATA 6 Gb/s ports with RAID 0, 1, and 10 support. Networking is handled by an Intel Wi-Fi 6 AX200 module (802.11 a/b/g/n/ac/ax, 2x2 MIMO, up to 2.4 Gbps theoretical max, dual-band 2.4/5 GHz, Bluetooth 5.1) and a Realtek RTL8125B 2.5 Gigabit wired Ethernet controller with TUF LANGuard surge protection. Audio is powered by a Realtek ALC S1200A codec delivering 7.1 surround sound with up to 24-bit/192kHz playback, dedicated audio PCB layers, audio shielding, premium Japanese capacitors, and an optical S/PDIF output. Display outputs include one HDMI 2.1 (4K@60Hz) and one DisplayPort 1.2. The rear I/O panel offers 2x USB 3.2 Gen 2 (one Type-A, one Type-C), 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0, plus a PS/2 combo port, five audio jacks, and a BIOS FlashBack button. Onboard RGB is supported through standard Aura RGB headers and an Addressable Gen 2 header, managed via Armoury Crate with Aura Sync. Verified Specifications: - Chipset: AMD B550 - Socket: AMD AM4 - Form Factor: Micro-ATX, 9.6 x 9.6 in (24.4 x 24.4 cm) - Memory: 4x DIMM, DDR4, max 128 GB, up to DDR4-4600 (O.C.), dual-channel, ECC varies by CPU - Expansion: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x16 (x4 mode, chipset), 1x PCIe 3.0 x1 - Storage: 2x M.2 (PCIe 4.0 x4 + PCIe 3.0 x4), 4x SATA 6 Gb/s, RAID 0/1/10 - LAN: Realtek RTL8125B 2.5 Gb Ethernet - Wireless: Intel Wi-Fi 6 AX200, Bluetooth 5.1 - Audio: Realtek ALC S1200A, 7.1 CH HD, 24-bit/192kHz - USB Rear: 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0 - Display: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.2 - BIOS: 256 Mb Flash ROM, UEFI AMI - Warranty: 3 Years

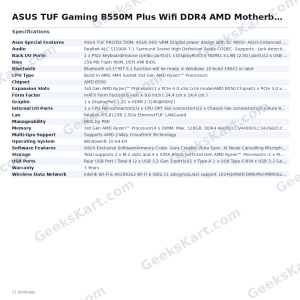

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B550 |
| CPU Type | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Lan | Realtek RTL8125B 2.5Gb EthernetTUF LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation AMD Ryzen PRO Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU |
| Graphic | 1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| Bluetooth | Bluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later |
| USB Ports | Rear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) |
| Manageability | WOL by PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A 1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s)1 x ASUS Wi-Fi Module |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode) *11 x PCIe 3.0 x1 *1* Support PCIe bifurcation for RAID on CPU function |
| Operating System | Windows® 10 64-bit |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX Technology |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi VRMFan Xpert 2- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector |
| Asus Special Features | ASUS TUF PROTECTION- ASUS DIGI VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU , DRAM , VGA , Boot Device )- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header |
| Wireless Data Network | Intel® Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interface |
