ASUS TUF Gaming B650M Plus DDR5 AMD Motherboard

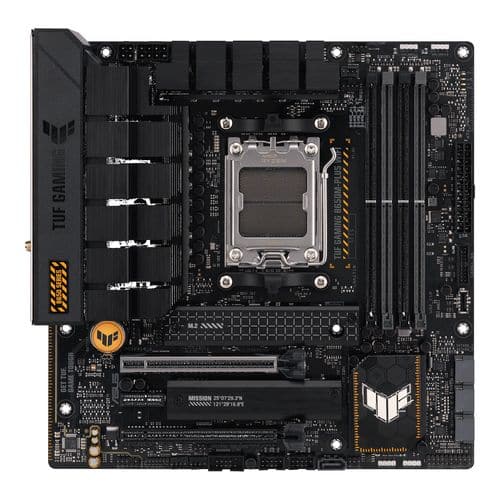

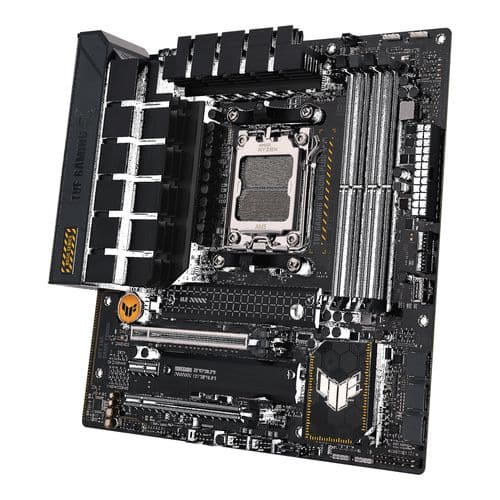

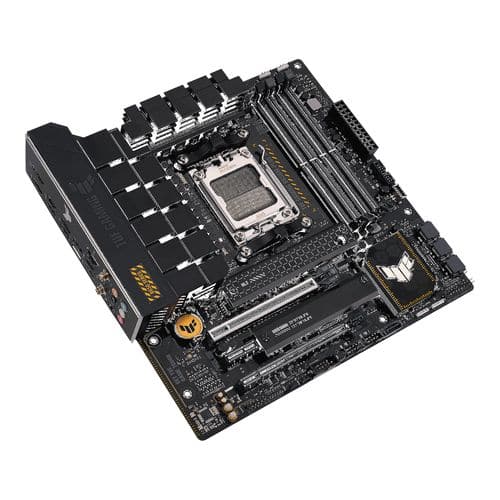

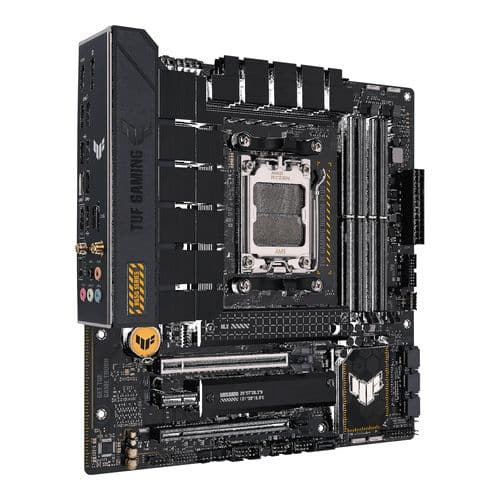

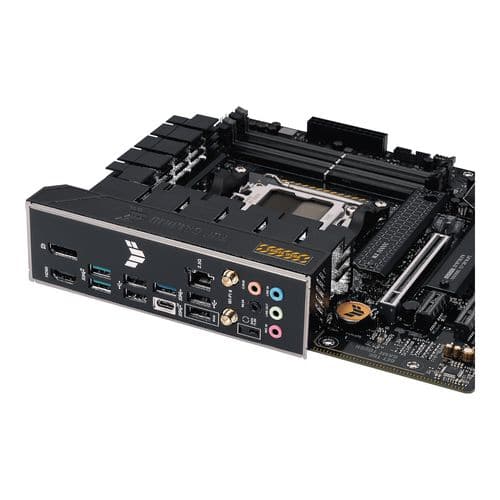

The ASUS TUF Gaming B650M-Plus is a Micro-ATX motherboard built around the AMD B650 chipset for AMD Ryzen 7000-series desktop processors on the AM5 socket. It pairs a mature feature set with durability-focused engineering, making it a capable foundation for a performance gaming or productivity build in a compact form factor. At the heart of the power delivery is a 12+2 teamed power-stage configuration paired with 8+4 ProCool power sockets, alloy chokes, and long-life capacitors. This arrangement is designed to supply clean, consistent power to Ryzen 7000-series CPUs under sustained workloads. Thermal management across the board is handled by enlarged VRM and PCH heatsinks, individual M.2 heatsinks, and six fan headers — including a dedicated AIO pump header and three 4-pin chassis fan connectors — all controllable through ASUS Fan Xpert 2+ inside Armoury Crate. Storage options are headlined by a PCIe 5.0 x4 M.2 slot (M.2_1, supporting 2242/2260/2280 drives) capable of throughput up to 128 Gbps, plus a secondary PCIe 4.0 x4 M.2 slot (M.2_2). Four SATA 6 Gb/s ports round out the storage array, and AMD RAIDXpert2 supports NVMe RAID 0/1/10 and SATA RAID 0/1/10. Connectivity on the rear I/O includes one USB 3.2 Gen 2x2 Type-C port (20 Gbps), two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 1 Type-A port, four USB 2.0 Type-A ports, a Thunderbolt/USB4 header onboard, plus one DisplayPort 1.4 (up to 8K@60Hz) and one HDMI 2.1 port (up to 4K@60Hz) for systems with integrated graphics. Networking is handled by a Realtek 2.5 Gb Ethernet controller with ASUS TUF LANGuard surge protection. Audio uses a Realtek 7.1 Surround Sound HD codec with dedicated audio PCB layers, audio shielding, premium capacitors, and a 98 dB signal-to-noise ratio on the stereo line-out, supporting 24-bit/192 kHz playback. DDR5 memory is supported across four DIMM slots with a maximum capacity of 128 GB. Validated speeds run from DDR5-4800 up to DDR5-6400+ (OC), with full AMD EXPO profile support for straightforward one-click overclocking on compatible kits. OptiMem II trace routing aids signal integrity. Builder-friendly features include BIOS FlashBack for CPU-free BIOS updates, Q-LED diagnostic indicators for CPU, DRAM, VGA and boot-device faults, M.2 Q-Latch tool-free SSD retention, Q-DIMM one-clip memory latches, and a pre-mounted I/O shield. Aesthetic options include one Aura RGB header and three Addressable Gen 2 headers for ARGB accessories, synced through ASUS Aura Sync via Armoury Crate. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in × 9.6 in (24.4 cm × 24.4 cm) - Socket / Chipset: AMD AM5 / AMD B650 - Supported CPUs: AMD Ryzen 7000-series desktop processors - Memory: 4 × DIMM, DDR5, max 128 GB; DDR5-4800 to DDR5-6400+ (OC); Dual-channel; EXPO support - Primary M.2 (M.2_1): PCIe 5.0 x4, types 2242/2260/2280 - Secondary M.2 (M.2_2): PCIe 4.0 x4, types 2242/2260/2280 - SATA: 4 × SATA 6 Gb/s - PCIe Slots: 1 × PCIe 4.0/3.0 x16 (CPU); 1 × PCIe 4.0/3.0 x16 (x4 mode, chipset); 1 × PCIe 4.0/3.0 x1 - Rear USB: 1 × USB 3.2 Gen 2x2 Type-C; 2 × USB 3.2 Gen 2 Type-A; 1 × USB 3.2 Gen 1 Type-A; 4 × USB 2.0 - Video Output: 1 × DisplayPort 1.4 (8K@60Hz), 1 × HDMI 2.1 (4K@60Hz) - Ethernet: 1 × Realtek 2.5 Gb - Audio: Realtek 7.1 Surround, 24-bit/192 kHz, 98 dB SNR (line-out) - Power: 12+2 teamed power stages; 8-pin + 4-pin +12V; 24-pin ATX - BIOS: 256 Mb Flash ROM, UEFI AMI BIOS - OS: Windows 11 / Windows 10 64-bit
