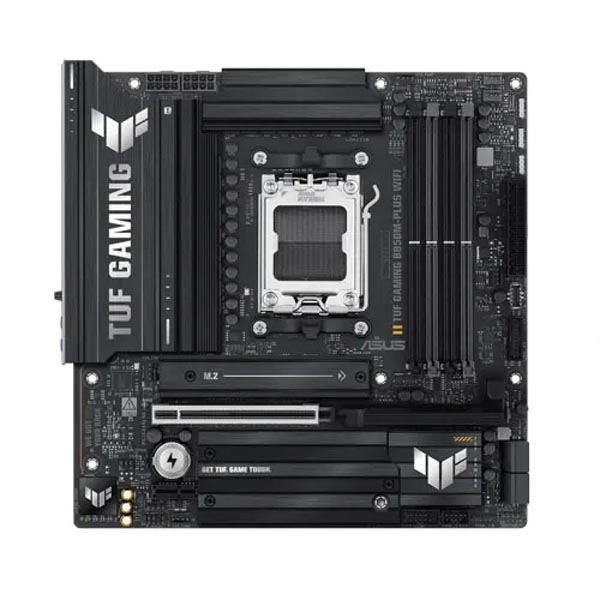

ASUS TUF Gaming B850M-Plus WIFI M-ATX Motherboard
MPN TUF-GAMING-B850M-PLUS-WIFI · Brand Asus · mATX
ASUS TUF Gaming B850M-Plus WIFI M-ATX Motherboard. Highlights: up to 8000+
Inclusive of GST · GST invoice available
Overview
The ASUS TUF Gaming B850M-Plus WIFI M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: AM5; Chipset: B850; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 8000+. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹24885 subject to availability — confirm at checkout
Datasheet
| Platform | AMD |
|---|---|
| Motherboard Series | Asus TUF |
| Graphics Port | 1 x DisplayPort,1 x HDMI |
| Memory Feature | Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the supported Brand Site. ** Specifications vary by CPU types. – To ensure compatibility of the device installed, please refer to Brand Site for the list of supported peripherals |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

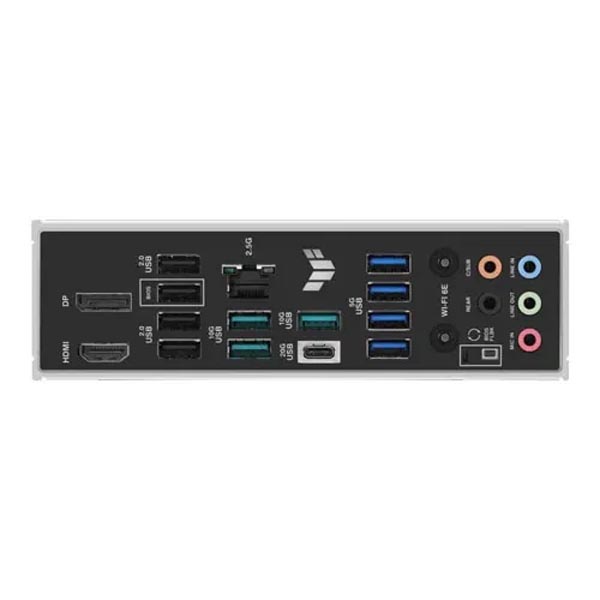

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O Connector | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8000+ |
