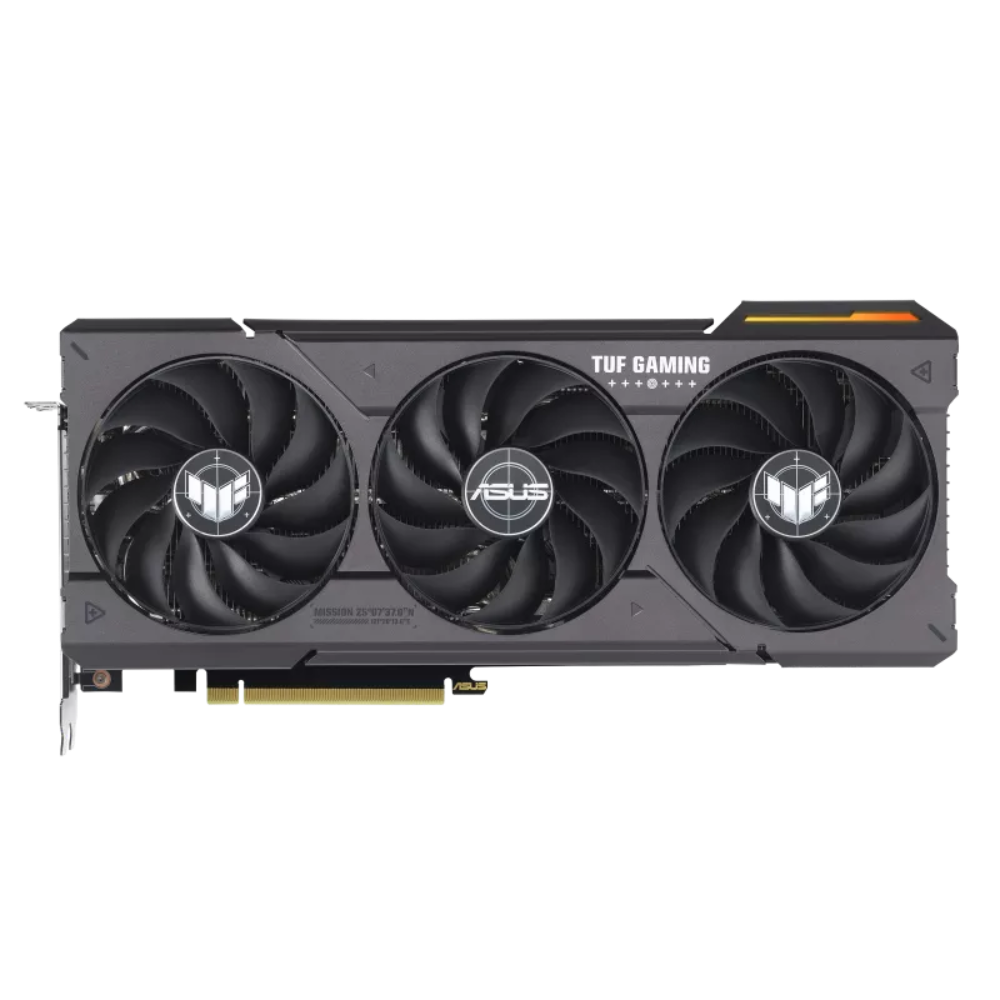

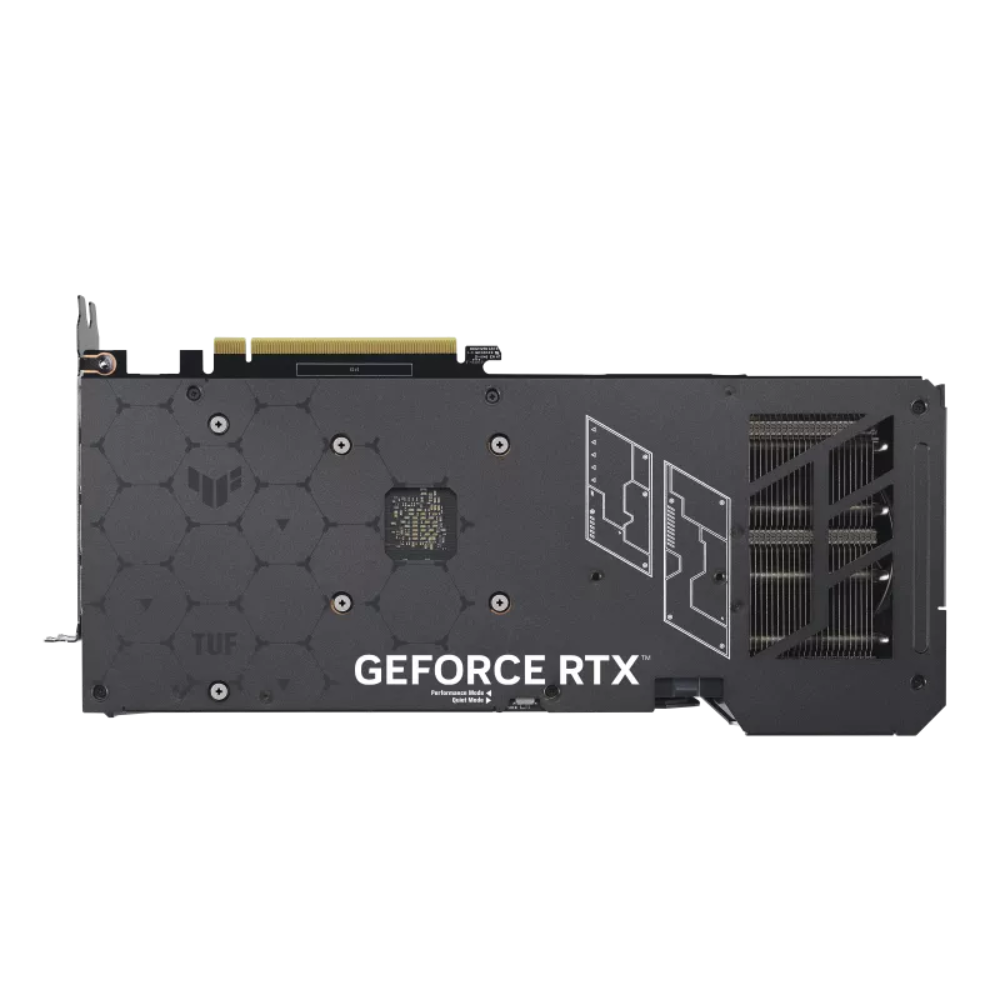

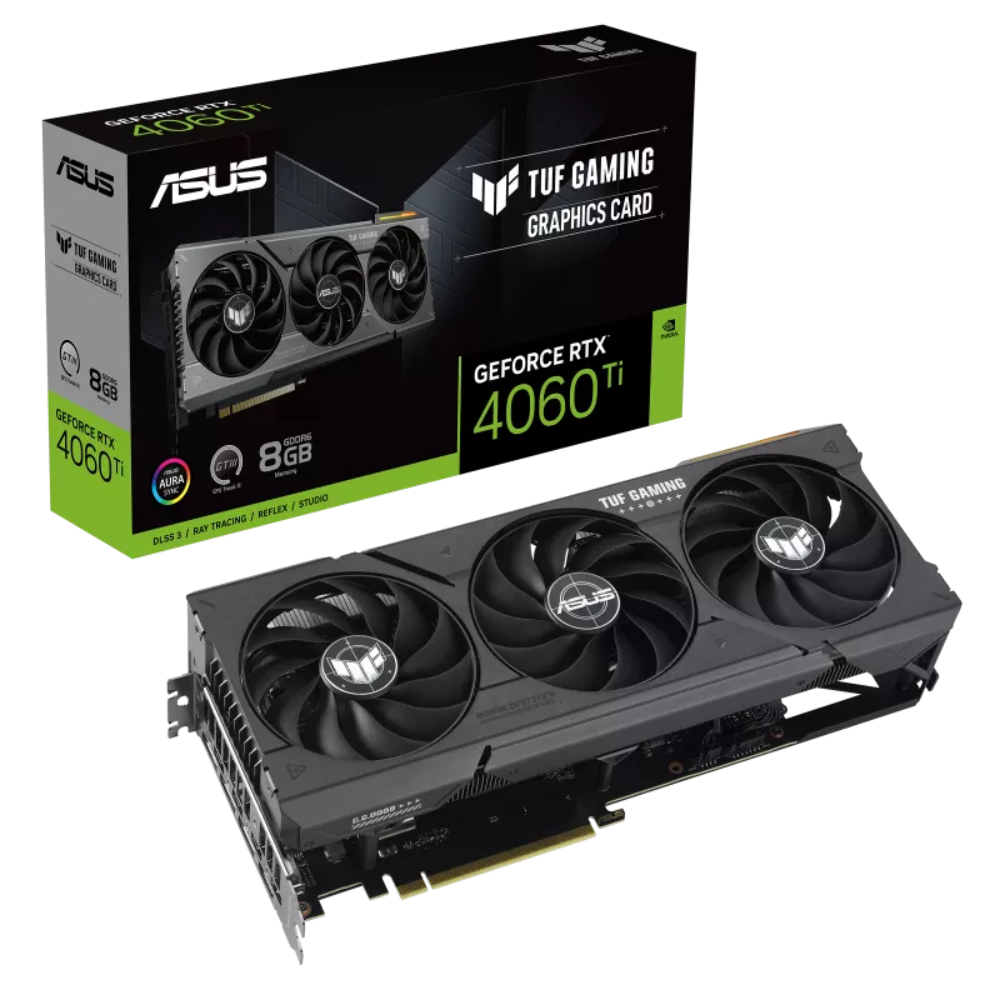

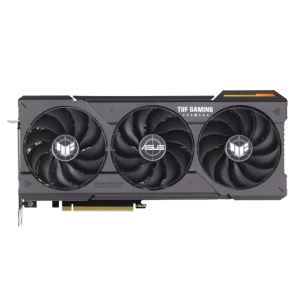

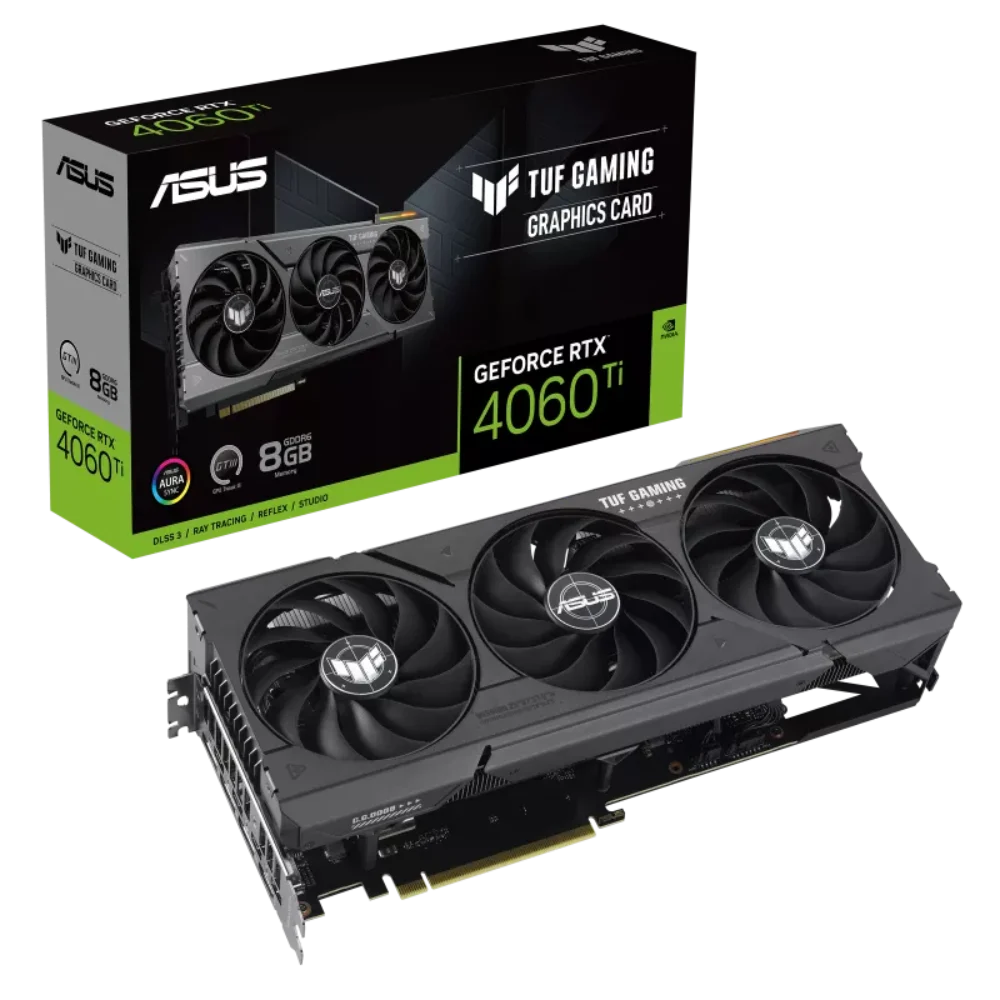

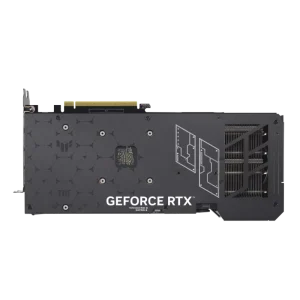

Features of ASUS TUF Gaming GeForce RTX 4060 Ti 8GB Nvidia Graphic Card
- AI Performance: 353 AI TOPS
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 21% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Vented exoskeleton adds structural rigidity and vents to increase heat reliability
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4060 Ti.
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.

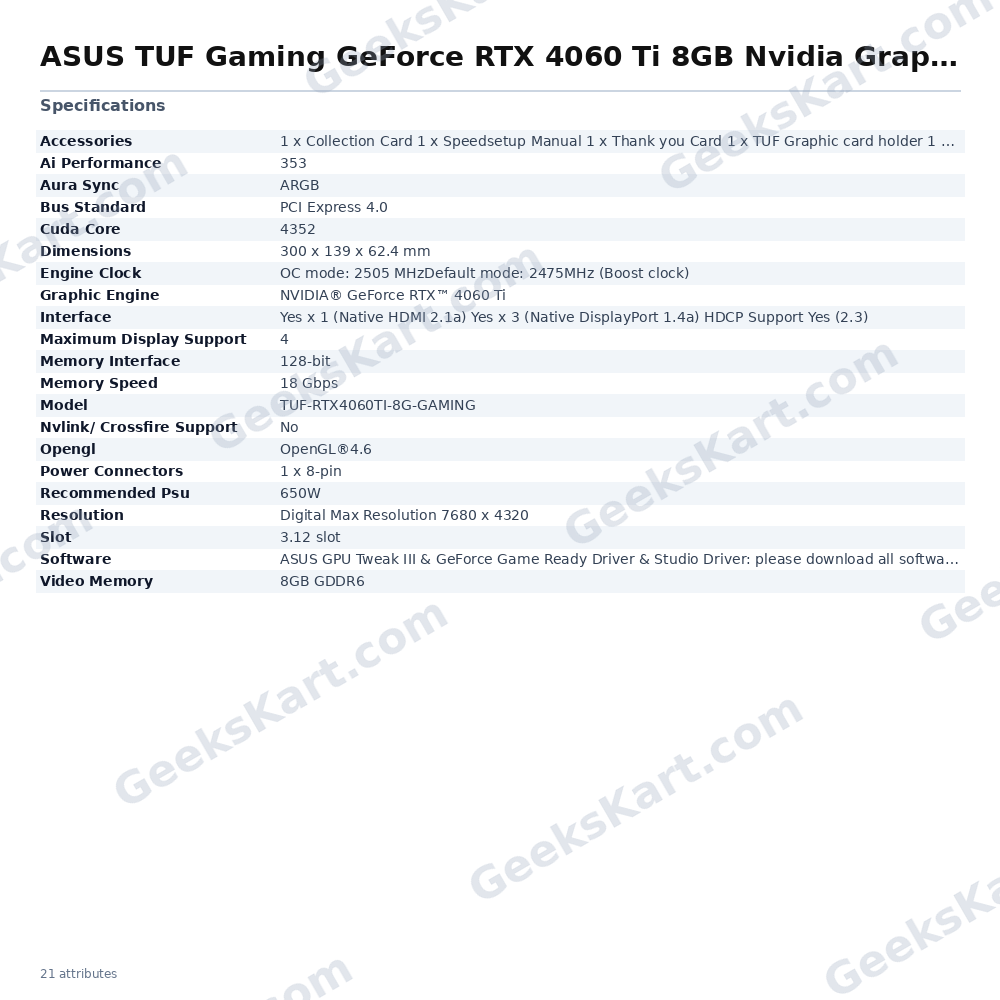

Specifications of ASUS TUF Gaming GeForce RTX 4060 Ti 8GB Nvidia Graphic Card
| Model No | 90YV0J51-M0AA00 |
| Model | TUF-RTX4060TI-8G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 4060 Ti |
| AI Performance | 353 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC mode: 2505 MHz Default mode: 2475MHz (Boost clock) |
| CUDA Core | 4352 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Thank you Card 1 x TUF Graphic card holder 1 x TUF Gaming Ceritificate 1 x TUF Velcro Hook & Loop |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 300 x 139 x 62.4 mm |
| Recommended PSU | 650W |
| Power Connectors | 1 x 8-pin |
| Slot | 3.12 slot |
| AURA SYNC | ARGB |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by a third party to ASUS based on false advertising or any other issues caused by using false specifications of ASUS products. |
