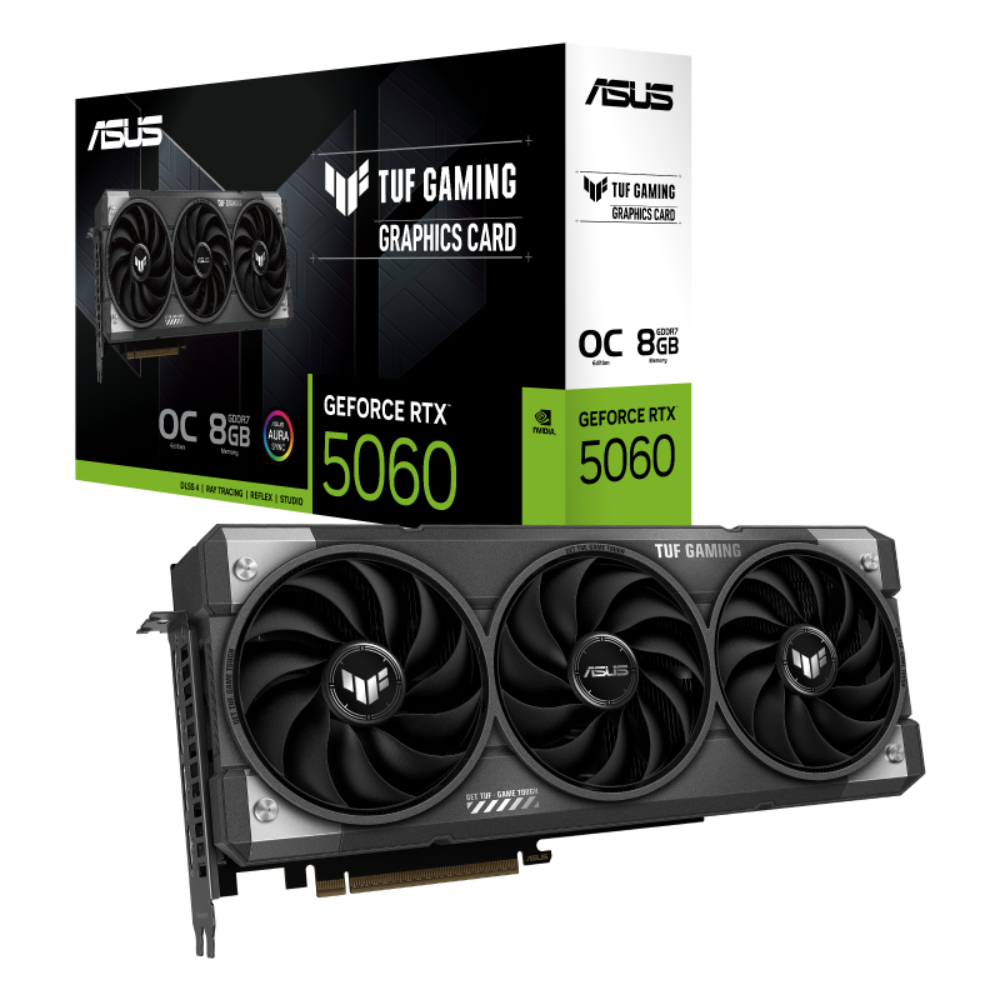

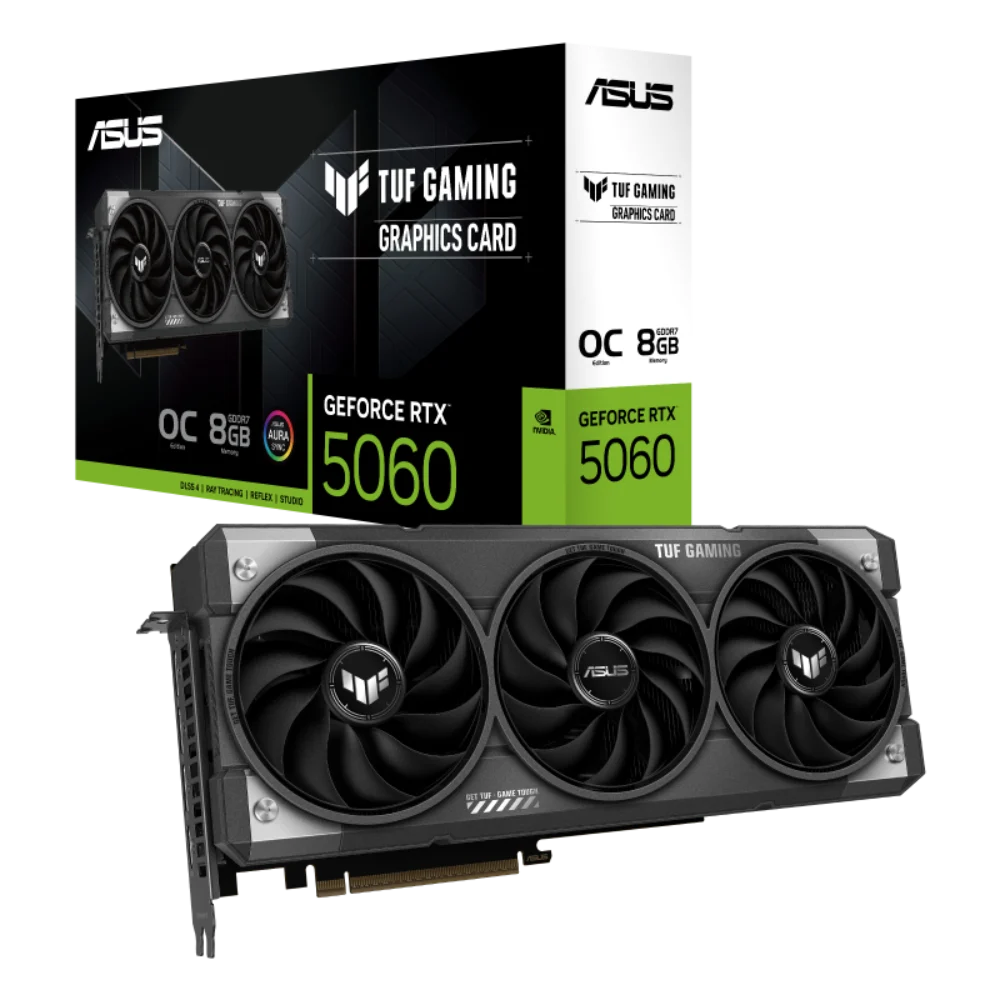

ASUS TUF Gaming GeForce RTX 5060 OC 8GB Nvidia Graphic Card

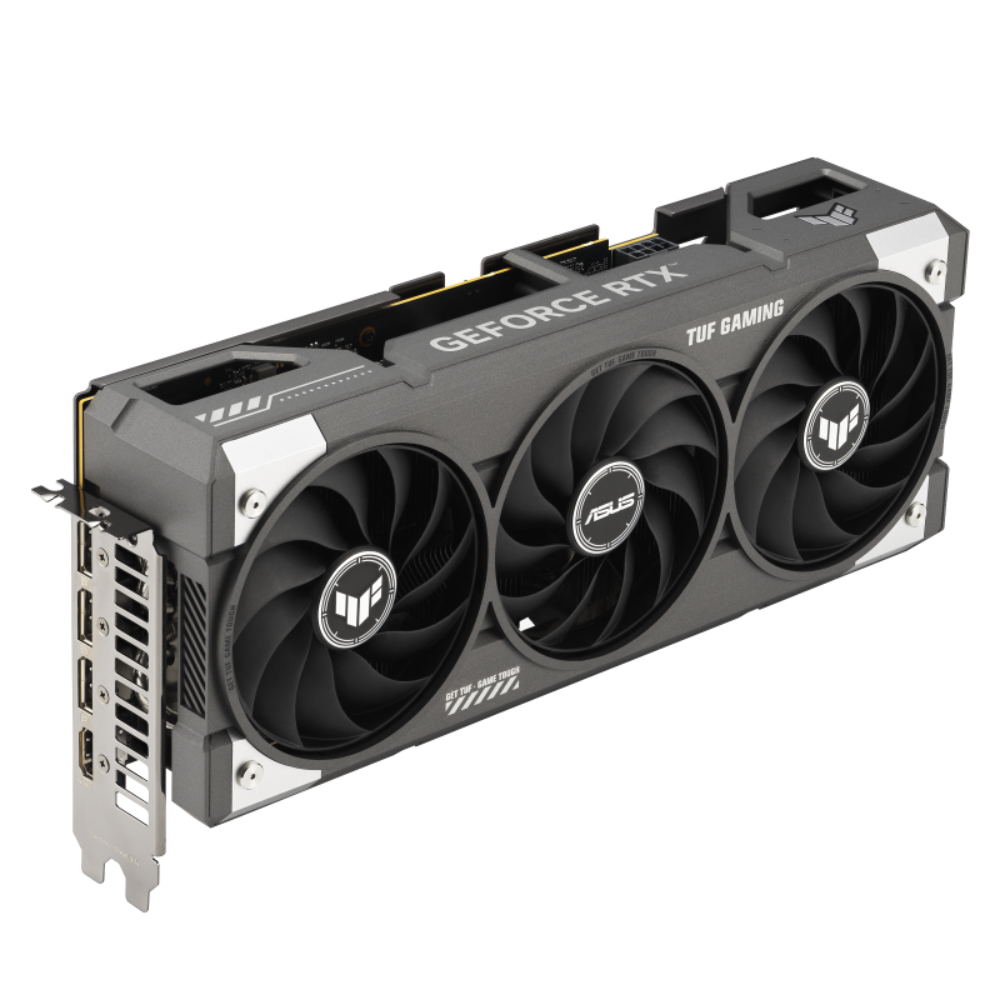

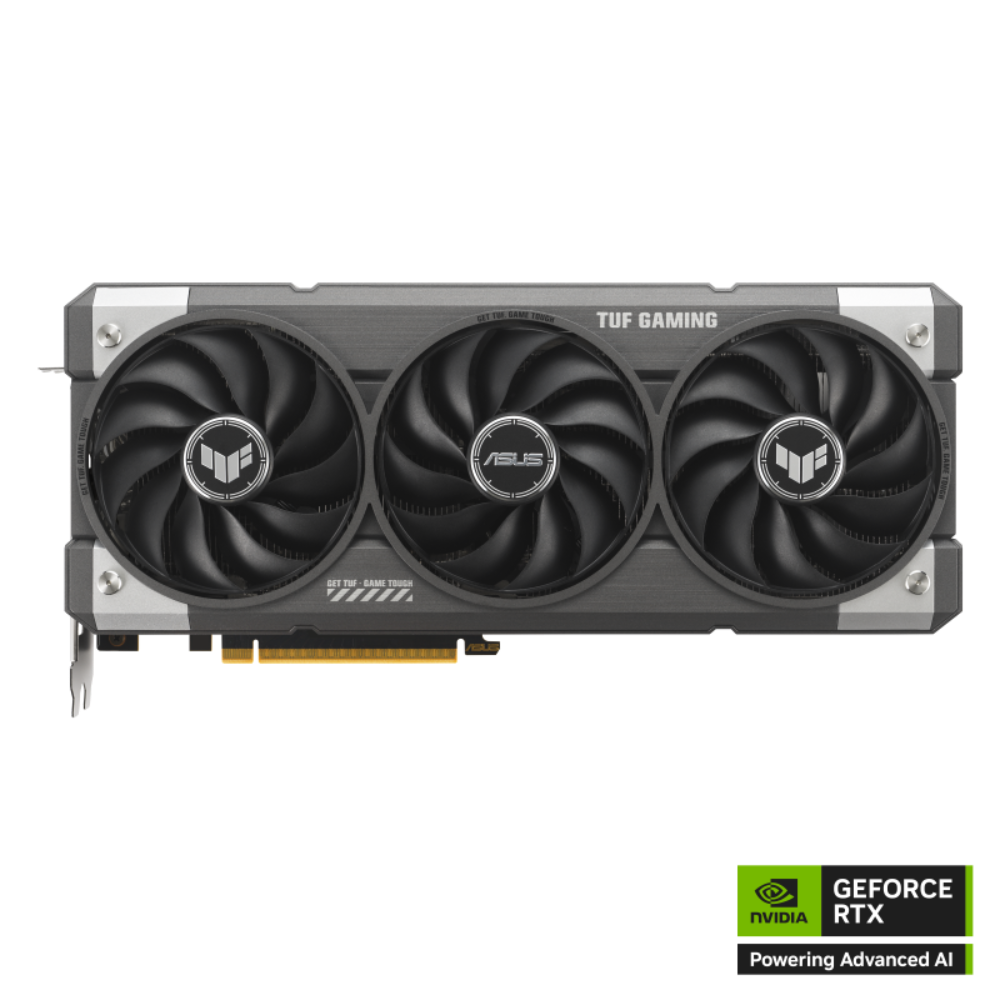

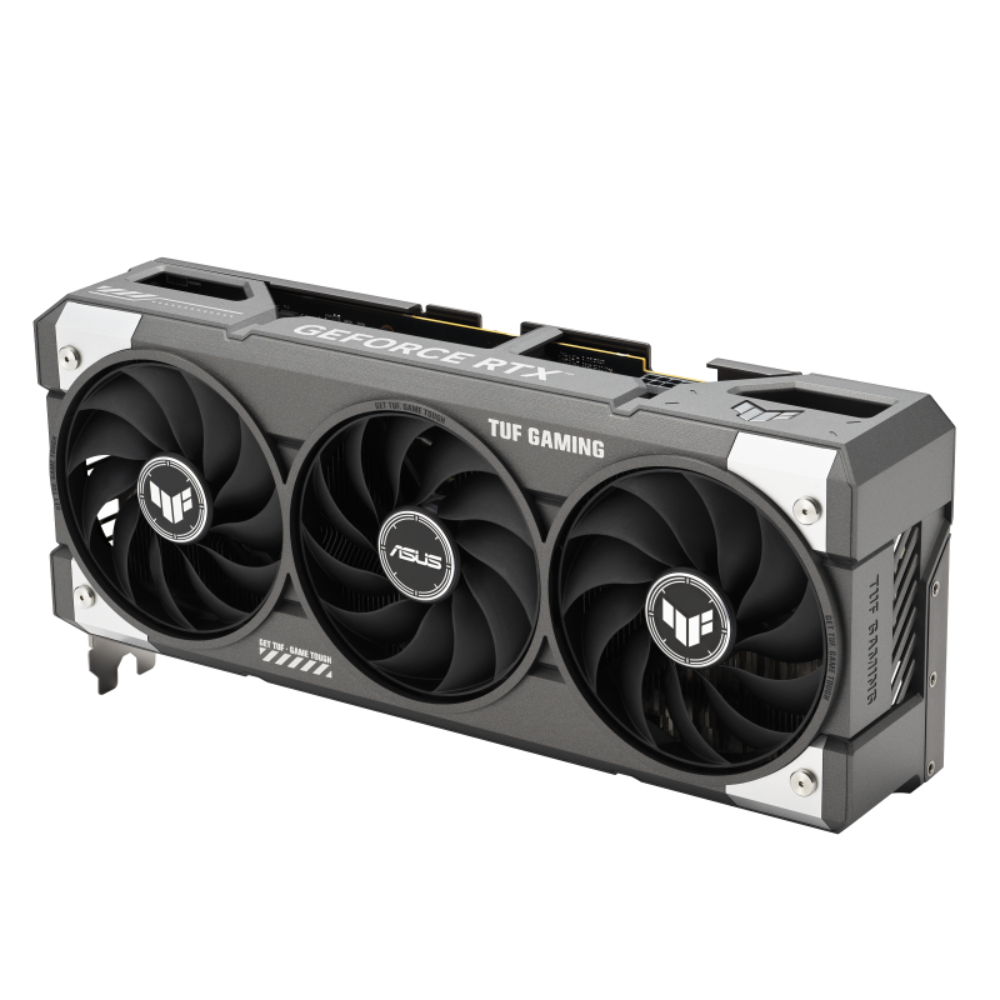

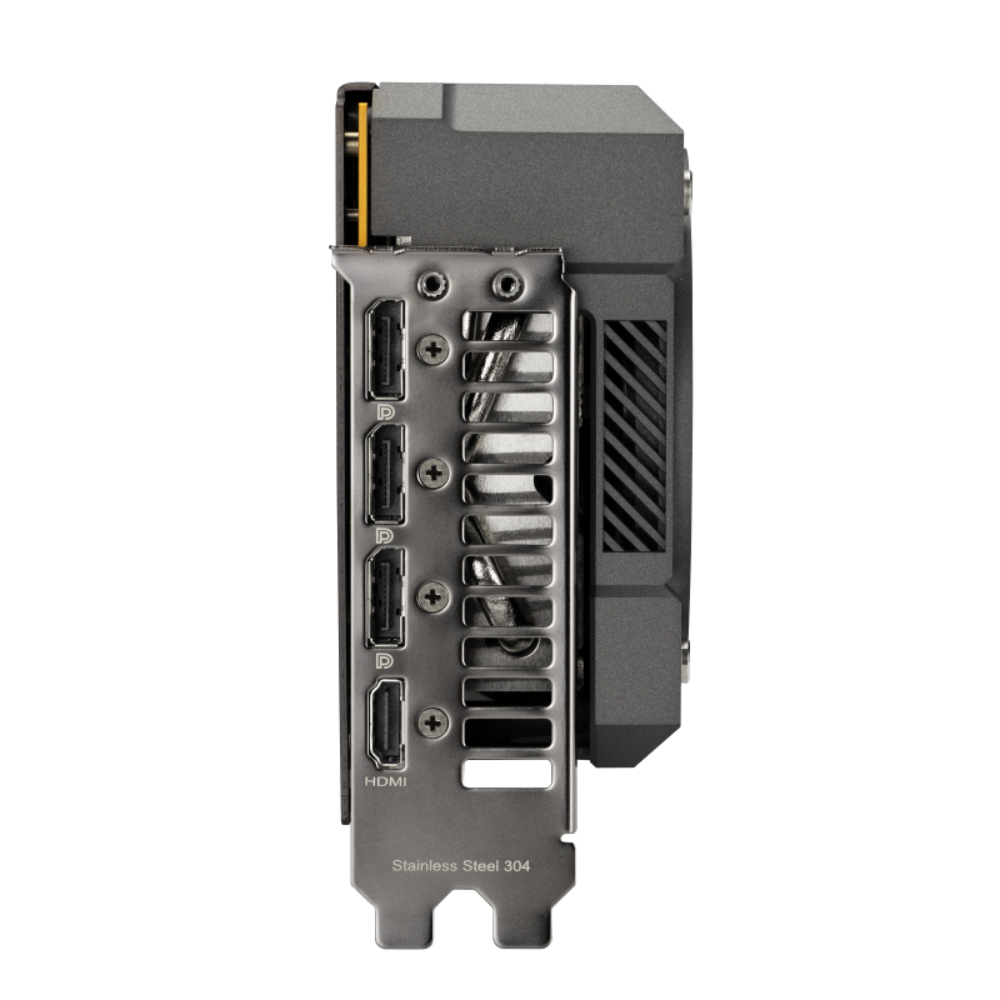

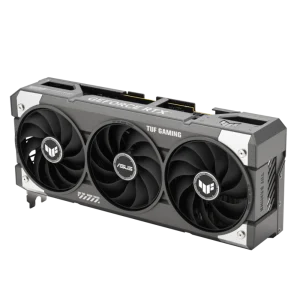

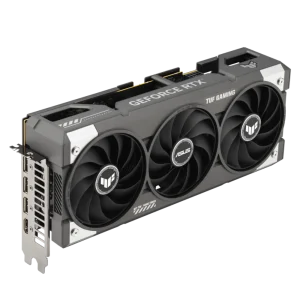

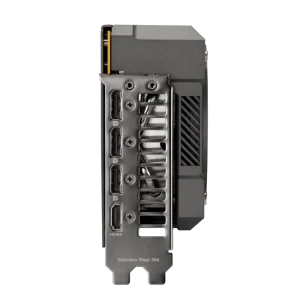

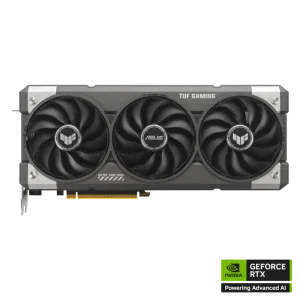

The ASUS TUF Gaming GeForce RTX 5060 OC (model TUF-RTX5060-O8G-GAMING, part number 90YV0N00-M0AA00) brings NVIDIA’s Blackwell architecture to the mainstream segment with a focus on durability, thermal performance, and sustained clock speeds. Built for gamers and creators who demand reliability, this card combines premium power delivery components with an advanced triple-fan cooling solution in a robust 3.1-slot form factor. At its core sit 3840 CUDA cores paired with 8GB of GDDR7 memory running at 28 Gbps across a 128-bit interface, delivering up to 648 TOPs of AI compute performance. In OC mode the GPU Boost clock reaches 2677 MHz, with the default mode Boost clock rated at 2640 MHz. The card connects via PCI Express 5.0, supports up to four displays simultaneously, and outputs video through one native HDMI 2.1b port and three native DisplayPort 2.1b ports — all with HDCP 2.3 support and a maximum digital resolution of 7680×4320 (8K). Thermal management is handled by three Axial-tech fans mounted on dual-ball bearings rated for up to 80,000 hours of operation. The two outer fans spin counterclockwise to reduce turbulence, while all three fans stop completely when GPU temperature drops below 50°C and resume above 55°C for quiet everyday use. ASUS’s MaxContact manufacturing process expands the heat-spreader contact surface by 5% compared to traditional designs, contributing to improved heat transfer in concert with an extensive heatsink array. The card is enclosed in a diecast shroud and aluminum backplate that resist PCB flex and feature large vents for additional heat dissipation. Power delivery relies on military-grade TUF chokes and MOSFETs alongside TUF 5K black metallic capacitors, which are rated for a 52% wider temperature tolerance and a 2.5× longer lifespan than standard capacitors. A single 8-pin power connector is required, and ASUS recommends a minimum 550W PSU for a fully overclocked system. The PCB is protected by a conformal coating that helps guard against short-circuits caused by moisture, dust, or debris, and ASUS GPU Guard adhesive secures all four PCB corners to reduce the risk of cracks. ARGB lighting is synchronised via ASUS AURA SYNC. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 (Blackwell) • CUDA Cores: 3840 • Video Memory: 8GB GDDR7 • Memory Speed: 28 Gbps | Memory Interface: 128-bit • Boost Clock — OC Mode: 2677 MHz | Default Mode: 2640 MHz • AI Performance: 648 TOPs • Bus Interface: PCI Express 5.0 • Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b (HDCP 2.3) • Max Resolution: 7680×4320 | Max Displays: 4 • Power Connector: 1× 8-pin | Recommended PSU: 550W • Dimensions: 302×133.5×62 mm | Slot: 3.1 • AURA SYNC: ARGB | OpenGL: 4.6 • NVLink/CrossFire: Not supported • Included: Speedsetup Manual, TUF Velcro Hook & Loop, TUF Gaming Certificate, Thank You Card • Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver
