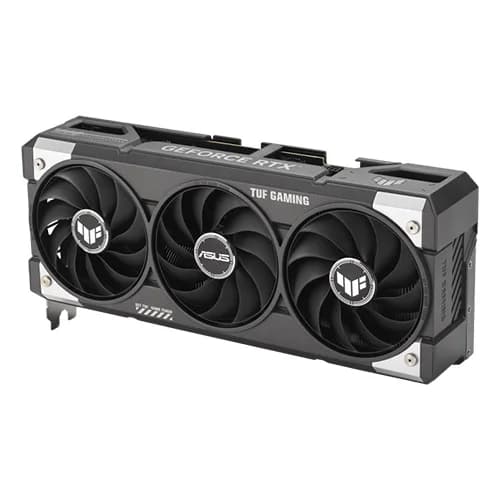

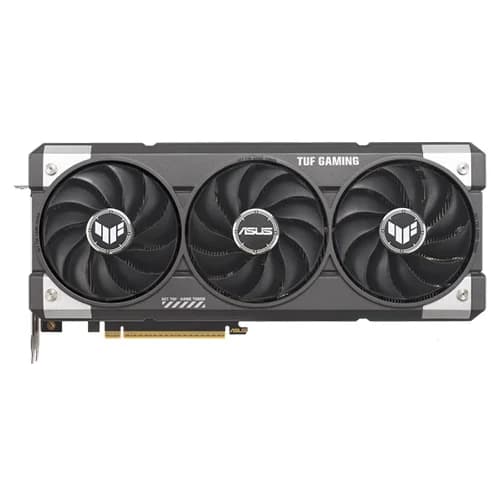

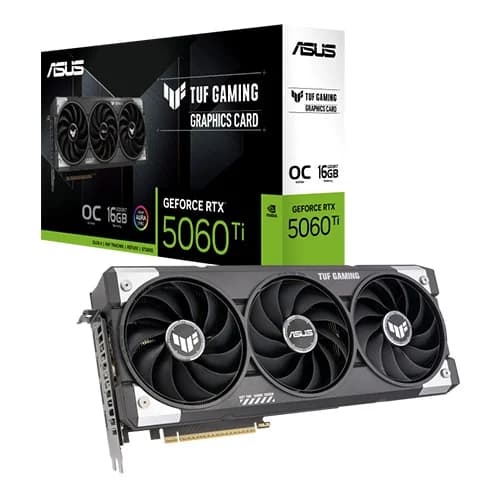

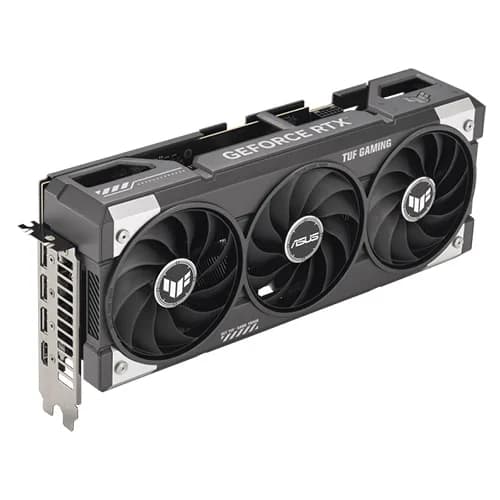

ASUS TUF Gaming Geforce RTX 5060 Ti OC Edition 16GB NVIDIA Graphic Card

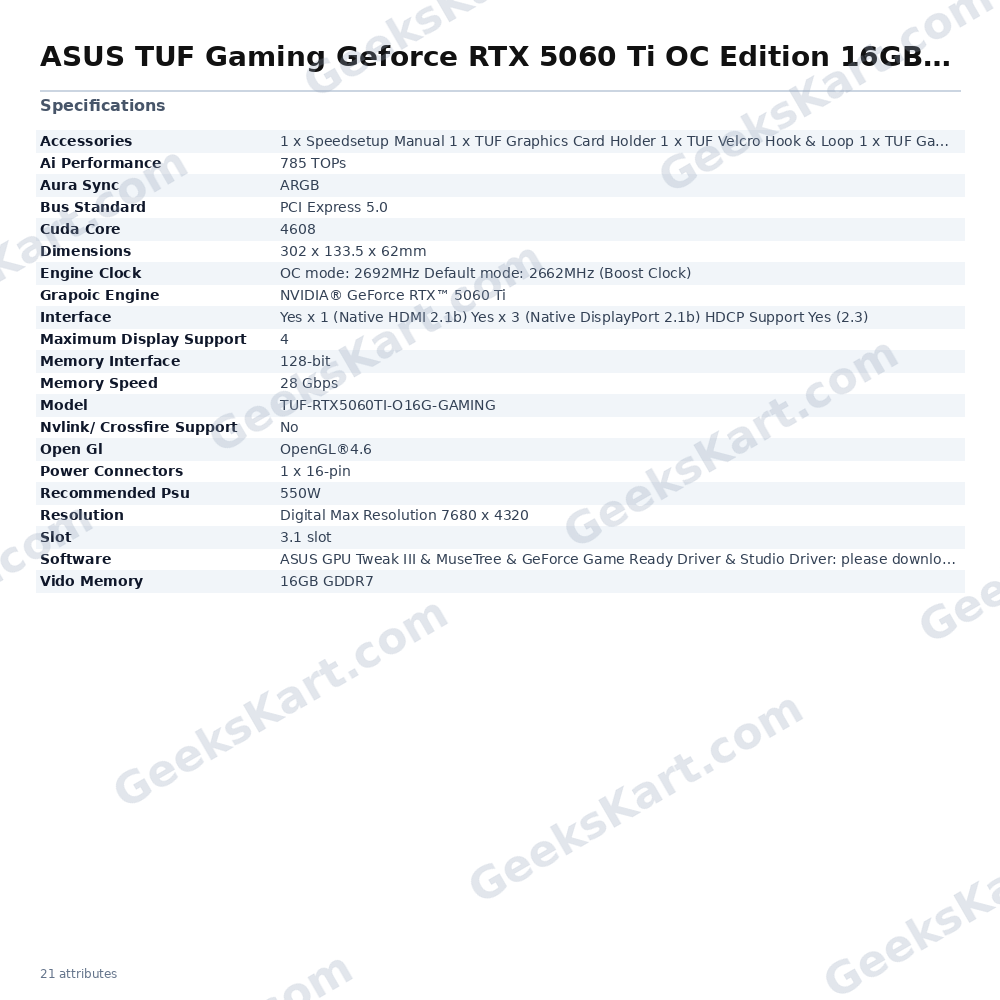

The ASUS TUF Gaming GeForce RTX 5060 Ti OC Edition 16GB is a purpose-built gaming and content-creation graphics card powered by NVIDIA’s Blackwell architecture. Carrying the model number TUF-RTX5060TI-O16G-GAMING, it combines an overclocked boost clock, robust power delivery components, and a hardened cooling assembly into a single 3.1-slot package. At its core the card runs 4608 CUDA cores with a boost clock of 2692 MHz in OC mode (2662 MHz in Default mode), backed by 16 GB of GDDR7 memory on a 128-bit bus operating at 28 Gbps. AI inferencing performance is rated at 785 TOPs, enabled by fifth-generation Tensor Cores with FP4 support and DLSS 4. Fourth-generation Ray Tracing Cores handle geometry-intensive workloads, while new Streaming Multiprocessors are optimised for neural shader pipelines. The power-delivery stage uses military-grade TUF chokes and MOSFETs for stable GPU voltage, alongside TUF 5K black metallic capacitors that offer a 52 % wider temperature tolerance and a 2.5× longer rated lifespan than standard capacitors. The PCB receives a conformal coating to guard against moisture, dust, and debris. Cooling is managed by Axial-tech fans mounted on dual-ball bearings rated to 80,000 hours — double the rated lifespan of typical sleeve bearings. The ASUS-exclusive MaxContact process increases heat-spreader contact area by 5 % compared with conventional designs, contributing up to a 2 °C improvement in GPU temperatures alongside an extensive heatsink array. The assembly is enclosed in a vented metal exoskeleton. Connectivity includes one native HDMI 2.1b port and three native DisplayPort 2.1b ports, supporting up to four displays simultaneously at a maximum digital resolution of 7680 × 4320 (8K). The card connects via PCI Express 5.0 and draws power through a single 16-pin connector; ASUS recommends a minimum 550 W PSU. NVLink and CrossFire multi-GPU are not supported. RGB lighting is provided through AURA SYNC ARGB. Software in the box includes ASUS GPU Tweak III, MuseTree, and GeForce Game Ready / Studio Drivers (downloaded from ASUS support). Accessories include a TUF Graphics Card Holder, TUF Velcro Hook and Loop, a 1-to-2 adapter cable, a TUF Gaming Certificate, and a Thank You Card. Verifiable specifications summary: • GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell) • CUDA Cores: 4608 • Memory: 16 GB GDDR7, 128-bit, 28 Gbps • Boost Clock: 2692 MHz (OC) / 2662 MHz (Default) • AI Performance: 785 TOPs • Bus Interface: PCIe 5.0 • Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b (max 4 displays, 8K) • Power Connector: 1× 16-pin; Recommended PSU: 550 W • Dimensions: 302 × 133.5 × 62 mm; Slot: 3.1 • OpenGL: 4.6; HDCP: 2.3; AURA SYNC: ARGB
