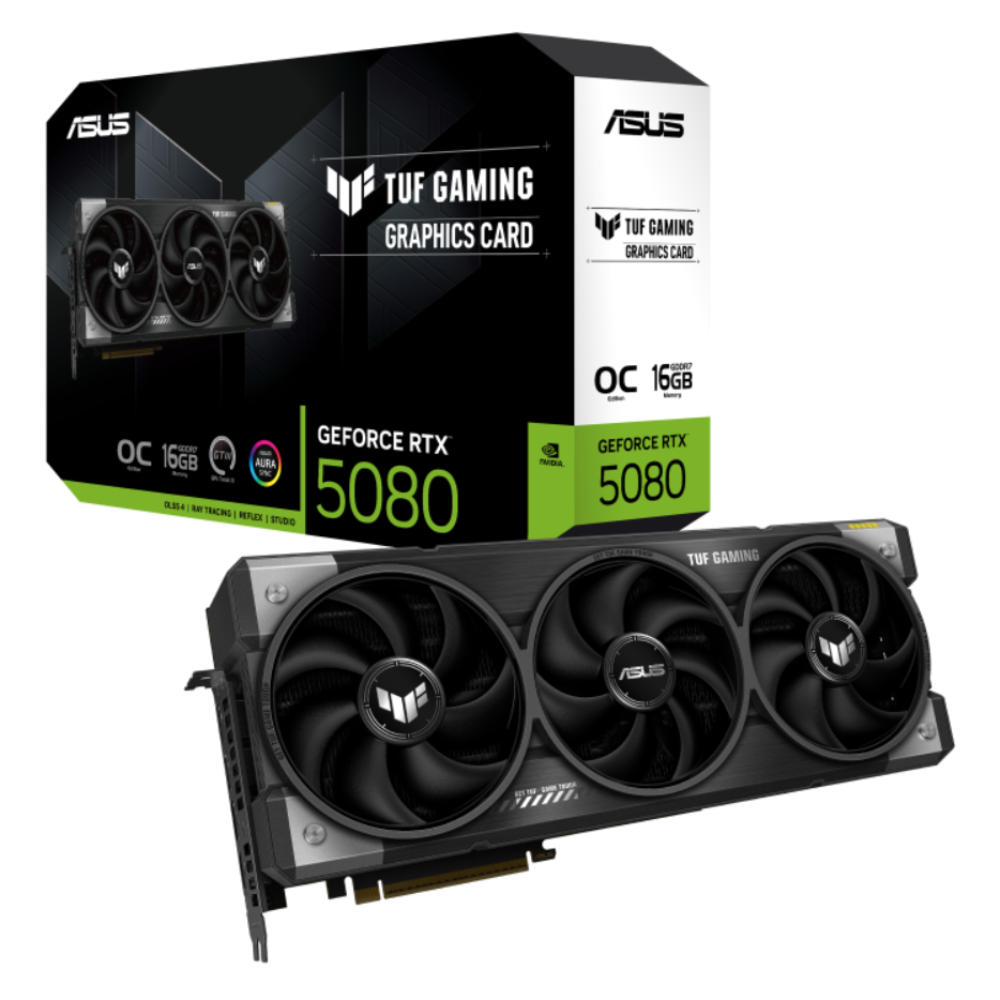

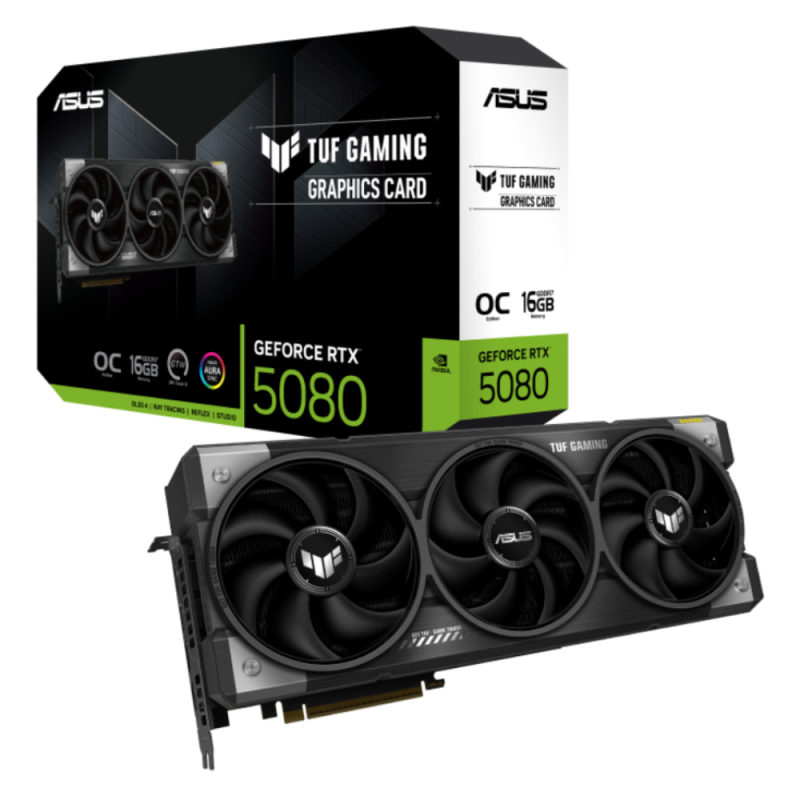

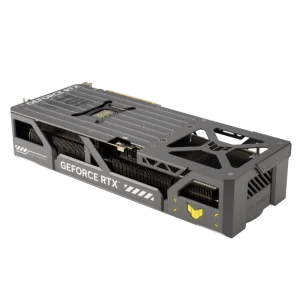

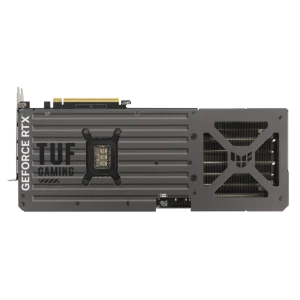

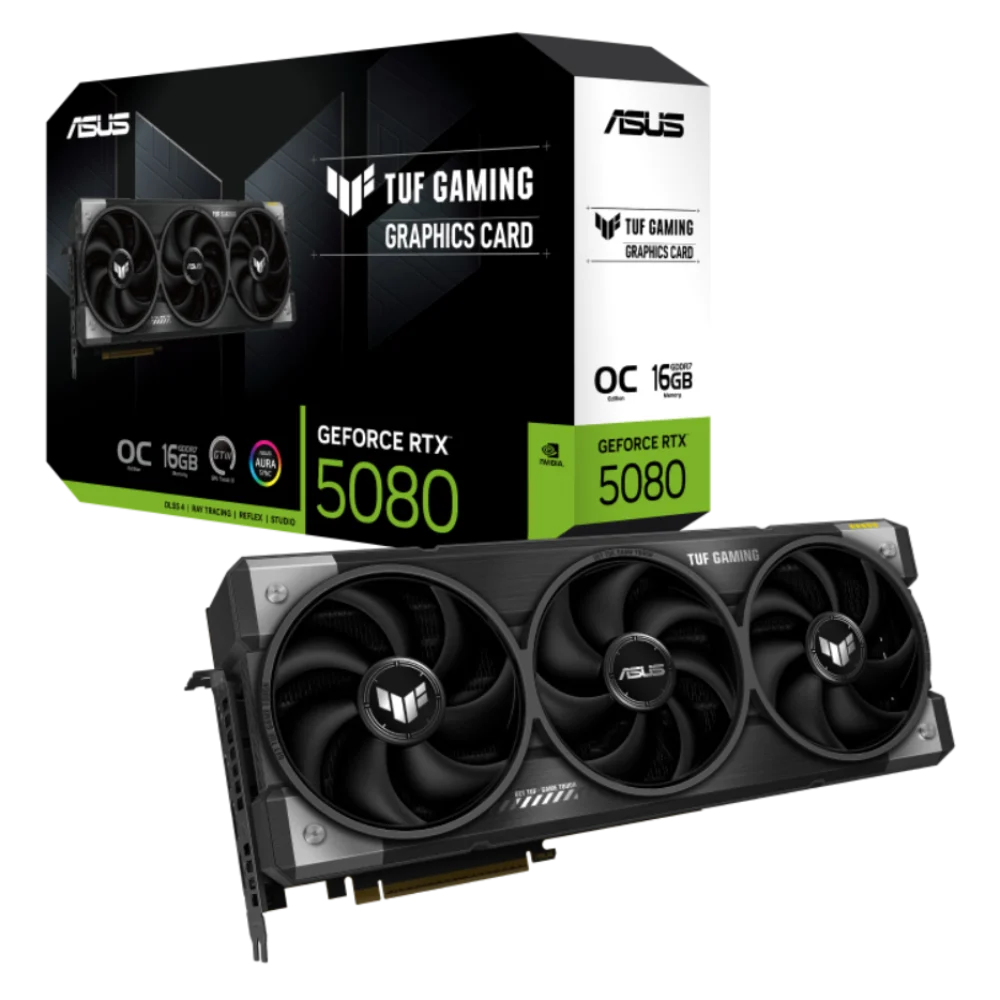

ASUS TUF Gaming GeForce RTX 5080 OC 16GB Nvidia Graphic Card

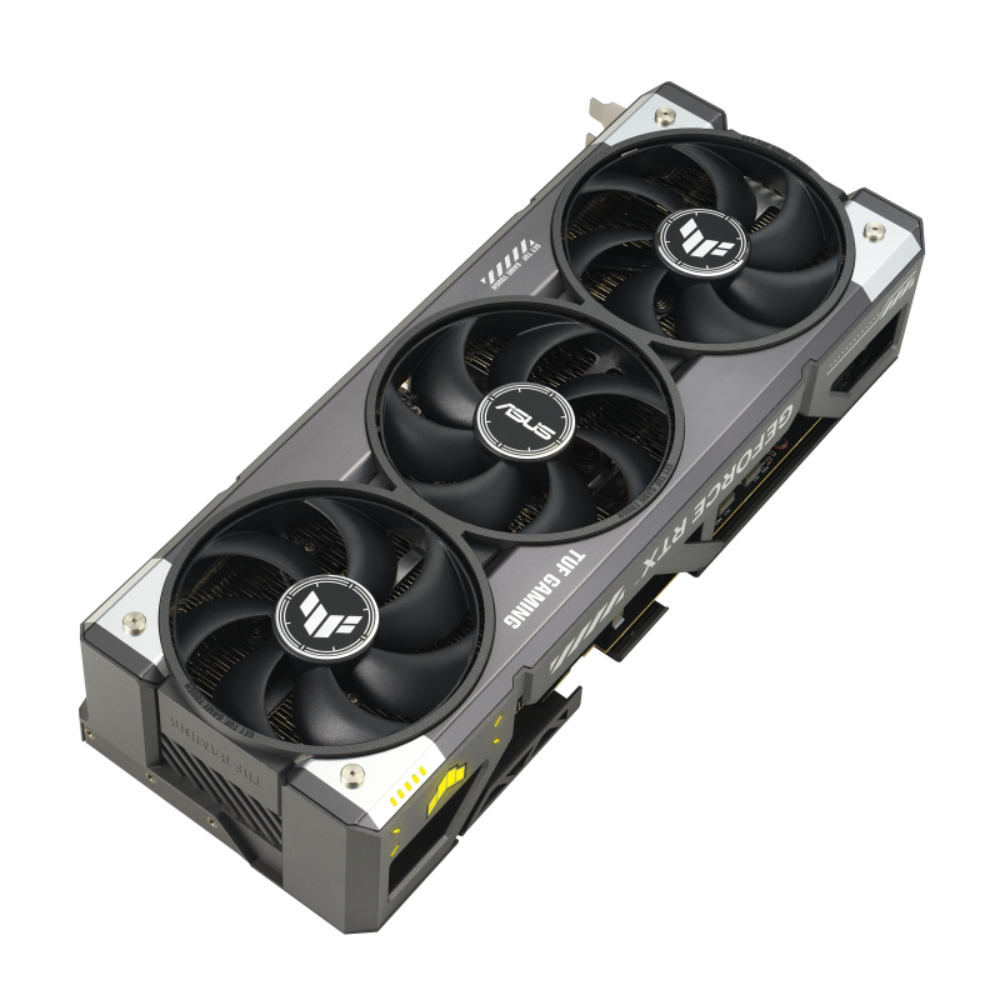

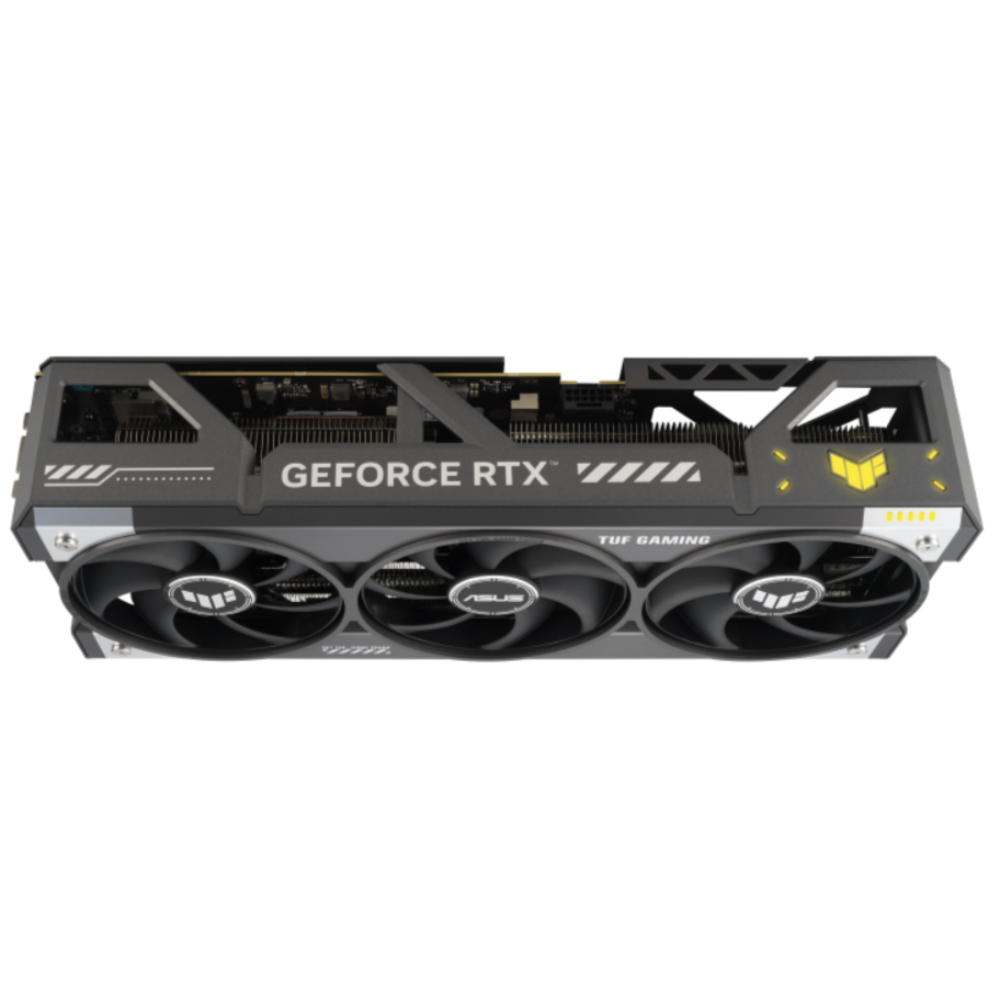

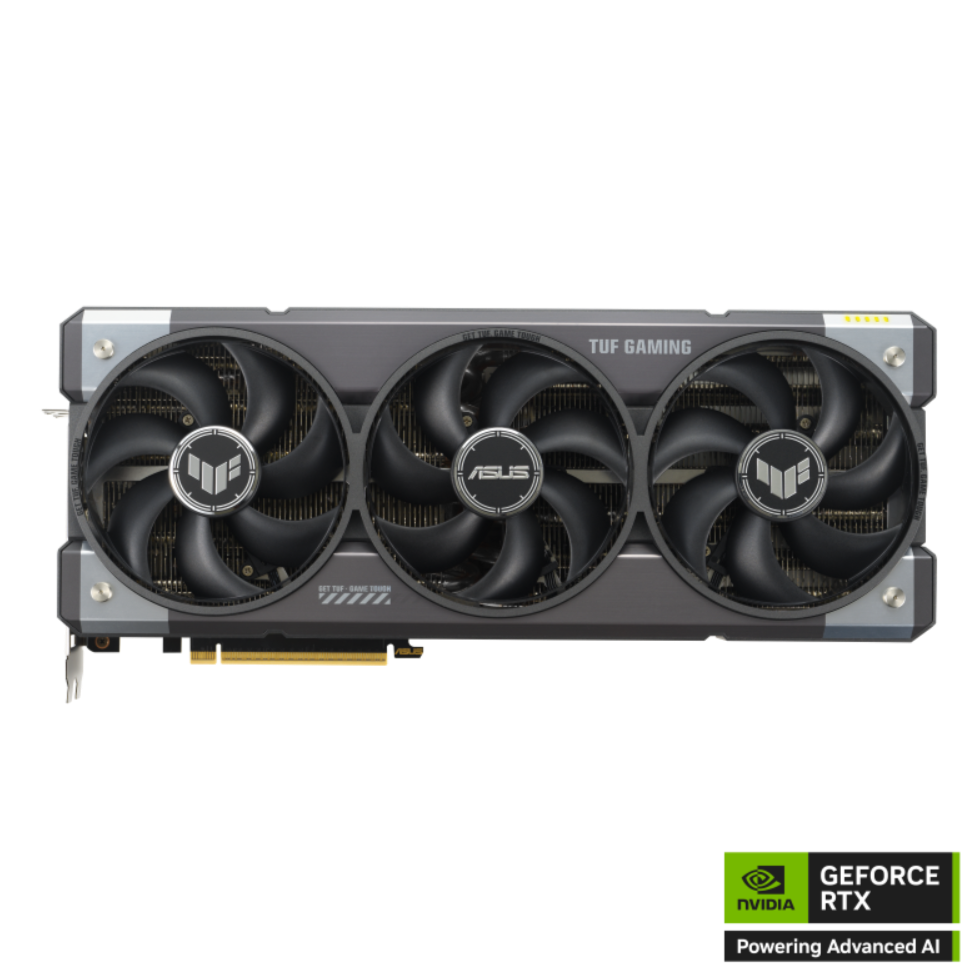

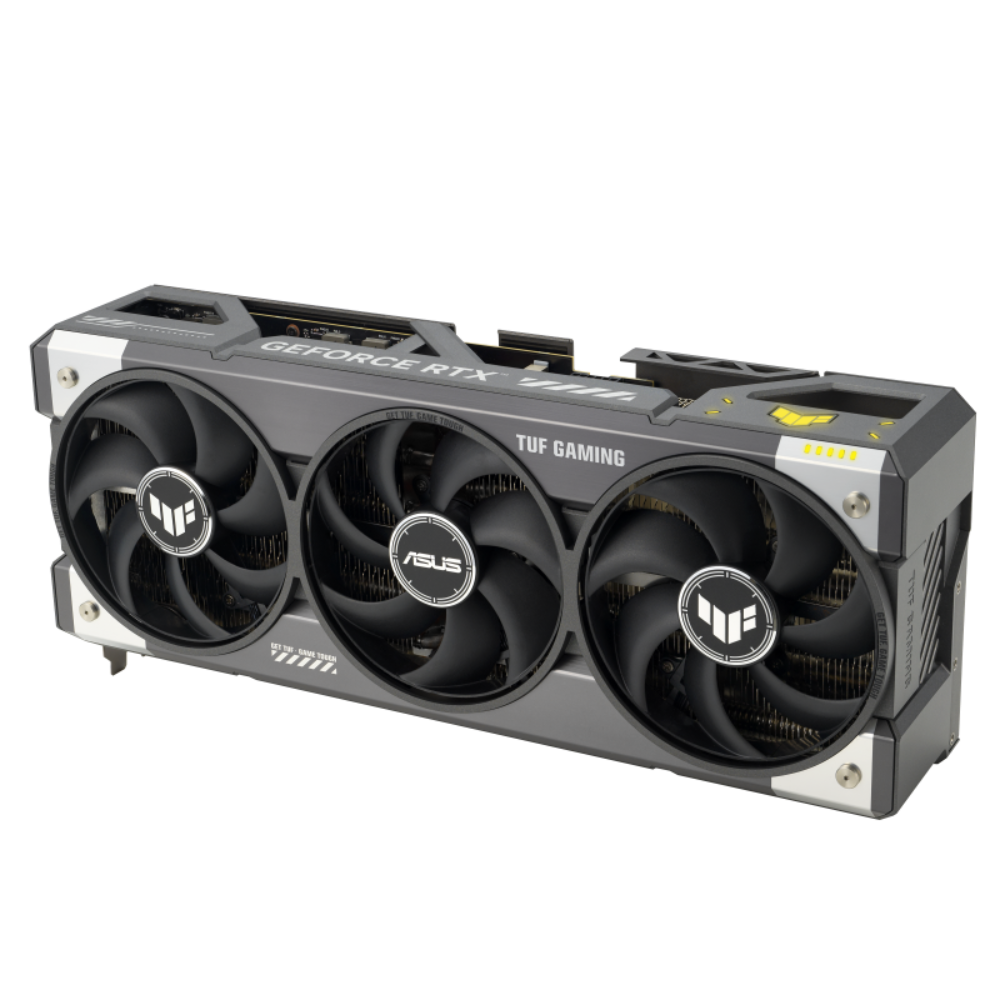

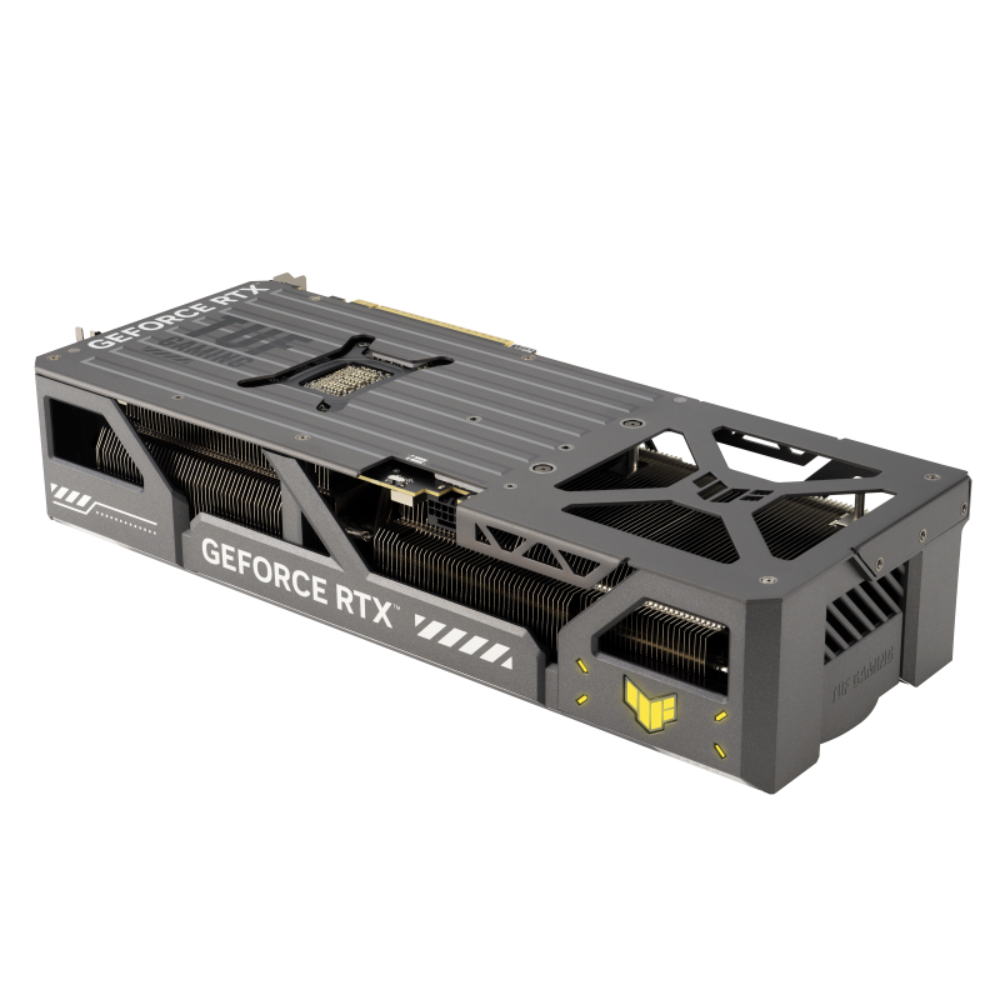

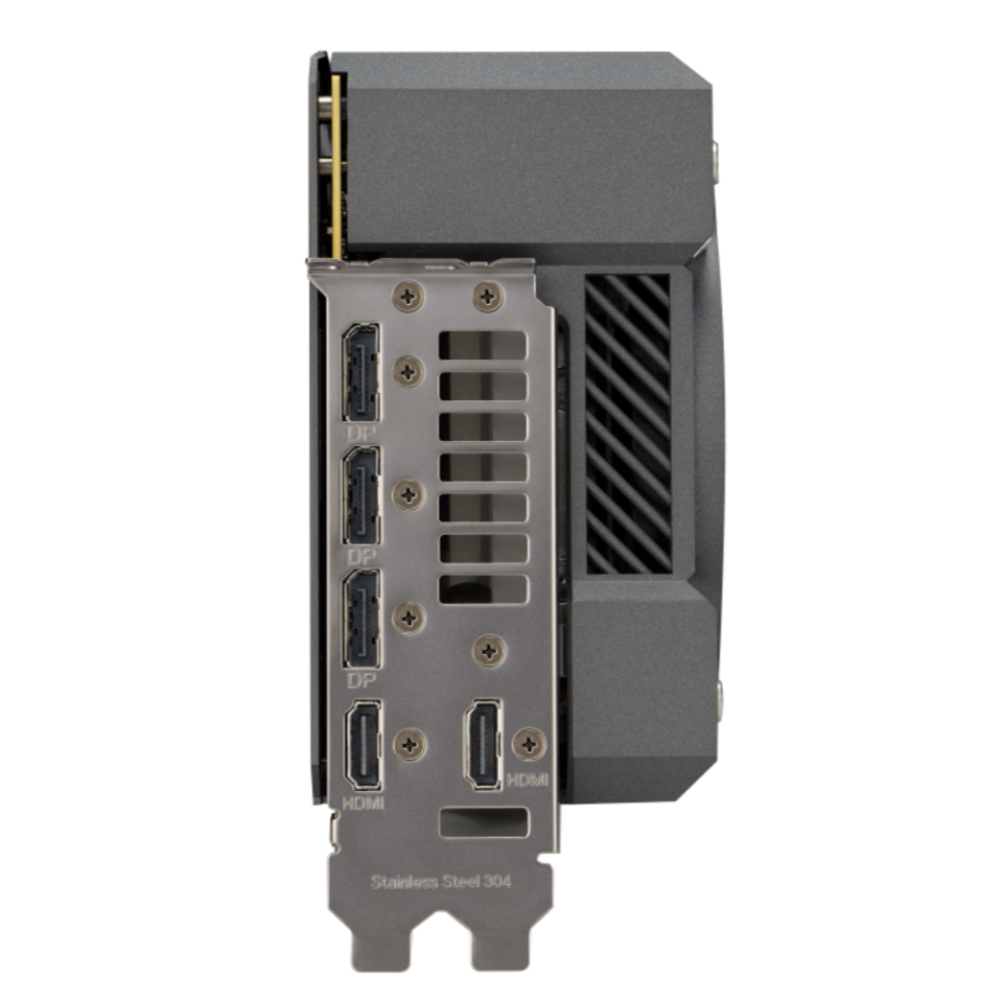

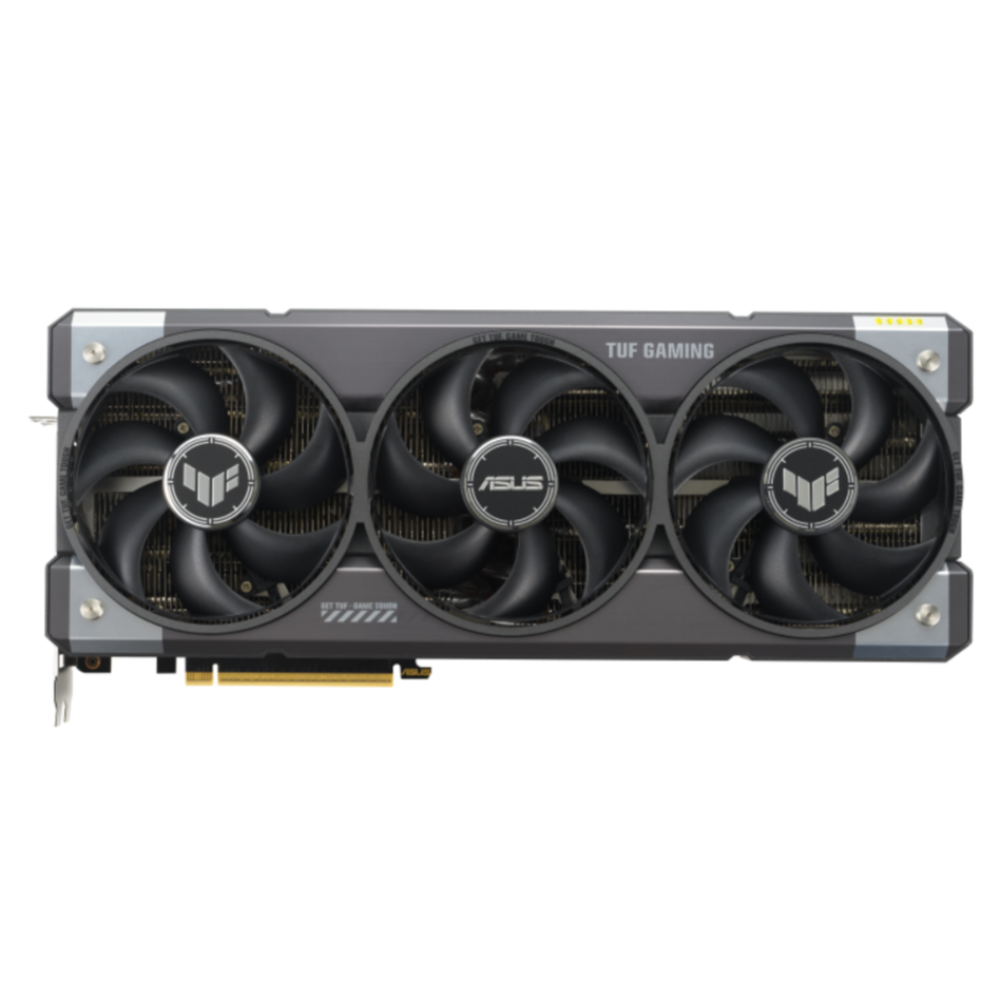

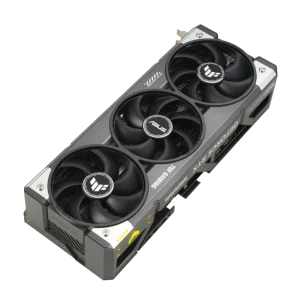

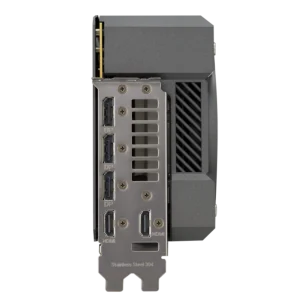

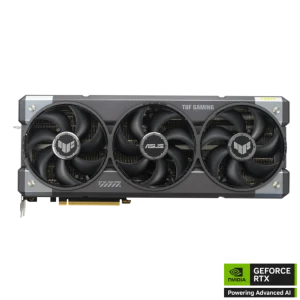

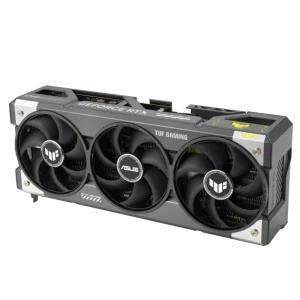

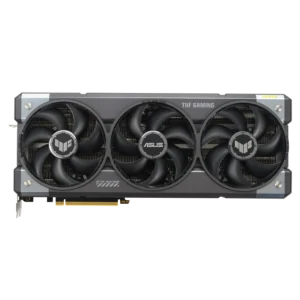

The ASUS TUF Gaming GeForce RTX 5080 OC (model TUF-RTX5080-O16G-GAMING, part number 90YV0M30-M0IA00) is a high-performance desktop graphics card built on the NVIDIA Blackwell architecture. It pairs 10752 CUDA cores with 16 GB of GDDR7 video memory running at 30 Gbps across a 256-bit memory interface, enabling demanding 4K and up to 7680×4320 workloads across up to four simultaneous displays. Cooling is handled by a triple Axial-tech fan array mounted on dual-ball bearings rated up to 80,000 hours — double the longevity cited for sleeve-bearing designs. ASUS’s MaxContact manufacturing process increases the heat-spreader contact area by 5% compared to conventional designs, reducing GPU temperatures by up to 2°C in combination with a large vapor chamber and extensive heatsink array. A phase-change GPU thermal pad fills microscopic gaps between the die and thermal module for superior heat transfer. The two outer fans rotate counter-clockwise to minimise turbulence, and all three fans stop below 50°C for silent operation during light loads, restarting above 55°C along an acoustics-optimised speed curve. Power delivery relies on certified military-grade TUF chokes and MOSFETs for stable GPU power, complemented by TUF 5K black metallic capacitors offering 52% wider temperature tolerance and a 2.5× longer lifespan than standard capacitors. A conformal PCB coating helps guard against moisture, dust, and debris. The Auto-Extreme automated soldering process completes all joints in a single pass, reducing thermal strain on components and lowering manufacturing energy use. An ASUS GPU Guard adhesive secures all four PCB corners, while an included GPU bracket provides uniform mounting pressure. Connectivity spans three native DisplayPort 2.1b and two native HDMI 2.1b outputs, with HDCP 2.3 support, over a PCI Express 5.0 bus. The card occupies 3.6 slots and measures 348 × 146 × 72 mm (13.7 × 5.7 × 2.8 in), requiring a single 16-pin power connector and a minimum 850 W PSU (based on a fully overclocked GPU and CPU configuration). ARGB lighting is AURA SYNC compatible. Software support includes ASUS GPU Tweak III, MuseTree, and NVIDIA GeForce Game Ready and Studio drivers. Key Verified Specifications: • GPU: NVIDIA GeForce RTX 5080 (Blackwell) • CUDA Cores: 10,752 • Video Memory: 16 GB GDDR7 • Memory Speed: 30 Gbps | Memory Interface: 256-bit • Bus: PCI Express 5.0 • Outputs: 3× DisplayPort 2.1b, 2× HDMI 2.1b (max 4 simultaneous displays) • Max Resolution: 7680 × 4320 • Dimensions: 348 × 146 × 72 mm | Slot: 3.6 • Power Connector: 1× 16-pin | Recommended PSU: 850 W • OpenGL: 4.6 | AURA SYNC: ARGB • Engine Clock & AI Performance: TBD (not disclosed at time of listing)
