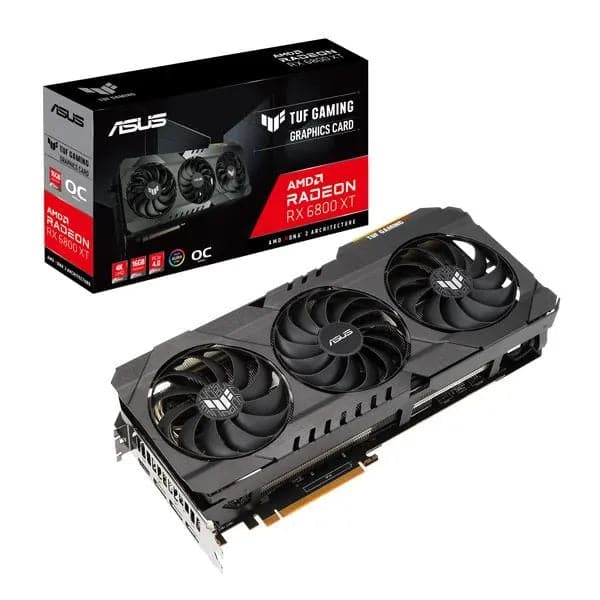

ASUS TUF Gaming Radeon RX 6800 XT OC 16GB AMD Graphic Card

Name: ASUS TUF Gaming Radeon RX 6800 XT OC 16GB AMD Graphic Card…
Brand: ASUS
SKU: ASUS-RX-6800-XT-OC-16GB
Price: 105730.00 INR
Availability: OutOfStock

MPN ASUS-RX-6800-XT-OC-16GB · Brand ASUS

Features of ASUS TUF Gaming Radeon RX 6800 XT OC 16GB AMD Graphic Card ASUS TUF GAMING Radeon™ RX 6800 XT is a truly tenacious performer Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme. Dual ball fan bearings can last up to twice as long as sleeve bearing designs. An all-aluminum shroud, reinforced frame, and metal backplate enhance durability. MaxContact heat spreader features a super flat surface for improved thermal transfer. A 144-hour validation progra

Memory Interface 256-BIT Warranty 3 Years Chipset AMD RADEON Memory Type GDDR6

₹105,730.00

Inclusive of GST · GST invoice available

Out of stock

Warranty

3 Years

Dispatch

24–48 hrs

Returns

7-day

Overview

Features of ASUS TUF Gaming Radeon RX 6800 XT OC 16GB AMD Graphic Card

ASUS TUF GAMING Radeon™ RX 6800 XT is a truly tenacious performer

Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
MaxContact heat spreader features a super flat surface for improved thermal transfer.
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
A vented backplate prevents hot air from recirculating through the cooling array.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

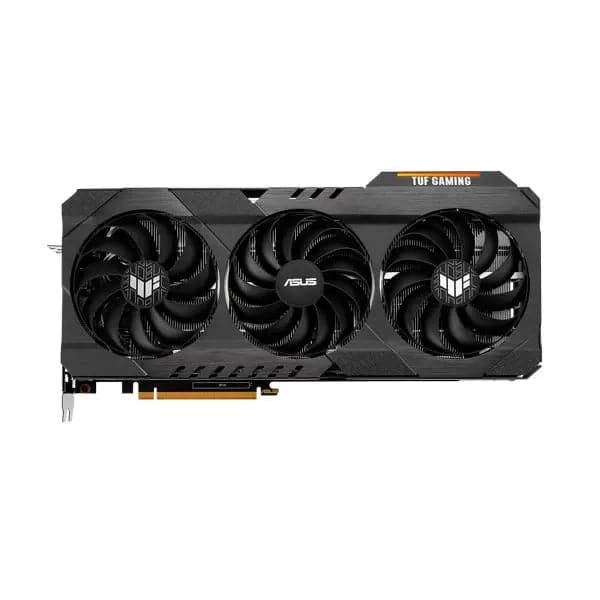

Bigger, Better Cooling

This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations.

Quiet Cunning

To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. Fans will also only start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 55 Celsius, helping to reduce noise when the system is idling or under light load.

Max Contact

To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

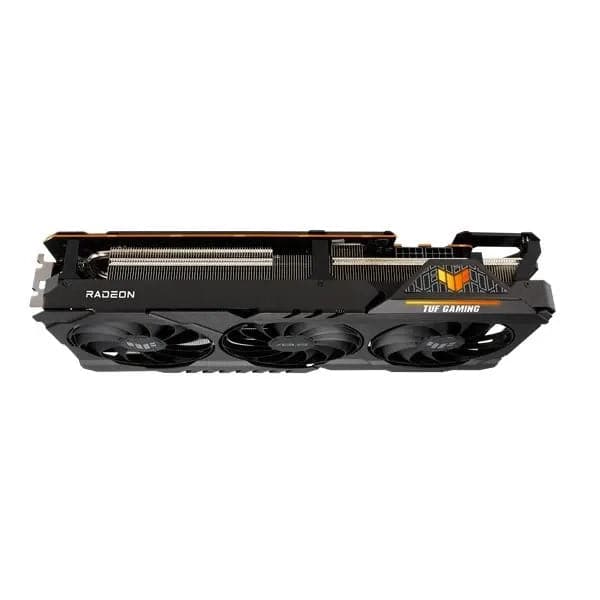

2.9-slot Design

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.9-slot footprint.

Premium Components

Robust military-grade capacitors were selected for the card’s power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

Metal Coat

A machined all-aluminum shroud creates a robust outer shell and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

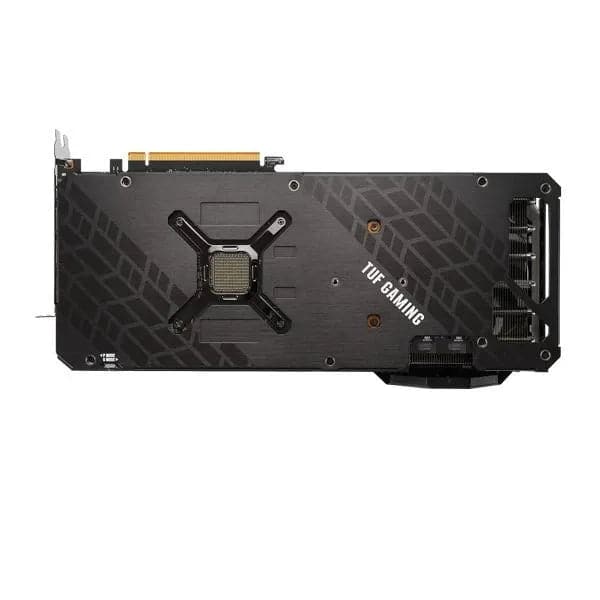

Armored Underside

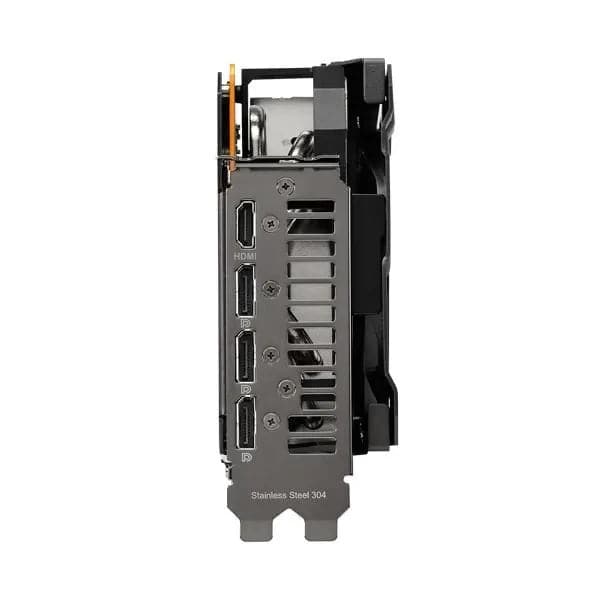

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software

Gnarly Grill

The front-side RGB element can be customized to display a range of aesthetic and functional effects, and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the Radeon RX 6800 XT, two 8-pin power connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly. Structural pillars of a built-in reinforced metal frame are also visible here and add a literal layer of durability.

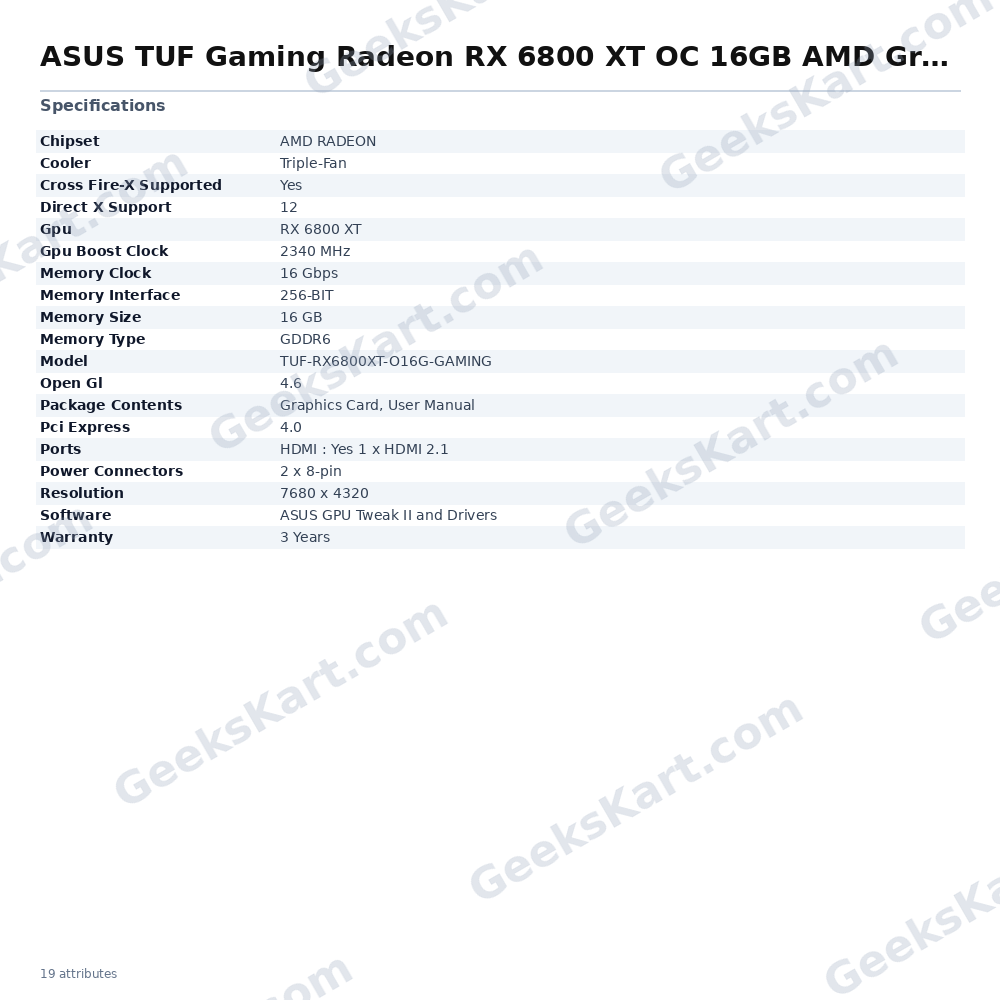

Specifications of ASUS TUF Gaming Radeon RX 6800 XT OC 16GB AMD Graphic Card

MODEL	TUF-RX6800XT-O16G-GAMING
CHIPSET	AMD RADEON
GPU	RX 6800 XT
PCI EXPRESS	4.0
GPU BOOST CLOCK	2340 MHz
MEMORY CLOCK	16 Gbps
MEMORY SIZE	16 GB
MEMORY INTERFACE	256-BIT
MEMORY TYPE	GDDR6
DIRECT X SUPPORT	12
OPEN GL	4.6
PORTS	HDMI: Yes 1 x HDMI 2.1
	DisplayPort: Yes 3 x DisplayPort 1.4
RESOLUTION	7680 x 4320
CROSS FIRE-X SUPPORTED	Yes
COOLER	Triple-Fan
DUAL-LINK DVI SUPPORTED	N/A
SOFTWARE	ASUS GPU Tweak II and Drivers
PACKAGE CONTENTS	Graphics Card, User Manual
POWER CONNECTORS	2 x 8-pin
WARRANTY	3 Years
NOTE**	***Features, Price and Specifications are subject to change without notice.

Datasheet

Model	TUF-RX6800XT-O16G-GAMING
Ports	HDMI : Yes 1 x HDMI 2.1
Cooler	Triple-Fan
Open Gl	4.6
Software	ASUS GPU Tweak II and Drivers
Pci Express	4.0
Gpu Boost Clock	2340 MHz
Direct X Support	12
Memory Interface	256-BIT
Package Contents	Graphics Card, User Manual
Power Connectors	2 x 8-pin
Cross Fire-X Supported	Yes
Memory Type	GDDR6
Warranty	3 Years
Chipset	AMD RADEON
Memory Size	16 GB
GPU	RX 6800 XT
Memory Clock	16 Gbps
Resolution	7680 x 4320
