ASUS TUF Gaming Radeon RX 9060 XT OC Edition 16GB AMD Graphic Card

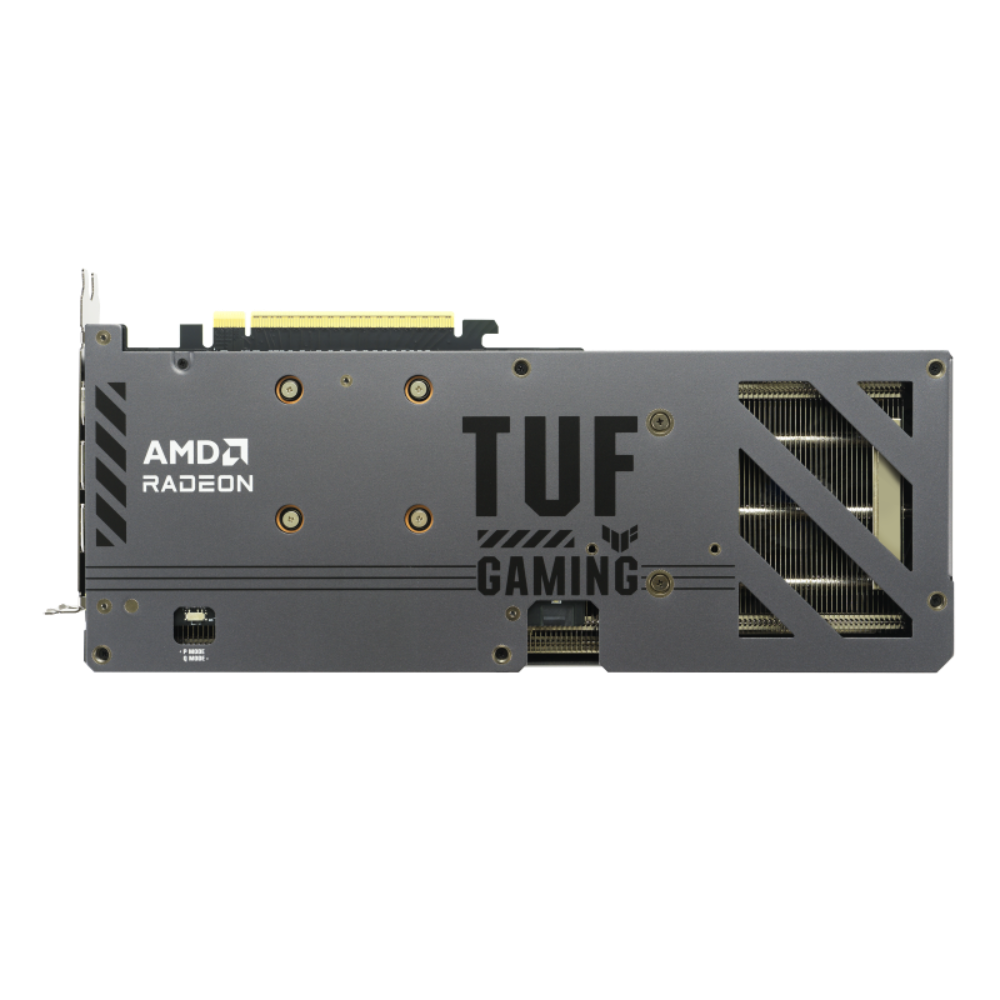

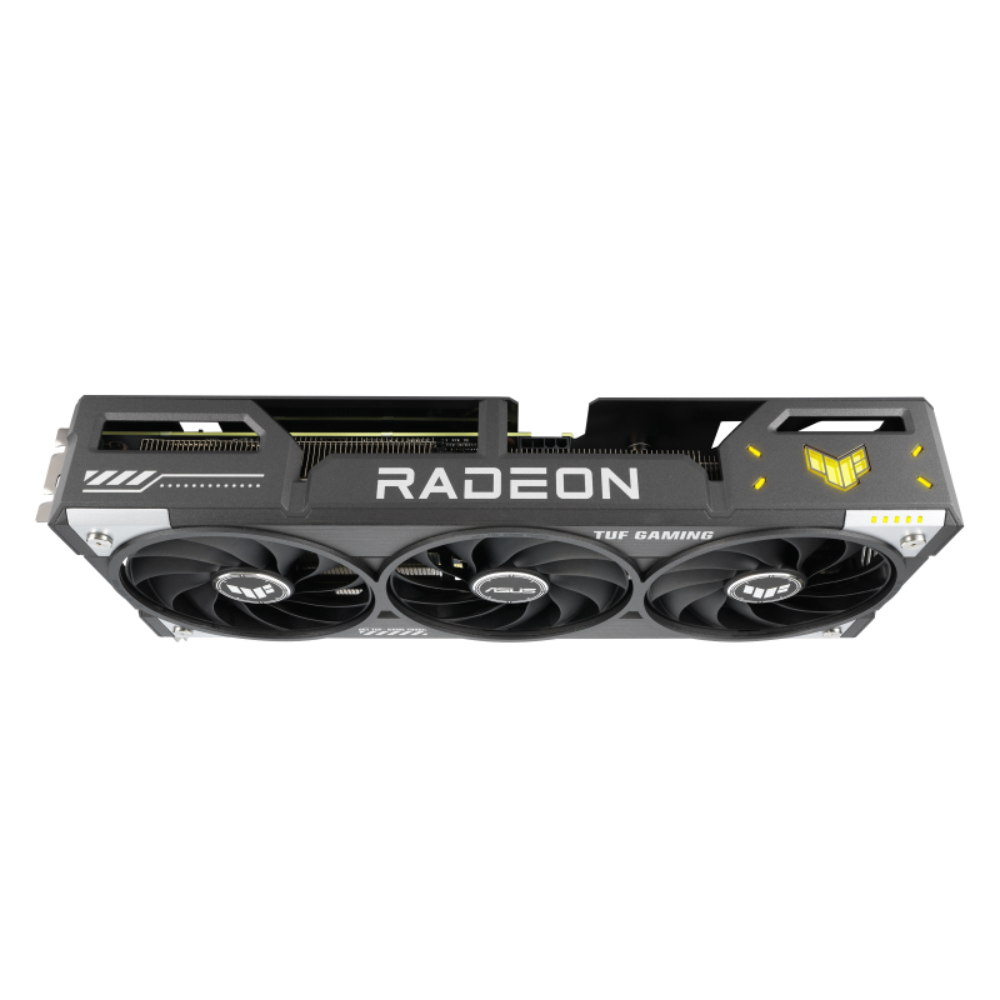

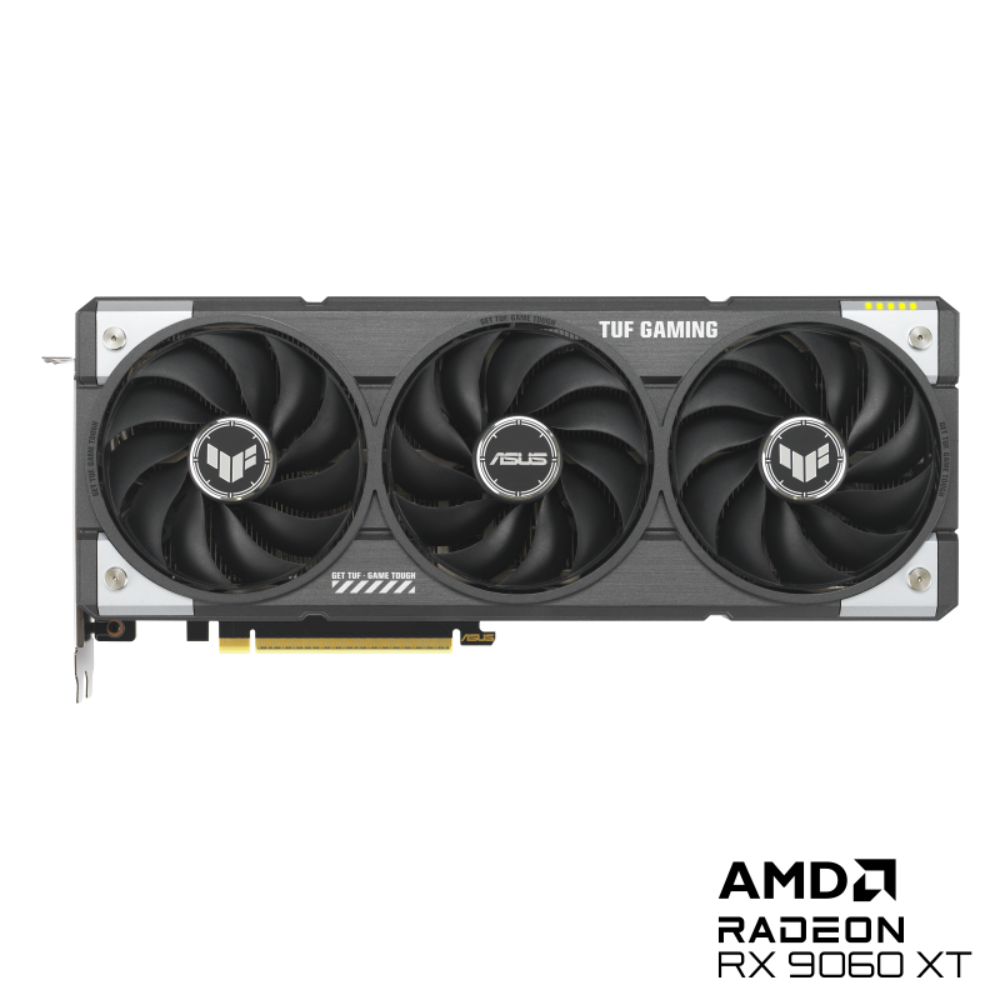

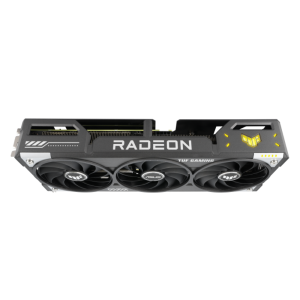

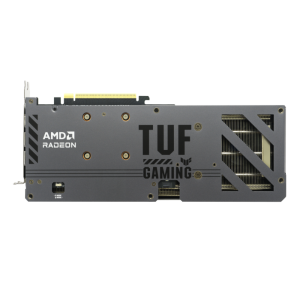

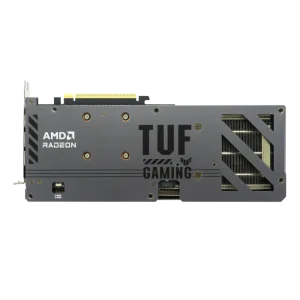

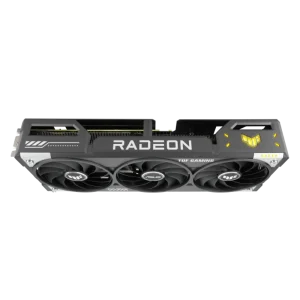

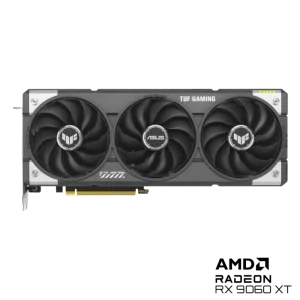

The ASUS TUF Gaming Radeon RX 9060 XT OC Edition is a mid-to-high-range graphics card built on AMD’s RDNA 4 architecture. Featuring 16GB of GDDR6 memory on a 128-bit interface running at 20 Gbps, it connects to your system via a PCI Express 5.0 slot and delivers a maximum digital resolution of 7680 x 4320 (8K). With 2048 stream processors, it is well-suited for demanding gaming workloads at 1440p and 4K resolutions. Cooling is handled by a triple-fan setup using ASUS Axial-tech fans mounted on dual-ball bearings rated for up to 80,000 hours. The two outer fans spin counterclockwise to reduce turbulence and improve airflow across the heatsink. All three fans stop automatically when GPU temperatures fall below 55°C, resuming above 60°C for whisper-quiet operation during lighter tasks. ASUS’s exclusive MaxContact technology expands the heat-spreader surface area by 5% compared to conventional designs, improving thermal transfer by up to 2°C. The card is housed in a diecast vented metal exoskeleton with an aluminium backplate that limits PCB flex. On the power-delivery side, certified military-grade TUF chokes and MOSFETs ensure stable GPU power, while TUF 5K black metallic capacitors offer 52% wider temperature tolerance and a 2.5x longer rated lifespan than standard capacitors. A single 8-pin power connector is required, with a recommended PSU of 550W. The card occupies 2.5 expansion slots and measures 304 × 126 × 50 mm. Connectivity includes one native HDMI 2.1b port and two native DisplayPort 2.1a ports, supporting up to three simultaneous displays with HDCP 2.3 compliance. A Dual BIOS switch lets you toggle between Quiet and Performance modes without software. AURA SYNC RGB lighting is built in for system-wide lighting coordination. Auto-Extreme Technology, ASUS’s fully automated single-pass soldering process, reduces thermal stress on components and lowers manufacturing chemical usage. A conformal PCB coating protects against moisture, dust, and debris. ASUS GPU Guard adhesive secures all four PCB corners against cracking. The card ships with a TUF Certificate of Reliability, TUF Velcro Hook and Loop strap, TUF Fridge Magnet, a thank-you card, and a Speedsetup Manual. One month of Adobe Creative Cloud is also included. Verified Specifications: – GPU: AMD Radeon RX 9060 XT (RDNA 4) – Model Number: TUF-RX9060XT-O16G-GAMING | Part No: 90YV0LF0-M0AA00 – Stream Processors: 2048 – Video Memory: 16GB GDDR6 at 20 Gbps – Memory Interface: 128-bit – Bus Interface: PCI Express 5.0 – Max Resolution: 7680 × 4320 – Display Outputs: 1× HDMI 2.1b, 2× DisplayPort 2.1a (max 3 displays) – Power Connector: 1× 8-pin | Recommended PSU: 550W – Dimensions: 304 × 126 × 50 mm | Slot Width: 2.5 – OpenGL: 4.6 | AURA SYNC RGB: Yes | Engine Clock: TBD
