Features of ASUS TUF Gaming Radeon RX 9070 OC Edition 16GB AMD Graphic Card

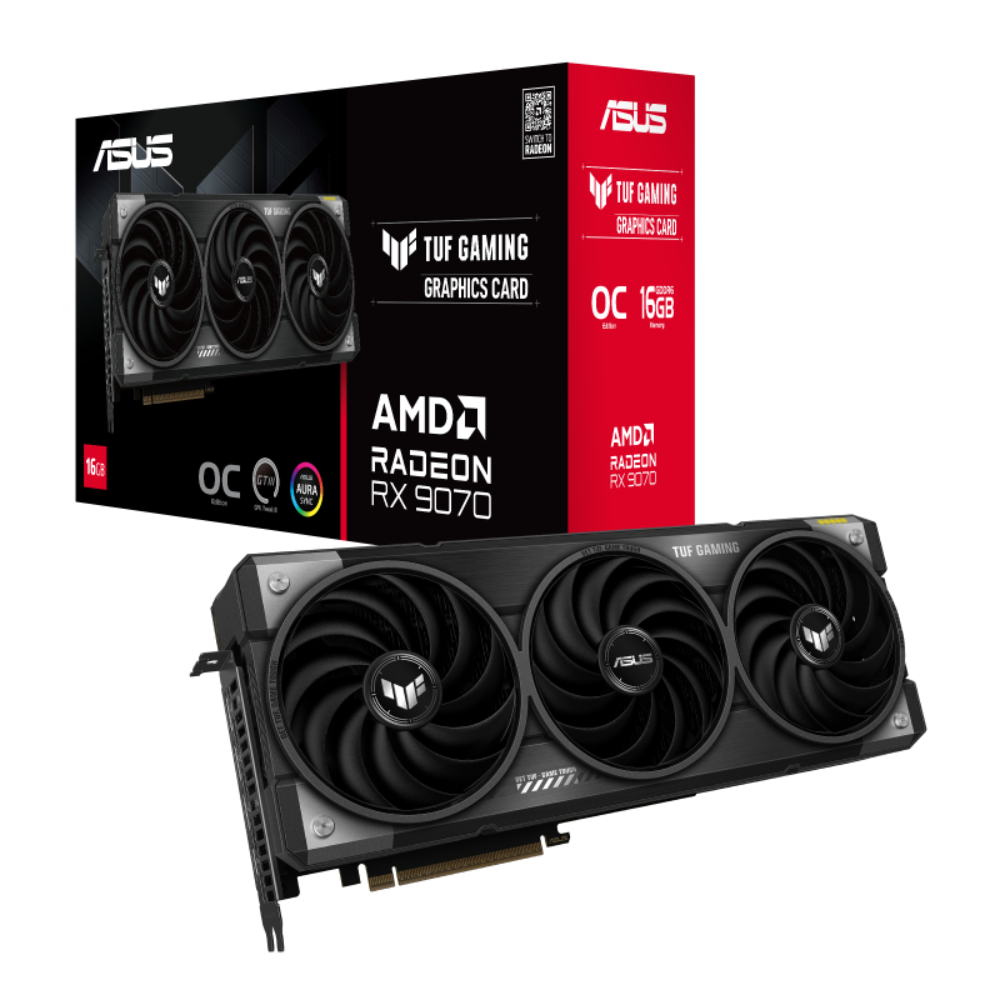

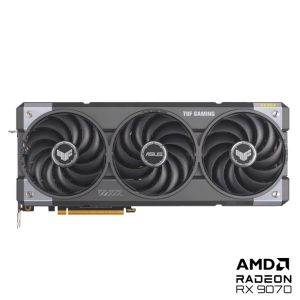

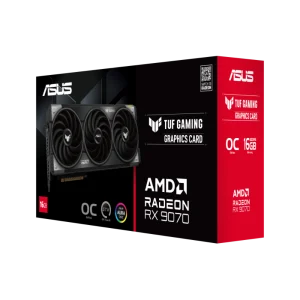

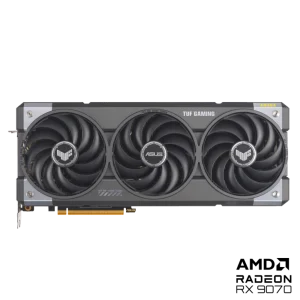

ASUS TUF Gaming Radeon™ RX 9070
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Military-Grade Components
Premium durability
Protective PCB Coating
Against moisture and debris
Axial-Tech Fans
Up to 31% more air than standard fans
Vented Exoskeleton
3.125-slot design with optimal heat dissipation
Phase-Change GPU Thermal Pad
Optimal heat dissipation for GPU longevity
Dual BIOS
Toggle Quiet or Performance mode
GPU TWEAK III
Ultimate GPU tuning utility
Adobe Creative Cloud
One Month of Free Adobe Creative Cloud
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short- circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

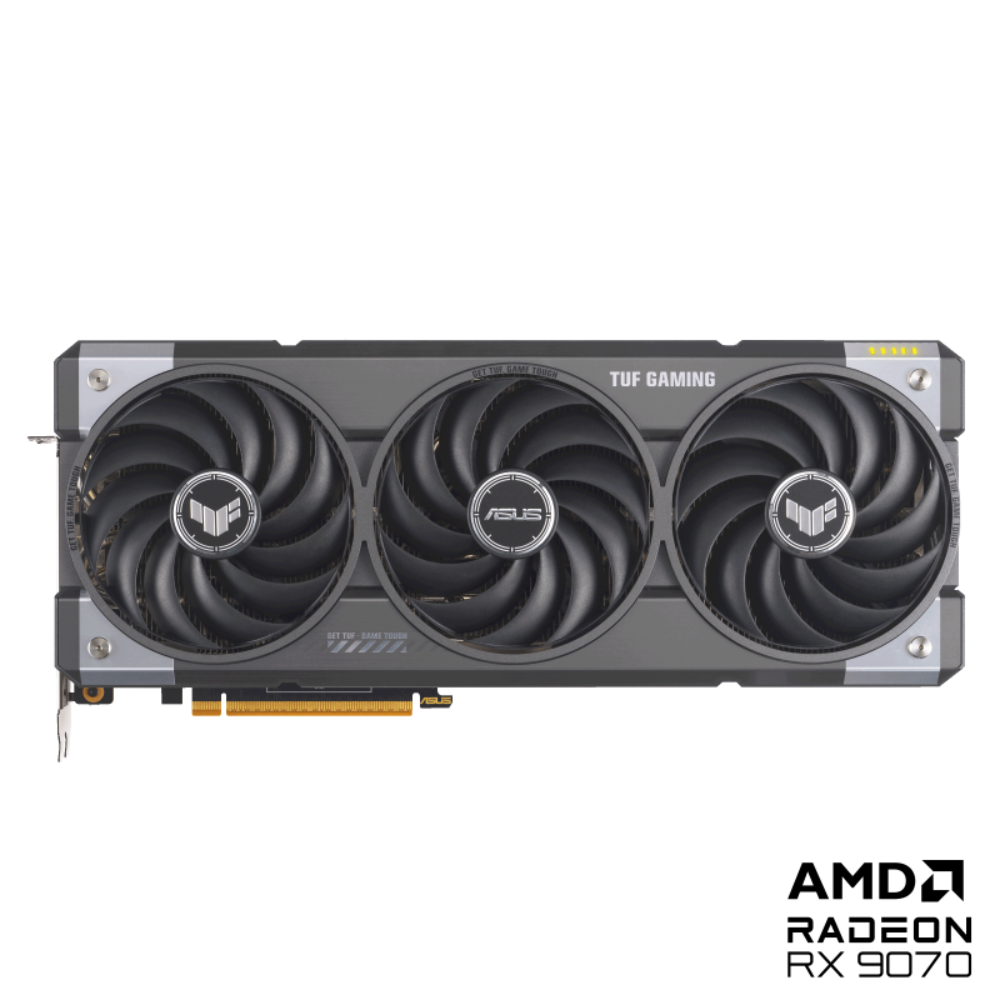

Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.

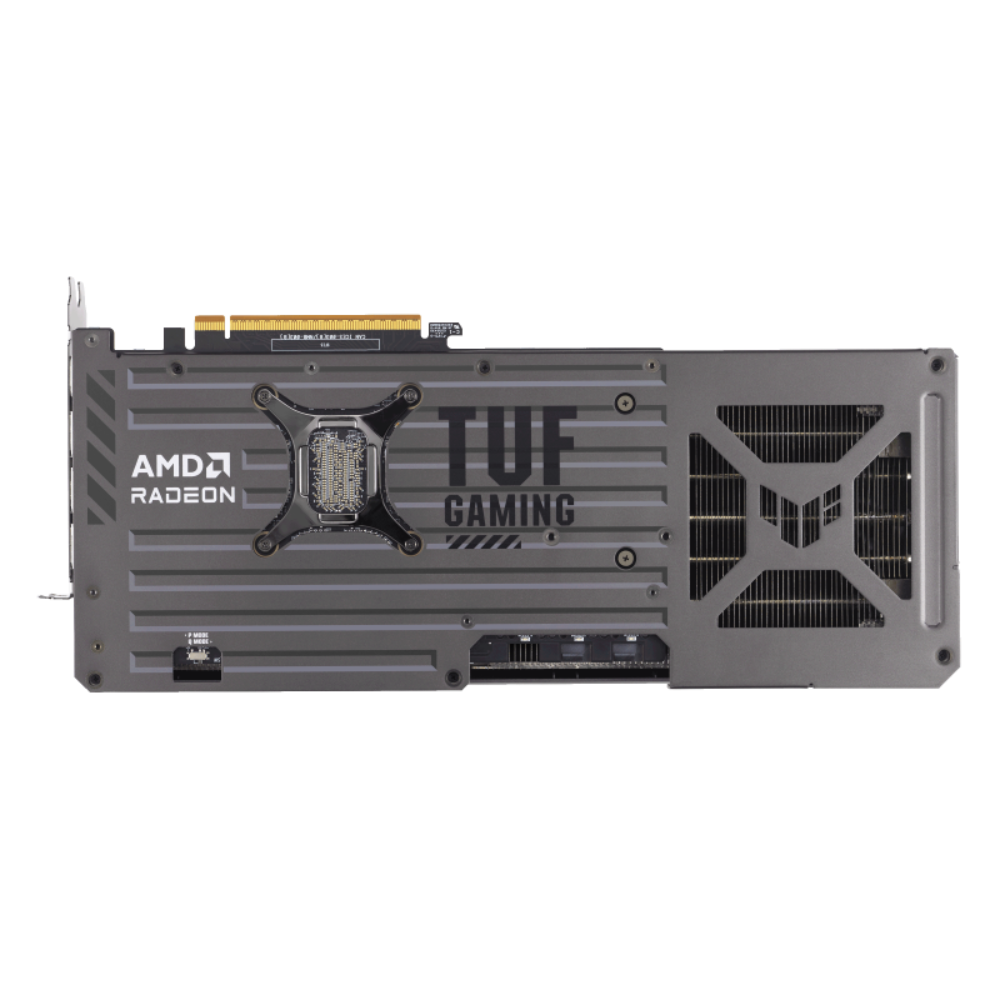

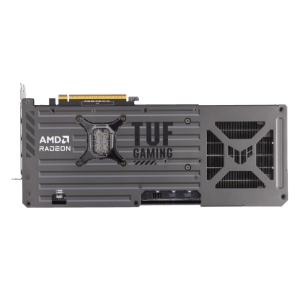

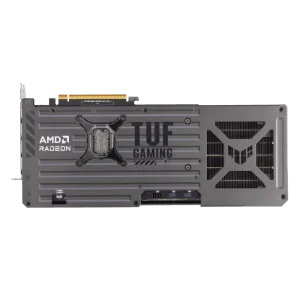

Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
The Perfect PSU for the TUF Gaming Radeon™ RX 9000 Series
The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultimate GPU Tuning Utility
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and the Voltage- Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like OdB fan technology, automatic profile swapping, a fully customizable screen display and logging capabilities ensure that you get the most out of your graphics card.
One Month of Free Adobe Creative Cloud
Enjoy all things Al at Adobe. Get complimentary membership to Adobe Creative Cloud all Apps and Adobe Substance 3D with the purchase of selected ASUS products.
Light ’em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

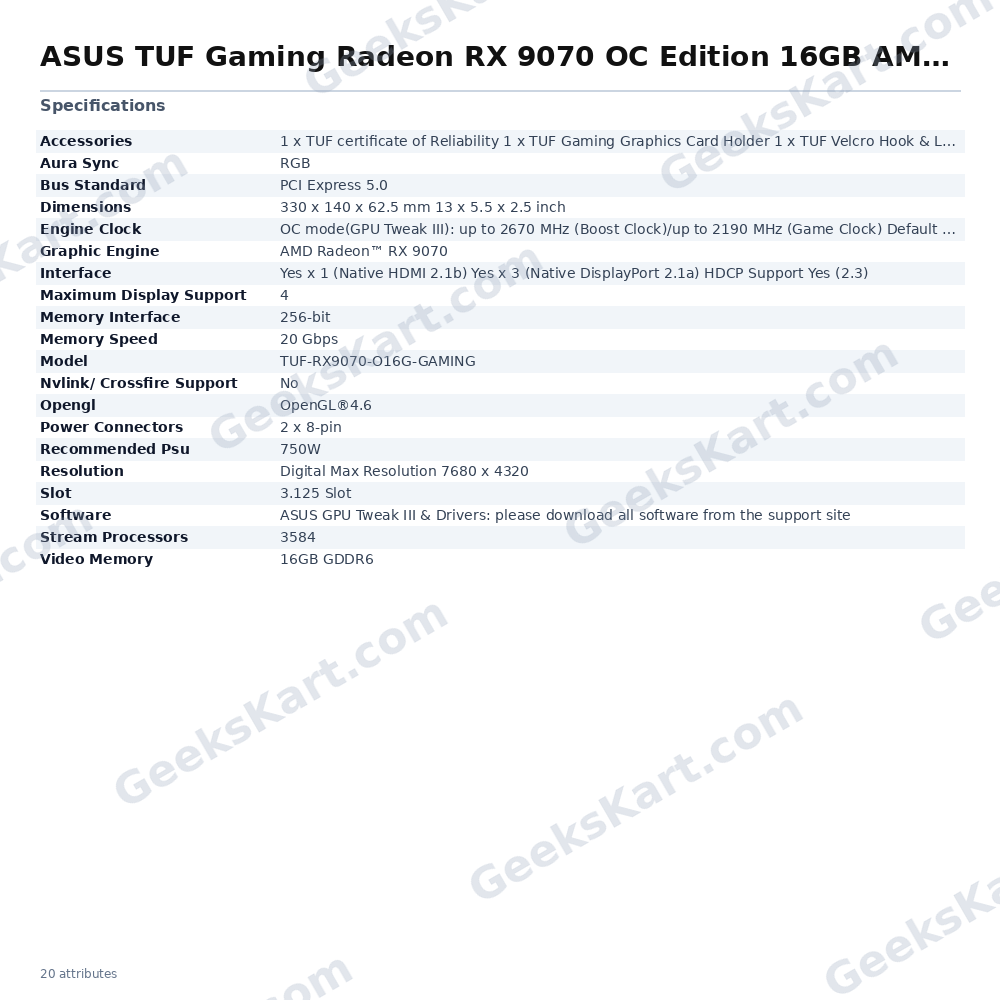

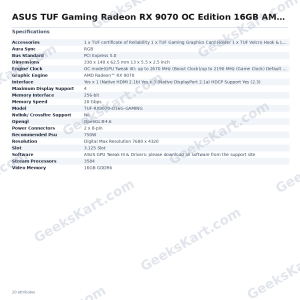

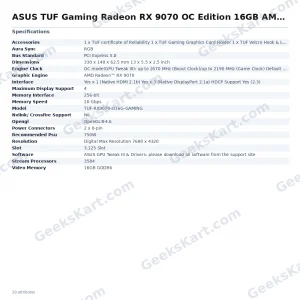

Specifications of ASUS TUF Gaming Radeon RX 9070 OC Edition 16GB AMD Graphic Card
| Model | TUF-RX9070-O16G-GAMING |
| Graphic Engine | AMD Radeon™ RX 9070 |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock | OC mode(GPU Tweak III): up to 2670 MHz (Boost Clock)/up to 2190 MHz (Game Clock) Default mode: up to 2650 MHz (Boost Clock)/up to 2170MHz (Game Clock) |
| Stream Processors | 3584 |
| Memory Speed | 20 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

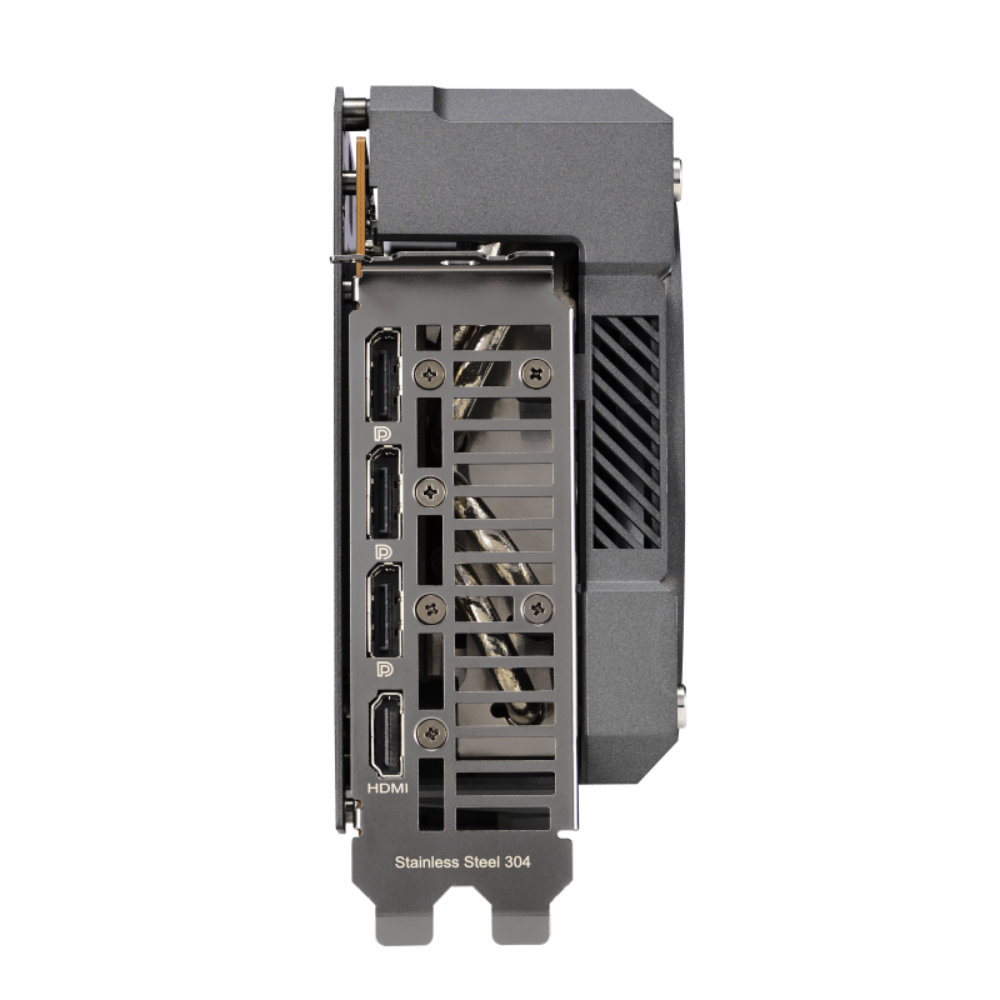

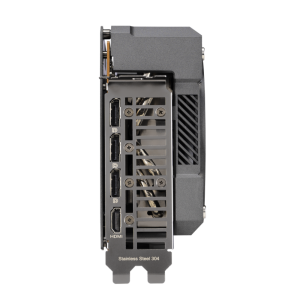

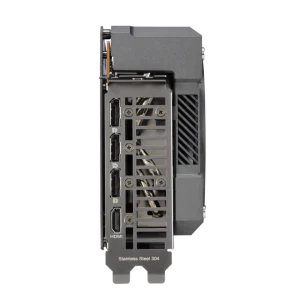

| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x TUF certificate of Reliability 1 x TUF Gaming Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x TUF Fridge Magnet 1 x Thank you card 1 x Speedsetup Manual |
| Software | ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| Dimensions | 330 x 140 x 62.5 mm 13 x 5.5 x 2.5 inch |
| Recommended PSU | 750W |
| Power Connectors | 2 x 8-pin |
| Slot | 3.125 Slot |
| AURA SYNC | RGB |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
