ASUS TUF Gaming X870-Plus Wifi DDR5 AMD Motherboard
MPN ASUS-X870-PLUS · Brand ASUS
The ASUS TUF Gaming X870-Plus WiFi DDR5 motherboard supports AMD Ryzen 9000/8000/7000 on AM5 with PCIe 5.0, four M.2 slots, Wi-Fi 7, and a high-current 19-phase power delivery system for stable gaming and productivity performance
Inclusive of GST · GST invoice available
Overview

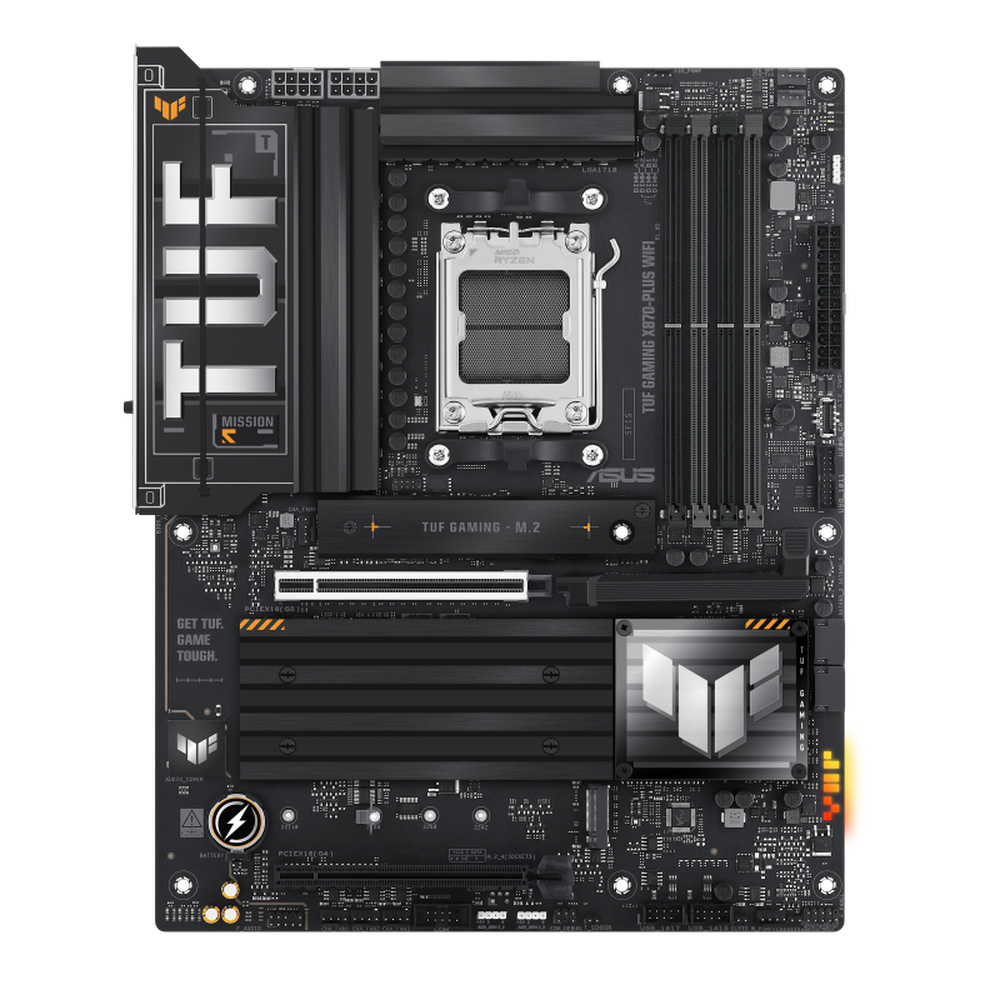

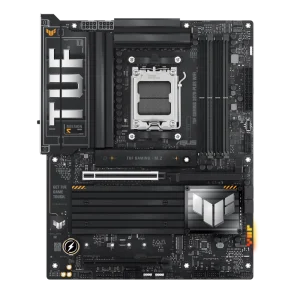

The ASUS TUF Gaming X870-Plus WiFi DDR5 is an ATX motherboard built around the AMD X870 chipset and the AM5 socket, designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors. It pairs a robust power delivery system — rated at 16 (80A) + 2 (80A) + 1 (80A) power stages — with a comprehensive feature set aimed at enthusiast gamers and demanding workstation users alike. The board's connectivity highlights include a primary PCIe 5.0 x16 slot for graphics cards (when used with Ryzen 9000 or 7000 series CPUs), four M.2 slots (two of which support PCIe 5.0 x4 speeds on Ryzen 9000/7000 CPUs), and two SATA 6Gb/s ports. This combination means you can run the fastest NVMe SSDs available alongside multiple storage devices without compromise. AMD RAIDXpert2 technology enables RAID 0, 1, 5, and 10 configurations across both PCIe and SATA drives, with RAID 5 supported exclusively on Ryzen 9000 series CPUs. Wireless connectivity reaches the latest standard with a 2x2 Wi-Fi 7 (802.11be) module covering 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.9 Gbps transfer rate alongside Bluetooth 5.4. Wired networking is handled by a Realtek 2.5Gb Ethernet controller protected by ASUS TUF LANGuard surge protection. Display output options include one HDMI port and two USB4 (40 Gbps) Type-C ports that support video output, giving connected CPUs with integrated graphics multiple screen paths. ASUS AI Overclocking, AI Cooling II, and AI Networking II features assist with performance tuning, thermal management, and real-time bandwidth optimization. Dynamic OC Switcher and Core Flex provide granular control over CPU power and thermal thresholds for both multi-threaded and single-threaded workloads. Key Specifications: - Socket: AMD AM5 - Chipset: AMD X870 - CPU Compatibility: AMD Ryzen 9000, 8000, and 7000 series desktop processors - Power Delivery: 16 (80A) + 2 (80A) + 1 (80A) power stages - Memory: DDR5 (slots not specified in source data) - PCIe: 1x PCIe 5.0 x16 (Ryzen 9000/7000); 1x PCIe 4.0 x16 via chipset - Storage: 4x M.2 slots (up to PCIe 5.0 x4); 2x SATA 6Gb/s - Ethernet: Realtek 2.5GbE with TUF LANGuard - Wireless: Wi-Fi 7 (802.11be), 2x2, up to 2.9 Gbps; Bluetooth 5.4 - Display Output: 1x HDMI; 2x USB4 40Gbps Type-C - Model Number: TUF-GAMING-X870-PLUS-WIFI

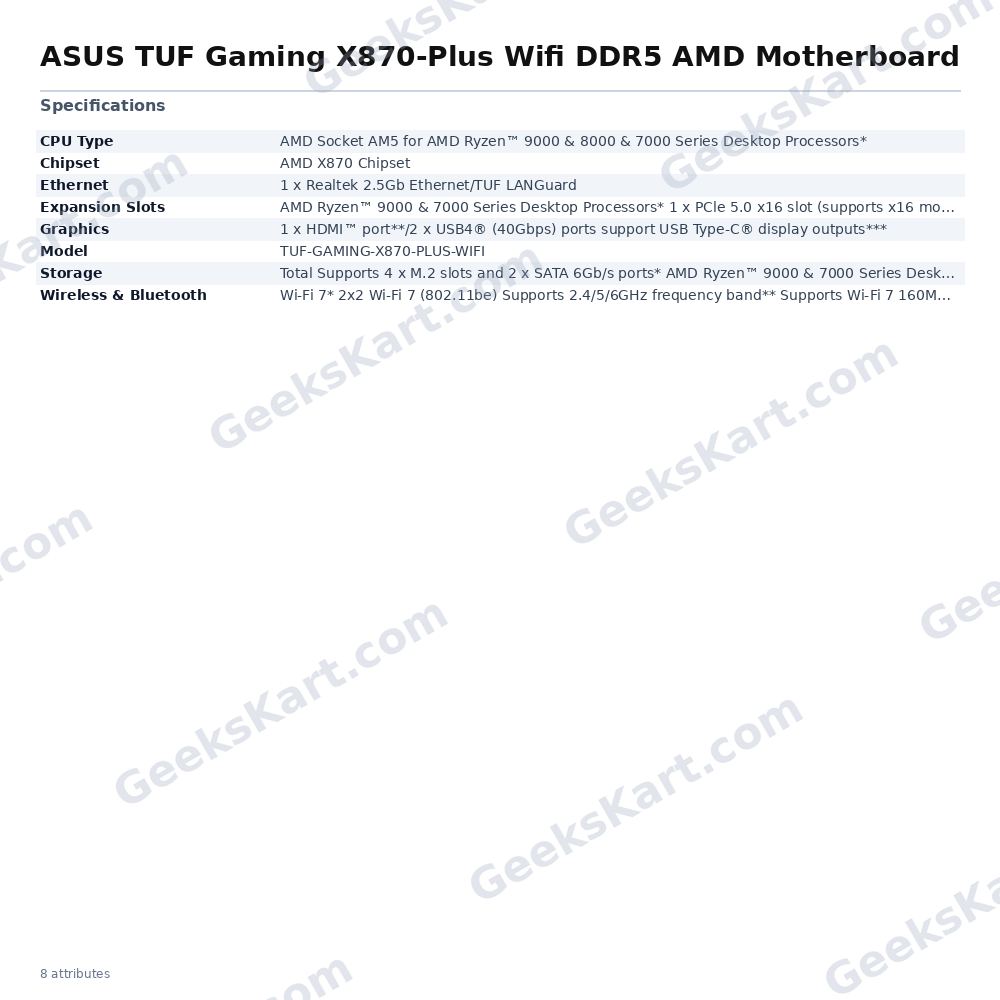

Datasheet
| Chipset | AMD X870 Chipset |
|---|---|
| CPU Type | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCle 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCle 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCle 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCle 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCle RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. **The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs |
| Ethernet | 1 x Realtek 2.5Gb Ethernet/TUF LANGuard |

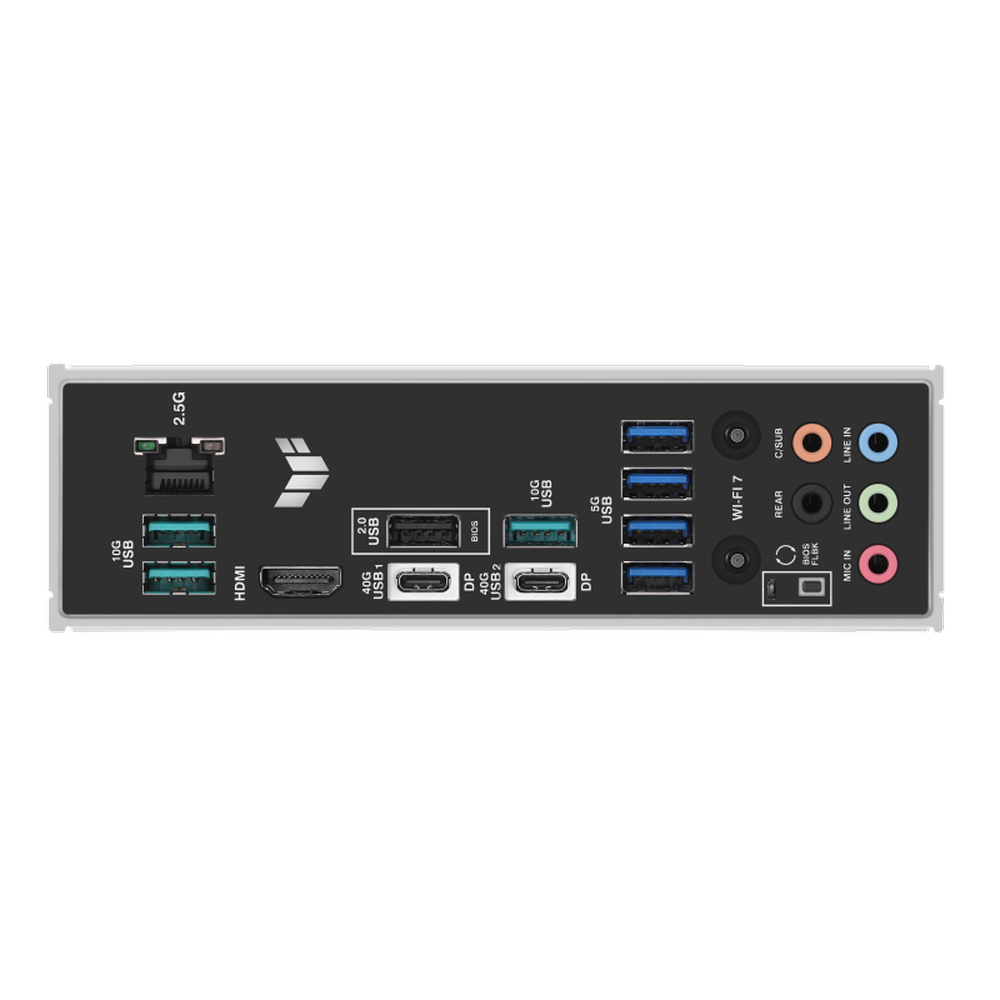

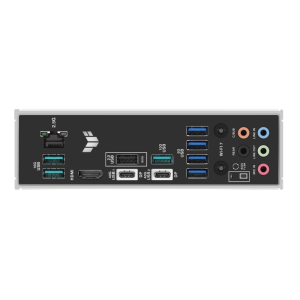

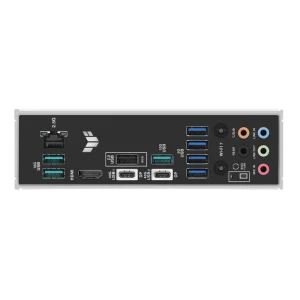

| Graphics | 1 x HDMI™ port**/2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Model | TUF-GAMING-X870-PLUS-WIFI |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCle 5.0 x16 slot (supports x16 mode)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** * Please check the PCle bifurcation table on the support site . ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. -To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/for the list of supported peripherals |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specification |
