BENQ PD2506Q 25 Inch 2K QHD 60Hz IPS Panel 100% SRGB 5MS AMD Freesync Gaming Monitor
MPN BEN-PD2506Q · Brand BenQ
The BenQ PD2506Q is a 25-inch QHD IPS designer monitor with factory-calibrated 100% sRGB and 95% P3 colour, 65W USB-C Power Delivery, built-in KVM switch, and Pantone Validated accuracy for creative professionals
Inclusive of GST · GST invoice available
Overview
The BenQ PD2506Q is a 25-inch QHD designer monitor built for creative professionals who demand precise, consistent colour across every project. Equipped with an IPS panel running at a native resolution of 2560×1440, it delivers wide 178°/178° viewing angles and a pixel density of 109 PPI, ensuring fine detail is rendered accurately from corner to corner. Colour fidelity sits at the core of the PD2506Q's design. The display covers 100% sRGB, 100% Rec.709, and 95% DCI-P3 colour spaces, with a factory-measured average Delta E of ≤3 — a figure independently verified through Calman certification. Every unit ships with a printed factory calibration report. The monitor is also Pantone Validated and Pantone SkinTone Validated, making it a dependable tool for print designers and photographers who require reliable colour matching. BenQ's Uniformity Technology divides the panel into hundreds of sub-regions and fine-tunes each individually, maintaining consistent luminance and colour accuracy across the entire display surface. HDR support encompasses HDR10 and VESA DisplayHDR 400, with a peak brightness of 400 nits and a typical brightness of 350 nits. Native contrast is rated at 1000:1. The anti-glare coating minimises reflections in ambient-light environments. Connectivity is comprehensive for a professional workstation. A single USB-C port supports 65W Power Delivery, DisplayPort Alt Mode, and data transfer simultaneously. Additional ports include one HDMI 2.0, one DisplayPort 1.4 (with DisplayPort MST output for daisy-chaining), one upstream USB-B, one downstream USB-C, and three downstream USB 3.2 ports. A built-in KVM switch lets users control multiple computers with one keyboard and mouse, with switching via the optional Hotkey Puck G2. ICCsync enables rapid colour profile switching through BenQ's Display Pilot software, which also supports Apple M1 platforms. The ergonomic stand offers -5°/+20° tilt, ±15° swivel, 90° pivot with Auto Pivot detection, and 110mm height adjustment. VESA compatibility (100×100mm) is provided for wall or arm mounting. Eye-care features include TÜV-certified Flicker-Free technology and Low Blue Light mode, alongside ePaper mode for reduced eye strain during extended reading sessions. Specialist colour modes include CAD/CAM for technical illustrations, Animation mode for managing dark-scene clarity, Darkroom mode for low-ambient workflows, and DICOM simulation for medical image review. Built-in speakers deliver 2×2.5W audio output, and a headphone jack is included. Key Specifications: • Panel: 25-inch IPS, 2560×1440 (QHD), 109 PPI • Refresh rate: 60Hz | Response time: 5ms GtG • Brightness: 350 nits (typical), 400 nits (peak HDR) • HDR: HDR10, VESA DisplayHDR 400 • Colour gamut: 100% sRGB, 100% Rec.709, 95% P3 • Delta E (avg): ≤3 (factory calibrated) • Contrast: 1000:1 native • Viewing angle: 178°/178° (H/V) • USB-C: 65W PD + DP Alt Mode + Data • Ports: 1× HDMI 2.0, 1× DP 1.4, 1× DP out (MST), 3× USB 3.2, 1× USB-C downstream • Ergonomics: Tilt, swivel, pivot (90°), 110mm height adjustment • VESA: 100×100mm • Weight: 7.6kg (with stand) • Certifications: Calman Verified, Pantone Validated, Pantone SkinTone Validated, TÜV Flicker-Free, TÜV Low Blue Light, Solidworks certified • Warranty: 3 years

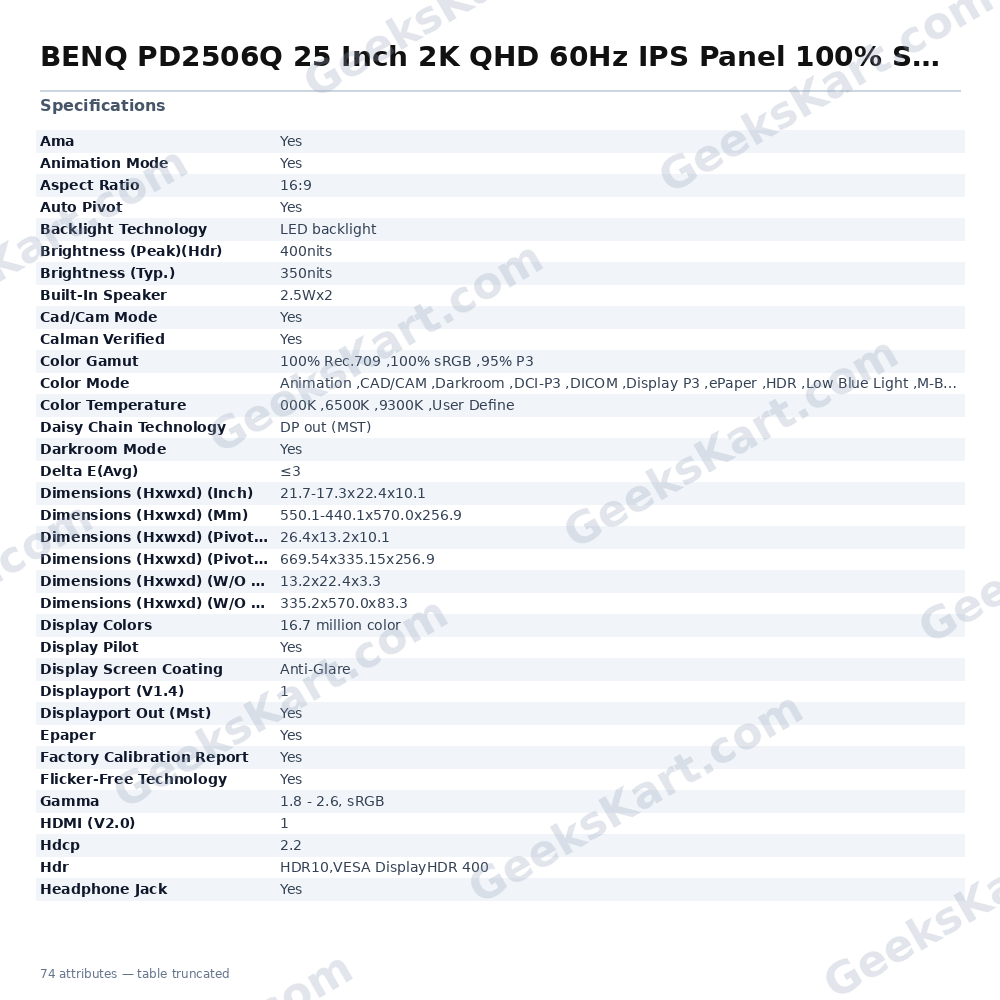

Datasheet
| Warranty | 3 Years |
|---|---|
| Panel Type | IPS |
| Ama | Yes |
| Hdr | HDR10,VESA DisplayHDR 400 |
| Ppi | 109 |
| Hdcp | 2.2 |
| Gamma | 1.8 – 2.6, sRGB |
| Pivot | 90˚ |
| Epaper | Yes |
| Iccsync | Yes |
| Auto Pivot | Yes |
| Color Mode | Animation ,CAD/CAM ,Darkroom ,DCI-P3 ,DICOM ,Display P3 ,ePaper ,HDR ,Low Blue Light ,M-Book ,Rec.709 ,sRGB ,User |
| Kvm Switch | Yes |
| Solidworks | Yes |
| Color Gamut | 100% Rec.709 ,100% sRGB ,95% P3 |
| HDMI (V2.0) | 1 |
| Screen Size | 25 inch |
| Aspect Ratio | 16:9 |
| Cad/Cam Mode | Yes |
| Delta E(Avg) | ≤3 |
| Power Supply | Built-in |
| Product Code | PD2506Q |
| Darkroom Mode | Yes |
| Display Pilot | Yes |
| Animation Mode | Yes |
| Display Colors | 16.7 million color |
| Headphone Jack | Yes |
| Low Blue Light | Yes |
| Tilt (Down/Up) | -5˚ – 20˚ |
| Voltage Rating | 100 – 240V |
| Native Contrast | 1000:1 |
| Net Weight (Kg) | 7.6 |
| Net Weight (Lb) | 16.8 |
| Tuv Certificate | Flicker-free ,Low Blue Light |
| Vesa Wall Mount | 100×100 mm |
| Calman Verified | Yes |
| Built-In Speaker | 2.5Wx2 |
| Brightness (Typ.) | 350nits |
| Color Temperature | 000K ,6500K ,9300K ,User Define |
| Other Accessories | Calibration Report ,QSG ,Safety Instruction ,Warranty Card |
| Pantone Validated | Yes |
| Refresh Rate (Hz) | 60 |
| Resolution (Max.) | 2560×1440 |
| Displayport (V1.4) | 1 |
| Swivel (Left/Right) | 15˚/ 15˚ |
| Backlight Technology | LED backlight |
| Response Times (Gtg) | 5 ms |
| USB C ( Downstream ) | 1 |
| Video Format Support | Yes |
| Displayport Out (Mst) | Yes |
| Uniformity Technology | Yes |
| Brightness (Peak)(Hdr) | 400nits |
| Daisy Chain Technology | DP out (MST) |
| Display Screen Coating | Anti-Glare |
| USB 3.2 ( Downstream ) | 3 |

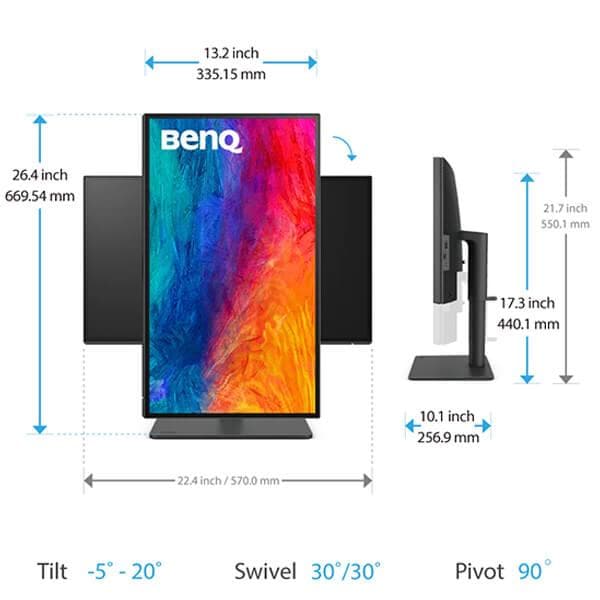

| Dimensions (Hxwxd) (Mm) | 550.1-440.1×570.0x256.9 |
| Flicker-Free Technology | Yes |
| Height Adjustment Stand | 110mm |
| Power Consumption (Max) | 170W |
| USB Type B ( Upstream ) | 1 |
| Dimensions (Hxwxd) (Inch) | 21.7-17.3×22.4×10.1 |
| Factory Calibration Report | Yes |
| Net Weight (W/O Base) (Kg) | 4.4 |
| Net Weight (W/O Base) (Lb) | 9.7 |
| Power Consumption (Normal) | 36W |
| Viewing Angle (L/R) (Cr>=10) | 178°/178° |
| Pantone Skintone™ Validated | Yes |
| Power Consumption (Sleep Mode) | <0.5W |
| Dimensions (Hxwxd) (Pivot) (Mm) | 669.54×335.15×256.9 |
| Dimensions (Hxwxd) (Pivot) (Inch) | 26.4×13.2×10.1 |
| Dimensions (Hxwxd) (W/O Base) (Mm) | 335.2×570.0x83.3 |
| Dimensions (Hxwxd) (W/O Base) (Inch) | 13.2×22.4×3.3 |
| Power Delivery(Usb C / Thunderbolt 3) | 65W |
| USB C(Powerdelivery 65W, Displayport Alt Mode, Data) | 1 |
