BENQ SW240 24 Inch UXGA 60Hz IPS Panel 95% SRGB 5MS Gaming Monitor
MPN BENQ-SW240 · Brand BenQ
The BenQ SW240 is a 24.1-inch IPS professional monitor covering 99% Adobe RGB and 100% sRGB, with factory-calibrated Delta E≤2, 10-bit colour depth, a 14-bit 3D LUT, and hardware calibration support — ideal for photography and video editing
Inclusive of GST · GST invoice available
Overview
The BenQ SW240 is a 24.1-inch professional-grade IPS display engineered for photographers, video editors, and colour-critical workflows. Powered by BenQ's AQCOLOR technology — developed with active participation in the ICC (International Color Consortium) and ISO colour standards bodies — the SW240 prioritises accurate, repeatable colour reproduction from panel to print. At the heart of its colour performance is a wide-gamut panel covering 99% of the Adobe RGB colour space and 100% of sRGB, with 95% DCI-P3 coverage — giving creative professionals access to the extended blues and greens essential for nature and outdoor photography. A 10-bit display engine renders 1.07 billion colours with smooth, natural gradations, while an internal 14-bit 3D Look-Up Table (LUT) ensures precise RGB blending accuracy across the full tonal range. Each unit leaves the factory pre-calibrated to an average Delta E of 2 or below in both Adobe RGB and sRGB modes, with a calibration report included in the box. Hardware calibration support via the bundled Palette Master Element software — compatible with X-Rite i1 Display Pro, i1 Pro, i1 Pro 2, Datacolor Spyder 4 and Spyder 5 probes — lets you retune the monitor's image-processing chip directly, independent of the graphics card, maintaining colour fidelity over time. The monitor also carries Pantone Validation and CalMAN Verification. The 16:10 aspect ratio at 1920×1200 resolution (94 PPI, 0.27 mm pixel pitch) provides additional vertical real estate compared with standard 16:9 panels, letting photographers view two A4 documents side by side or see more of a portrait image without scrolling. A dedicated Colour Mode HotKey cycles between preset profiles — Adobe RGB, sRGB, Rec.709, DCI-P3, Black & White (three film presets), Darkroom, DICOM, and three Calibration slots — without entering the OSD. The Advanced Black & White mode lets you preview monochrome film effects before committing adjustments in post-processing software. The anti-glare IPS panel offers 178°/178° wide viewing angles and a 60 Hz refresh rate with 5 ms GtG response time. Connectivity includes DisplayPort 1.2, HDMI 1.4, and DVI-DL, plus a USB 3.0 hub (one upstream, two downstream) and a built-in SD/SDHC/SDXC/MMC card reader — handy for importing images directly from camera media. A 3.5 mm headphone jack is also provided. An ergonomic stand supports tilt, swivel, pivot, and height adjustment, with a 100×100 mm VESA pattern for wall or arm mounting. An optional shading hood (SH240, sold separately) reduces ambient glare for critical colour work in both landscape and portrait orientations. Verified Specifications: - Panel: 24.1-inch IPS, LED backlit, Anti-Glare coating - Resolution: 1920×1200 (WUXGA), 16:10 aspect ratio, 94 PPI - Colour Gamut: 99% Adobe RGB, 100% sRGB, 95% DCI-P3 - Colour Depth: 10-bit (1.07 billion colours) - 3D LUT: 14-bit - Delta E: ≤2 average (Adobe RGB and sRGB) - Brightness: 250 cd/m² - Contrast: 1000:1 native; 20M:1 dynamic - Refresh Rate: 60 Hz | Response Time: 5 ms (GtG) - Viewing Angles: 178°/178° (H/V) - Inputs: DisplayPort 1.2 ×1, HDMI 1.4 ×1, DVI-DL ×1 - USB: 3.0 Hub (1× upstream, 2× downstream) - Card Reader: SD/SDHC/SDXC/MMC - VESA: 100×100 mm - Power: Built-in PSU, 100–240 V; 55 W; 0.5 W (standby/sleep) - Energy Star 7 certified - Warranty: 3 years - Colour Temperature Presets: 5000 K / 6500 K / 9300 K / User

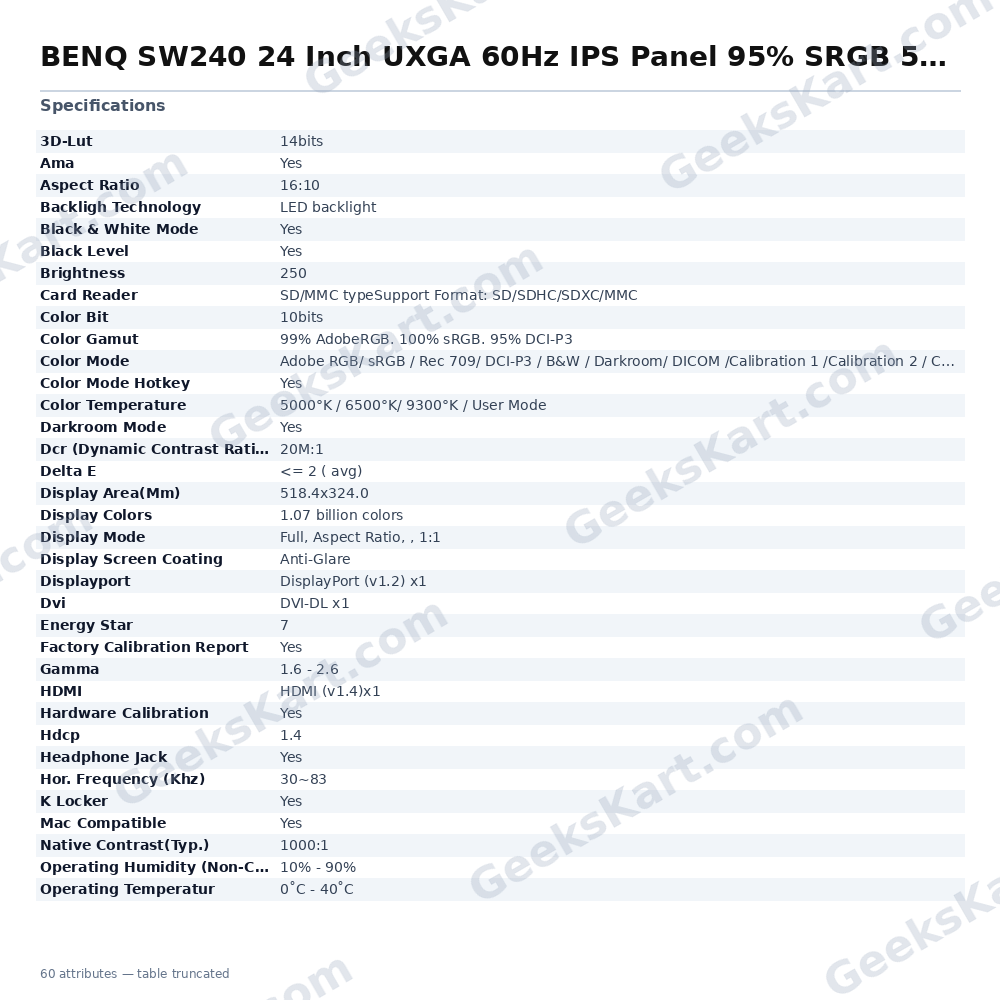

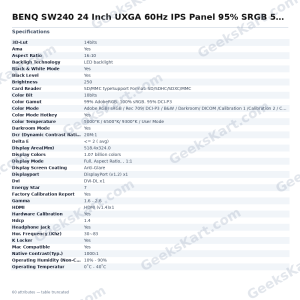

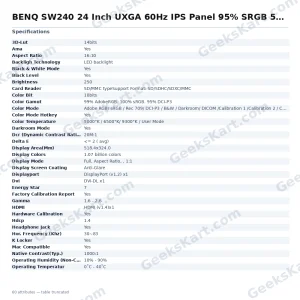

Datasheet
| Warranty | 3 Years |
|---|---|
| Refresh Rate | 60Hz |
| Panel Type | IPS |
| Response Time | 5 ms (GtG) |
| Ama | Yes |
| Dvi | DVI-DL x1 |
| Ppi | 94 |
| Hdcp | 1.4 |
| HDMI | HDMI (v1.4)x1 |
| Gamma | 1.6 – 2.6 |
| 3D-Lut | 14bits |
| Delta E | <= 2 ( avg) |
| K Locker | Yes |
| Color Bit | 10bits |
| Brightness | 250 |
| Color Mode | Adobe RGB/ sRGB / Rec 709/ DCI-P3 / B&W / Darkroom/ DICOM /Calibration 1 /Calibration 2 / Calibration 3 / Custom 1 / Custom 2 |
| Black Level | Yes |
| Card Reader | SD/MMC typeSupport Format: SD/SDHC/SDXC/MMC |
| Color Gamut | 99% AdobeRGB. 100% sRGB. 95% DCI-P3 |
| Displayport | DisplayPort (v1.2) x1 |
| Energy Star | 7 |
| Screen Size | 24.1 |
| USB 3.0 Hub | USB Upstream x1 |
| Aspect Ratio | 16:10 |
| Display Mode | Full, Aspect Ratio, , 1:1 |
| Osd Language | 18 Languages (English / Francais / Deutsch / Italiano / Espanol / Polish / Czech / Hungarian / Romanian / Netherlands / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic/Korean) |
| Power Supply | Built-in |
| Darkroom Mode | Yes |
| Product Color | Gray |
| Display Colors | 1.07 billion colors |
| Headphone Jack | Yes |
| Mac Compatible | Yes |
| Voltage Rating | 100~240V |
| Vesa Wall Mount | 100x100mm |
| Display Area(Mm) | 518.4×324.0 |
| Pixel Pitch (Mm) | 0.27 |
| Color Mode Hotkey | Yes |
| Color Temperature | 5000°K / 6500°K/ 9300°K / User Mode |
| Resolution (Max.) | 1920×1200 |
| Black & White Mode | Yes |
| Support Calibrator | X-Rtie i1 Display Pro / i1 Pro /i1 Pro 2 , Datacolor Spyder 4/5 |
| Backligh Technology | LED backlight |
| Ver. Frequency (Hz) | 50~76 |
| Hardware Calibration | Yes |
| Hor. Frequency (Khz) | 30~83 |
| Operating Temperatur | 0˚C – 40˚C |
| Video Format Support | Yes |
| Windows® Compatible | Windows®10, Windows®8.1, Windows®8, Windows®7 |
| Native Contrast(Typ.) | 1000:1 |
| Video Bandwidth (Mhz) | 205MHz |
| Display Screen Coating | Anti-Glare |
| Palette Master Element | Yes |
| Factory Calibration Report | Yes |
| Power Consumption (On Mode.) | 55W |
| Power Consumption (Sleep Mode) | 0.5W |
| Viewing Angle (L/R;U/D) (Cr>=10) | 178/178 |
| Power Consumption (Stand By Mode) | 0.5W |
| Dcr (Dynamic Contrast Ratio) (Typ.) | 20M:1 |
| Operating Humidity (Non-Condensing) | 10% – 90% |
| Power Consumption (Based On Energy Star) | 19.02W |
