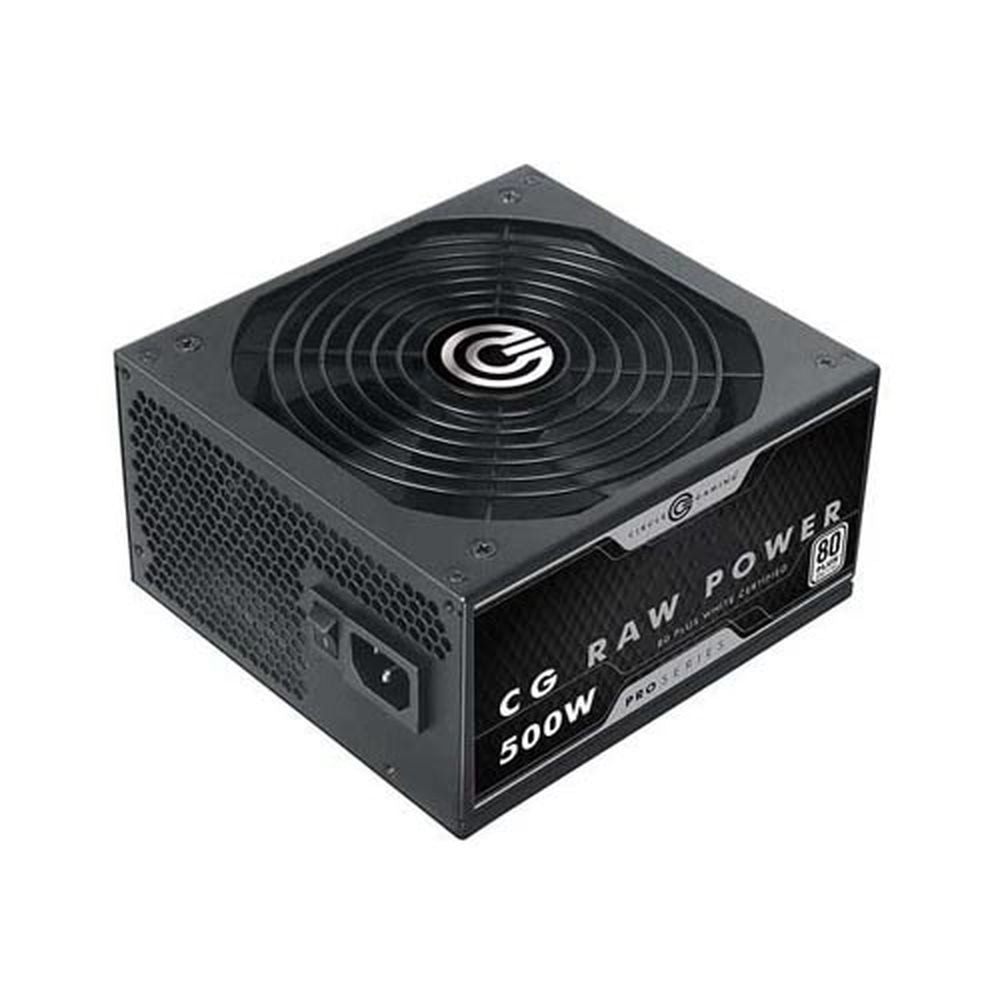

Circle CG Rawpower pro 500W ATX 80 Plus Non-Modular Power Supply

The Circle CG Rawpower Pro 500W is a non-modular ATX power supply designed to deliver reliable, continuous power for mid-range desktop PC builds. Built around a single 12V high-ampere rail architecture, it supplies steady voltage to all connected components, making it well-suited for systems running Intel or AMD processors including Intel 9th Generation Core processors. The unit carries an 80 Plus White certification, which means it meets a verified minimum efficiency standard under load — helping reduce unnecessary heat output and keeping long-term running costs in check. Powering the cooling system is a 120 mm double ball-bearing fan that adjusts its speed based on internal temperature, keeping acoustics reasonable during light workloads while ramping up when the system demands it. Connectivity is comprehensive for a 500W non-modular supply. The cable harness includes one 20+4-pin ATX main connector, one 4+4-pin CPU connector, two 6+2-pin PCIe connectors for discrete graphics cards, six SATA connectors, three 4-pin peripheral (Molex) connectors, and one 4-pin floppy connector — enough to support storage-heavy builds or multi-drive NAS-adjacent configurations. Active Power Factor Correction (Active PFC) is incorporated to smooth out the current draw from the mains supply, which improves compatibility with UPS units and helps deliver cleaner, more consistent power internally. The unit accepts a wide AC input range of 150–280V at 47–63 Hz, giving it flexibility across Indian power grid conditions. A full suite of hardware protections is built in: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). The non-modular design keeps the price accessible and the build straightforward. The Circle CG Rawpower Pro 500W ships with a 3-year manufacturer warranty. Verified Specifications: - Model: CG-RAW-POWER-500W-WHITE - Rated Power: 500 W - 80 Plus Certification: White - ATX Version: 2.31 - AC Input: 150–280V ~ 10–6A, 47–63 Hz - Fan Size: 120 mm - Fan Bearing: Double Ball Bearing - Modular: No - ATX Connector (20+4-pin): 1 - CPU Connector (4+4-pin): 1 - PCIe Connector (6+2-pin): 2 - SATA Connector: 6 - 4-Pin Peripheral Connector: 3 - 4-Pin Floppy Connector: 1 - Protections: OVP, UVP, OCP, OPP, SCP, OTP - Warranty: 3 Years
