COLORFUL GeForce RTX 3090 Ti Vulcun OC-V 24GB Nvidia Graphic Card
MPN COLORFUL-RTX-3090-TI-VULCAN · Brand Colorful
Features of COLORFUL GeForce RTX 3090 Ti Vulcun OC-V 24GB Nvidia Graphic Card the Colorful iGame GeForce RTX 3090 Ti Vulcan OC gpu will be equipped with a revised cooling solution that takes up four slots and will feature an extended heatsink design that will cool the custom PCB design underneath the cooler shroud. The shroud will be equipped with triple fans and the side of the shroud will house a large LCD featuring an ‘iGame’ splash screen and other use full metrics such as GPU clocks, temps
Inclusive of GST · GST invoice available
Overview
Features of COLORFUL GeForce RTX 3090 Ti Vulcun OC-V 24GB Nvidia Graphic Card

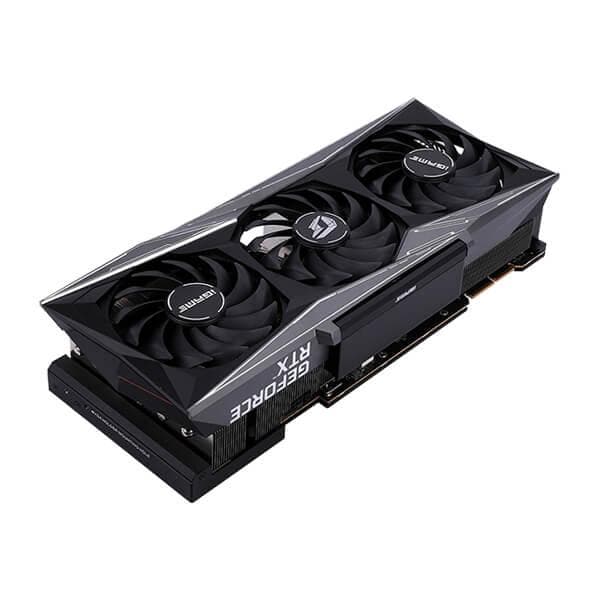

the Colorful iGame GeForce RTX 3090 Ti Vulcan OC gpu will be equipped with a revised cooling solution that takes up four slots and will feature an extended heatsink design that will cool the custom PCB design underneath the cooler shroud.
The shroud will be equipped with triple fans and the side of the shroud will house a large LCD featuring an ‘iGame’ splash screen and other use full metrics such as GPU clocks, temps, frame rate, etc. The card will come with a single PCIe Gen 5 connector to boot and will be bundled with a 3x 8-pin to 1x 16-pin connector like every custom RTX 3090 Ti graphics card.

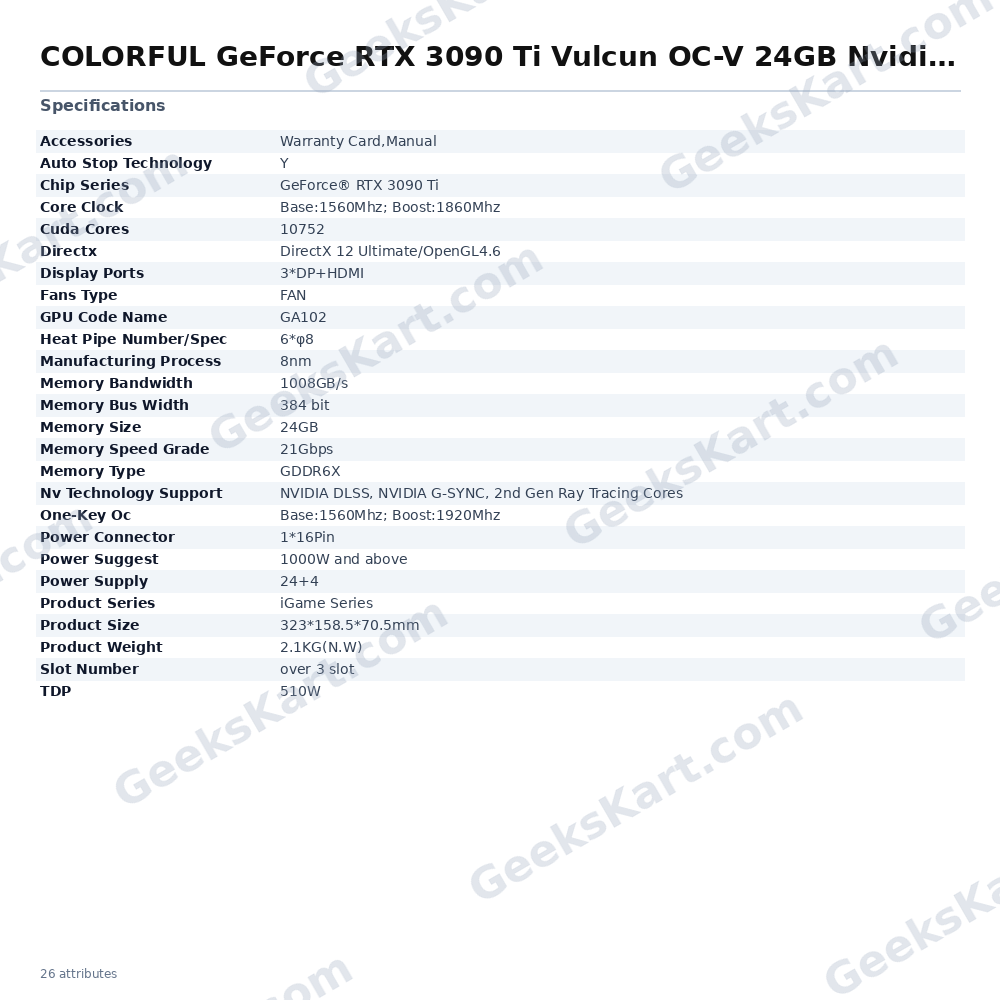

Specifications of COLORFUL GeForce RTX 3090 Ti Vulcun OC-V 24GB Nvidia Graphic Card
| Chip Series | GeForce® RTX 3090 Ti |
| Product Series | iGame Series |
| GPU Code Name | GA102 |
| Manufacturing Process | 8nm |
| CUDA Cores | 10752 |
| Core Clock | Base:1560Mhz; Boost:1860Mhz |
| One-Key OC | Base:1560Mhz; Boost:1920Mhz |
| Memory Speed Grade | 21Gbps |
| Memory Size | 24GB |
| Memory Bus Width | 384 bit |
| Memory Type | GDDR6X |
| Memory Bandwidth | 1008GB/s |
| Power Connector | 1*16Pin |
| Power Supply | 24+4 |
| TDP | 510W |
| Display Ports | 3*DP+HDMI |
| Fans Type | FAN |
| Heat Pipe Number/Spec | 6*φ8 |
| Auto Stop Technology | Y |
| Power Suggest | 1000W and above |
| DirectX | DirectX 12 Ultimate/OpenGL4.6 |
| NV technology Support | NVIDIA DLSS, NVIDIA G-SYNC, 2nd Gen Ray Tracing Cores |
| Slot Number | over 3 slot |
| Product Size | 323*158.5*70.5mm |
| Product Weight | 2.1KG(N.W) |
| Accessories | Warranty Card,Manual |
Datasheet
| Memory Type | GDDR6X |
|---|---|
| TDP | 510W |
| Memory Size | 24GB |
| Directx | DirectX 12 Ultimate/OpenGL4.6 |
| Fans Type | FAN |
| Cuda Cores | 10752 |
| Core Clock | Base:1560Mhz; Boost:1860Mhz |
| One-Key Oc | Base:1560Mhz; Boost:1920Mhz |
| Accessories | Warranty Card,Manual |
| Chip Series | GeForce® RTX 3090 Ti |
| Slot Number | over 3 slot |
| Power Supply | 24+4 |
| Product Size | 323*158.5*70.5mm |
| Display Ports | 3*DP+HDMI |
| GPU Code Name | GA102 |
| Power Suggest | 1000W and above |
| Product Series | iGame Series |
| Product Weight | 2.1KG(N.W) |
| Power Connector | 1*16Pin |
| Memory Bandwidth | 1008GB/s |
| Memory Bus Width | 384 bit |
| Memory Speed Grade | 21Gbps |
| Auto Stop Technology | Y |
| Heat Pipe Number/Spec | 6*φ8 |
| Manufacturing Process | 8nm |
| Nv Technology Support | NVIDIA DLSS, NVIDIA G-SYNC, 2nd Gen Ray Tracing Cores |
