Colorful GeForce RTX 5060 Ti Battle AX DUO 16GB-V Graphics Card
MPN RTX-5060-TI-BATTLE-AX-DUO-16GB-V · Brand COLORFUL
The Colorful GeForce RTX 5060 Ti Battle AX DUO 16GB-V features 4,608 CUDA cores, 16 GB GDDR7 memory at 448 GB/s bandwidth, dual ring-shaped fans with Auto Stop, and NVIDIA DLSS 4 support — backed by a 3-year warranty
Inclusive of GST · GST invoice available
Overview
The Colorful GeForce RTX 5060 Ti Battle AX DUO 16GB-V is a purpose-built graphics card for gamers and digital creators who demand both performance and visual flair. Powered by NVIDIA's GeForce RTX 5060 Ti silicon with 4,608 CUDA cores, the card is engineered to handle demanding gaming workloads, real-time ray tracing, and GPU-accelerated creative tasks with confidence. At the heart of the card's appeal is its 16 GB of GDDR7 video memory running across a 128-bit bus at 28 Gbps effective speed, delivering 448 GB/s of memory bandwidth — a meaningful upgrade over GDDR6 configurations at this tier. Engine clocks reach up to 2,572 MHz in boost mode (base up to 2,407 MHz), giving sustained headroom for frame-rate hungry titles and GPU-compute workloads alike. Cooling is handled by Colorful's Axe Cooling System, which features dual ring-shaped fans and a metallic hollowed backboard for improved airflow and heat dissipation. Fan Auto Stop technology lets the fans remain idle under light loads, reducing noise during everyday desktop use. The red-and-black colour-contrast shroud and RGB lighting on the card's side panel give the Battle AX DUO a distinctive aesthetic that stands out inside a windowed chassis. Connectivity covers up to four simultaneous displays via HDMI and DisplayPort outputs, supporting resolutions up to 7680×4320 (8K). The card connects via PCIe 5.0 and draws supplemental power through a single 8-pin connector, with a recommended system PSU of 600 W. Software support includes NVIDIA DLSS 4, Reflex, and Studio drivers, alongside DirectX 12 Ultimate and OpenGL 4.6 compatibility. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti • CUDA Cores: 4,608 • Memory: 16 GB GDDR7 • Memory Interface: 128-bit • Memory Bandwidth: 448 GB/s • Memory Clock: 28 Gbps • Boost Clock: up to 2,572 MHz • Base Clock: up to 2,407 MHz • PCI Express: 5.0 • Power Connector: 8-pin • Recommended PSU: 600 W • Display Outputs: HDMI + DisplayPort (max 4 displays) • Max Resolution: 7680×4320 • DirectX: 12 Ultimate | OpenGL: 4.6 • NV Technologies: DLSS 4, Reflex, Studio • Card Dimensions: 231 × 120 × 48.9 mm • Warranty: 3 Years

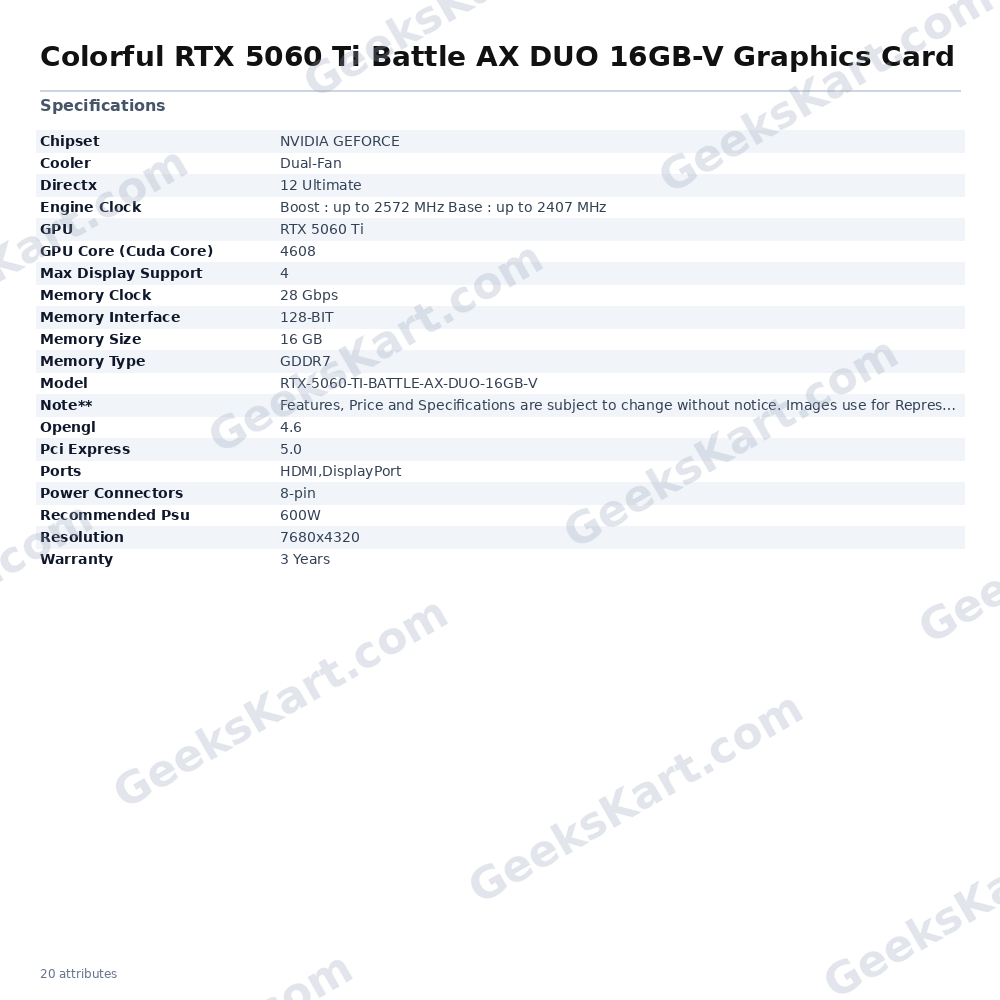

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| Chipset | NVIDIA GEFORCE |
| Memory Size | 16 GB |
| GPU | RTX 5060 Ti |
| Memory Clock | 28 Gbps |
| Recommended PSU | 600W |
| Resolution | 7680×4320 |
| Model | RTX-5060-TI-BATTLE-AX-DUO-16GB-V |
| Ports | HDMI,DisplayPort |
| Cooler | Dual-Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 5.0 |
| Engine Clock | Boost : up to 2572 MHz Base : up to 2407 MHz |
| Memory Interface | 128-BIT |
| Power Connectors | 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 4608 |
