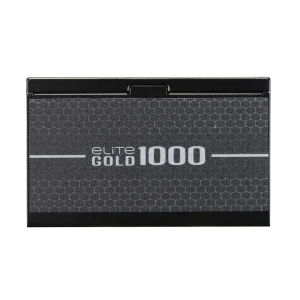

Features of COOLER MASTER Elite 1000W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 1000W )
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it’s ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.
High Temperature Resilience
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.

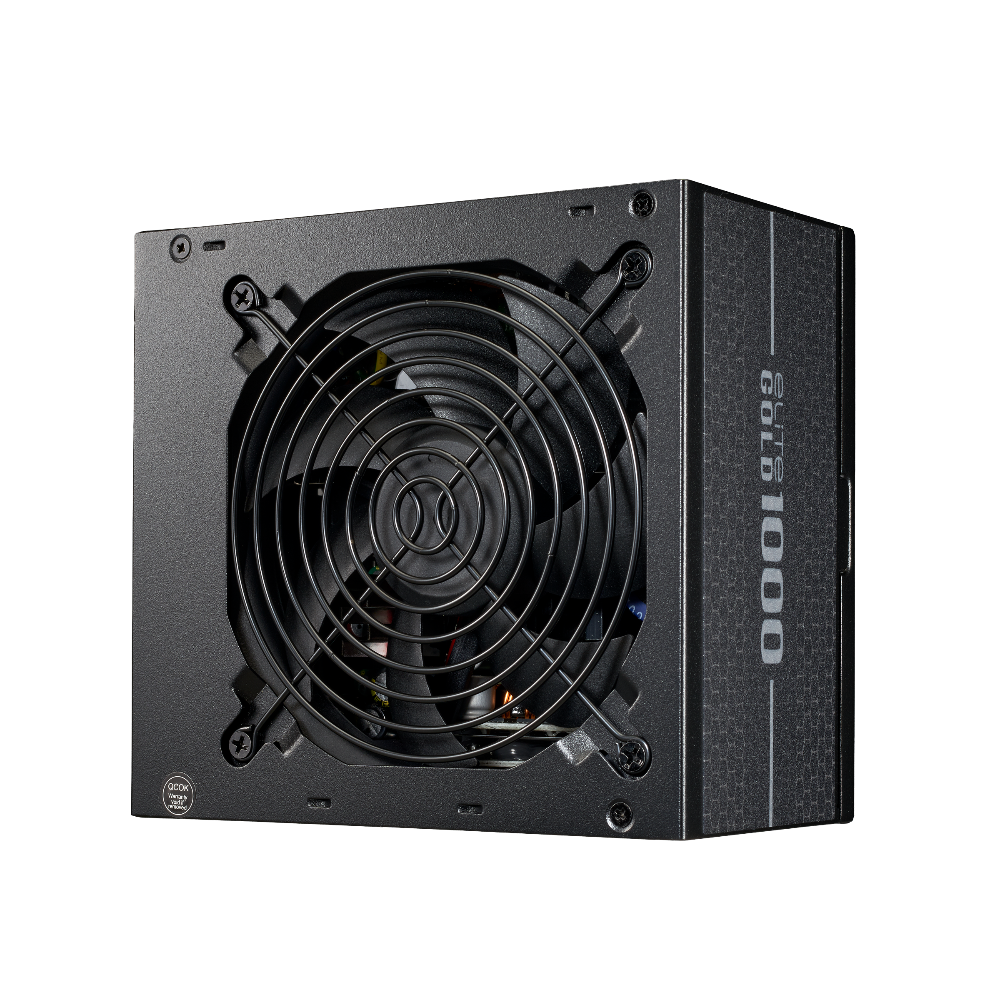

QUIET FDB FAN
The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

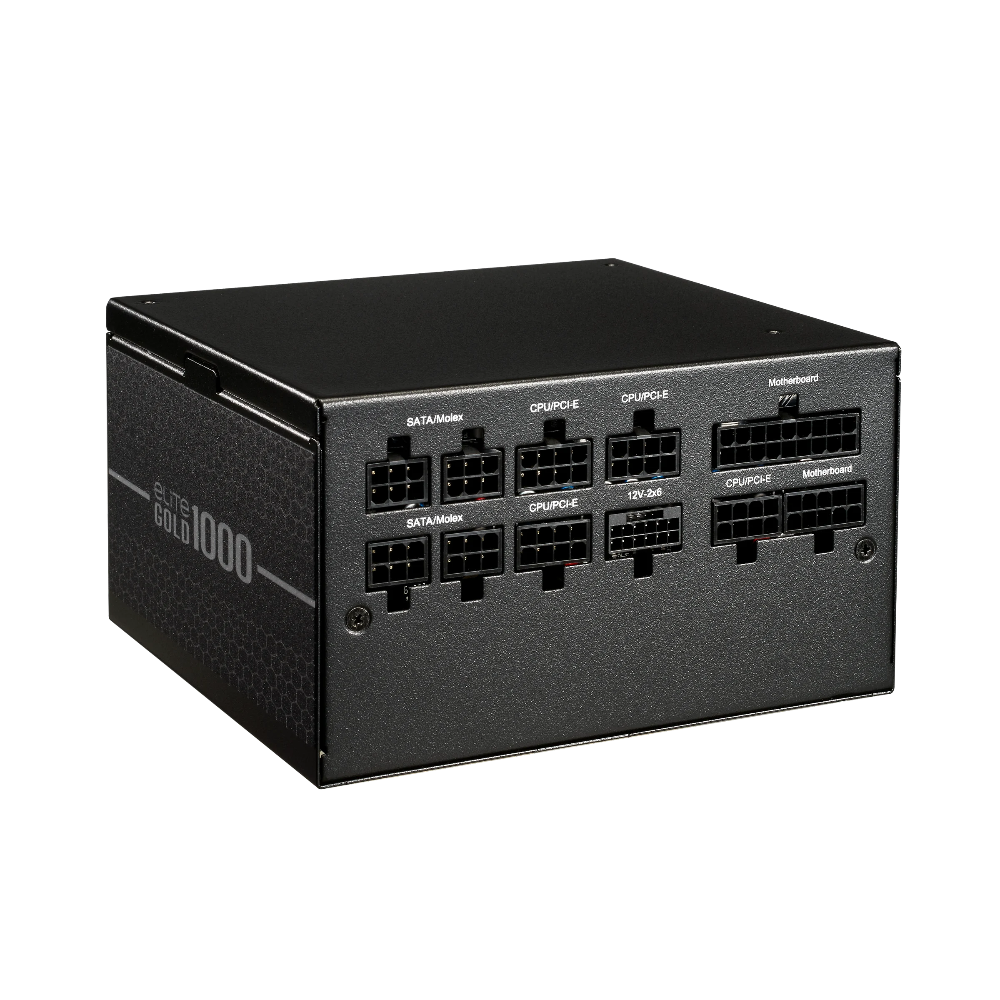

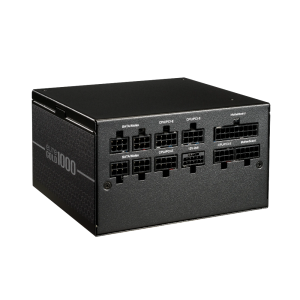

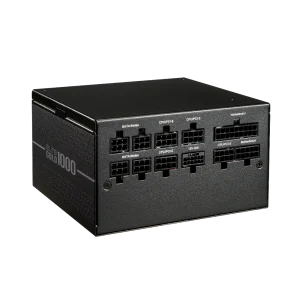

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

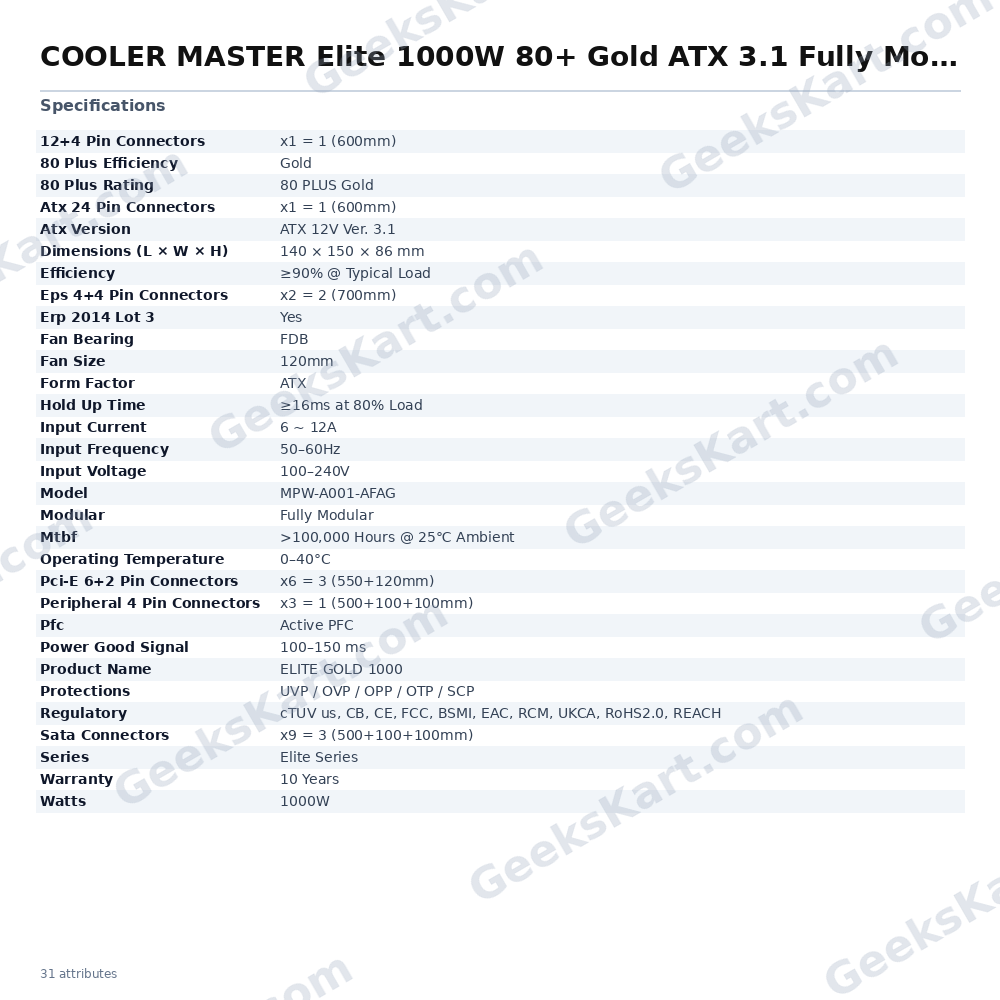

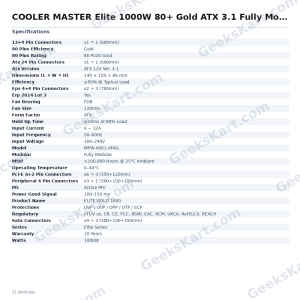

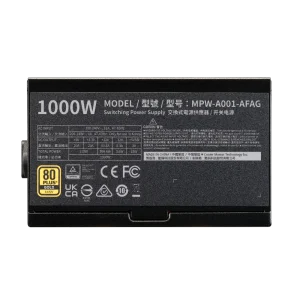

Specifications of COOLER MASTER Elite 1000W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 1000W )

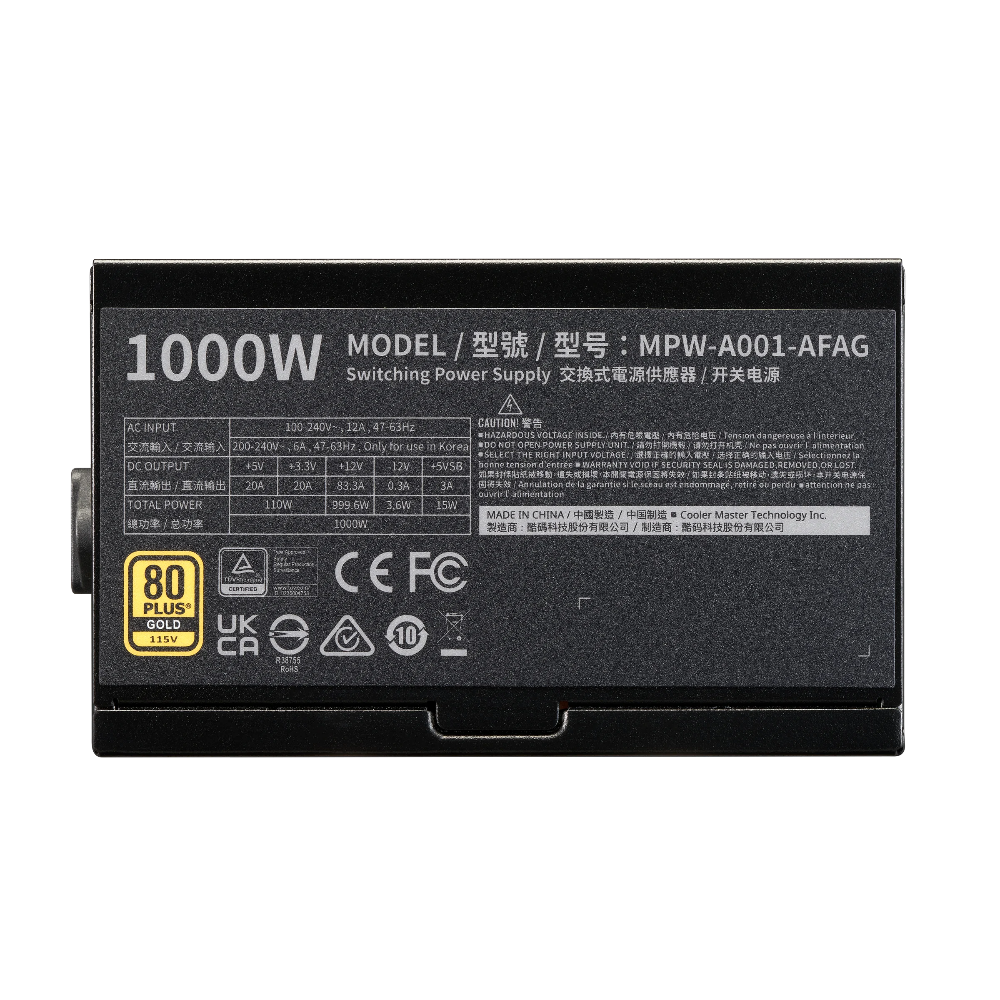

| Product Name | ELITE GOLD 1000 |
| Model | MPW-A001-AFAG |
| Series | Elite Series |
| Form Factor | ATX |
| ATX Version | ATX 12V Ver. 3.1 |
| Watts | 1000W |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 6 ~ 12A |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Fan Size | 120mm |
| Fan Bearing | FDB |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| 80 Plus Efficiency | Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0–40°C |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 Hours @ 25℃ Ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH |
| ATX 24 Pin Connectors | x1 = 1 (600mm) |
| EPS 4+4 Pin Connectors | x2 = 2 (700mm) |
| SATA Connectors | x9 = 3 (500+100+100mm) |
| Peripheral 4 Pin Connectors | x3 = 1 (500+100+100mm) |
| PCI-e 6+2 Pin Connectors | x6 = 3 (550+120mm) |
| 12+4 Pin Connectors | x1 = 1 (600mm) |
| Warranty | 10 Years |
