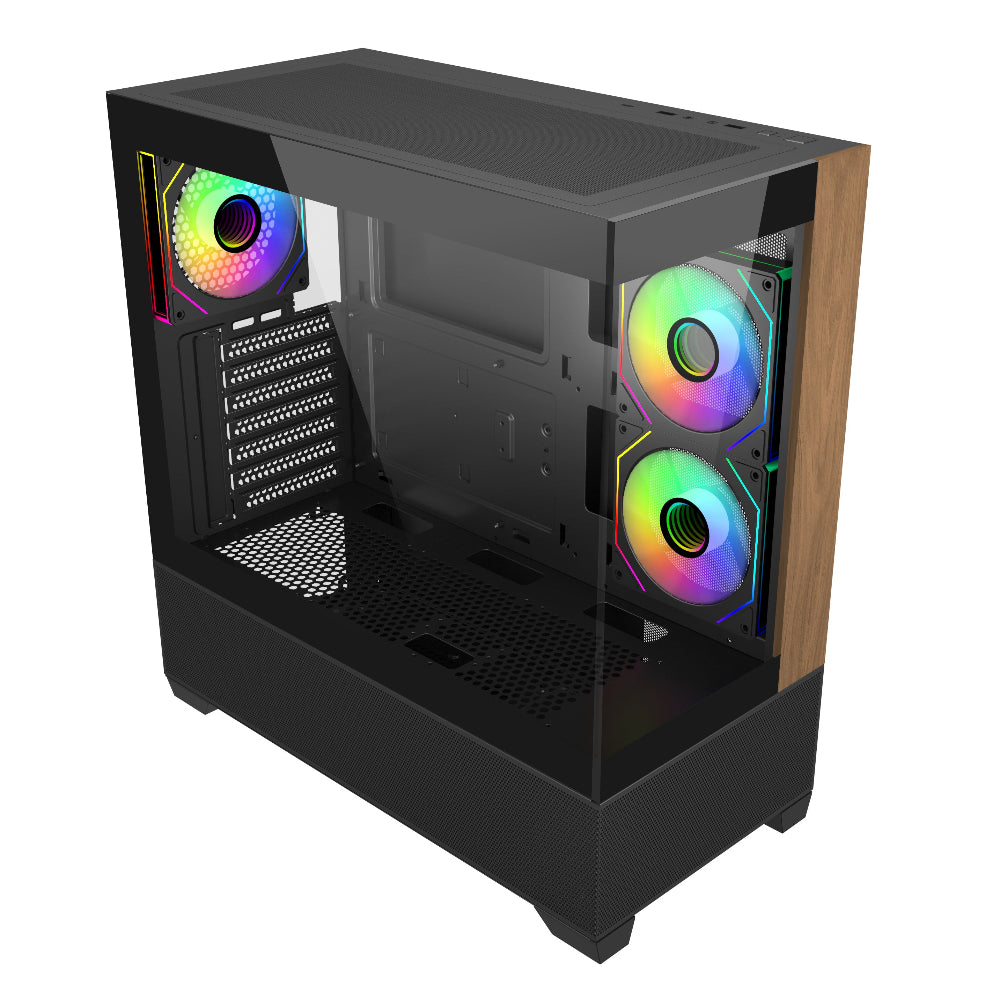

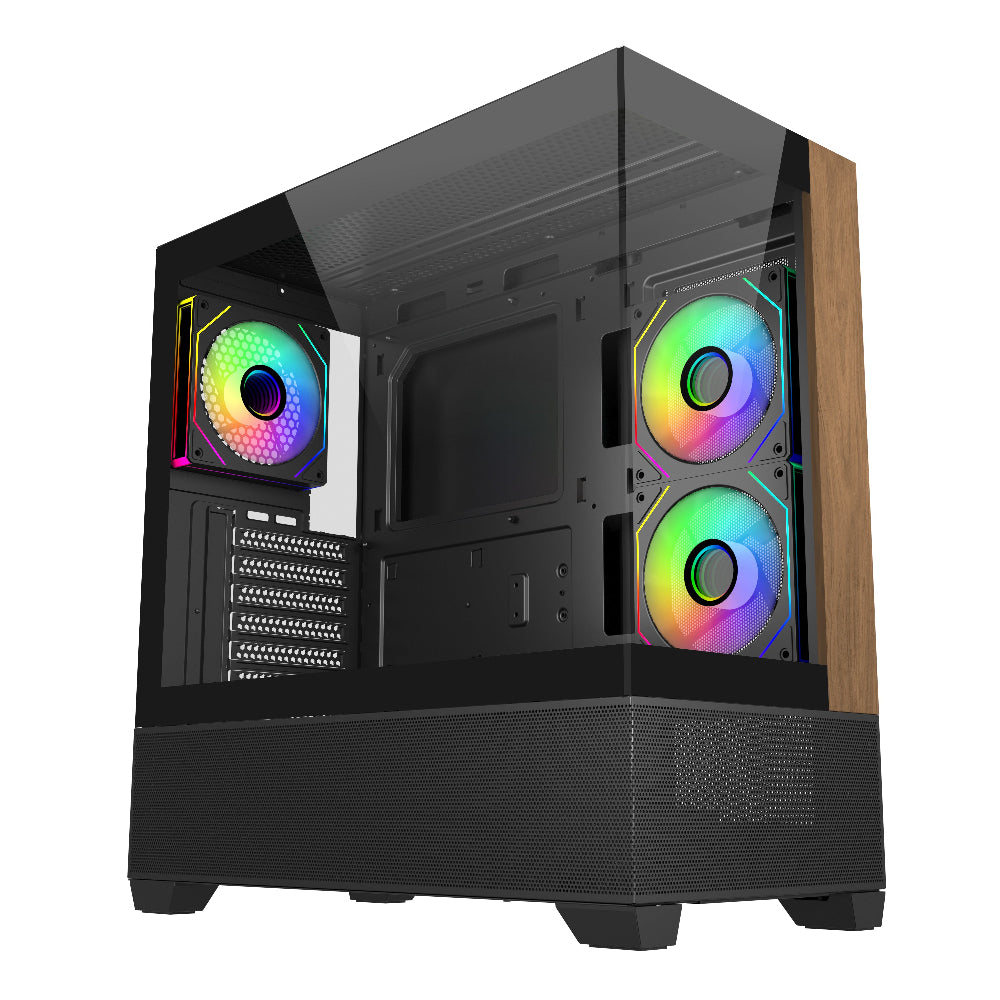

COOLER MASTER Elite 690 Wood ARGB ATX Mid Tower Cabinet ( Black )

The Cooler Master Elite 690 Wood ARGB is an ATX mid-tower cabinet that merges natural material design with high-performance thermal engineering. Its most distinctive feature is the real wood front panel, which brings warm, organic character to a build without sacrificing airflow — a lower mesh intake is integrated beneath the wood section to draw cool air into the chassis. Dual tempered glass panels, each cut with 45° beveled edges, wrap the front and side of the case to create an expansive 270° panoramic view of internal components and lighting. Thermal headroom is a priority throughout the design. The chassis supports up to 10 fans total across the top, rear, side, and bottom positions, arranged to promote a vertical bottom-to-top airflow path. Three ARGB PWM fans come pre-installed: two 120mm reverse-blade intake fans on the side mount and one 120mm exhaust fan at the rear. All fans feature daisy-chain connectors and are compatible with major motherboard ARGB sync software, reducing cable clutter and simplifying RGB control. For liquid cooling enthusiasts, the Elite 690 Wood supports radiators up to 360mm on the top (with a maximum cooler height of 45mm at that position) and up to 240mm on the side mount. The independent PSU chamber at the base of the chassis separates the power supply from the main thermal zone, enabling cleaner cable routing and better compartmentalisation of heat sources. CPU coolers up to 170mm tall and graphics cards up to 425mm long are accommodated, making it compatible with large-format GPUs including current high-end models. Front I/O includes two USB 3.0 Type-A ports, one USB Type-C port running at USB 3.2 Gen 2×2 speeds (up to 20 Gbps), and a 3.5mm combo audio jack. Storage support covers up to two 3.5-inch HDDs and up to two 2.5-inch SSDs, with no 5.25-inch optical drive bay. The case supports ATX, Micro-ATX, and Mini-ITX motherboards across seven expansion slots. Verified Specifications: – Model Number: E690-KHNN-S00 – Form Factor: ATX Mid Tower – Colour: Black – Material: Tempered Glass + Real Wood – Dimensions (incl. protrusions): 434 × 218 × 454 mm – Dimensions (excl. protrusions): 430 × 218 × 435 mm – Volume: 42.93 L – Motherboard Support: ATX / Micro-ATX / Mini-ITX – Expansion Slots: 7 – Drive Bays: 2× 3.5″ HDD (max), 2× 2.5″ SSD (max) – Pre-installed Fans: 2× 120mm ARGB PWM side intake (reverse-blade) + 1× 120mm ARGB PWM rear exhaust – Total Fan Support: Up to 10 fans – Top Radiator Support: 360 / 240 / 120mm (360mm max cooler height 45mm) – Bottom Radiator Support: 360 / 240 / 120mm – Side Radiator Support: 240 / 120mm – CPU Cooler Clearance: 170mm – GPU Clearance: 425mm – PSU Clearance: 250mm (ATX PSU) – Front I/O: 2× USB 3.0 Type-A, 1× USB Type-C (20Gbps), 1× 3.5mm combo audio – Warranty: 2 Years
