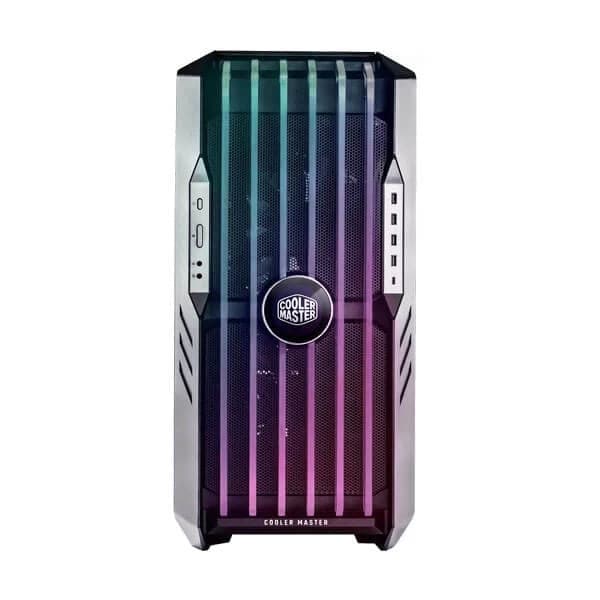

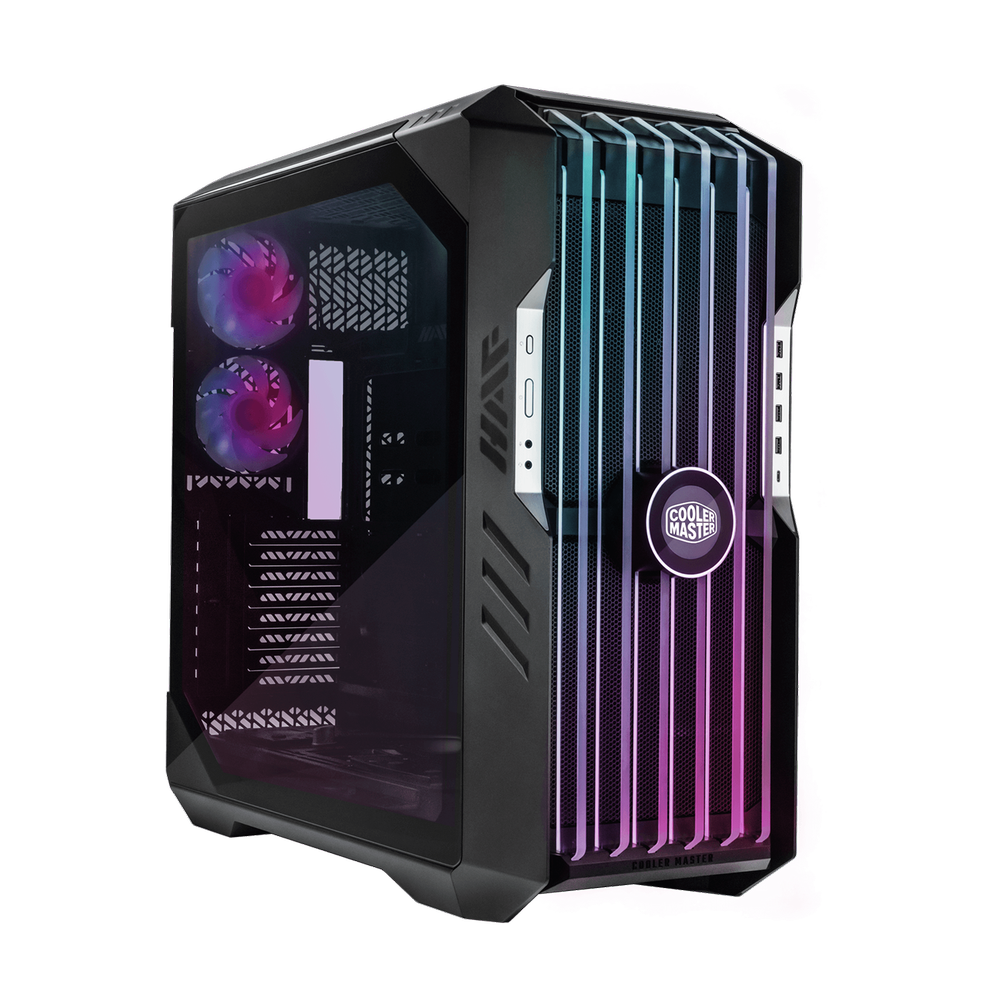

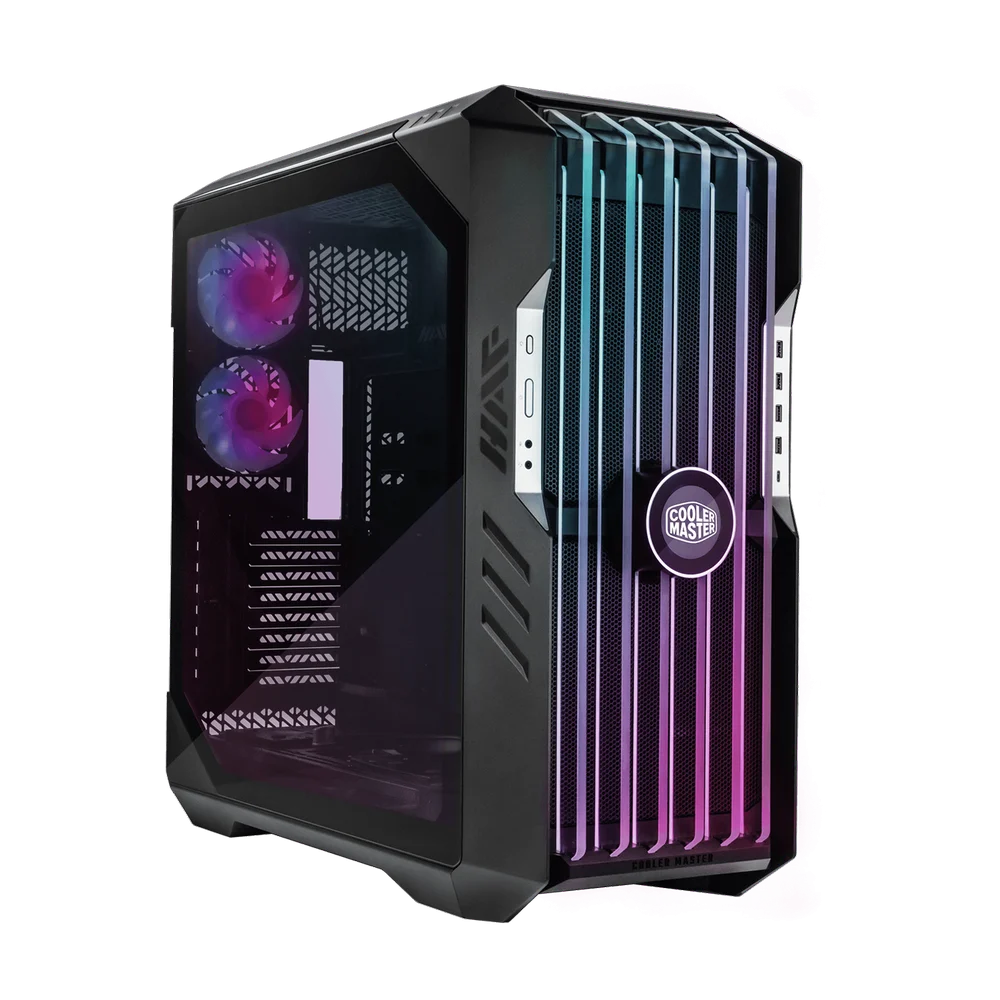

COOLER MASTER HAF 700 EVO ARGB EATX Full Tower Cabinet (Titanium Grey)
MPN COOLER-MASTER-HAF-700-EVO-TITANIUM-GRAY · Brand Cooler Master
The Cooler Master HAF 700 EVO ARGB (H700E-IGNN-S00) is an E-ATX full tower cabinet in Titanium Grey featuring IRIS LCD, ARGB Gen2, 490mm GPU clearance, and extensive radiator support up to 480mm
Inclusive of GST · GST invoice available
Overview

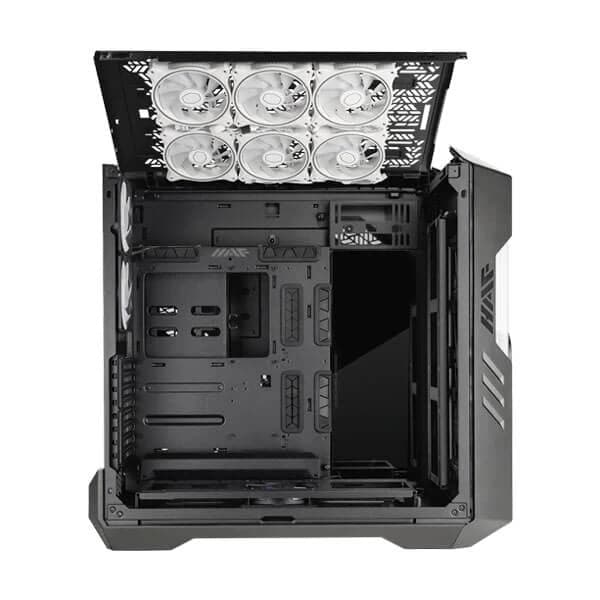

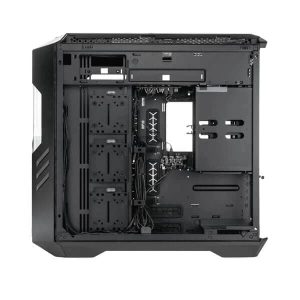

The Cooler Master HAF 700 EVO ARGB is a flagship E-ATX full tower cabinet engineered for enthusiast builders who demand both extreme thermal performance and visual versatility. Available in Titanium Grey, it carries model number H700E-IGNN-S00 and belongs to Cooler Master's iconic HAF (High Air Flow) Series. At the heart of this cabinet is a multi-chamber layout that physically separates heat-sensitive components from non-heat-sensitive ones, directing airflow where it matters most. Two rotatable radiator and fan brackets ship in the box, allowing cooling components to be positioned at custom angles for unique build aesthetics and improved thermal routing. The removable top panel further simplifies access to fans and radiators during assembly and maintenance — even in complex custom-loop builds. Out of the box, four fans are pre-installed: two exclusive 200mm SickleFlow PWM Performance Edition fans at the front and two 120mm SickleFlow PWM ARGB fans at the rear. A fully integrated 7x PWM and 5x ARGB hub handles fan speed control and lighting in one tidy solution, while an included ARGB Gen2 LED Controller (A1) enables per-LED customization compatible with third-party ARGB devices and Cooler Master's MasterPlus+ software. The IRIS customizable LCD assistant lets builders display real-time system statistics, media, or personal imagery directly on the case — controllable via MasterPlus+. Edge-lit ARGB tempered glass intake blades on the front panel deliver a striking visual while maintaining the airflow efficiency of a mesh intake. An Infinity Mirror panel adds further depth to the overall lighting presentation. Hardware compatibility is comprehensive. The case supports motherboards from Mini-ITX up to SSI-EEB, with 8 expansion slots. Graphics cards up to 490mm in length can be installed in both horizontal and standard vertical orientations using the included PCIe 4.0 riser cable and Universal Graphics Card Holder Kit V2. The patent-pending tool-less vertical GPU clamping mechanism removes the need for screws during GPU installation or removal. CPU coolers up to 166mm tall are supported, and the PSU bay accommodates units up to 200mm. Storage capacity reaches 12 combined 2.5-inch and 3.5-inch drive bays, served by a tool-less swiveling drive cage. Repositionable multifunction brackets support SSDs, HDDs, or pump and reservoir mounts for liquid cooling. The front I/O includes 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 (Type-A), a 3.5mm combo audio jack, and a dedicated 3.5mm microphone jack. Cable routing behind the motherboard tray offers 90–101mm of clearance. Radiator support is equally expansive: up to 2x 360mm or 1x 420mm on top, up to 420/360mm at the front and bottom, up to 480/420mm on the side, and up to 240mm at the rear. Dust filters are fitted at the front, bottom, and side. The exterior combines mesh, steel, and plastic with a tempered glass and steel left side panel. The body measures 556 x 279 x 540mm (666 x 291 x 626mm including protrusions). Backed by a 2-year warranty. Verified Specifications: - Model: H700E-IGNN-S00 - Form Factor: Full Tower - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX, SSI CEB, SSI EEB - Dimensions (Body): 556 x 279 x 540 mm - Pre-installed Fans: 2x 200mm SickleFlow PWM (front), 2x 120mm SickleFlow PWM ARGB (rear) - GPU Clearance: 490mm - CPU Cooler Clearance: 166mm - PSU Clearance: 200mm - Expansion Slots: 8 - Drive Bays: 12x 2.5"/3.5" combo - I/O: 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A - Radiator Support (Side): Up to 480/420mm - Warranty: 2 Years

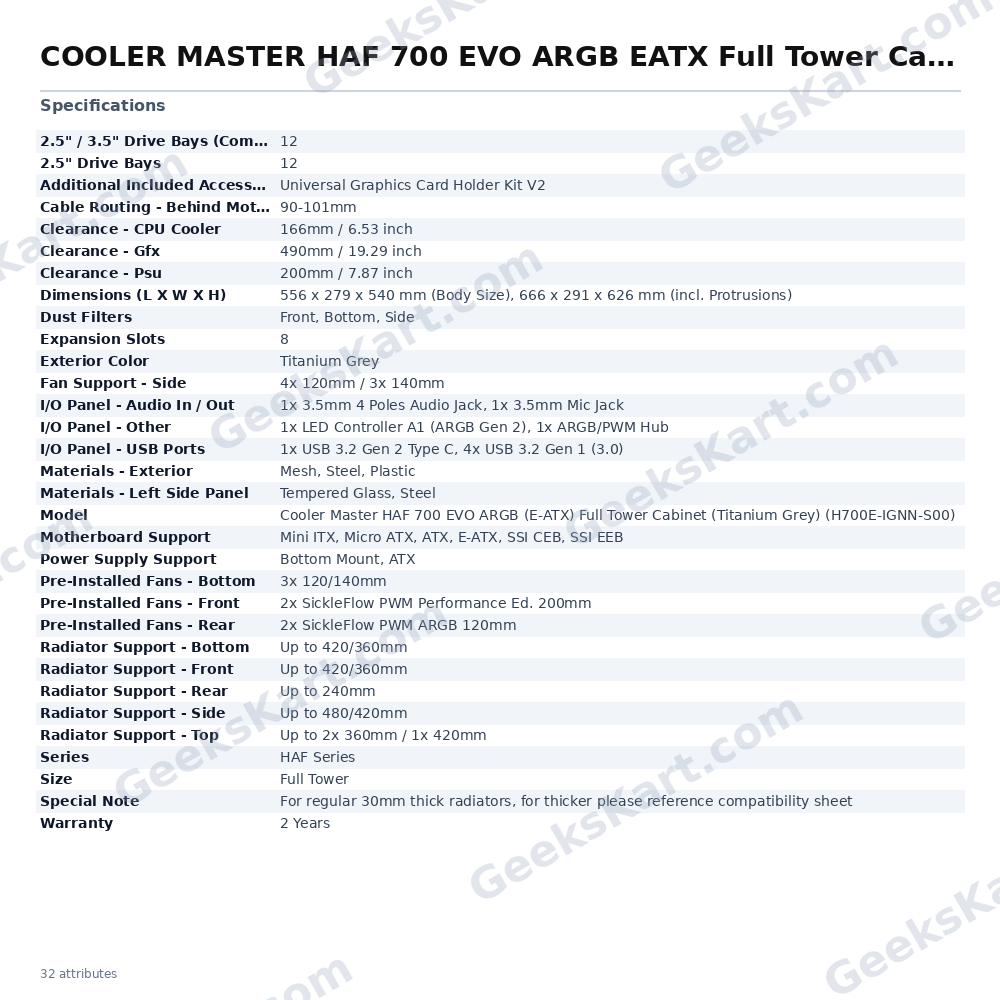

Datasheet
| Warranty | 2 Years |
|---|---|
| Size | Full Tower |
| Series | HAF Series |
| Dust Filters | Front, Bottom, Side |
| Model | Cooler Master HAF 700 EVO ARGB (E-ATX) Full Tower Cabinet (Titanium Grey) (H700E-IGNN-S00) |
| Special Note | For regular 30mm thick radiators, for thicker please reference compatibility sheet |
| Exterior Color | Titanium Grey |
| 2.5" Drive Bays | 12 |
| Clearance - Gfx | 490mm / 19.29 inch |
| Clearance - Psu | 200mm / 7.87 inch |
| Expansion Slots | 8 |
| I/O Panel - Other | 1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub |
| Fan Support - Side | 4x 120mm / 3x 140mm |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB |
| Materials - Exterior | Mesh, Steel, Plastic |
| Power Supply Support | Bottom Mount, ATX |
| I/O Panel - USB Ports | 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0) |
| Clearance - CPU Cooler | 166mm / 6.53 inch |
| Dimensions (L X W X H) | 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions) |
| Radiator Support - Top | Up to 2x 360mm / 1x 420mm |
| Radiator Support - Rear | Up to 240mm |
| Radiator Support - Side | Up to 480/420mm |
| Radiator Support - Front | Up to 420/360mm |

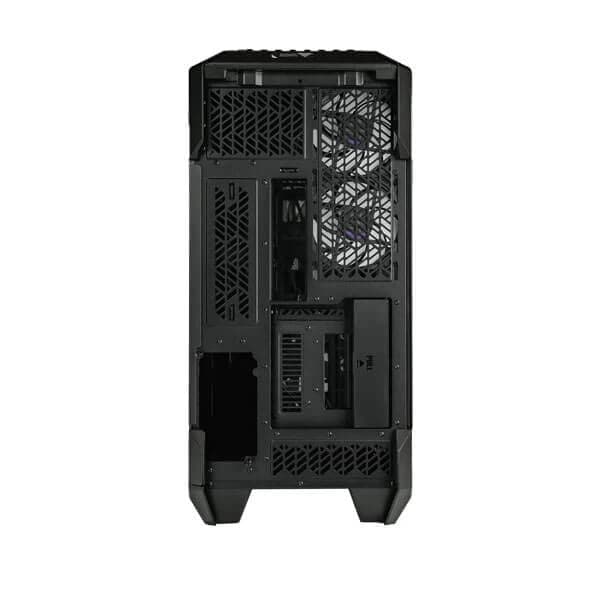

| Pre-Installed Fans - Rear | 2x SickleFlow PWM ARGB 120mm |
| Radiator Support - Bottom | Up to 420/360mm |
| I/O Panel - Audio In / Out | 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack |

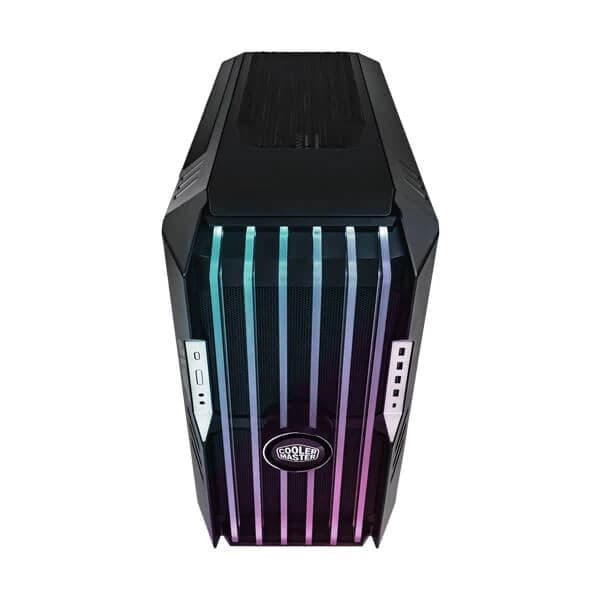

| Pre-Installed Fans - Front | 2x SickleFlow PWM Performance Ed. 200mm |

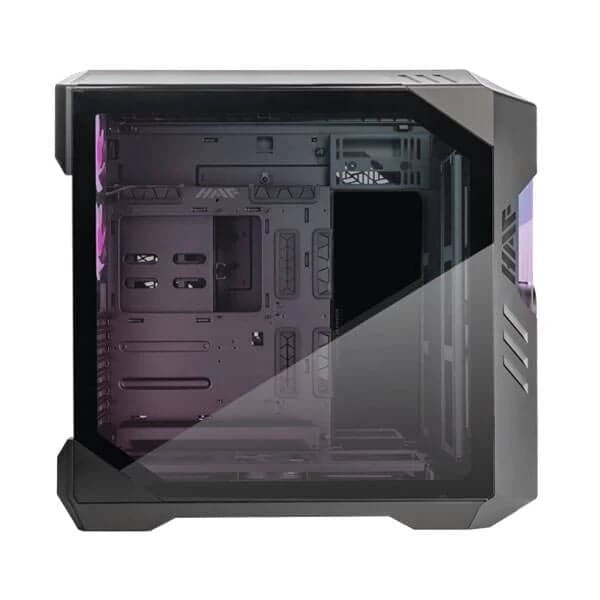

| Materials - Left Side Panel | Tempered Glass, Steel |
| Pre-Installed Fans - Bottom | 3x 120/140mm |

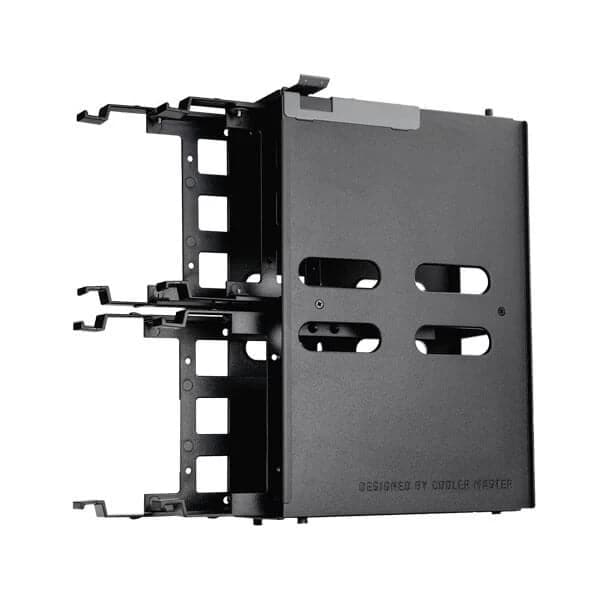

| 2.5" / 3.5" Drive Bays (Combo) | 12 |
| Additional Included Accessories | Universal Graphics Card Holder Kit V2 |

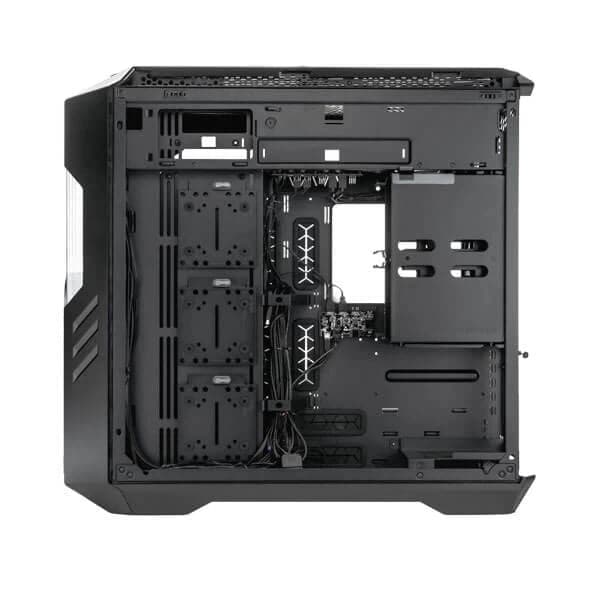

| Cable Routing - Behind Motherboard Tray | 90-101mm |
