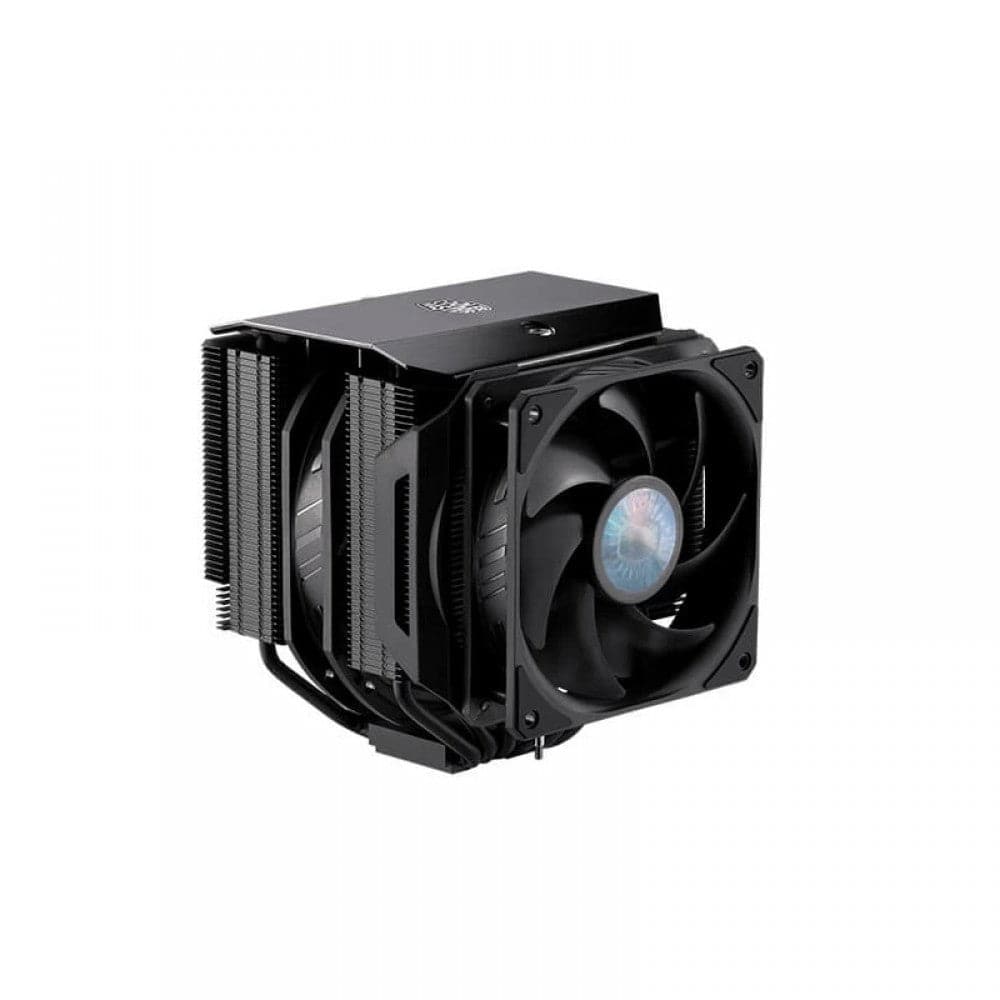

COOLER MASTER MA624 Stealth Dual Tower CPU Air Cooler (Black)
MPN CM-MA624-BLACK · Brand Cooler Master
Features of COOLER MASTER MA624 Stealth Dual Tower The COOLER MASTER MA624 Stealth brings to you twice the performance with dual fans and tower in a striking package. Equipped with jet black hardware throughout, its dark veil is nothing to be underestimated. The twin 140mm SickleFlow fan combined with dual tower heatsink configuration delivers a powerful Push-Pull setup, with its 6 pipes and nickel plated base working in sync to draw heat out rapidly. An optional 3rd 120mm fan is included to swa
Inclusive of GST · GST invoice available
Overview
Features of COOLER MASTER MA624 Stealth Dual Tower
The COOLER MASTER MA624 Stealth brings to you twice the performance with dual fans and tower in a striking package. Equipped with jet black hardware throughout, its dark veil is nothing to be underestimated. The twin 140mm SickleFlow fan combined with dual tower heatsink configuration delivers a powerful Push-Pull setup, with its 6 pipes and nickel plated base working in sync to draw heat out rapidly. An optional 3rd 120mm fan is included to swap out for necessary RAM clearance.
- Dual SickleFlow 140 Fan
- RAM Clearance Option
- 6 Heat Pipe with Nickel Plated Base
- Premium Aluminum Black Top Cover
- Dual Tower Heat Sink
- AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
- Intel LGA1700*/1200/1151/1150/1155/1156/1366/2066/2011-v3/2011
RAM CLEARANCE
Optional 3rd SickleFlow 120mm fan included for necessary RAM compatibility and clearance.

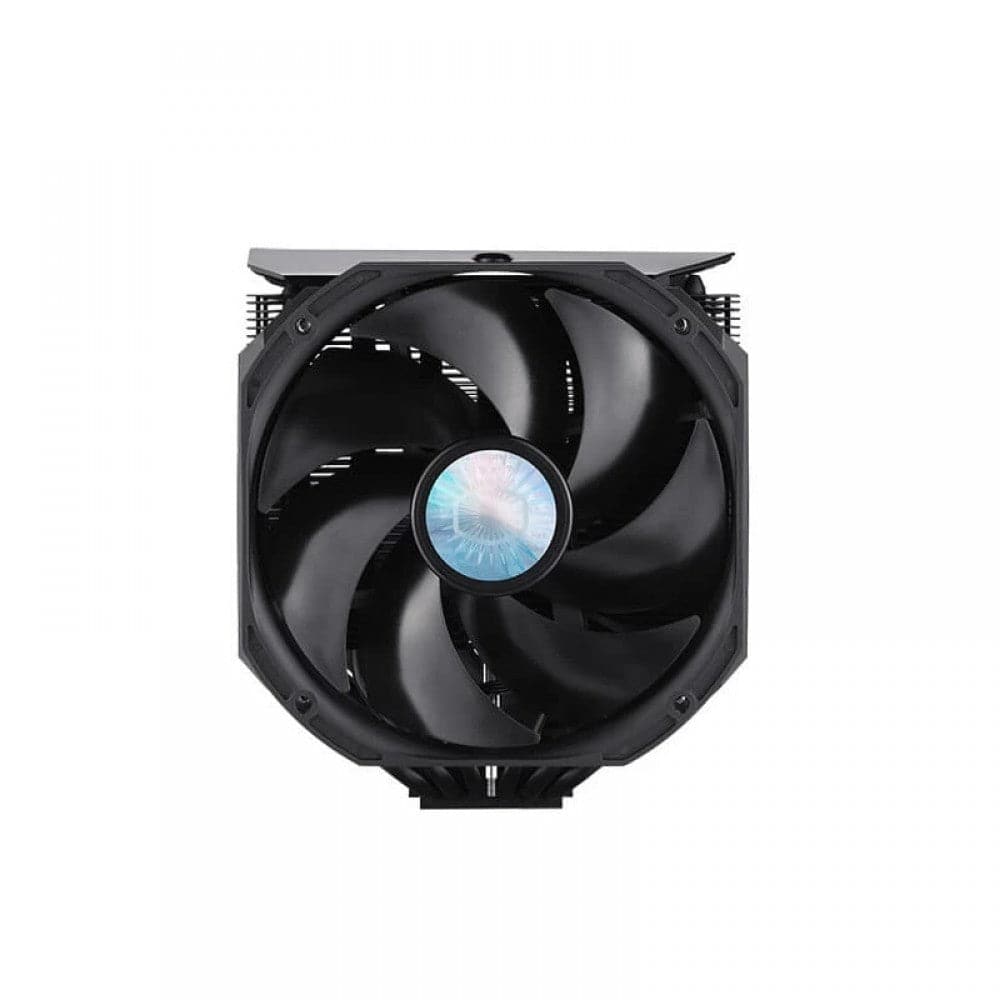

DUAL SICKLEFLOW
Twin Sickleflow fan, redesigned curved blades to optimize the airflow and pressure for superior Push-Pull performance.

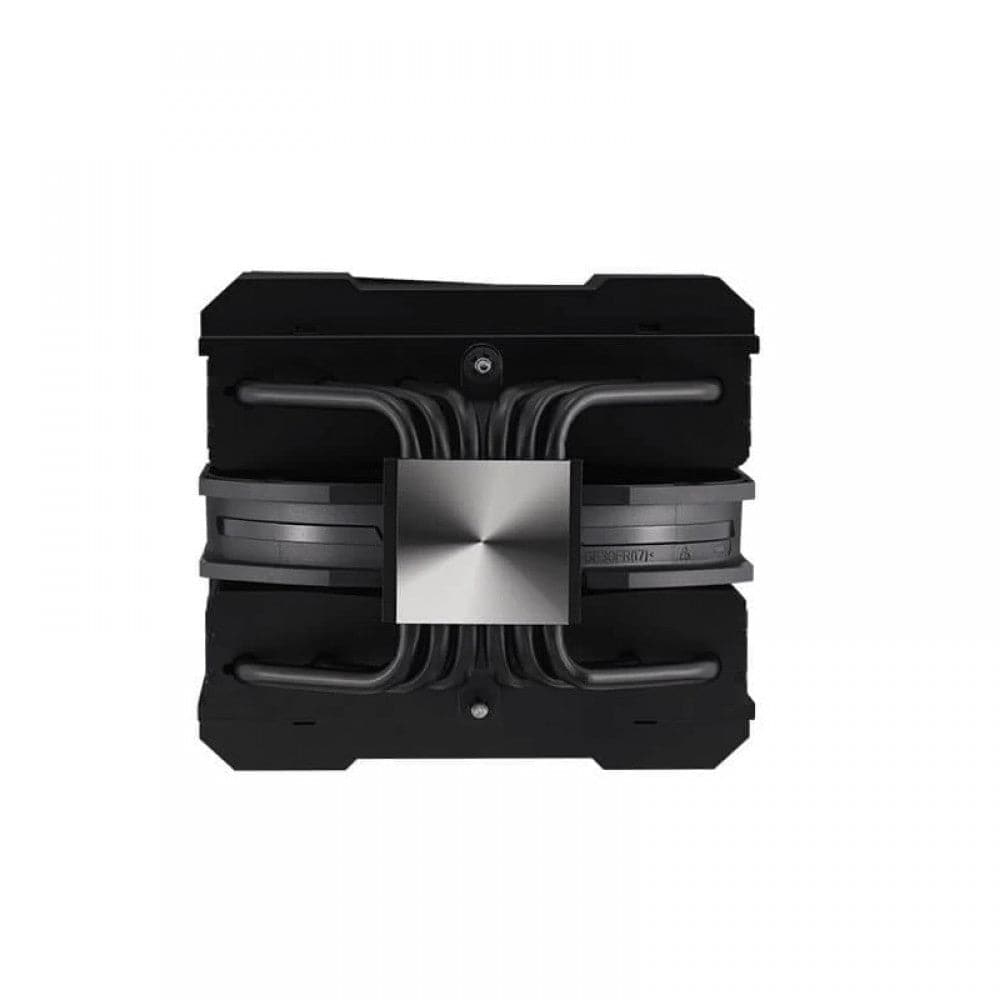

6 Heat Pipe Nickel Base
6 heat pipe and nickel plated copper base provides maximum coverage for optimal cooling.

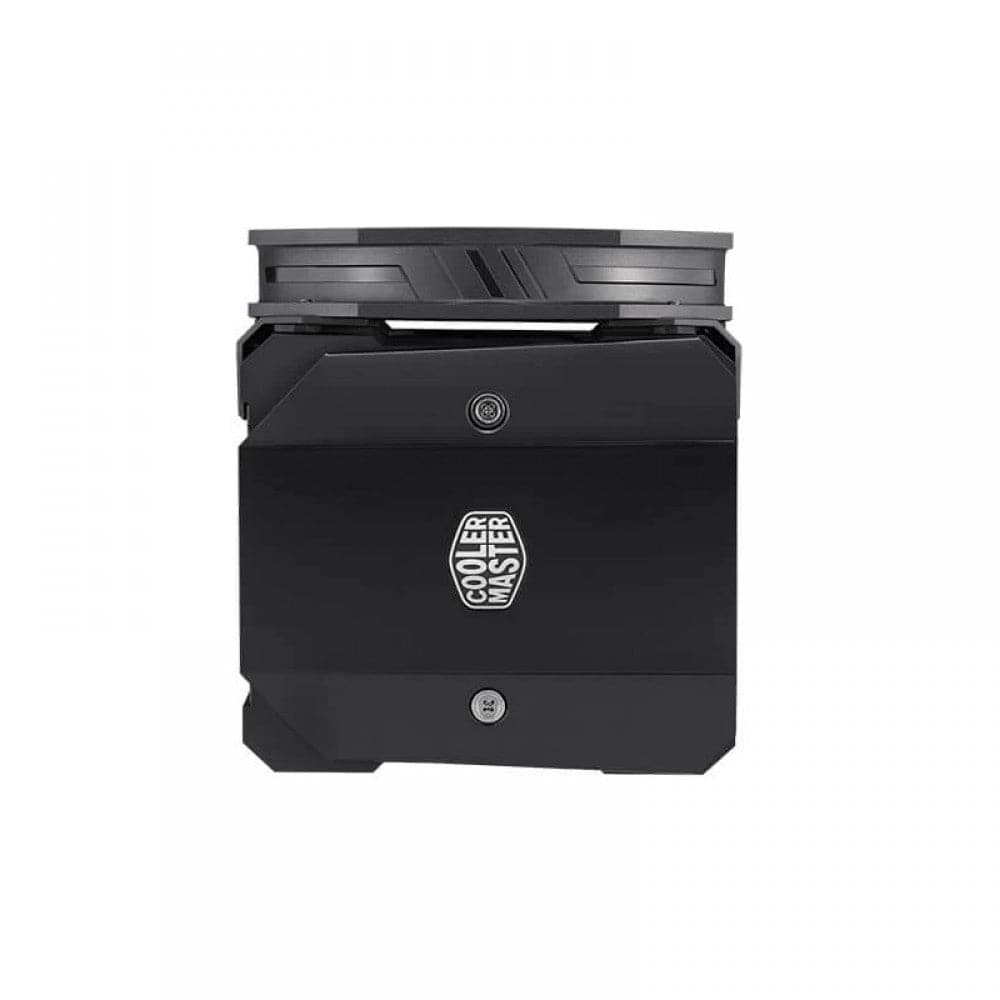

Premium Aluminum Top
Black aluminum top cover offers a premium finish.

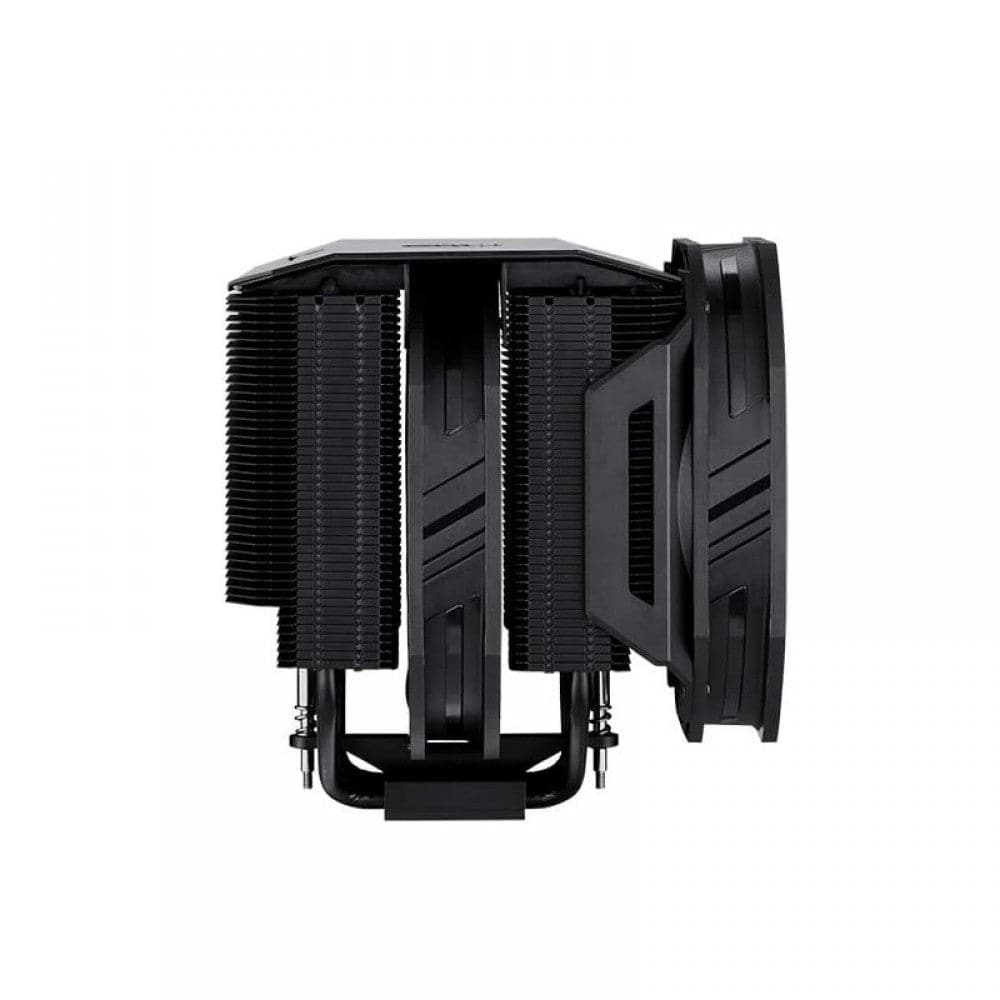

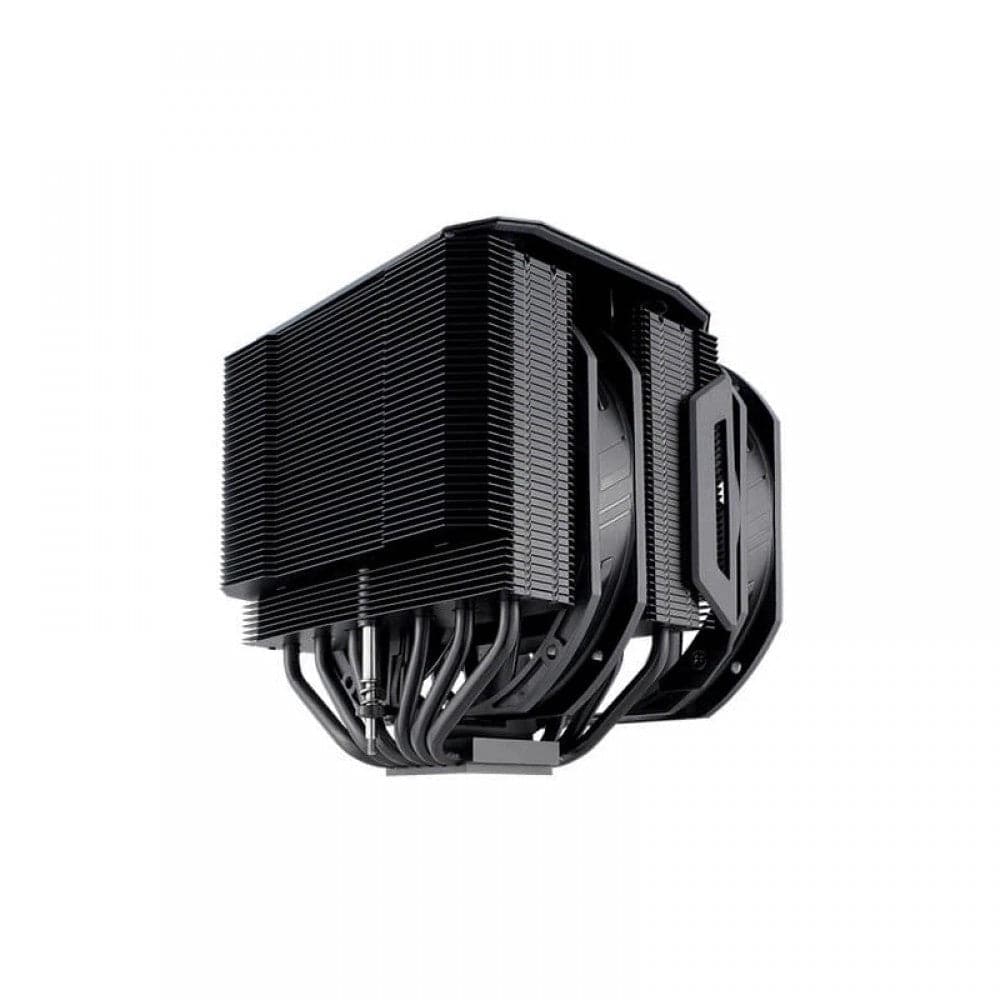

Dual Tower Heat Sink
Dual heatsink combination provides twice the surface area for better cooling.

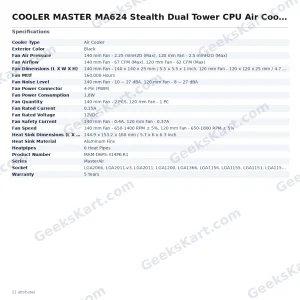

Specifications of COOLER MASTER MA624 Stealth Dual Tower
| PRODUCT NUMBER | MAM-D6PS-314PK-R1 |
| EXTERIOR COLOR | Black |
| CPU SOCKET | LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
| HEAT SINK DIMENSIONS (L X W X H) | 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch |
| HEAT SINK MATERIAL | Aluminum Fins |
| HEATPIPES | 6 Heat Pipes |
| FAN DIMENSIONS (L X W X H) | 140 mm Fan - 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan - 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| FAN QUANTITY | 140 mm Fan - 2 PCS, 120 mm Fan - 1 PC |
| FAN LED TYPE | N/A |
| FAN SPEED | 140 mm Fan - 650-1400 RPM ± 5%, 120 mm Fan - 650-1800 RPM ± 5% |
| FAN AIRFLOW | 140 mm Fan - 67 CFM (Max), 120 mm Fan - 62 CFM (Max) |
| FAN NOISE LEVEL | 140 mm Fan - 10 ~ 27 dBA, 120 mm Fan - 8 ~ 27 dBA |
| FAN AIR PRESSURE | 140 mm Fan - 2.25 mmH2O (Max), 120 mm Fan - 2.5 mmH2O (Max) |
| FAN MTTF | 160,000 Hours |
| FAN POWER CONNECTOR | 4-Pin (PWM) |
| FAN RATED VOLTAGE | 12VDC |
| FAN RATED CURRENT | 0.15A |
| FAN SAFETY CURRENT | 140 mm Fan - 0.4A, 120 mm Fan - 0.37A |
| FAN POWER CONSUMPTION | 1.8W |
| SERIES | MasterAir |
| COOLER TYPE | Air Cooler |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |

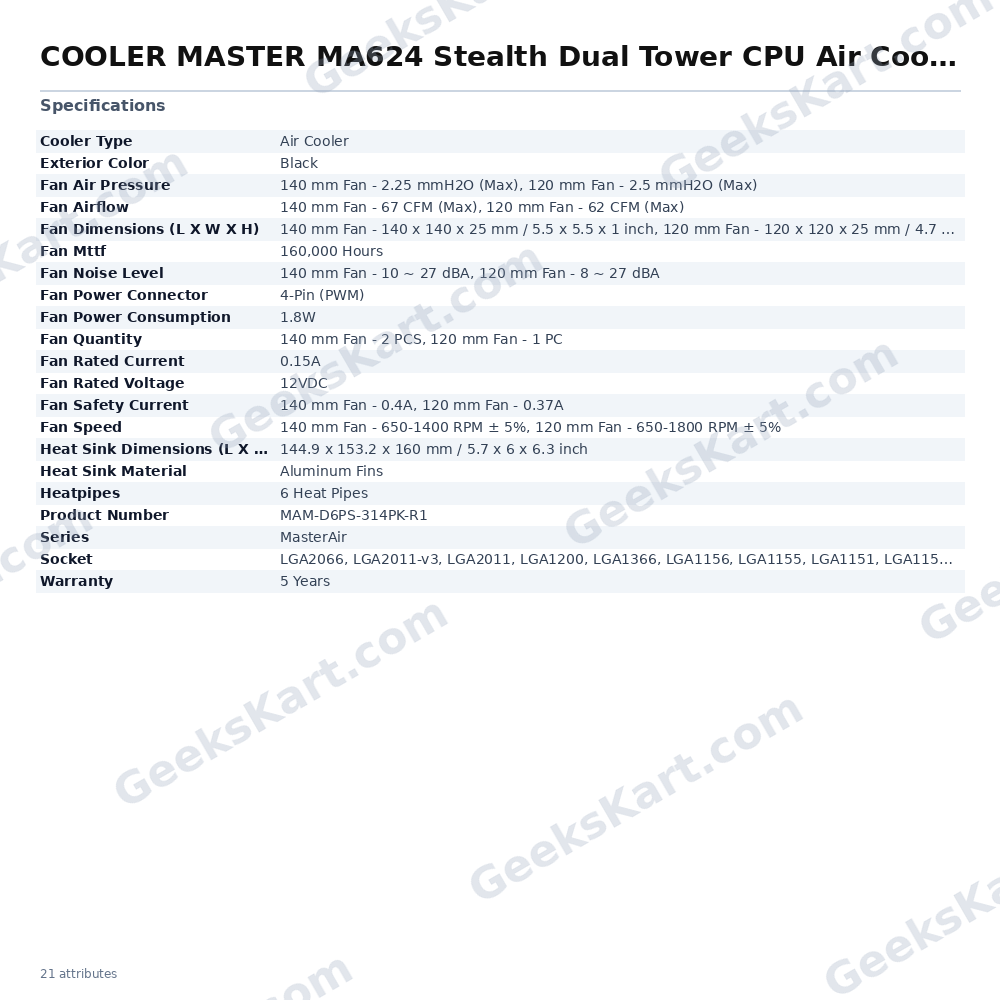

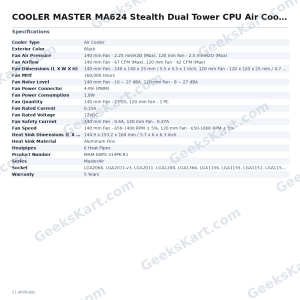

Datasheet
| Warranty | 5 Years |
|---|---|
| Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1366, LGA2011, LGA2066 |
| Series | MasterAir |
| Fan Mttf | 160,000 Hours |
| Fan Speed | 140 mm Fan – 650-1400 RPM ± 5%, 120 mm Fan – 650-1800 RPM ± 5% |
| Heatpipes | 6 Heat Pipes |
| Cooler Type | Air Cooler |
| Fan Airflow | 140 mm Fan – 67 CFM (Max), 120 mm Fan – 62 CFM (Max) |
| Fan Quantity | 140 mm Fan – 2 PCS, 120 mm Fan – 1 PC |
| Exterior Color | Black |
| Product Number | MAM-D6PS-314PK-R1 |
| Fan Noise Level | 140 mm Fan – 10 ~ 27 dBA, 120 mm Fan – 8 ~ 27 dBA |
| Fan Air Pressure | 140 mm Fan – 2.25 mmH2O (Max), 120 mm Fan – 2.5 mmH2O (Max) |
| Fan Rated Current | 0.15A |
| Fan Rated Voltage | 12VDC |
| Fan Safety Current | 140 mm Fan – 0.4A, 120 mm Fan – 0.37A |
| Heat Sink Material | Aluminum Fins |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Power Consumption | 1.8W |
| Fan Dimensions (L X W X H) | 140 mm Fan – 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan – 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Heat Sink Dimensions (L X W X H) | 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch |
