COOLER MASTER MASTER FRAME 360 Panorama ARGB ATX Mid Tower Cabinet ( Black )

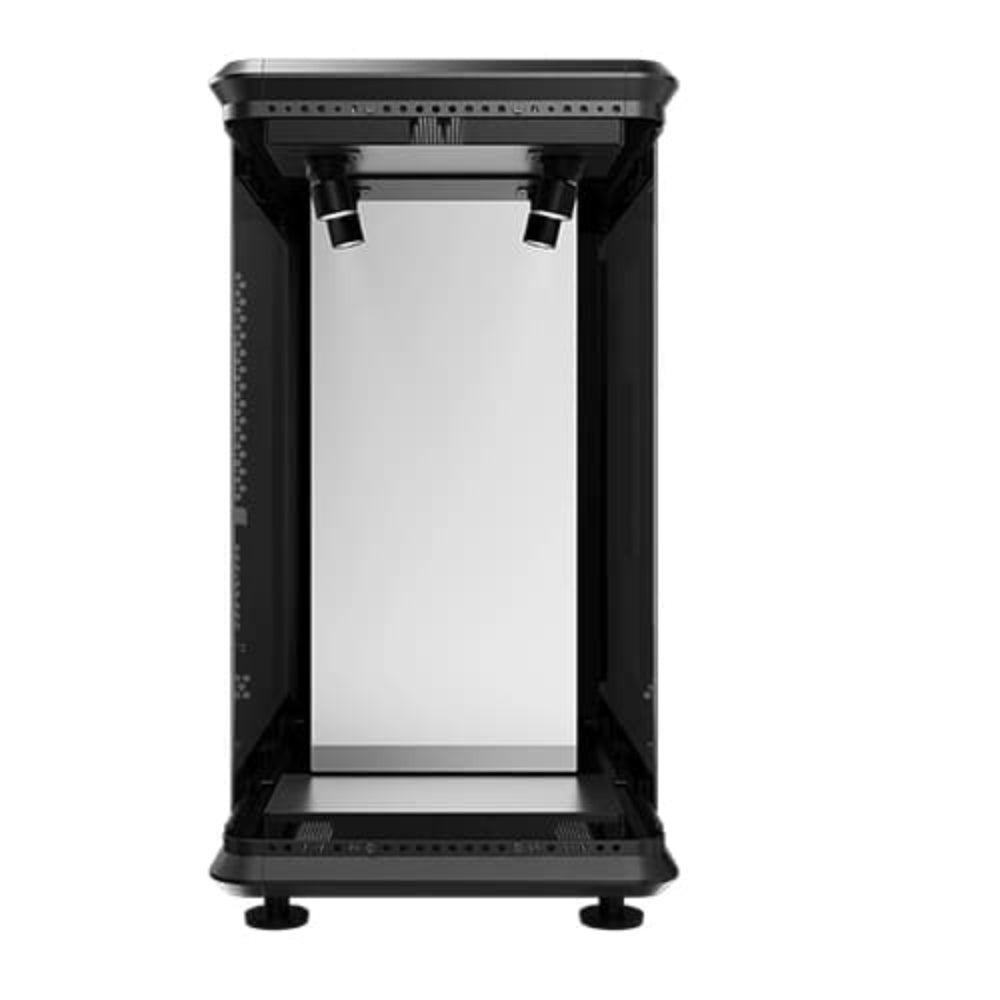

The Cooler Master MasterFrame 360 Panorama ARGB is an open-frame ATX mid tower cabinet designed for builders who want their hardware and personal collectibles on full display. Built around Cooler Master's FreeForm 2.0 design philosophy, its aluminum exo-structure and central cable management chamber keep internal routing tidy while the components take center stage. A dedicated front collectibles display area measures up to 328 × 290 × 110 mm (H × W × D), allowing figures and accessories to sit alongside your build without obstruction. Cooling flexibility is a standout feature. The case accommodates up to twelve 120mm fans — six mounted at the top and six at the bottom — with additional support for 140mm, 180mm, and 200mm fan sizes. Both top and bottom positions accept radiators from 120mm up to 360mm, with a maximum thickness clearance of 75mm, making it compatible with demanding custom liquid cooling loops. No fans are pre-installed, giving builders freedom to choose their preferred cooling solution. Component compatibility is equally broad. The MasterFrame 360 Panorama supports ATX, Micro-ATX, and Mini-ITX motherboards, including BTF (back-connect) layouts within the ATX form factor. GPU clearance extends to 430mm, PSU length to 210mm, and CPU cooler height to 145mm. An included PCIe 5.0 riser cable enables vertical GPU mounting straight out of the box. Two ARGB spotlight modules illuminate the interior, and a 3.5-expansion-slot configuration rounds out the build options. The front I/O panel provides USB 3.2 Gen 1 Type-A (5Gbps), USB 4.0 Gen 2 Type-C (20Gbps), and a 3.5mm headset jack. Removable mesh dust filters protect both top and bottom intake positions. Storage options include up to 2× 3.5-inch HDDs and 4× 2.5-inch SSDs. — Verified Specifications — Product Code: MF360-KINN-S00 | Form Factor: ATX Mid Tower | Color: Black | Material: SGCC + Tempered Glass | Dimensions (incl. protrusions): 549 × 291 × 581 mm | Volume: 93 L (with panel/protrusions/feet) | Motherboard Support: ATX, M-ATX, M-ITX (incl. BTF) | Max GPU Length: 430mm | Max PSU Length: 210mm | Max CPU Cooler Height: 145mm | Fan Support: up to 12× 120mm (6 top + 6 bottom); also 140/180/200mm | Radiator Support: 120/140/240/280/360mm (max 75mm thickness) | Drive Bays: 2× 3.5-inch HDD, 4× 2.5-inch SSD | Front I/O: USB 3.2 Gen 1 Type-A 5G, USB 4.0 Gen 2 Type-C 20G, 3.5mm audio | Other Electronics: 1× PCIe 5.0 riser cable, 2× ARGB spotlights | Expansion Slots: 3.5 | Dust Filters: Removable mesh | Warranty: 2 Years
