COOLER MASTER Master Frame 500 Mesh ARGB EATX Mid Tower Cabinet ( Black )

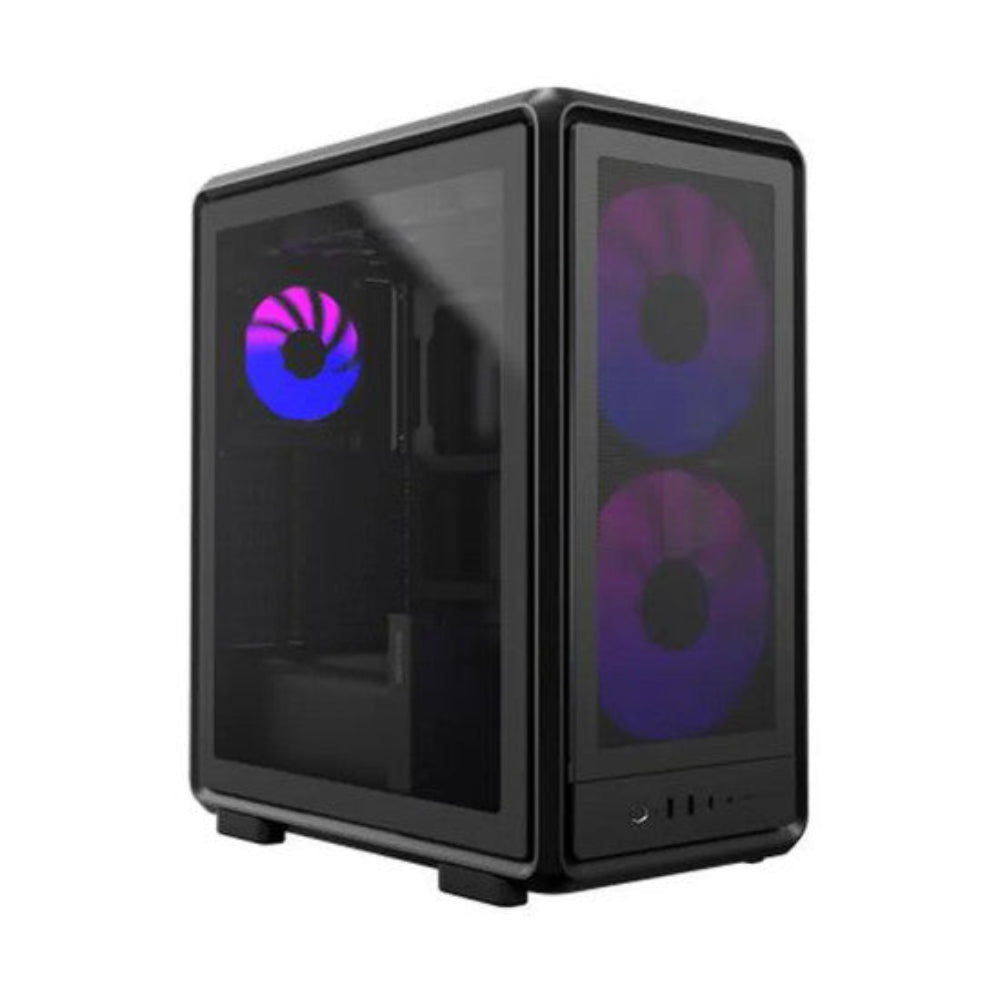

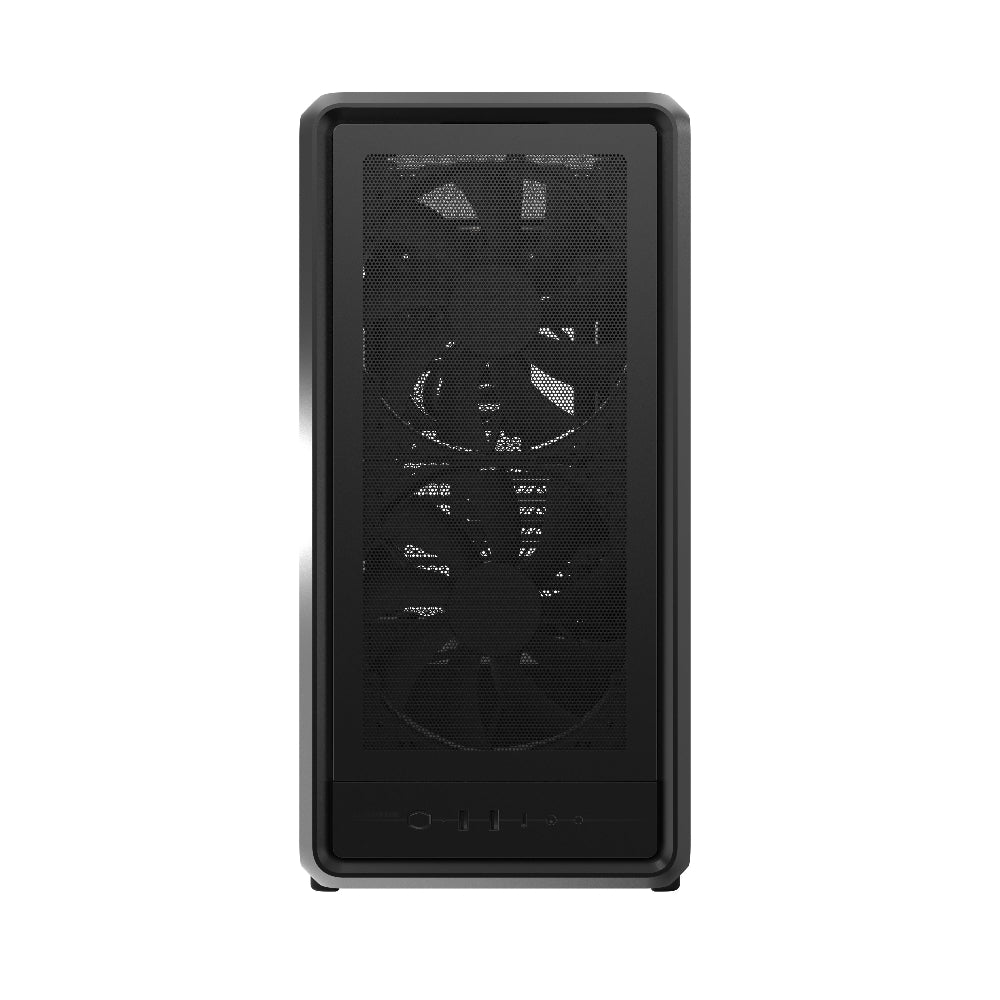

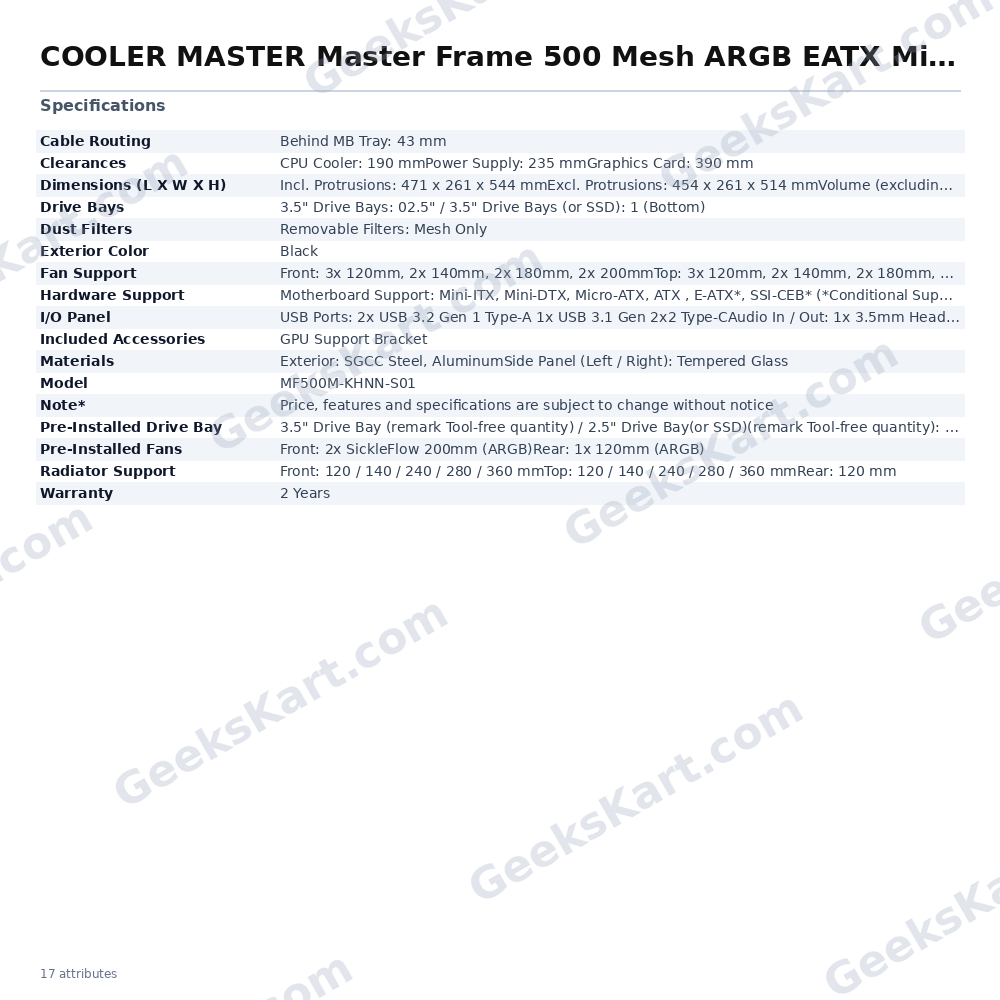

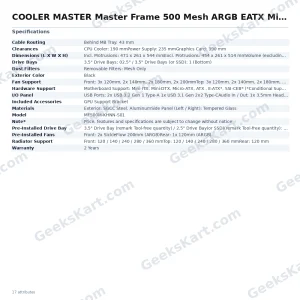

The Cooler Master MasterFrame 500 Mesh ARGB is a mid-tower PC chassis built around the FreeForm 2.0 exo-structure philosophy, which exposes the internal frame to enhance adaptability and give builders maximum configuration flexibility. The open-frame aesthetic is not just visual — it enables interchangeable panel configurations and supports open-source modular design files, making it a natural choice for PC modders and custom-build enthusiasts. Out of the box the case ships with three pre-installed ARGB fans: two SickleFlow 200mm units at the front and one 120mm ARGB fan at the rear. These provide immediate ARGB illumination and strong intake airflow through the mesh front panel. The chassis can accommodate up to eight additional fans across the front (up to 2×200mm), top (up to 2×200mm or 3×120mm), rear (1×120mm), and bottom (up to 3×120mm or 3×140mm) positions. Radiator support reaches 360mm at both the front and top positions and 120mm at the rear, giving ample room for high-performance all-in-one liquid coolers. Hardware compatibility is broad: the case supports motherboards from Mini-ITX through Micro-ATX and full ATX, with conditional support for E-ATX and SSI-CEB formats. Eight PCI expansion slots accommodate multi-GPU and high-end single-GPU configurations, and a bundled GPU support bracket prevents sag under heavy graphics cards. CPU cooler clearance reaches 190mm, graphics card clearance 390mm, and power supply length up to 235mm. The front I/O panel provides two USB 3.2 Gen 1 Type-A ports, one USB 3.1 Gen 2×2 Type-C port, and a 3.5mm combined audio/microphone jack. Storage options are modest at one tool-free bay supporting either a 2.5-inch SSD or a 3.5-inch hard drive. Cable management is handled via a 43mm channel behind the motherboard tray. Both side panels are tempered glass for a clear view of the build interior. Verified Specifications: - Model: MF500M-KHNN-S01 - Form factor: Mid Tower - Motherboard support: Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX* (*conditional), SSI-CEB* (*conditional) - Dimensions (incl. protrusions): 471 × 261 × 544 mm; Volume: 60.9 L - Materials: SGCC Steel, Aluminium exterior; Tempered Glass side panels - Pre-installed fans: 2× SickleFlow 200mm ARGB (front), 1× 120mm ARGB (rear) - Radiator support: Front & Top up to 360mm; Rear 120mm - GPU clearance: 390mm | CPU cooler clearance: 190mm | PSU clearance: 235mm - I/O: 2× USB 3.2 Gen 1 Type-A, 1× USB 3.1 Gen 2×2 Type-C, 3.5mm audio - PCI slots: 8 | Drive bays: 1× 2.5"/3.5" combo - Cable routing space: 43mm behind MB tray - Dust filtration: Removable mesh filters - Included accessories: GPU support bracket - Warranty: 2 Years
