Features of COOLER MASTER MasterBox 520 Mesh ARGB (White)

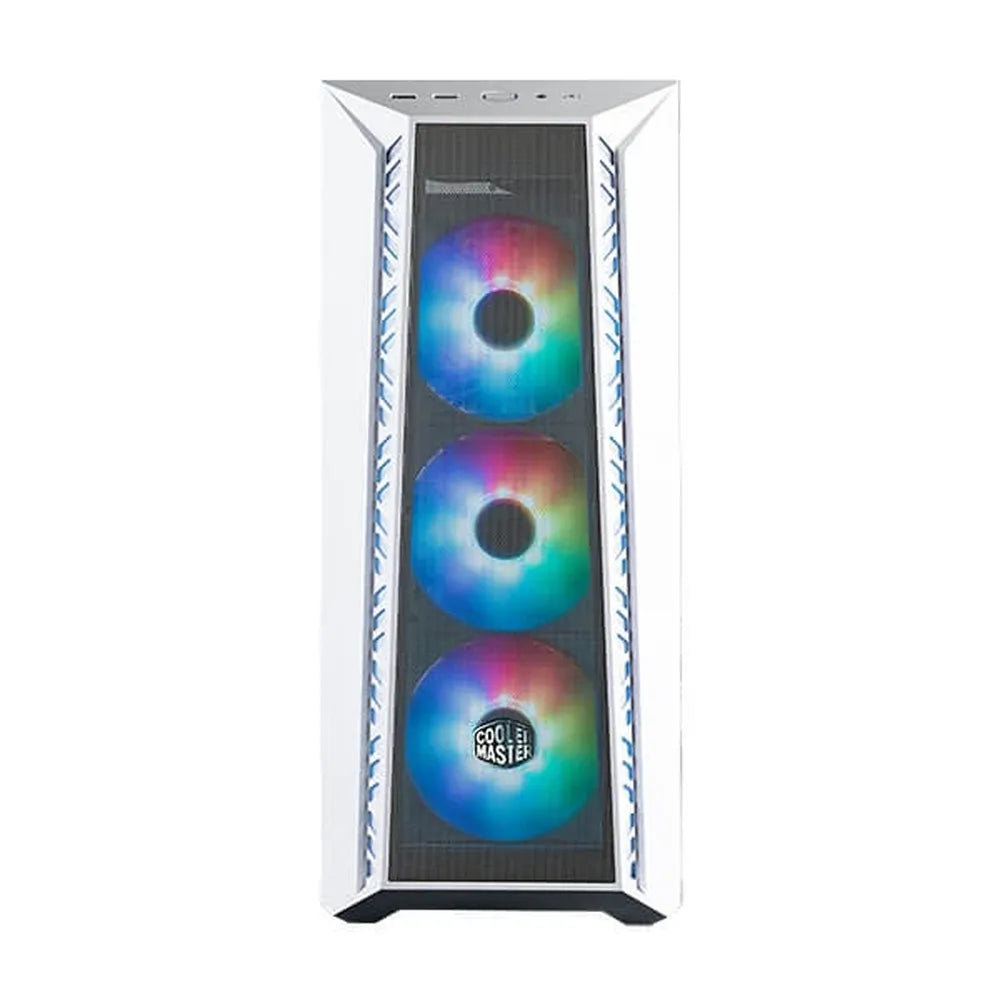

FineMesh Performance Front Panel
The COOLER MASTER MasterBox 520 Mesh ARGB computer cpu case (White) features Large mesh intakes which offer unrestricted airflow and stellar thermals for demanding systems.
Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.
Removable Top Panel
The top panel of cooler master cpu case is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

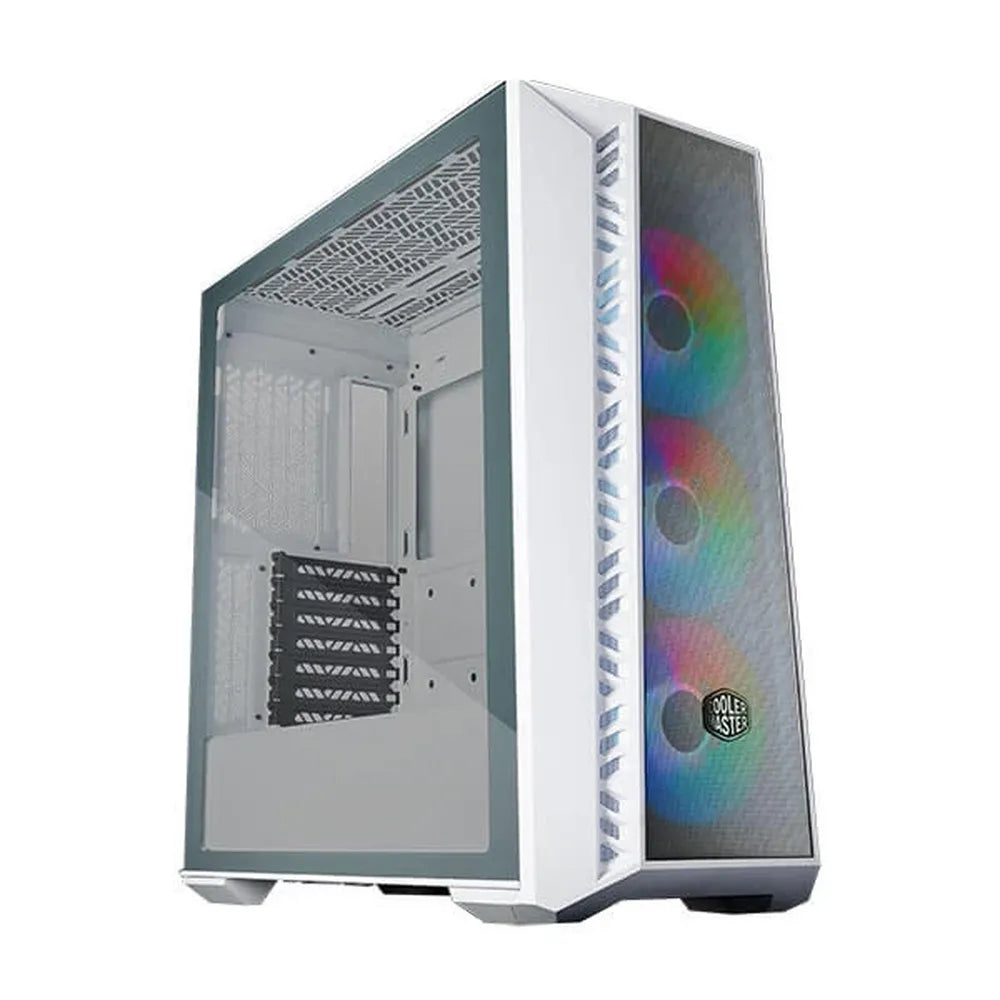

Screwless & Tool-Free TG Side Panel
The tempered glass side panel in EATX Cabinet is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
Versatile Cooling Options
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Removable HDD cage
The HDD cage is completely removable for improved access during assembly and system upgrades.
Upgraded Removable Dust Filter Bracket
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.

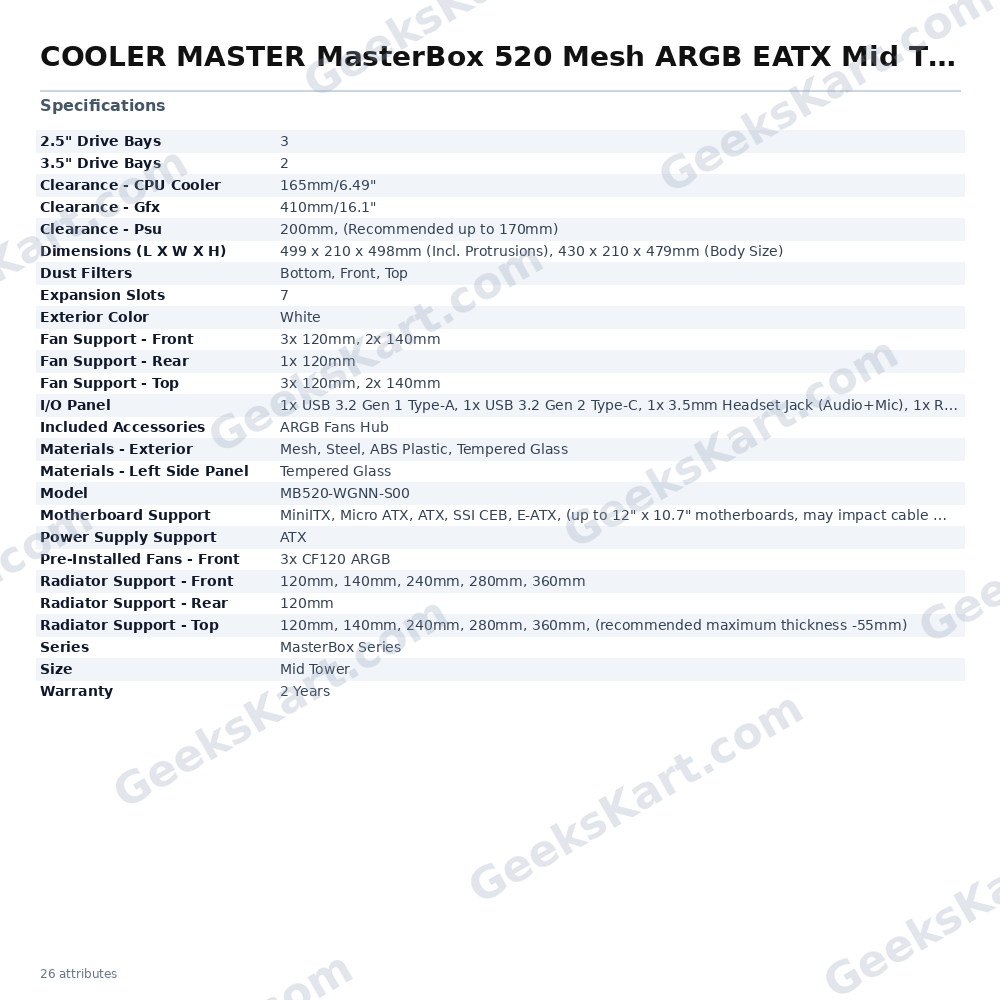

Specifications of COOLER MASTER MasterBox 520 Mesh ARGB (White)
| Model | MB520-WGNN-S00 |
| Exterior Color | White |
| Materials – Exterior | Mesh, Steel, ABS Plastic, Tempered Glass |
| Materials – Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body Size) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (up to 12″ x 10.7″ motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 3 |
| I/O Panel | 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button |
| Included Accessories | ARGB Fans Hub |
| Pre-installed Fans – Front | 3x CF120 ARGB |
| Fan Support – Top | 3x 120mm, 2x 140mm |
| Fan Support – Front | 3x 120mm, 2x 140mm |
| Fan Support – Rear | 1x 120mm |
| Radiator Support – Top | 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
| Radiator Support – Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 165mm/6.49″ |
| Clearance – PSU | 200mm, (Recommended up to 170mm) |
| Clearance – GFX | 410mm/16.1″ |
| Dust Filters | Bottom, Front, Top |
| Power Supply Support | ATX |
| Series | MasterBox Series |
| Size | Mid Tower |
| Warranty | 2 Years |
| Note | *** Image use as reference only *** Features, Price, Specifications are subject to change without notice. |
