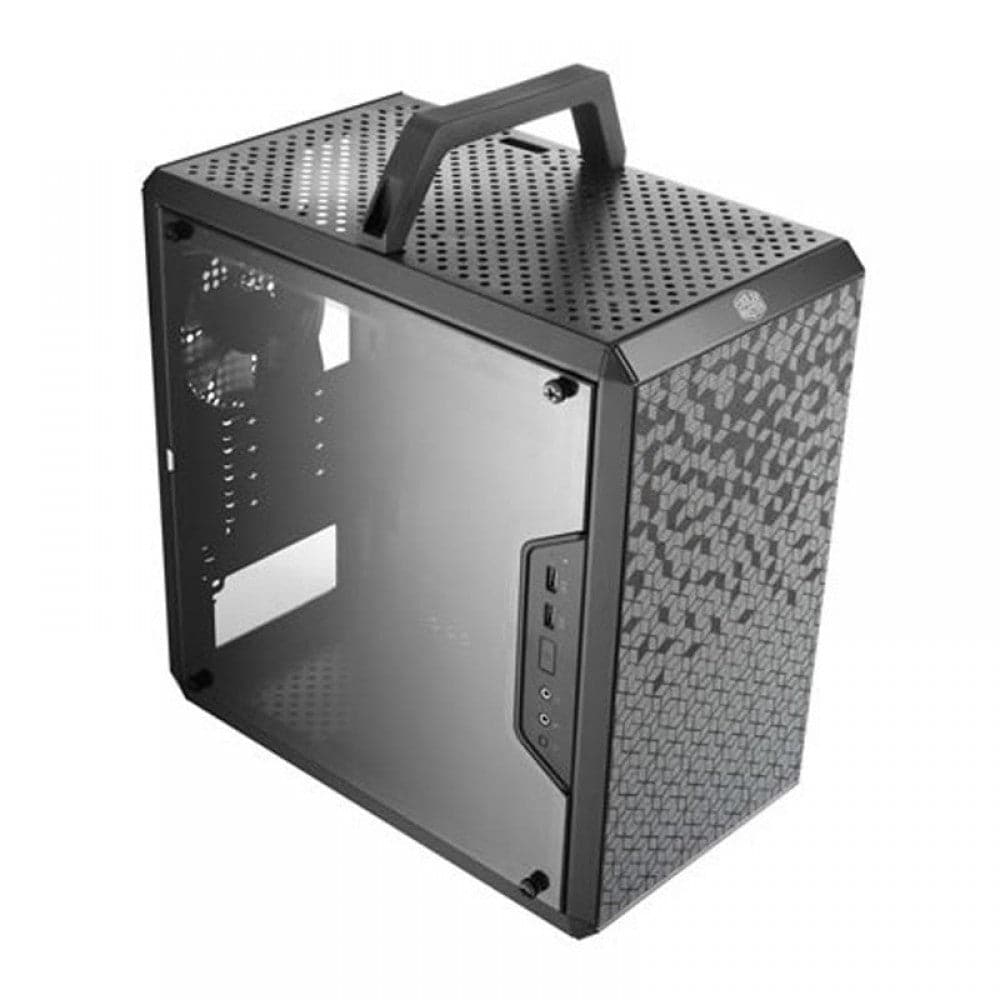

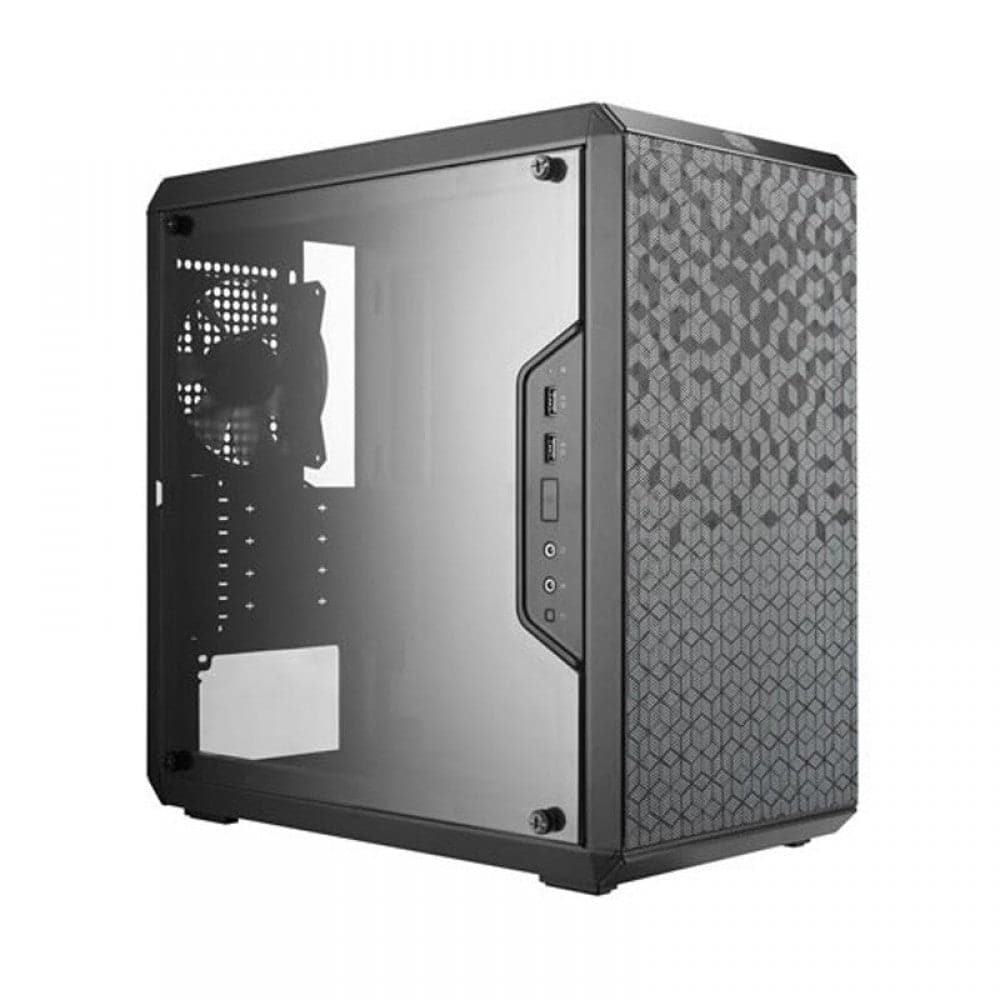

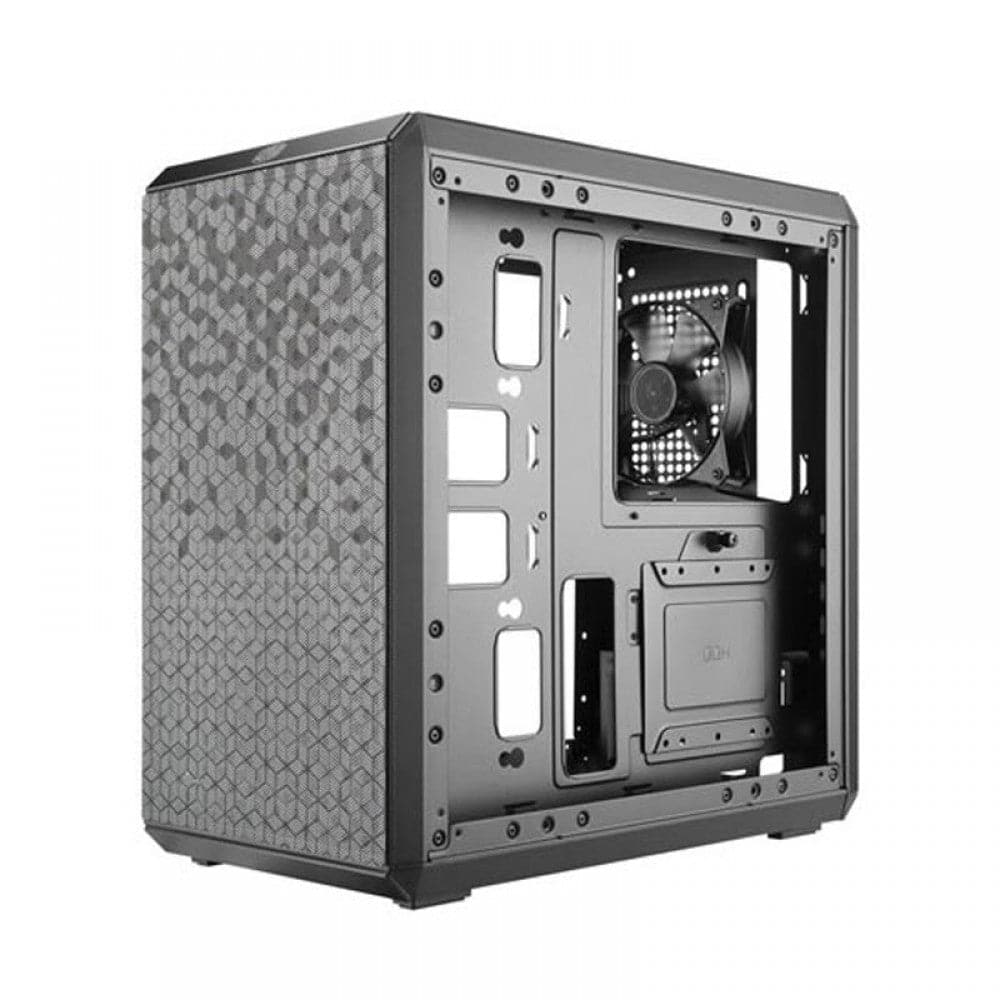

COOLER MASTER Masterbox Q300L MATX Mini Tower Cabinet (Black)
MPN CM-MASTERBOX-Q300L · Brand Cooler Master
Features of COOLER MASTER Masterbox Q300L MATX Mini Tower Cabinet (Black) PATTERNED MAGNETIC DUST FILTERS COOLER MASTER Masterbox Q300L Case features a special pattern on the dust filter which creates a unique outlook for the chassis. MODULAR I/O PANEL The I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom. EDGE-TO-EDGE SIDE PANEL Show off your build through the full size transparent side panel of MATX Cabinet
Inclusive of GST · GST invoice available
Overview
Features of COOLER MASTER Masterbox Q300L MATX Mini Tower Cabinet (Black)

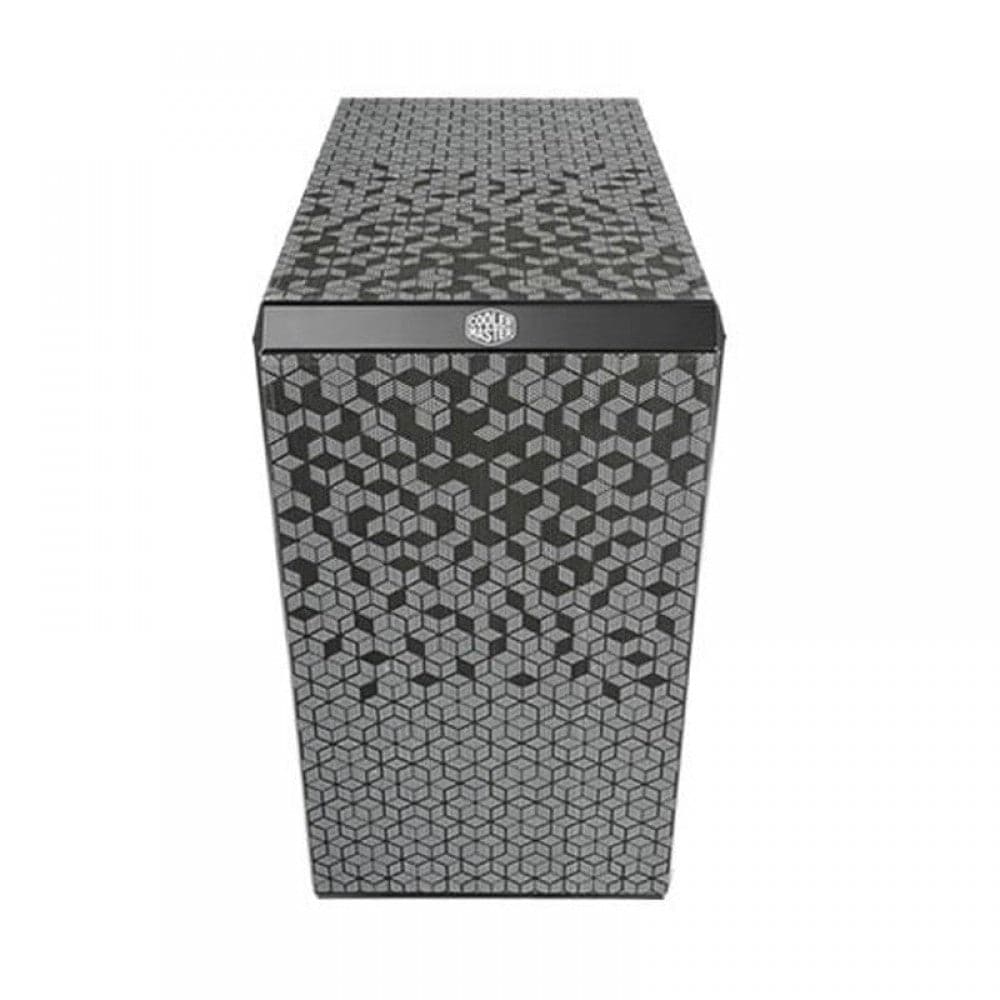

PATTERNED MAGNETIC DUST FILTERS
COOLER MASTER Masterbox Q300L Case features a special pattern on the dust filter which creates a unique outlook for the chassis.
MODULAR I/O PANEL
The I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom.

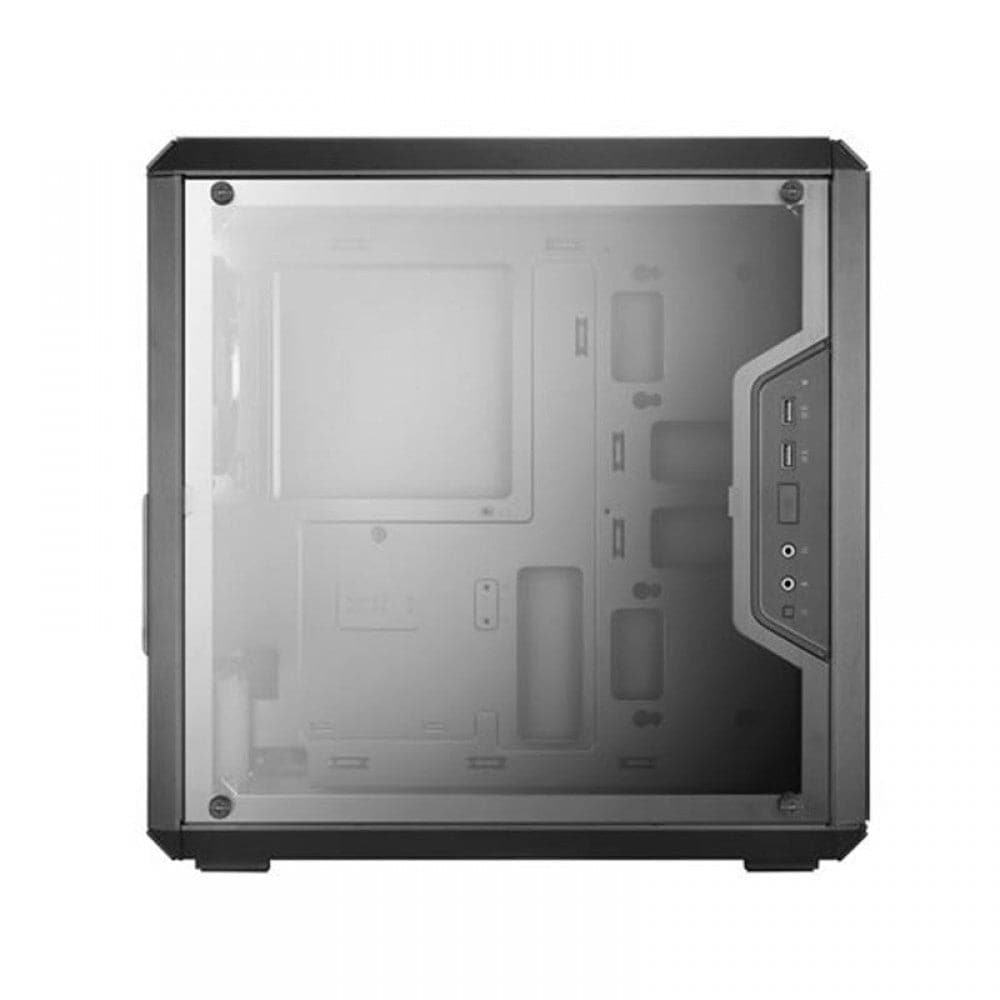

EDGE-TO-EDGE SIDE PANEL
Show off your build through the full size transparent side panel of MATX Cabinet

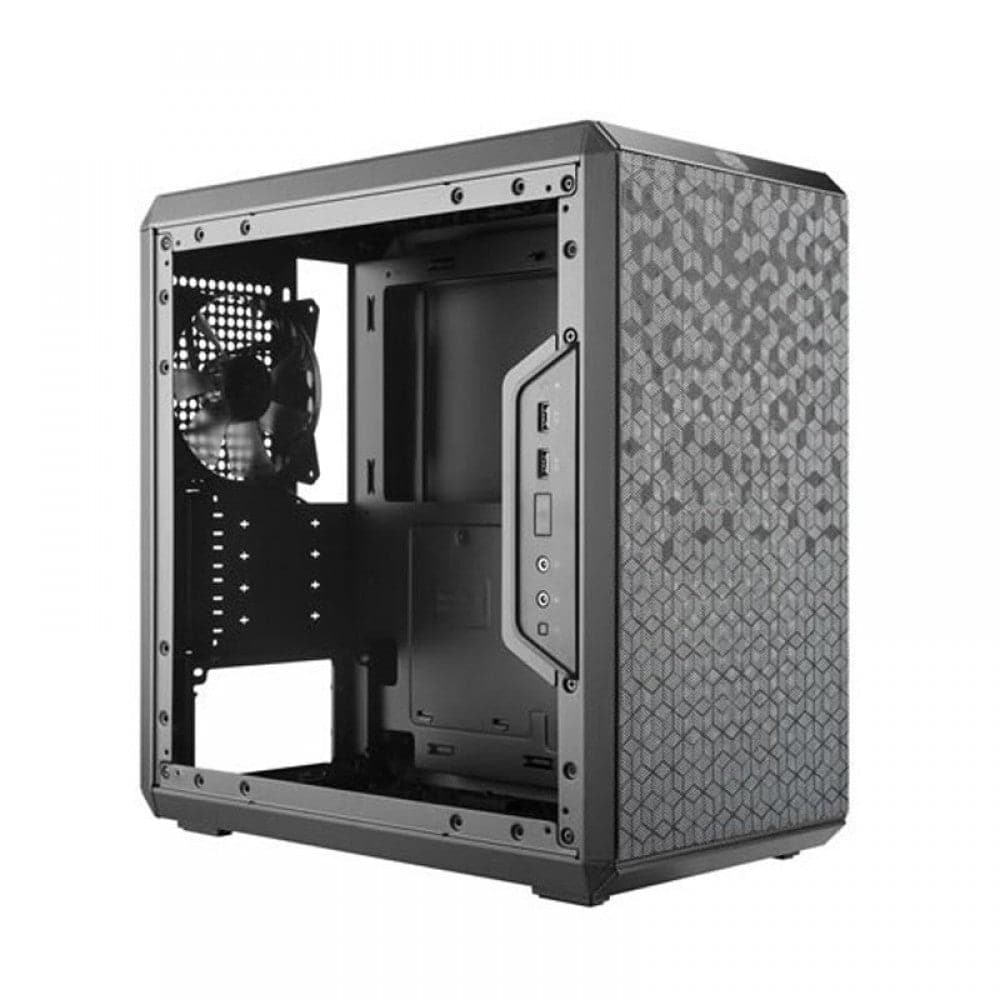

CLEAN ROUTING SPACE
Behind the motherboard tray, it offers 28mm wide and spacy room for hidden cable management.
EXCELLENT THERMAL PERFORMANCE

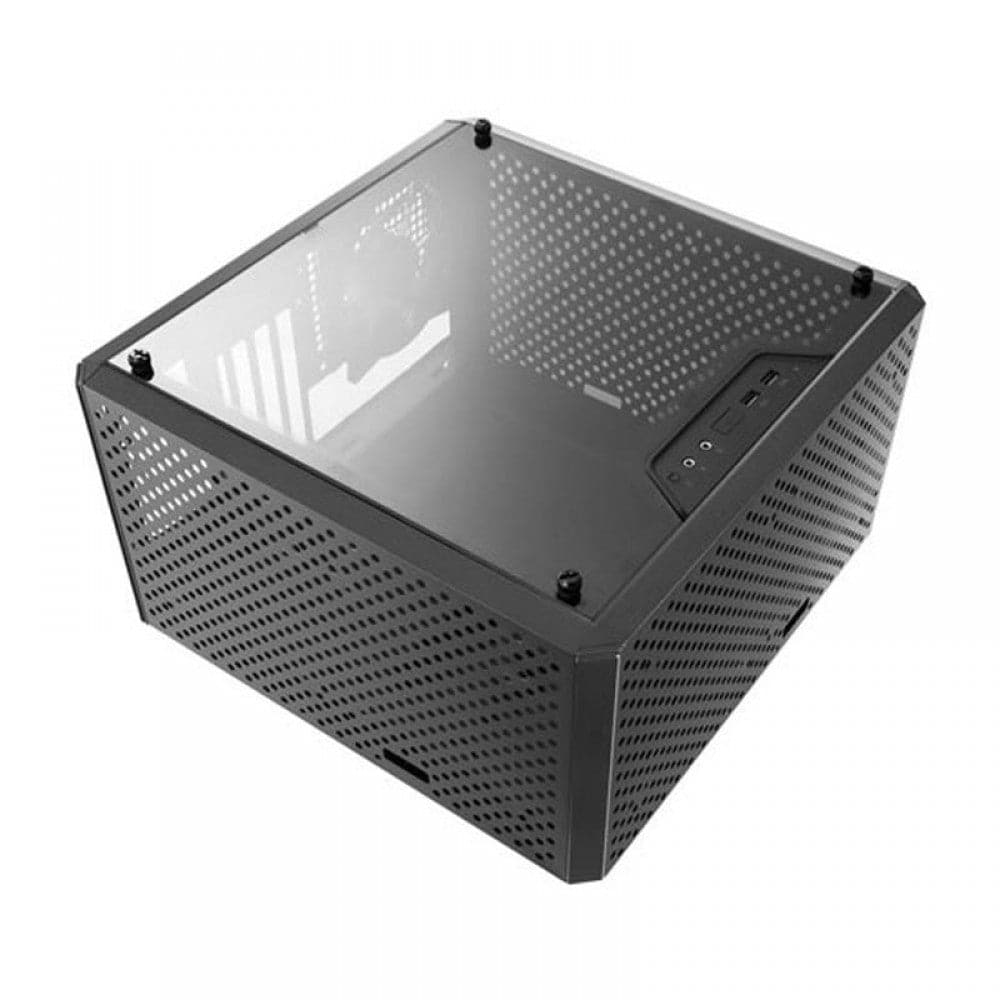

The open design of Case perforated front, top and bottom guarantees excellent thermal performance.
FAN AND RADIATOR SUPPORT

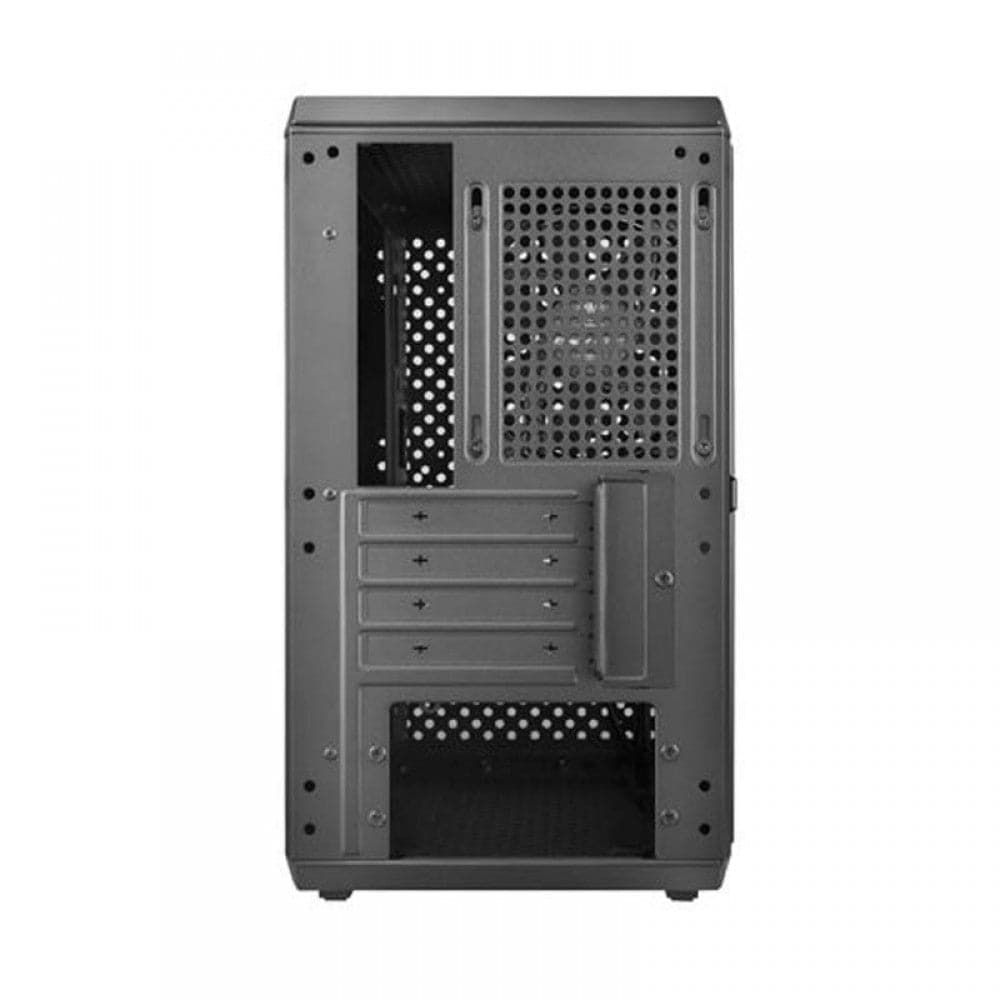

The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.
Specifications of COOLER MASTER Masterbox Q300L MATX Mini Tower Cabinet (Black)
| Product Name | MasterBox Q300L |
| Product Number | MCB-Q300L-KANN-S00 |
| Available Color | Black |
| Materials | Steel, Plastic |
| Dimensions (LxWxH) | 387 x 230 x 378mm |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Expansion Slots | 4 |
| Drive Bays | |
| 5.25" | 0 |
| 3.5" HDD | 1 |
| 2.5" SSD | 2 |
| I/O Port | USB 3.0 x 2, Audio In / Out |
| Pre-installed Fan(s) | |
| Front | N/A |
| Rear | 120mm x 1 |
| Fan Support | |
| Front | 120 / 140mm x 2 |
| Top | 120mm x 2 |
| Rear | 120mm x 1 |
| Bottom | 120mm x 1 |
| Radiator Support | |
| Front | 120mm x 1 / 240mm x 1 |
| Rear | 120mm x 1 |
| Clearances | |
| CPU Cooler | 157mm |
| PSU | 160mm |
| GPU | 360mm |
| Cable Routing | |
| Behind MB Tray | 28mm |
| Power Supply Support | Bottom mount, ATX PS2 |
| Warranty | 2 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
Datasheet
| Warranty | 2 Years |
|---|---|
| GPU | 360mm |
| Psu | 160mm |
| Top | 120mm x 2 |
| Rear | 120mm x 1 |
| 5.25" | 0 |
| Front | 120mm x 1 / 240mm x 1 |
| Bottom | 120mm x 1 |
| 2.5" SSD | 2 |
| 3.5" HDD | 1 |
| I/O Port | USB 3.0 x 2, Audio In / Out |
| Materials | Steel, Plastic |
| CPU Cooler | 157mm |
| Product Name | MasterBox Q300L |
| Behind MB Tray | 28mm |
| Product Number | MCB-Q300L-KANN-S00 |
| Available Color | Black |
| Expansion Slots | 4 |
| Dimensions (Lxwxh) | 387 x 230 x 378mm |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Power Supply Support | Bottom mount, ATX PS2 |
