COOLER MASTER MasterCase H500M EATX Mid Tower Cabinet (Black)

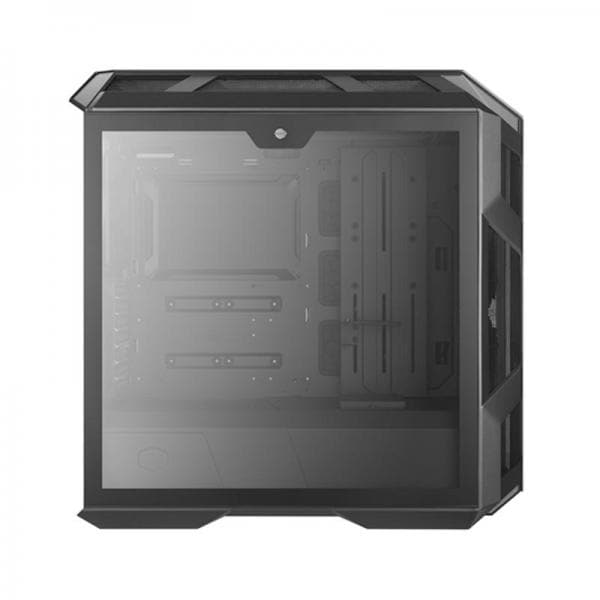

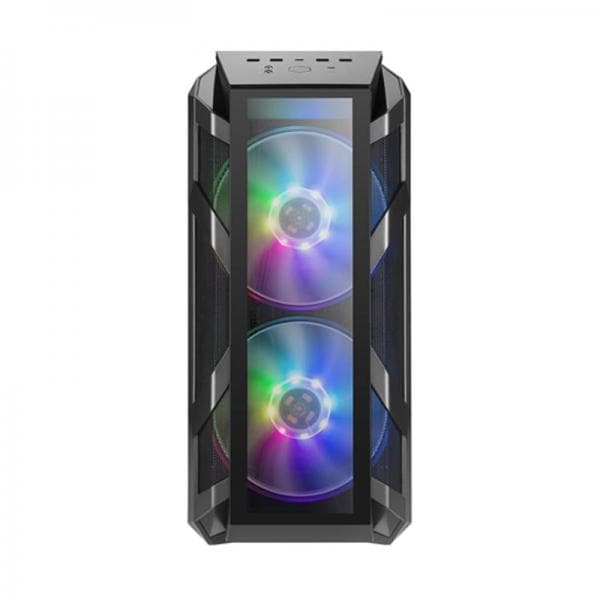

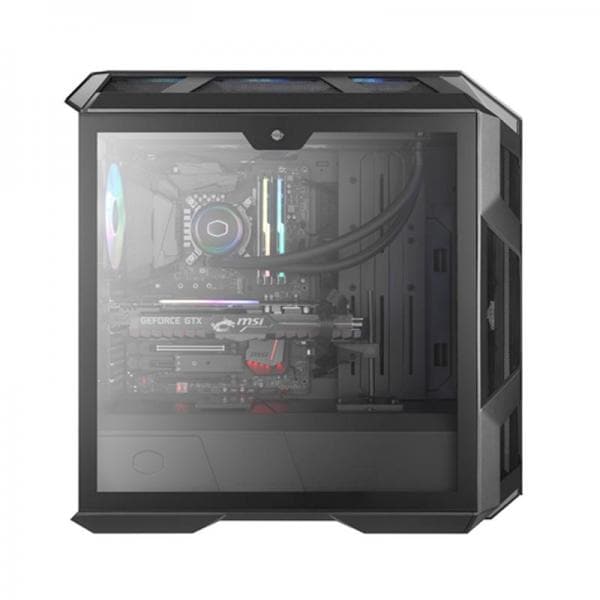

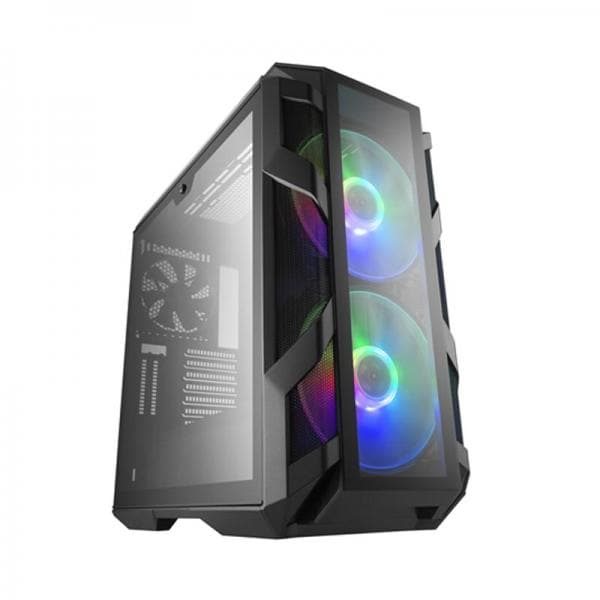

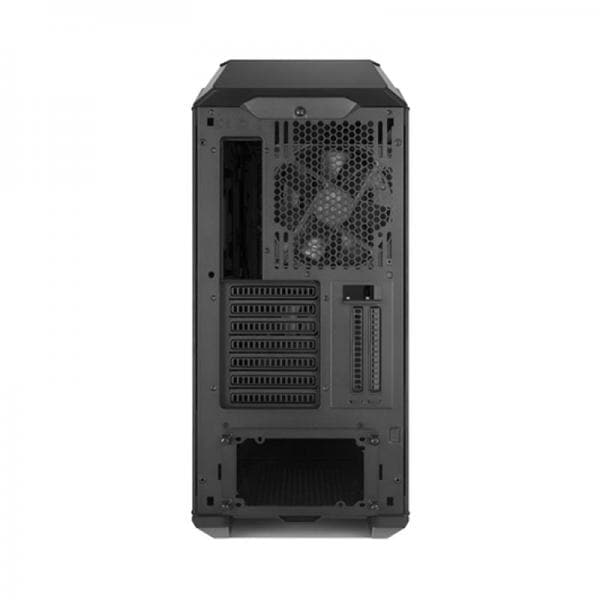

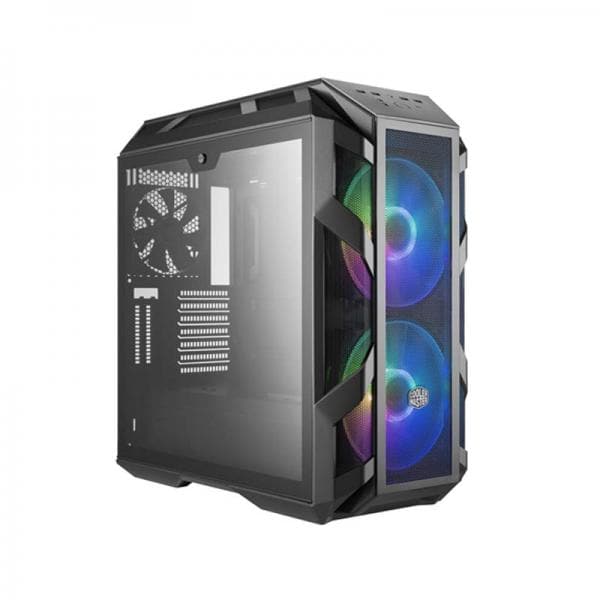

The Cooler Master MasterCase H500M is an E-ATX mid-tower cabinet engineered for builders who demand both airflow flexibility and visual impact. At its core is an interchangeable front panel system: choose the steel mesh panel for optimised airflow, or swap in the included tempered glass front panel for a showcase aesthetic — no tools required. Four tempered glass panels in total — both sides, the top, and the optional front — offer an edge-to-edge view of the components inside. Two pre-installed 200mm Addressable RGB fans at the front (800 RPM, 3-pin ARGB connector) draw large volumes of air quietly through the chassis. A 140mm fan at the rear (1200 RPM, 3-pin) handles exhaust. The included addressable RGB controller manages all lighting independently or can be synced with a compatible motherboard header. Water-cooling builders are well catered for. The front panel accepts radiators up to 360mm (with 70mm clearance when the radiator lid and M.2 port are removed), and the top bracket also supports up to 360mm radiators with a maximum thickness clearance of 43mm. A dedicated water pump bracket mounts directly above the PSU shroud, and rear support covers 120mm and 140mm radiators. A built-in adjustable graphics card support arm relieves mechanical stress from heavy, long GPUs, with a maximum GPU clearance of 412mm. The case also supports vertical graphics card installation via two additional expansion slots (seven horizontal slots plus two vertical). CPU cooler clearance reaches 190mm, accommodating the tallest tower coolers on the market. Nine interchangeable covers — including a cable management cover, CPU cut-out cover, PSU cable cover, PSU cut-out cover, PSU shroud with SSD mounting, PSU shroud with water pump bracket, cable cover with SSD and reservoir mounting, clearance cover for 200mm radiator support, and a radiator lid for thicker radiators — enable a clean, cable-free build aesthetic. The front I/O panel provides one USB 3.1 Gen 2 Type-C port, four USB 3.0 Type-A ports, and audio in/out with HD Audio support. Verified Specifications: – Model: MCM-H500M-IHNN-S00 – Form Factor: Mid Tower – Colour: Iron Grey – Dimensions (L×W×H): 544 × 248 × 546 mm (21.4 × 9.8 × 21.5 in) – Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12″ × 10.7″) – Materials: Steel body, steel mesh / tempered glass exterior, tempered glass side panels – Pre-installed Fans — Front: 2 × 200mm ARGB (800 RPM, 3-pin ARGB) – Pre-installed Fan — Rear: 1 × 140mm (1200 RPM, 3-pin) – Fan Support — Front: 3 × 120/140mm or 2 × 200mm – Fan Support — Top: 3 × 120mm or 2 × 140/200mm – Fan Support — Rear: 1 × 120/140mm – Radiator Support — Front: up to 360mm; Top: up to 360mm; Rear: up to 140mm – CPU Cooler Clearance: 190mm – GPU Clearance: 412mm – PSU Clearance: 200mm – Drive Bays: 2 × 2.5″/3.5″ combo + 6 × 2.5″ SSD – Expansion Slots: 7 horizontal + 2 vertical – I/O: 1 × USB 3.1 Gen 2 Type-C, 4 × USB 3.0 Type-A, HD Audio in/out – PSU Support: ATX PS2, bottom mount – Warranty: 2 years
