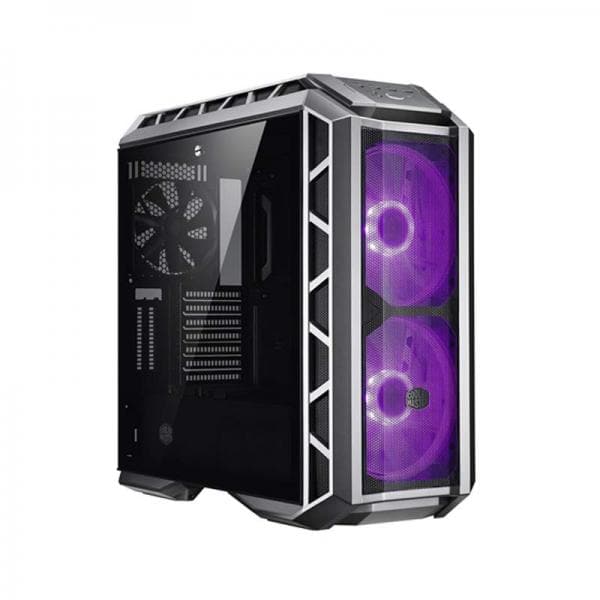

COOLER MASTER MasterCase H500P Mesh EATX Mid Tower Cabinet (Black)

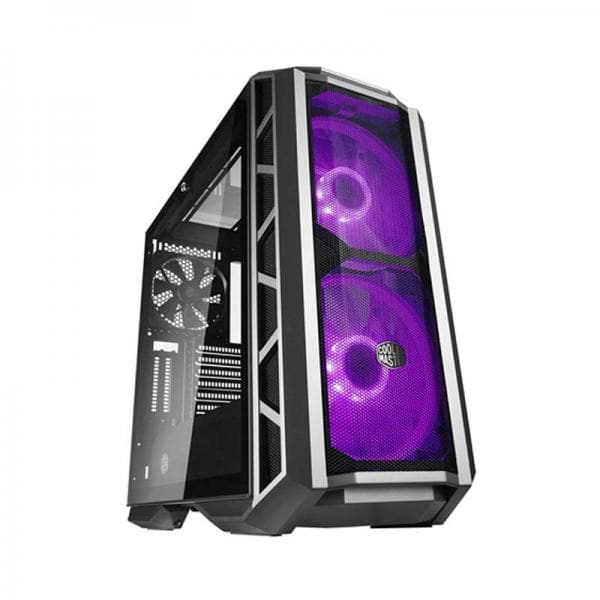

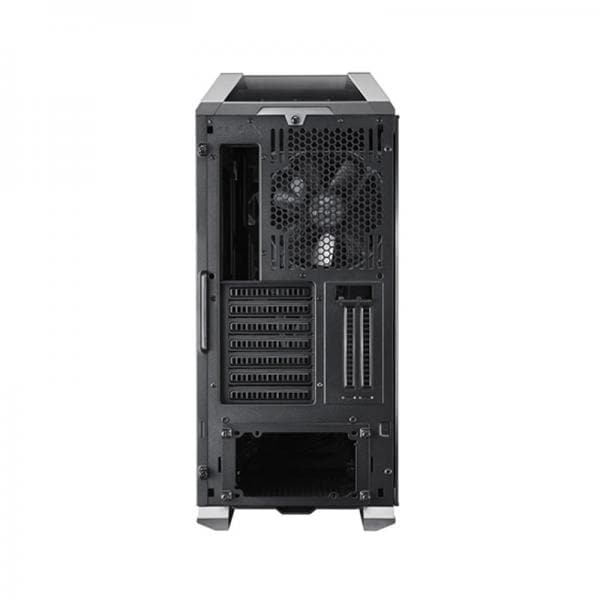

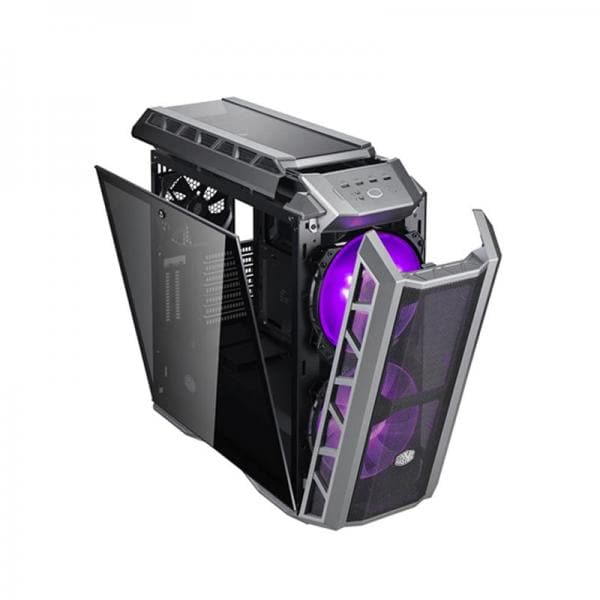

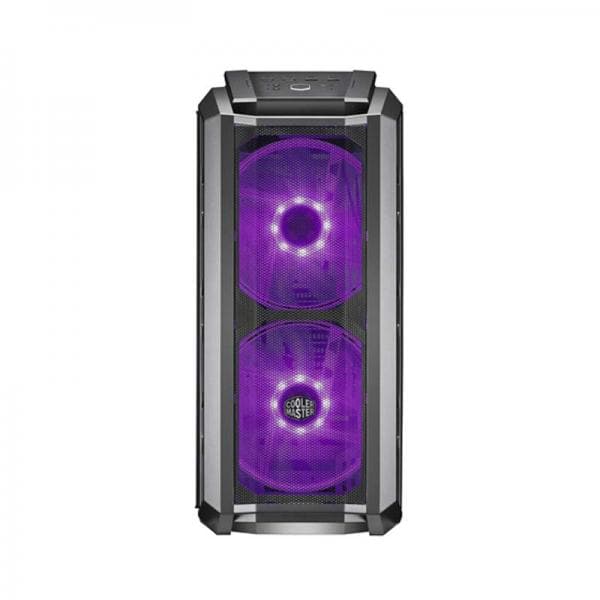

The Cooler Master MasterCase H500P Mesh is a mid-tower PC cabinet engineered for builders who demand strong airflow, flexible hardware support, and a premium look. Its entire front panel is constructed from two layers of mesh — a finer inner layer that filters out dust and a steel outer mesh that reinforces the structure — creating an unrestricted intake pathway for the two large pre-installed fans sitting directly behind it. Two 200mm RGB fans come pre-installed at the front, capable of moving high volumes of air quietly thanks to their large blade diameter. A 140mm fan at 1200 RPM is included at the rear for exhaust. The RGB lighting system can be managed through a compatible addressable RGB motherboard header or via the included standalone RGB controller, which ships with 14 lighting presets and an optional external button input — Cooler Master supports wiring the system reset button as a preset toggle. A 2-to-3 ARGB splitter cable is also included in the box. The case accommodates Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 12 × 10.7 inches, though E-ATX builds may reduce available cable management space. Seven standard expansion slots plus two additional slots support a wide range of configurations, including vertical GPU installation. GPU clearance extends to 412 mm (approximately 16.2 inches), and the CPU cooler height limit is 190 mm. An ATX power supply mounts at the bottom, with up to 220 mm of PSU clearance. Cooling flexibility is extensive. The top and front each support up to three 120/140mm fans or two 200mm fans, and can accept radiators up to 360mm. The rear accepts one 120mm or 140mm fan or radiator. Dust filters cover the top, front, and bottom intakes. Storage options include two combo 2.5″/3.5″ drive bays and two dedicated 2.5″ bays expandable to four. The front I/O panel provides two USB 3.2 Gen 1 ports, two USB 2.0 ports, a 3.5mm audio jack, and a 3.5mm microphone jack. An edge-to-edge tempered glass side panel provides a panoramic view of the build interior, while a PSU shroud and dedicated cable management channels keep wiring tidy. Verified Specifications: — Model: MCM-H500P-MGNN-S11 — Form Factor: Mid Tower — Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12″ × 10.7″) — Pre-installed Fans: 2× 200mm RGB (front), 1× 140mm 1200RPM (rear) — Fan Support — Front/Top: 3× 120/140mm or 2× 200mm each — Fan Support — Rear: 1× 120/140mm — Radiator Support — Front/Top: up to 360mm; Rear: up to 140mm — GPU Clearance: 412mm — CPU Cooler Clearance: 190mm — PSU Clearance: 220mm (bottom mount, ATX) — Expansion Slots: 7+2 (vertical GPU supported) — Drive Bays: 2× combo 2.5″/3.5″, 2× dedicated 2.5″ (max 4) — I/O: 2× USB 3.2 Gen 1, 2× USB 2.0, 3.5mm audio + mic — Dust Filters: Top, Front, Bottom — Dimensions: 544 × 242 × 542mm — Weight: 11.3 kg — Materials: Steel, Plastic, Tempered Glass, Mesh — Colour: Gun Metal Grey — Warranty: 2 Years
