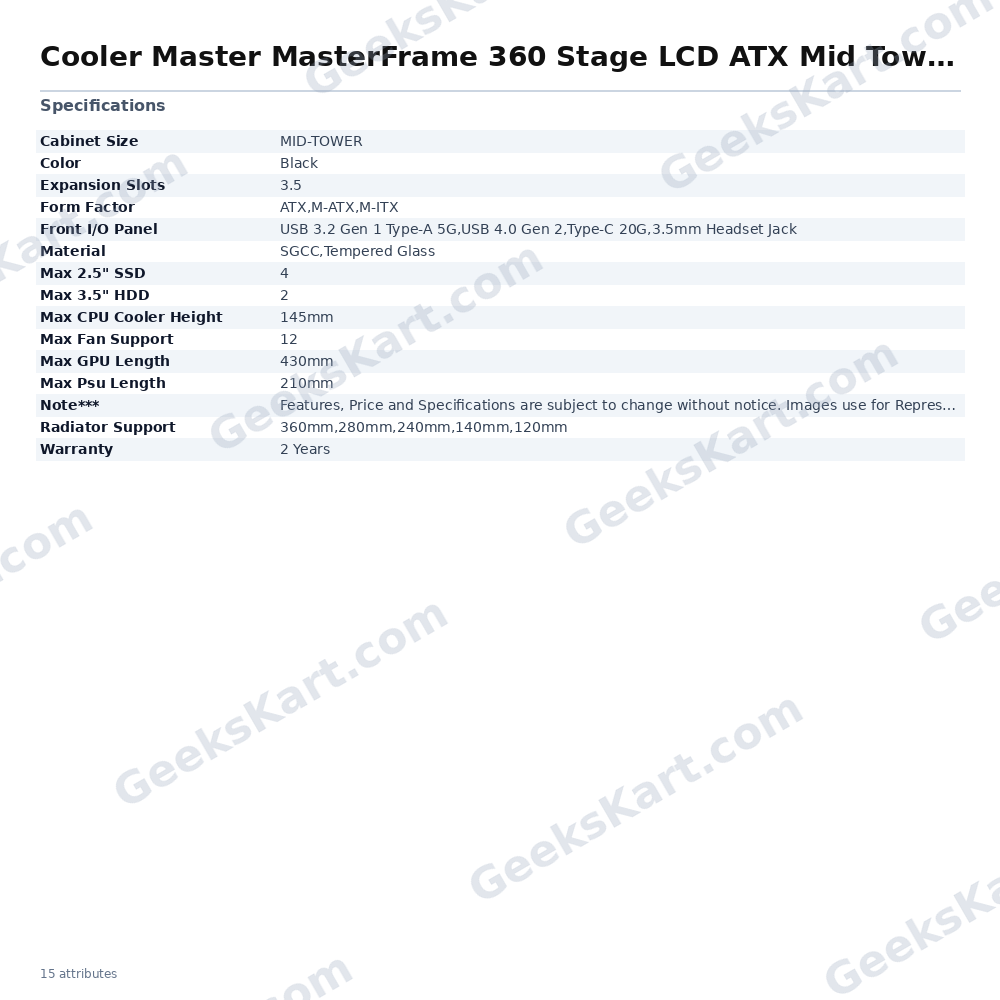

Cooler Master MasterFrame 360 Stage LCD ATX Mid Tower Case

The Cooler Master MasterFrame 360 Stage LCD (SKU: MF360-KHNN-S02) is an ATX mid-tower chassis built around an open-frame aluminium exo-structure that puts your components on full display. Designed under Cooler Master's FreeForm 2.0 philosophy, the case eliminates traditional enclosure panels in favour of a showcase-ready platform where hardware, figures, and creative accessories can be arranged without spatial restriction. A front-facing LCD panel combined with the open structure delivers a 360-degree visual effect, turning your build into a personal gallery. Cooling headroom is a standout attribute. The chassis supports fan sizes from 120 mm up to 200 mm, accommodating up to twelve 120 mm fans — six on the top and six on the bottom. Radiators up to 360 mm are supported at both the top and bottom positions, with a maximum thickness clearance of 75 mm per position, making the case fully capable of handling high-end custom liquid cooling loops. Component compatibility is equally broad. GPUs measuring up to 430 mm in length fit without modification, and PSUs up to 210 mm are supported. The case is compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor. CPU coolers up to 145 mm tall are accommodated. An included PCIe 5.0 riser cable enables vertical GPU mounting out of the box, providing both next-generation bandwidth support and a premium presentation angle. Storage options include one 3.5-inch HDD bay or two 2.5-inch SSD positions, with attributes confirming a maximum of two 3.5-inch HDDs and four 2.5-inch SSDs across all mounting points. Front I/O includes USB 3.2 Gen 1 Type-A (5 Gbps), USB 4.0 Gen 2 Type-C (20 Gbps), and a 3.5 mm headset jack. The central cable management chamber behind the motherboard tray offers 110 mm of routing clearance, and the tool-free toolbox aids cable organisation. Two ARGB spotlight units are pre-installed for accent lighting. Verified Specifications: • Dimensions (incl. protrusions): 549 × 291 × 581 mm (L × W × H) • Dimensions (excl. protrusions): 511 × 291 × 581 mm • Volume: 86 L (without panel/protrusions/feet) / 93 L (with panel/protrusions/feet) • Form factor support: ATX, Micro-ATX, Mini-ITX (incl. BTF/back-connect ATX) • Max GPU length: 430 mm • Max PSU length: 210 mm • Max CPU cooler height: 145 mm • Fan support — top: 6× 120 mm, 2× 140 mm, 2× 180 mm, 2× 200 mm • Fan support — bottom: 6× 120 mm, 2× 140 mm, 2× 180 mm, 2× 200 mm • Radiator support — top & bottom: 120/140/240/280/360 mm (max clearance 75 mm) • Drive bays: 1× 3.5-inch HDD or 2× 2.5-inch SSD (pre-installed); up to 2× HDD / 4× SSD total • Front I/O: USB 3.2 Gen 1 Type-A, USB 4.0 Gen 2 Type-C 20G, 3.5 mm jack • Expansion slots: 3.5 • Included accessories: 1× PCIe 5.0 riser cable, 2× ARGB spotlights • Material: SGCC steel, tempered glass • Colour: Black • Warranty: 2 years
