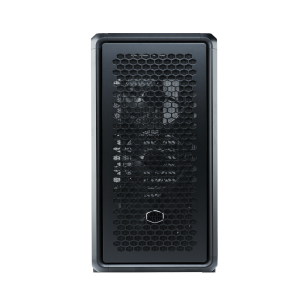

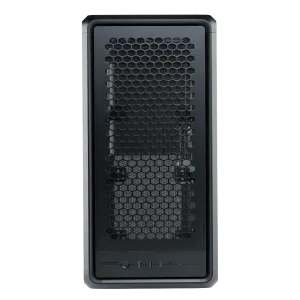

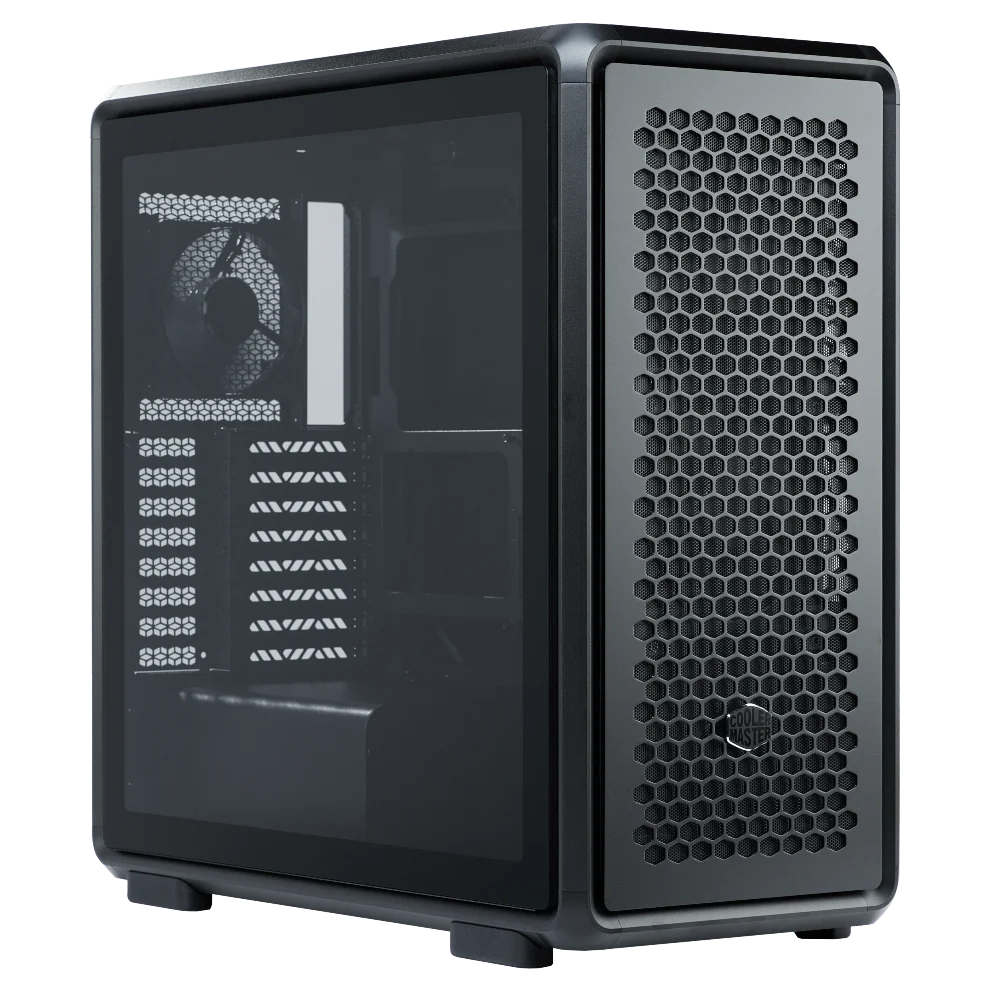

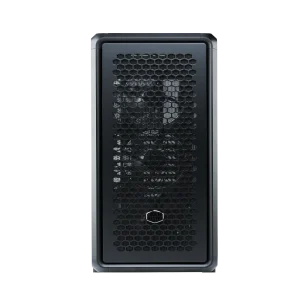

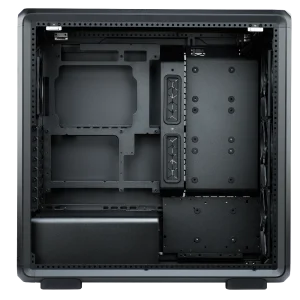

Features of COOLER MASTER MasterFrame 600 ATX Mid Tower Cabinet ( Black )
MasterFrame 600
The MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with Freeform 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling Support
Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.
Ample GPU Clearance
Accommodates graphics cards up to 485mm, offering plenty of space for high-end GPUs.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.

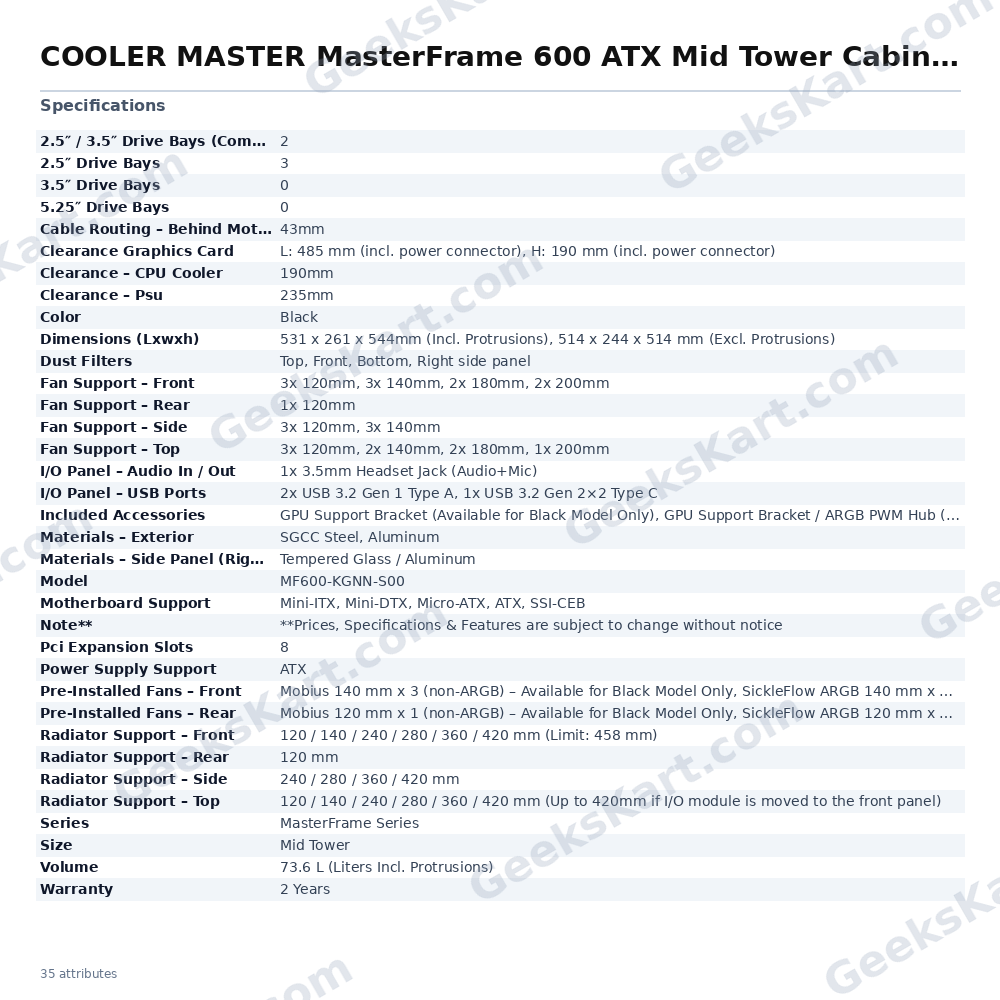

Specifications of COOLER MASTER MasterFrame 600 ATX Mid Tower Cabinet ( Black )
| Model Number | MF600-KGNN-S00 |
| Color | Black |
| Materials – Exterior | SGCC Steel, Aluminum |
| Materials – Side panel (Right / Left) | Tempered Glass / Aluminum |
| Dimensions (LxWxH) | 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions) |
| Volume | 73.6 L (Liters Incl. Protrusions) |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, SSI-CEB |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 0 |
| 2.5″ / 3.5″ Drive Bays (Combo) | 2 |
| 2.5″ Drive Bays | 3 |
| I/O Panel – USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2×2 Type C |
| I/O Panel – Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| Pre-installed Fans – Front | Mobius 140 mm x 3 (non-ARGB) – Available for Black Model Only, SickleFlow ARGB 140 mm x 3 – Available for Silver Model Only |
| Pre-installed Fans – Top | N/A |
| Pre-installed Fans – Rear | Mobius 120 mm x 1 (non-ARGB) – Available for Black Model Only, SickleFlow ARGB 120 mm x 1 – Available for Silver Model Only |
| Fan Support – Front | 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm |
| Fan Support – Top | 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm |
| Fan Support – Rear | 1x 120mm |
| Fan Support – Side | 3x 120mm, 3x 140mm |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm) |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Side | 240 / 280 / 360 / 420 mm |
| Dust Filters | Top, Front, Bottom, Right side panel |
| Clearance – CPU Cooler | 190mm |
| Clearance – PSU | 235mm |
| Clearance Graphics Card | L: 485 mm (incl. power connector), H: 190 mm (incl. power connector) |
| Included Accessories | GPU Support Bracket (Available for Black Model Only), GPU Support Bracket / ARGB PWM Hub (Available for Silver Model Only) |
| Cable Routing – Behind Motherboard Tray | 43mm |
| Size | Mid Tower |
| Series | MasterFrame Series |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
