COOLER MASTER MasterLiquid 360L Core ARGB 360mm CPU Liquid Cooler (White)
MPN MLW-D36M-A18PZ-RW · Brand Cooler Master

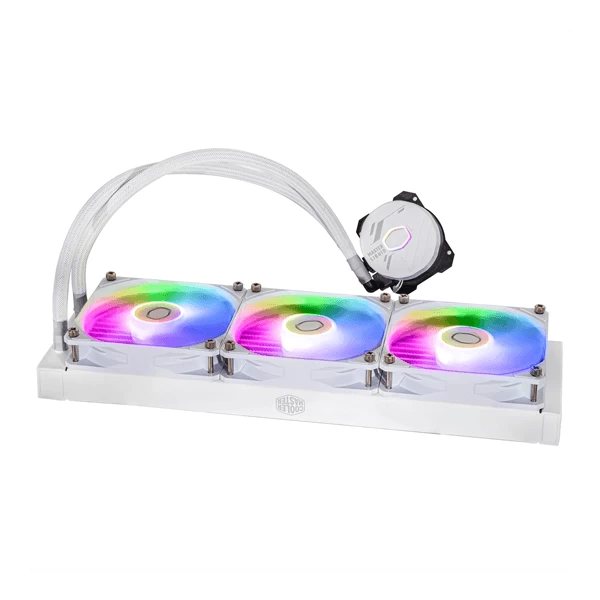

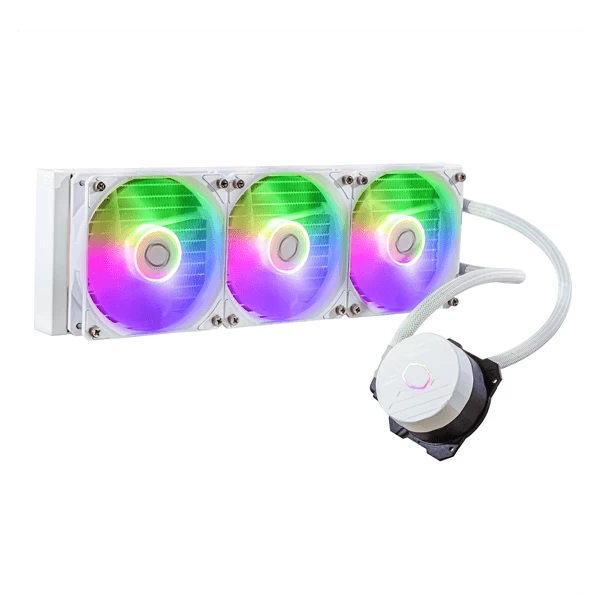

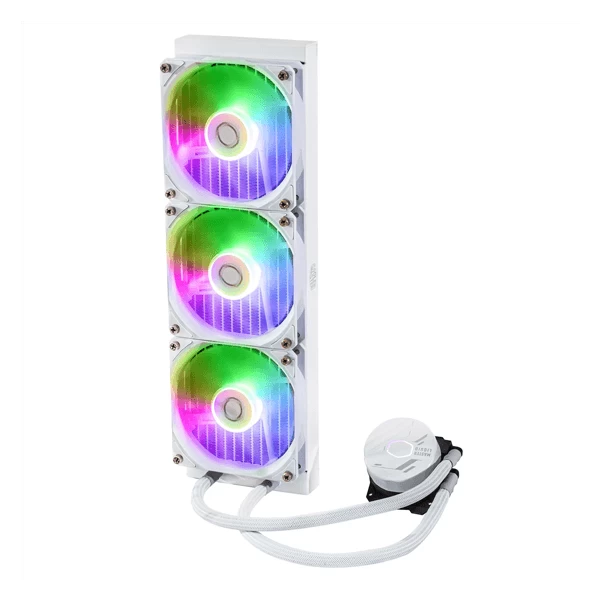

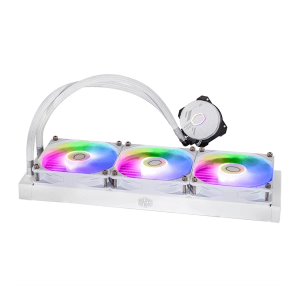

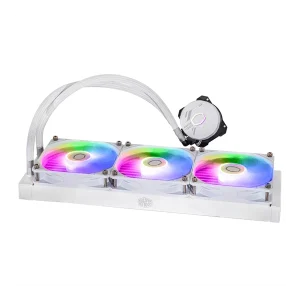

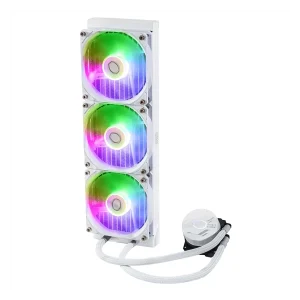

The Cooler Master MasterLiquid 360L Core ARGB (White) is a 360mm AIO liquid cooler featuring a Gen S Dual Chamber Pump, three 120mm ARGB PWM fans, and broad Intel/AMD socket support including LGA1700 and AM5
Inclusive of GST · GST invoice available
Overview
The Cooler Master MasterLiquid 360L Core ARGB (White) is a 360mm all-in-one liquid CPU cooler built on the redesigned MasterLiquid L Series platform. It combines a refined Gen S Dual Chamber Pump with an expanded aluminium radiator and three 120mm ARGB PWM fans, offering a balance of cooling performance and clean visual aesthetics suited to white-themed builds. At the heart of the cooler is the Gen S Dual Chamber Pump, which features a redesigned copper cold-plate base engineered to target CPU heat spots with greater precision while increasing coolant flow and pressure compared to the previous generation. The pump operates at 12 VDC with a rated power draw of just 3.96W, connecting via a standard 3-pin header. Its rated mean time to failure (MTTF) exceeds 70,000 hours. The aluminium radiator measures 394 x 119.6 x 27.2 mm and features an expanded fin surface area to accelerate heat dissipation across the three included 120mm ARGB fans. Each fan operates across a speed range of 650–1,750 RPM (±10%), delivering up to 71.93 CFM of airflow at a maximum noise level of 27.2 dBA. Fans connect via 4-pin PWM headers and carry an MTTF rating exceeding 160,000 hours with rifle-bearing construction. The cooler ships with Cooler Master's CryoFuze thermal paste pre-included, ready for installation. The pump head sports a clean minimalist white finish designed to complement modern chassis aesthetics without overpowering the build. Socket compatibility is broad: on the Intel side the unit supports LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, and LGA1150; AMD support covers AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, and FM1. The cooler ships with a 3-year manufacturer warranty. Verified Specifications: - SKU / Product Number: MLW-D36M-A18PZ-RW - Radiator Material: Aluminium - Radiator Dimensions: 394 x 119.6 x 27.2 mm - Pump Dimensions: 81 x 76 x 47 mm - Pump Rated Voltage: 12 VDC | Power: 3.96W | Connector: 3-Pin - Pump MTTF: >70,000 hours - Fan Size: 120 x 120 x 25 mm (x3) - Fan Speed: 650–1,750 RPM ±10% - Fan Airflow: 71.93 CFM (max) - Fan Noise: 27.2 dBA (max) - Fan Static Pressure: 1.86 mmH₂O (max) - Fan Bearing: Rifle Bearing | MTTF: >160,000 hours - Fan Connector: 4-Pin PWM | Rated Voltage: 12 VDC - LED Type: ARGB - Warranty: 3 Years

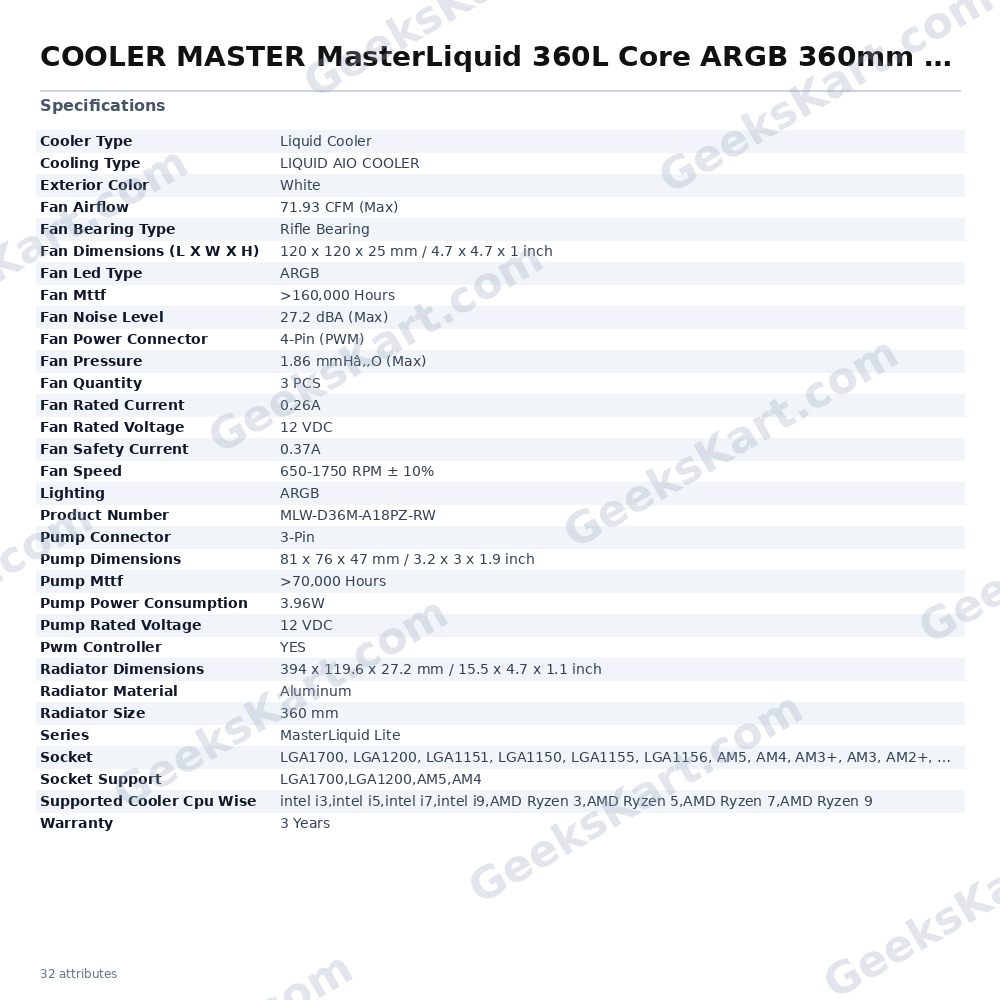

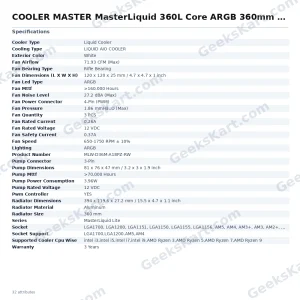

Datasheet
| Series | MasterLiquid Lite |
|---|---|
| Fan Mttf | >160,000 Hours |
| Fan Speed | 650-1750 RPM ± 10% |
| Pump Mttf | >70,000 Hours |
| Cooler Type | Liquid Cooler |
| Fan Airflow | 71.93 CFM (Max) |
| Fan Led Type | ARGB |
| Fan Pressure | 1.86 mmHâ‚‚O (Max) |
| Fan Quantity | 3 PCS |
| Radiator Size | 360 mm |
| Exterior Color | White |
| Product Number | MLW-D36M-A18PZ-RW |
| Pump Connector | 3-Pin |
| Fan Noise Level | 27.2 dBA (Max) |
| Pump Dimensions | 81 x 76 x 47 mm / 3.2 x 3 x 1.9 inch |
| Fan Bearing Type | Rifle Bearing |
| Fan Rated Current | 0.26A |
| Fan Rated Voltage | 12 VDC |
| Radiator Material | Aluminum |
| Fan Safety Current | 0.37A |
| Pump Rated Voltage | 12 VDC |
| Fan Power Connector | 4-Pin (PWM) |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Power Consumption | 3.96W |
| Fan Dimensions (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Lighting | ARGB |
| Cooling Type | LIQUID AIO COOLER |
| Pwm Controller | YES |
| Socket Support | LGA1700,LGA1200,AM5,AM4 |
| Supported Cooler Cpu Wise | intel i3,intel i5,intel i7,intel i9,AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9 |
| Warranty | 3 Years |
| Socket | AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700 |
