Cooler Master MasterLiquid Atmos II LCD 360mm White ARGB CPU Liquid Cooler
MPN MLX-D36M-A25SZ-LW · Brand COOLER MASTER
The Cooler Master MasterLiquid Atmos II LCD 360mm White AIO cooler pairs a patented dual-chamber pump with three SickleFlow Edge ARGB fans and a customisable 2.1-inch LCD head for high-performance CPU cooling on Intel LGA1851/1700 and AMD AM5/AM4 platforms
Inclusive of GST · GST invoice available
Overview
The Cooler Master MasterLiquid Atmos II LCD 360mm White ARGB CPU Liquid Cooler is a feature-rich all-in-one liquid cooler designed for builders who want both strong thermal performance and striking aesthetics. At the heart of the unit is Cooler Master's patented dual-chamber pump design, which increases water pressure and directs coolant flow precisely toward the CPU hotspot for efficient heat dissipation. The pump housing is engineered from PPS and fiberglass, materials chosen for industrial-grade strength and high heat resistance. The pump carries a rated MTTF of over 210,000 hours and has been tested at 70°C for 3,000 hours and 120°C for 12 hours, giving builders confidence in long-term reliability. The cooler ships with a 2.1-inch circular LCD screen (53.3 mm diameter, 480×480 px resolution, 300 cd/m² luminance, 60 Hz refresh rate) mounted on the pump head, offering a customisable display for system monitoring or personalisation. The screen connects to the motherboard via a USB Type-C to 9-pin internal header and draws just 1.5 W. Three pre-installed 120 mm SickleFlow Edge ARGB fans populate the 360 mm aluminium radiator. Together they deliver a combined airflow of 190 CFM (322.8 m³/h) at up to 3.61 mmH2O static pressure, with a maximum noise level of 38.5 dB(A). The fans use Loop Dynamic Bearings and connect via a 7-pin PWM + ARGB connector, enabling granular speed control and full RGB synchronisation through compatible motherboard software. The ultra-low-profile pump (92.5 × 87 × 38.5 mm) fits most mid-tower and full-tower cases. A quick-mount bracket kit covers a wide range of mainstream Intel and AMD sockets. Dedicated offset mounting brackets for LGA 1851 are included to align with that platform's relocated CPU hotspot, reported to reduce temperatures at the hotspot by approximately 4°C versus a centred mount. The white colourway and ARGB lighting on both the pump head and fans are controlled via Addressable Gen 2 RGB, making the unit compatible with ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, and ASRock Polychrome Sync ecosystems. Verified Specifications: - Radiator: Aluminium, 394 × 119.2 × 27 mm, 360 mm class - Fan: 3 × 120 mm SickleFlow Edge ARGB, up to 190 CFM, 38.5 dB(A) max, Loop Dynamic Bearing - Pump speed: 3,400 ± 300 RPM; Noise: ≤25 dB(A); Power: 3.84 W; Connector: 3-pin ARGB + 4-pin PWM - Pump MTTF: >210,000 hours - Tube length: 400 mm - LCD: 2.1 in / 53.3 mm dia., 480×480 px, 300 cd/m², 60 Hz, USB Type-C to 9-pin - Socket support — Intel: LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156; AMD: AM5 / AM4 - Warranty: 6 years

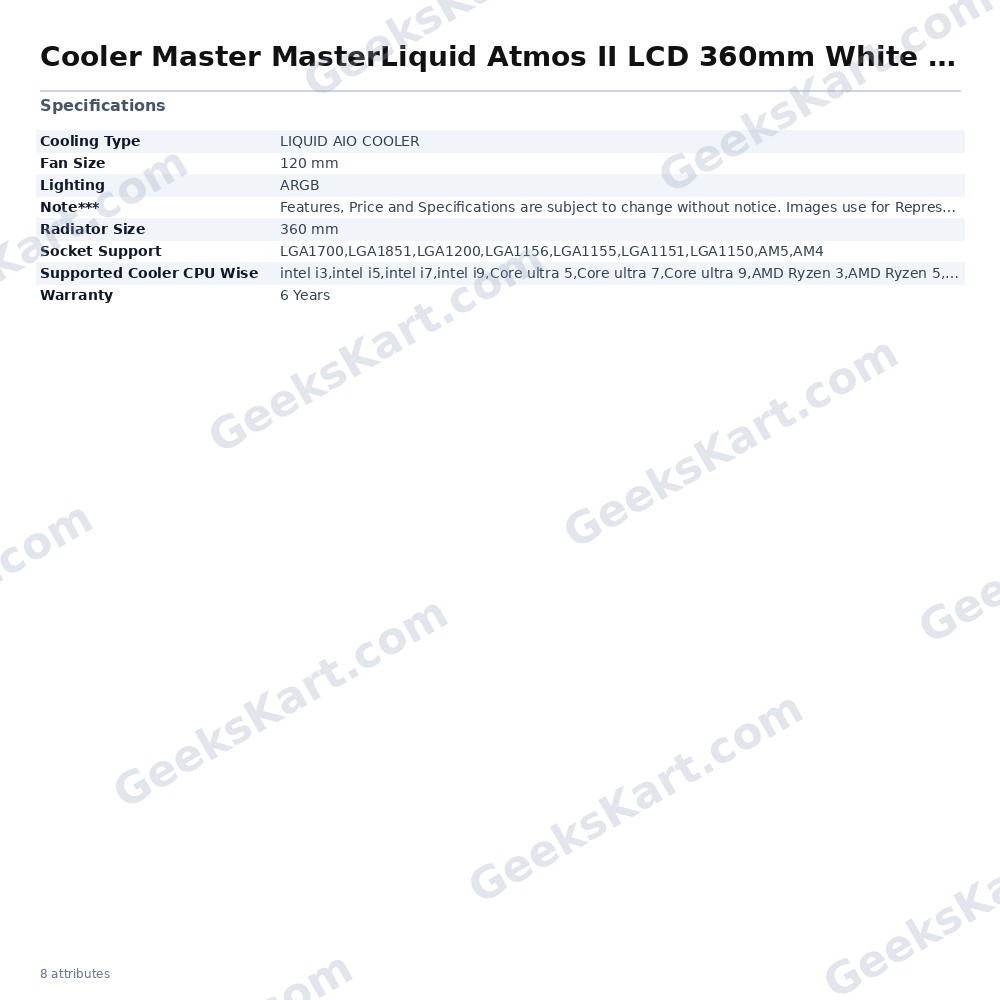

Datasheet
| Warranty | 6 Years |
|---|---|
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Fan Size | 120 mm |
| Lighting | ARGB |
| Cooling Type | LIQUID AIO COOLER |
| Radiator Size | 360 mm |
| Socket Support | LGA1700,LGA1851,LGA1200,LGA1156,LGA1155,LGA1151,LGA1150,AM5,AM4 |
| Supported Cooler CPU Wise | intel i3,intel i5,intel i7,intel i9,Core ultra 5,Core ultra 7,Core ultra 9,AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9 |
