Cooler Master MasterLiquid Core NEX 360 ARGB CPU Liquid Cooler
MPN MLX-D36M-A18PA-R1 · Brand COOLER MASTER
The Cooler Master MasterLiquid Core NEX 360 ARGB pairs a patented dual-chamber pump and three 120 mm ARGB fans with a 360 mm aluminium radiator, offering broad Intel LGA1851/1700 and AMD AM5/AM4 compatibility and a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The Cooler Master MasterLiquid Core NEX 360 ARGB is a 360 mm all-in-one liquid cooler designed for mainstream to enthusiast PC builds that demand reliable thermal performance and eye-catching aesthetics. At the heart of the cooler sits Cooler Master's patented dual-chamber pump, a compact design that increases water pressure and optimises flow directly toward the CPU heat-spreader. The pump head features a rotatable infinity-mirror ARGB cover, letting you dial in the perfect orientation regardless of your case layout. Three pre-installed 120 mm ARGB fans spin between 650 and 1,750 RPM, delivering a maximum airflow of 122.4 m³/h (71.9 CFM) and a static pressure of 1.86 mmH₂O while keeping noise at or below 27.2 dBA. The rifle-bearing fan design is rated for more than 40,000 hours of service life. Each fan connects via a 7-pin PWM + ARGB header, enabling full speed and lighting control through your motherboard or a compatible controller. The aluminium radiator measures 394 × 119.6 × 27.2 mm and is paired with 400 mm flexible tubing that accommodates awkward routing in mid-tower and full-tower cases alike. Pre-applied thermal paste and pre-mounted brackets mean you can go from box to POST in minutes. The cooler supports a broad socket matrix covering Intel LGA 1851, 1700, 1200, 1155, 1151, 1150, and 1156, as well as AMD AM5 and AM4, making it compatible with current-generation Intel Core Ultra and AMD Ryzen processors. Verified Specifications: • SKU: MLX-D36M-A18PA-R1 • Radiator material: Aluminium • Radiator dimensions: 394 × 119.6 × 27.2 mm • Pump dimensions: 83.6 × 78.5 × 62.9 mm • Pump speed: 2,800 ±10% RPM • Pump noise: ≤25 dBA • Pump MTTF: >35,000 hours • Pump connector: 3-pin ARGB + 4-pin PWM | 12 VDC • Fan quantity: 3 × 120 × 120 × 25 mm • Fan speed: 650–1,750 ±10% RPM • Fan airflow (max): 122.4 m³/h / 71.9 CFM • Fan static pressure (max): 1.86 mmH₂O • Fan noise (max): 27.2 dBA • Fan bearing: Rifle bearing | MTTF >40,000 hours • Fan connector: 7-pin PWM + ARGB | 12 VDC | 0.26 A rated • Tube length: 400 mm • CPU socket support: Intel LGA 1851/1700/1200/1156/1155/1151/1150; AMD AM5/AM4 • Warranty: 5 years

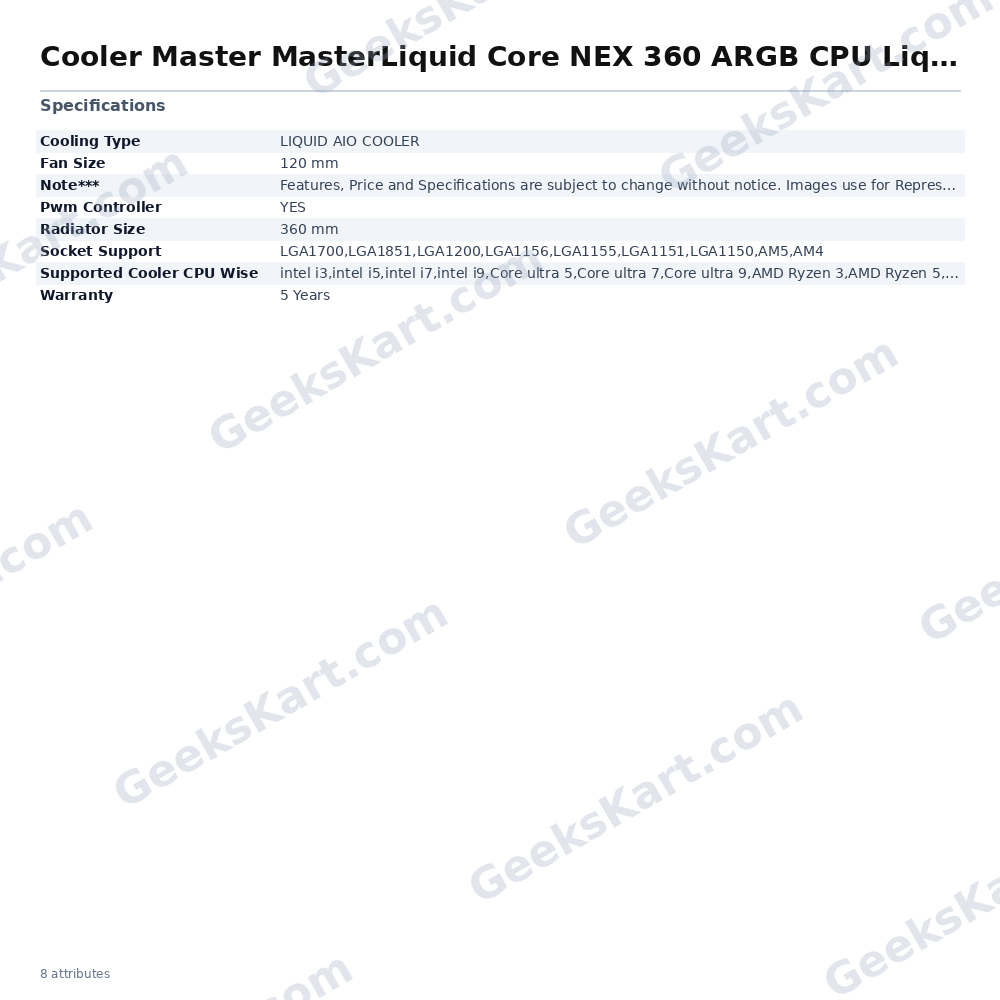

Datasheet
| Warranty | 5 Years |
|---|---|
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Fan Size | 120 mm |
| Cooling Type | LIQUID AIO COOLER |
| Radiator Size | 360 mm |
| Pwm Controller | YES |
| Socket Support | LGA1700,LGA1851,LGA1200,LGA1156,LGA1155,LGA1151,LGA1150,AM5,AM4 |
| Supported Cooler CPU Wise | intel i3,intel i5,intel i7,intel i9,Core ultra 5,Core ultra 7,Core ultra 9,AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9 |
