COOLER MASTER Masterliquid Core NEX Digital 360mm CPU Liquid Cooler ( White )
MPN COOLER-MASTER-ML-CORE-NEX-DIGITAL-360MM-CPU-fadd7d · Brand Cooler Master
Cooler Master MasterLiquid Core NEX Digital 360mm AIO CPU cooler (White) features a patented dual-chamber pump, hexagonal LED digital display with real-time stats, ARGB lighting, and broad Intel/AMD socket support — model MLX-D36M-A18PW-RD
Inclusive of GST · GST invoice available
Overview

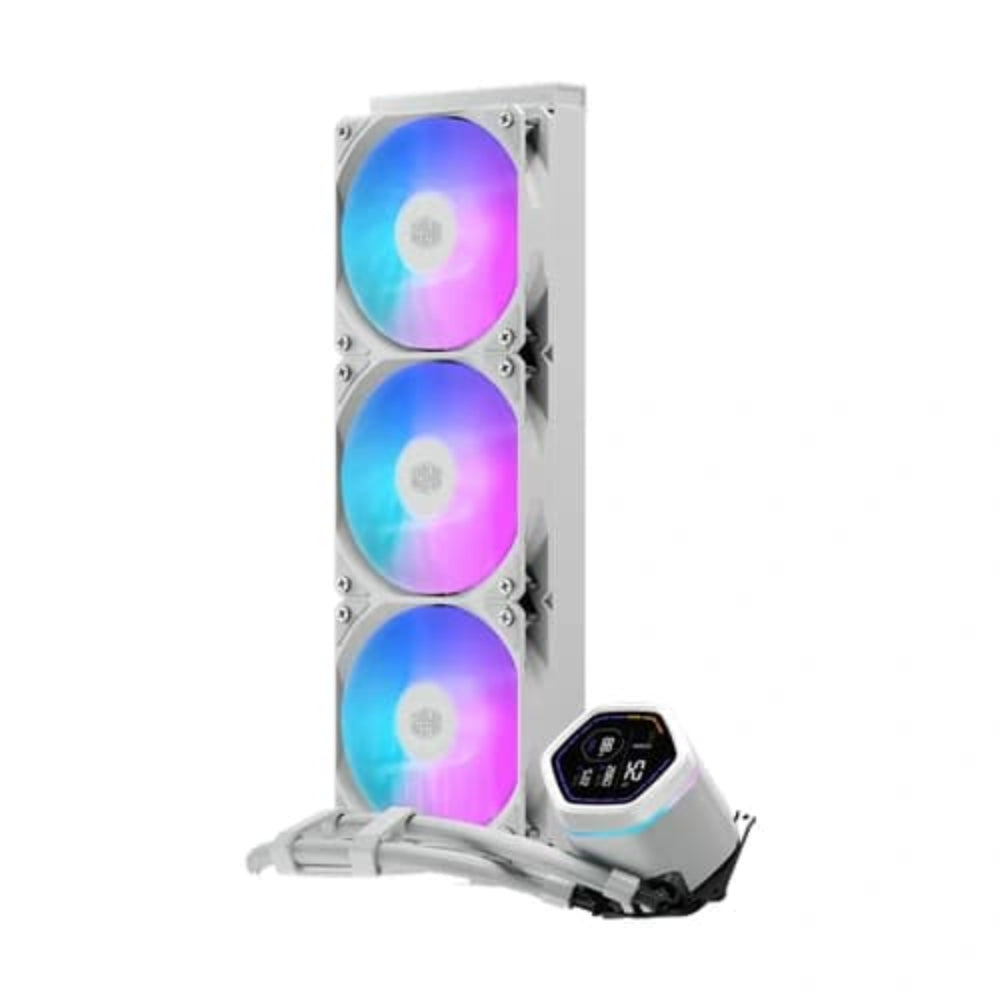

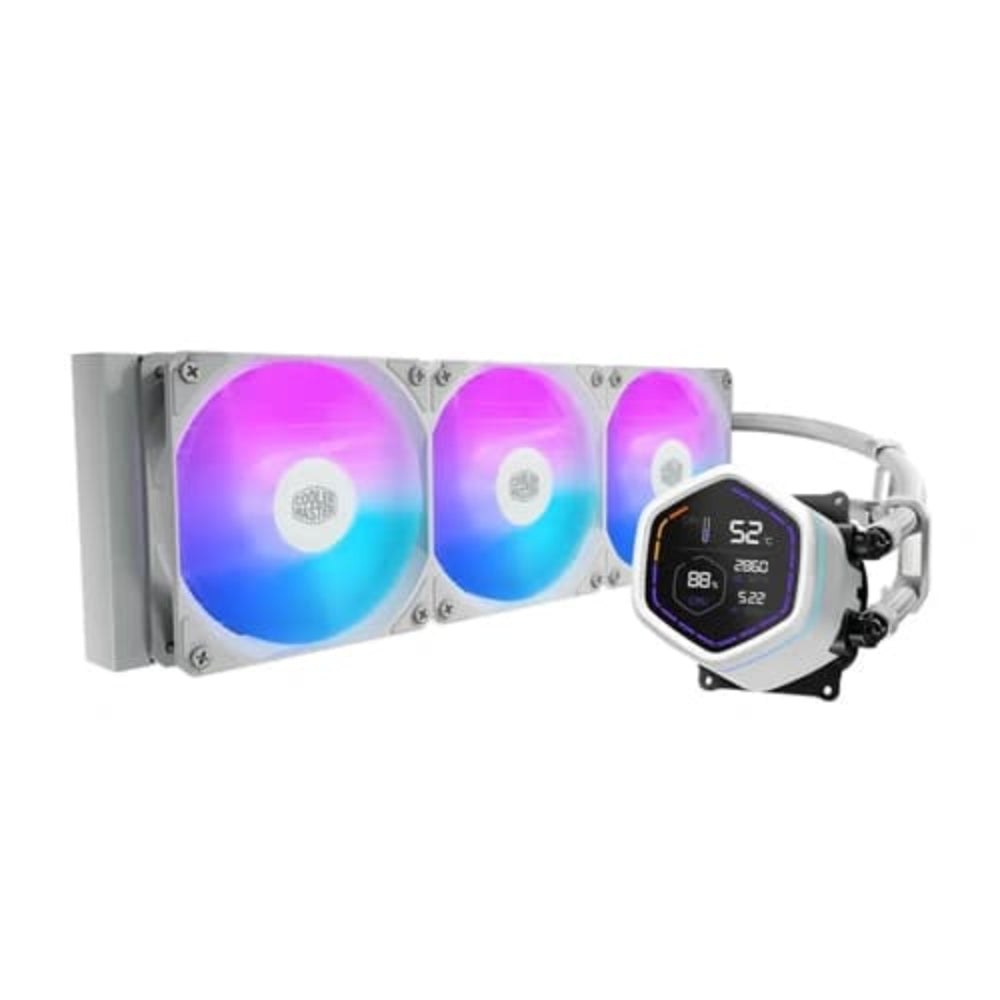

The Cooler Master MasterLiquid Core NEX Digital is a 360mm all-in-one liquid CPU cooler designed for PC builders, gamers, and content creators who want reliable thermal performance paired with real-time system monitoring. At its core is a patented dual-chamber pump that separates the intake and outlet water paths, increasing internal water pressure and directing coolant flow more efficiently toward the CPU heat-spreader hot spot — a refinement over single-chamber pump designs. The head unit features a bold hexagonal LED digital display that delivers a-glance CPU usage data via an outer ring indicator, while the central panel can surface additional real-time statistics including temperatures and fan and pump speeds. The display is managed through Cooler Master's MasterCTRL software, giving users direct control over what data is shown and how it is visualised. Pump profiles support Addressable RGB, enabling synchronisation with compatible motherboard ARGB headers. Installation is made straightforward by the inclusion of pre-installed 120mm fans on the 360mm aluminium radiator, pre-applied thermal paste on the pump cold plate, pre-mounted brackets, and streamlined cabling. The 400mm tubing length provides flexibility when routing the cooler in either top-mount or front-mount orientations across a wide range of mid-tower and full-tower cases. Compatibility spans all mainstream Intel and AMD platforms, from legacy LGA1150 through to the current LGA1851 (Intel Core Ultra) and AM5 (AMD Ryzen 9000/7000 series) sockets, making this cooler a viable choice for current and recent-generation builds alike. — Verified Specifications — Model: MLX-D36M-A18PW-RD | Radiator: Aluminium, 394 × 119.6 × 27.2 mm | Radiator Size: 360mm | Fan Size: 120mm × 3 | Pump Speed: 3,200 ±10% RPM | Pump Dimensions: 83.6 × 78.5 × 68.6 mm | Pump Connector: 3-Pin ARGB + 4-Pin PWM | Digital Panel: LED Digital Display | Tubing Length: 400mm | Socket Support: Intel LGA1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150; AMD AM5 / AM4 | PWM Control: Yes | Colour: White | Warranty: 5 Years

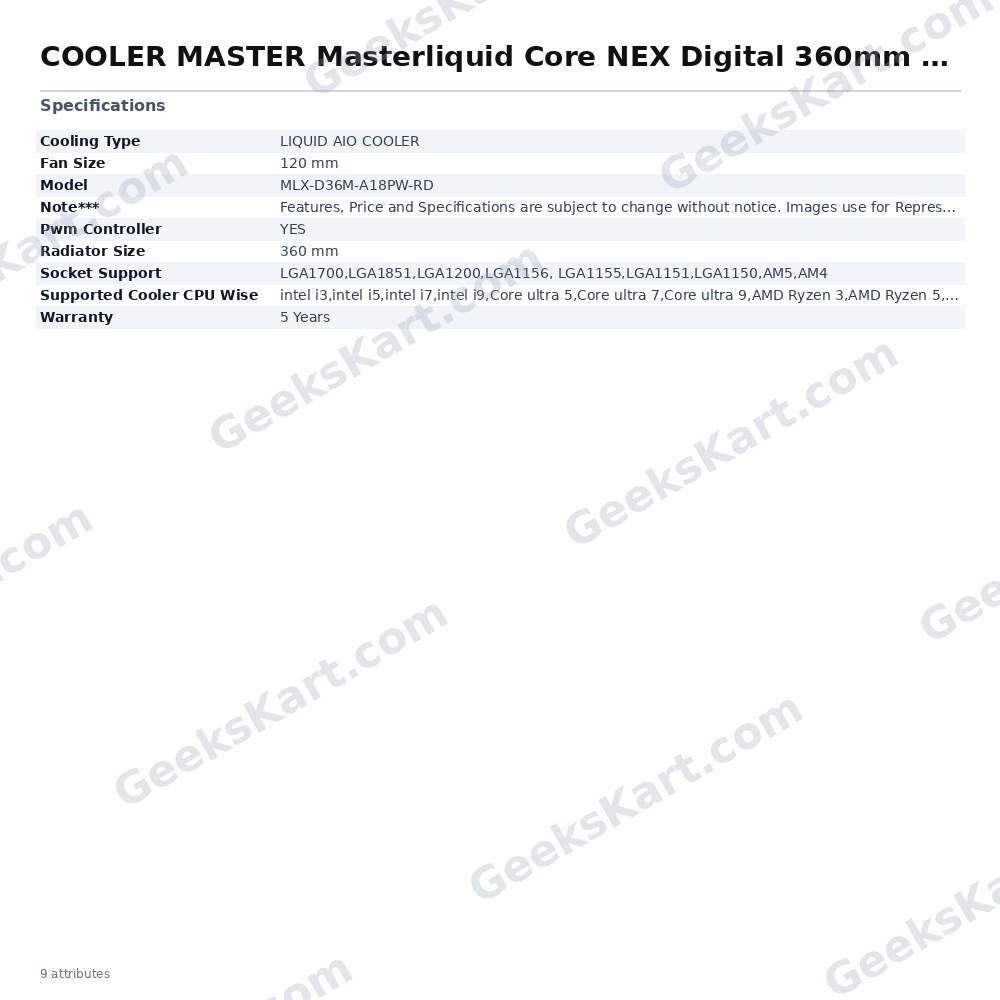

Datasheet
| Warranty | 5 Years |
|---|---|
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Fan Size | 120 mm |
| Model | MLX-D36M-A18PW-RD |
| Cooling Type | LIQUID AIO COOLER |
| Radiator Size | 360 mm |
| Pwm Controller | YES |
| Socket Support | LGA1700,LGA1851,LGA1200,LGA1156, LGA1155,LGA1151,LGA1150,AM5,AM4 |
| Supported Cooler CPU Wise | intel i3,intel i5,intel i7,intel i9,Core ultra 5,Core ultra 7,Core ultra 9,AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9 |
