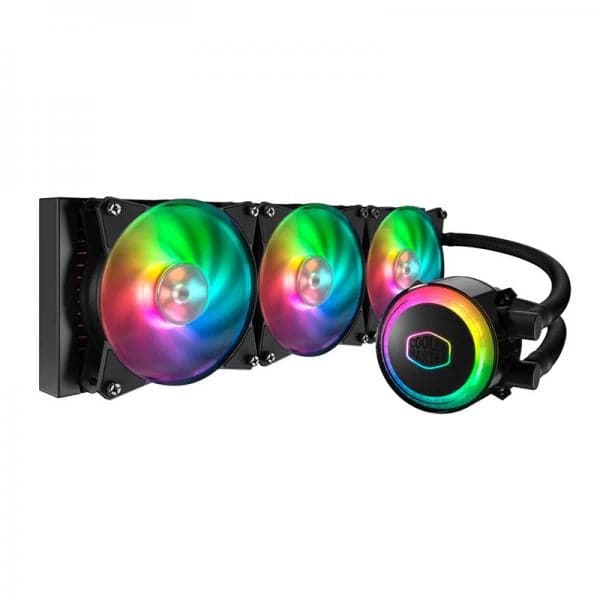

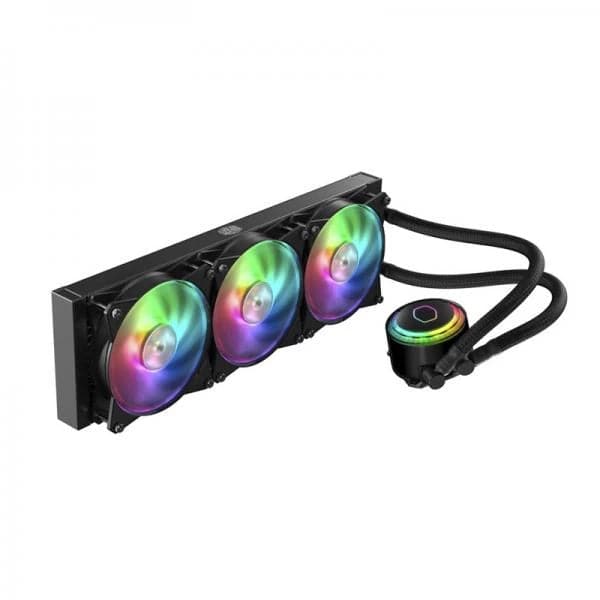

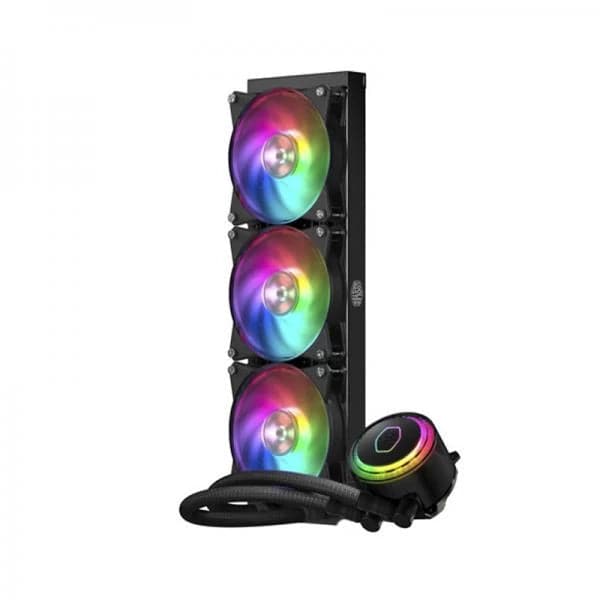

COOLER MASTER MasterLiquid ML360R RGB 360mm CPU Liquid Cooler (Black)

The Cooler Master MasterLiquid ML360R RGB (model MLX-D36M-A20PC-R1) is a 360mm all-in-one liquid CPU cooler designed for enthusiasts who want effective thermal management alongside addressable RGB illumination. At its core is a dual-chamber pump head constructed from PPS (Polyphenylene sulfide) and glass fibre, a material combination that resists a broad range of chemicals and is unaffected by moisture. The pump operates at 12 VDC via a 3-pin connector and carries a rated MTTF of 70,000 hours, while pump noise is specified at under 15 dBA. Cooling is delivered through an aluminium radiator measuring 394 × 119 × 27.2 mm, paired with three 120 × 120 × 25 mm PWM fans. Each fan connects via a 4-pin PWM header and runs at 12 VDC, with a speed range of 650–2,000 RPM (±10%). At peak speed each fan moves up to 66.7 CFM of air at up to 2.34 mmH2O of static pressure, with noise ranging from 6 to 30 dBA across the full speed range. Fan MTTF is rated at 160,000 hours. The fans are tuned for a balance of airflow and static pressure, and a silent driver IC is used to smooth operation and reduce vibration. Fluid is carried through FEP (fluorinated ethylene propylene) tubing that is flexible yet durable; a braided sleeve on the exterior adds a premium finish. The pump head dimensions are 83.6 × 71.8 × 52.7 mm. Socket compatibility is broad. On the Intel side the cooler supports LGA 2066, 2011-v3, 2011, 1366, 1200, 1156, 1151, 1150, and 775. AMD support covers AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, and FM1. The product ships with a 2-year manufacturer warranty and carries the model number MLX-D36M-A20PC-R1. Verified specifications summary: • Radiator: Aluminium, 394 × 119 × 27.2 mm • Fans: 3 × 120 mm PWM, 650–2,000 RPM, 66.7 CFM max, 2.34 mmH2O max, 6–30 dBA, MTTF 160,000 hr • Pump: Dual-chamber, 12 VDC, 3-pin, <15 dBA, MTTF 70,000 hr • Tubing: FEP inner / braided sleeve outer • Warranty: 2 years
