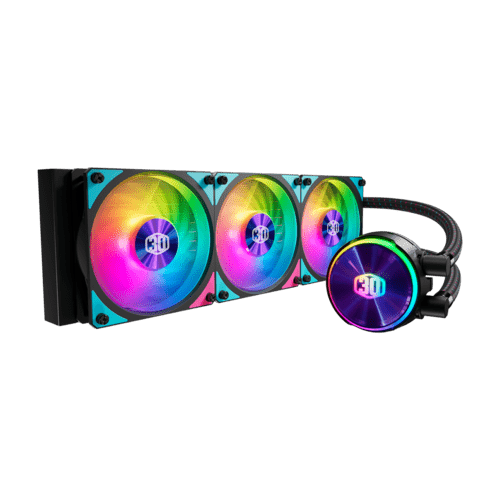

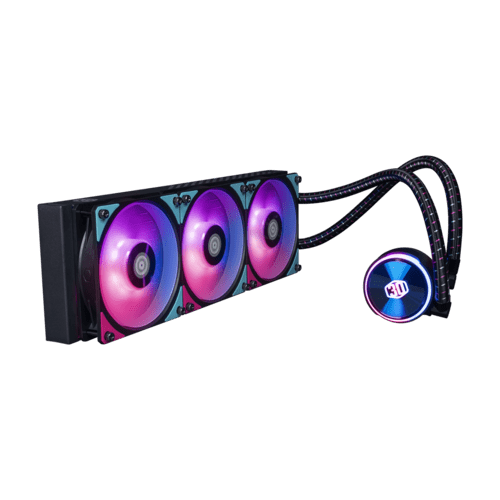

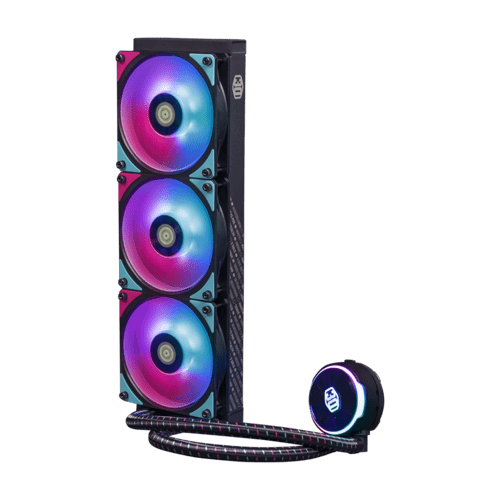

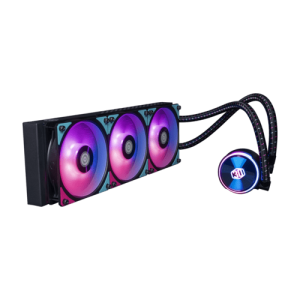

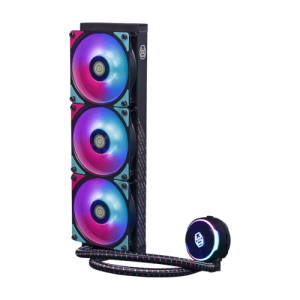

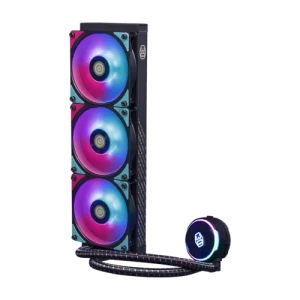

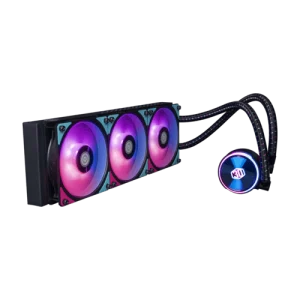

COOLER MASTER MasterLiquid PL360 Flux 30th Anniversary Edition 360mm CPU Liquid Cooler
MPN CM-PL360-FLUX · Brand Cooler Master
Features of COOLER MASTER MasterLiquid PL360 Flux 30th Anniversary Edition The COOLER MASTER PL360 Flux 30th Anniversary Edition is the new embodiment of enhanced performance cooling. Cooler Master is releasing a limited version of the MasterLiquid Flux Series flagship liquid cooler to represent 30 years of success. The performance liquid cooler features the new Mobius Series 30th Anniversary Edition fans, exclusive pump cover with the 30th Anniversary logo, as well as unique limited edition pri
Inclusive of GST · GST invoice available
Overview
Features of COOLER MASTER MasterLiquid PL360 Flux 30th Anniversary Edition
The COOLER MASTER PL360 Flux 30th Anniversary Edition is the new embodiment of enhanced performance cooling.
Cooler Master is releasing a limited version of the MasterLiquid Flux Series flagship liquid cooler to represent 30 years of success. The performance liquid cooler features the new Mobius Series 30th Anniversary Edition fans, exclusive pump cover with the 30th Anniversary logo, as well as unique limited edition print on the radiator. The PL360 Flux 30TH Anniversary Edition has refined performance from fans to the copper base, as well as unique aesthetic design to represent our decades worth of innovation.
- Premium Dual Chamber Pump
- Fine Tuned Performance Ratio
- Superior Heat Exchange
- Low Profile Radiator
- Redesigned Flux Series Fan
- Dual Loop ARGB Pump
Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
Superior Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels accurately to target heat spots. The enlarged copper base surface optimized with ideal base thickness accelerates heat transfer.
Dual Chamber Pump
The compact Dual Chamber pump delivers the perfect balance of waterflow and pressure, decorated with the 30th Anniversary logo.
Ultimate Heat Exchange
A high speed motor utilizing a ceramic bearing impeller, which forces balanced waterflow to and from the radiator for ultimate efficiency of heat exchange.
30th Anniversary Series
To commemorate Cooler Master’s 30th Anniversary, some of our upcoming Thermal products are being released with special new designs. Our 30th Anniversary lineup includes: Ergostand Air, MasterLiquid PL360 Flux, MasterAir MA824 Stealth, and the Mobius 120P ARGB. Each 30th Anniversary Edition product features special colorway accents and subtle “30th Anniversary” branding throughout each product.

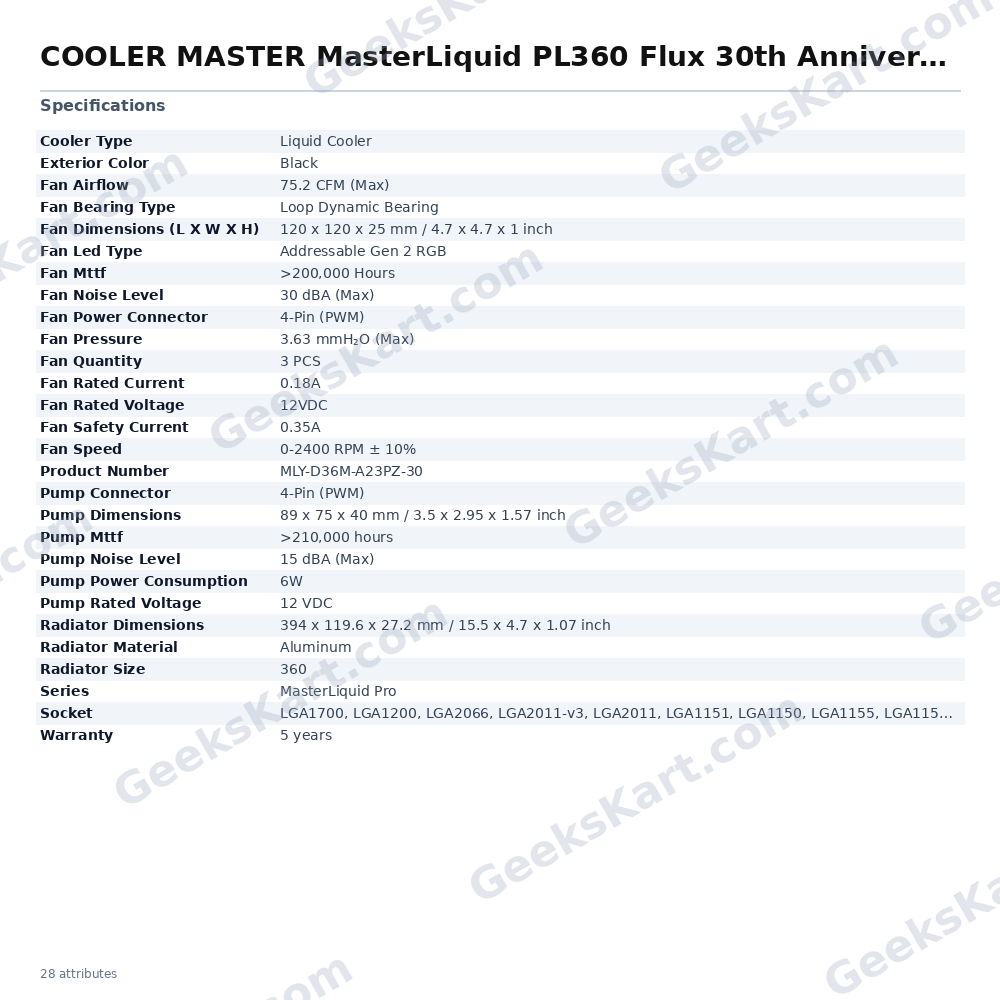

Specifications of COOLER MASTER MasterLiquid PL360 Flux 30th Anniversary Edition
| Product Number | MLY-D36M-A23PZ-30 |
| Exterior Color | Black |
| CPU Socket | LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.07 inch |
| Pump Dimensions | 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch |
| Pump MTTF | >210,000 hours |
| Pump Noise Level | 15 dBA (Max) |
| Pump Connector | 4-Pin (PWM) |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 6W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 0-2400 RPM ± 10% |
| Fan Airflow | 75.2 CFM (Max) |
| Fan Noise Level | 30 dBA (Max) |
| Fan Pressure | 3.63 mmH₂O (Max) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan MTTF | >200,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.18A |
| Fan Safety Current | 0.35A |
| Warranty | 5 years |
| Series | MasterLiquid Pro |
| Cooler Type | Liquid Cooler |
| Radiator Size | 360 |
Datasheet
| Warranty | 5 Years |
|---|---|
| Socket | AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700, LGA2011, LGA2066 |
| Series | MasterLiquid Pro |
| Fan Mttf | >200,000 Hours |
| Fan Speed | 0-2400 RPM ± 10% |
| Pump Mttf | >210,000 hours |
| Cooler Type | Liquid Cooler |
| Fan Airflow | 75.2 CFM (Max) |
| Fan Led Type | Addressable Gen 2 RGB |
| Fan Pressure | 3.63 mmH₂O (Max) |
| Fan Quantity | 3 PCS |
| Radiator Size | 360 |
| Exterior Color | Black |
| Product Number | MLY-D36M-A23PZ-30 |
| Pump Connector | 4-Pin (PWM) |
| Fan Noise Level | 30 dBA (Max) |
| Pump Dimensions | 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch |
| Fan Bearing Type | Loop Dynamic Bearing |
| Pump Noise Level | 15 dBA (Max) |
| Fan Rated Current | 0.18A |
| Fan Rated Voltage | 12VDC |
| Radiator Material | Aluminum |
| Fan Safety Current | 0.35A |
| Pump Rated Voltage | 12 VDC |
| Fan Power Connector | 4-Pin (PWM) |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.07 inch |
| Pump Power Consumption | 6W |
| Fan Dimensions (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
