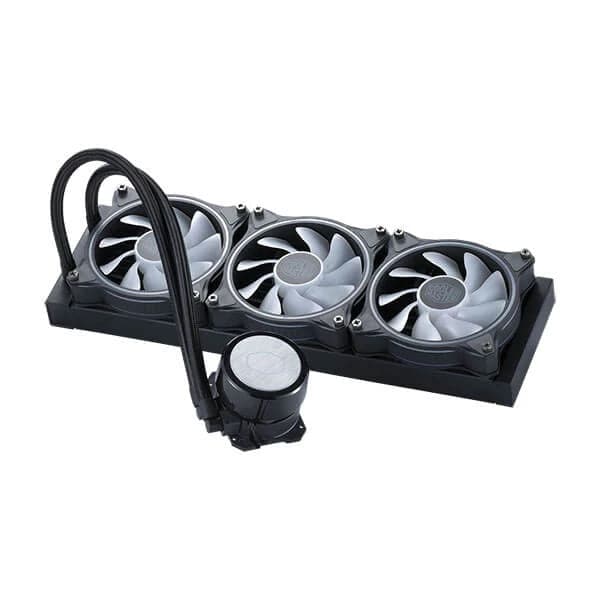

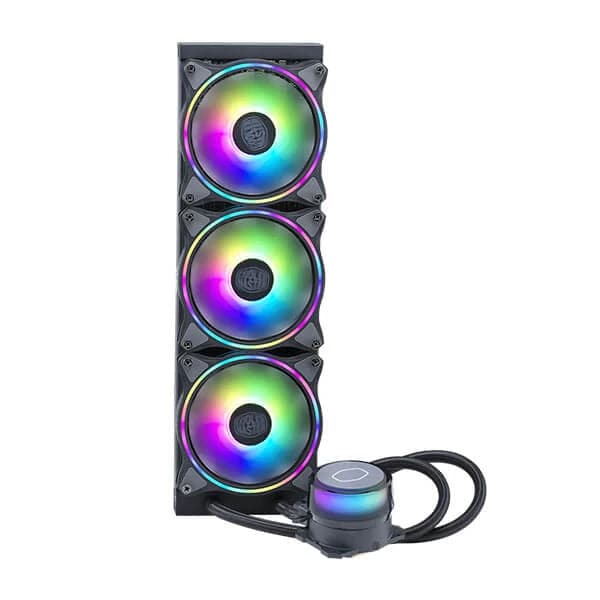

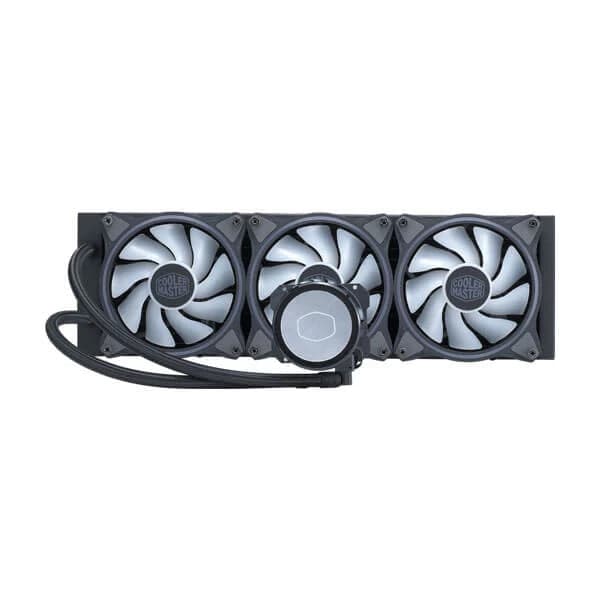

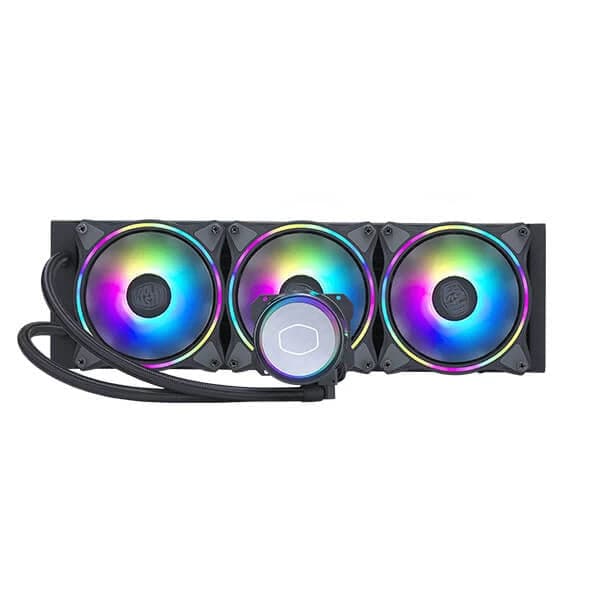

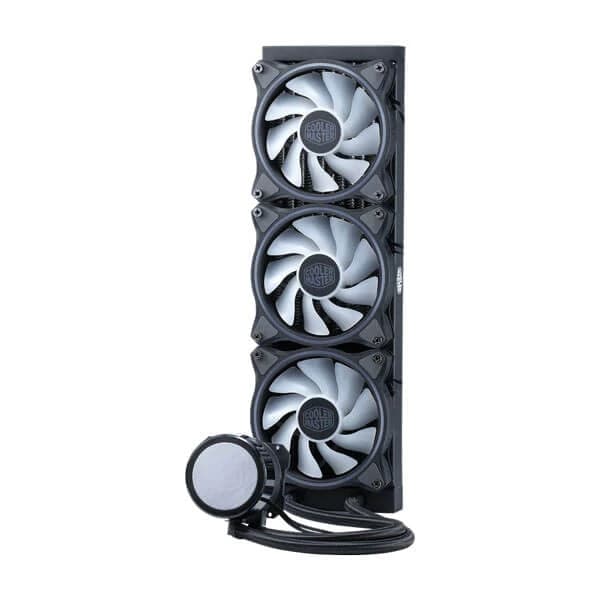

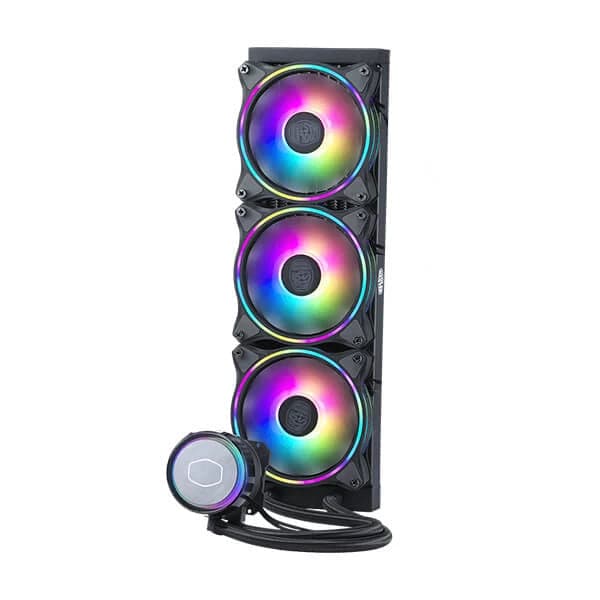

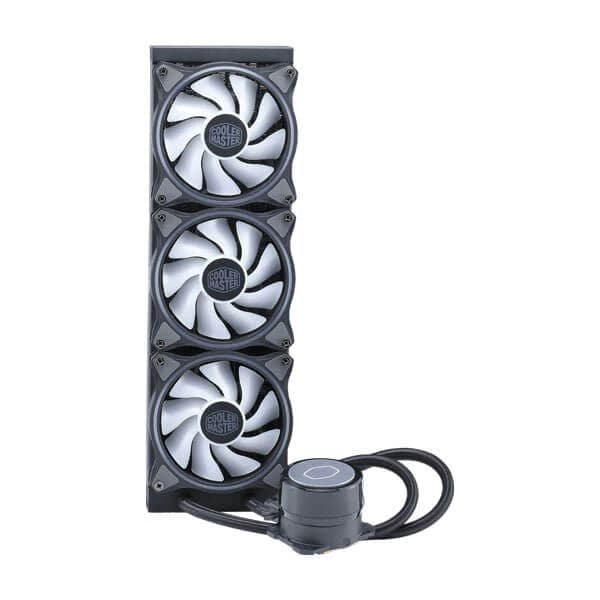

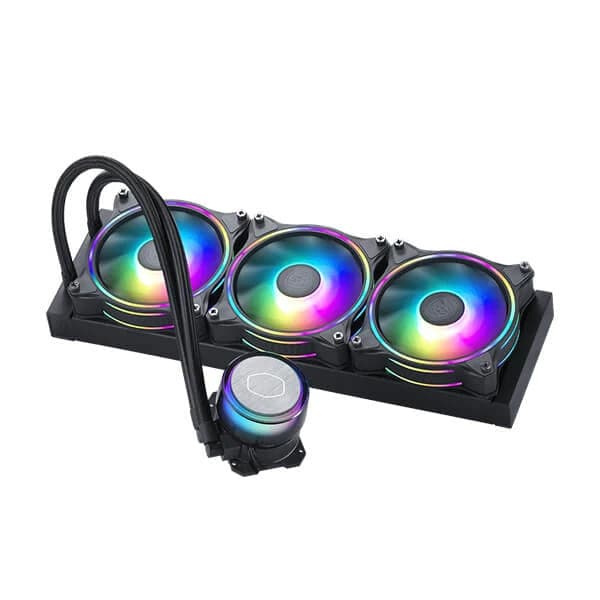

COOLER MASTER ML360 illusion ARGB 360mm CPU Liquid Cooler (Black)
MPN COOLER-MASTER-ML360-ILLUSION · Brand Cooler Master
Features of COOLER MASTER ML360 illusion ARGB 360mm CPU Liquid Cooler (Black) Translucent Dome Optimized Dual Chamber Pump Expanded Dissipation Surface Area MasterFan MF120 Halo MasterPlus+ Software See It To Believe It The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan M
Inclusive of GST · GST invoice available
Overview
Features of COOLER MASTER ML360 illusion ARGB 360mm CPU Liquid Cooler (Black)
- Translucent Dome
- Optimized Dual Chamber Pump
- Expanded Dissipation Surface Area
- MasterFan MF120 Halo
- MasterPlus+ Software
See It To Believe It
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Cooler Master ML360 lllusion ARGB 360mm CPU Liquid Cooler (Black) is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.
Translucent Dome
Cooler Master ML360 lllusion ARGB 360mm CPU Liquid Cooler (Black) comes with stunning lighting visuals with translucent water chamber dome and rotatable logo. Compatible with software customization
New 3rd Gen Dual Chamber Pump
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.

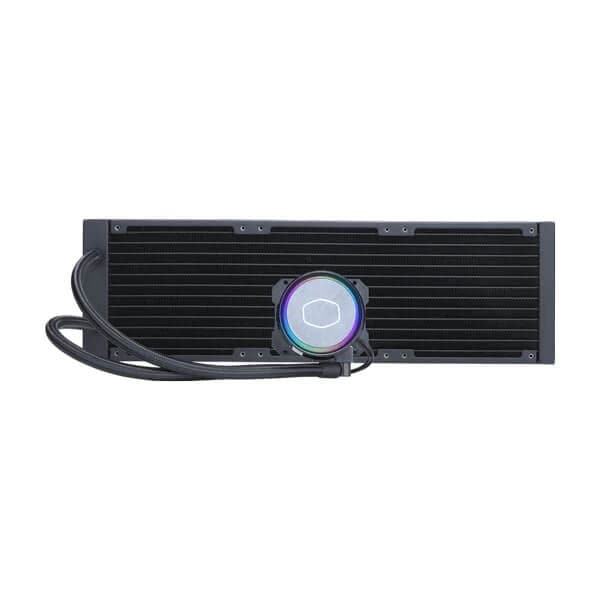

Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
Masterfan MF120 Halo
Cooler Master ML360 lllusion ARGB 360mm CPU Liquid Cooler (Black) comes with dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color
New Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more - all from an intuitive, convenient interface

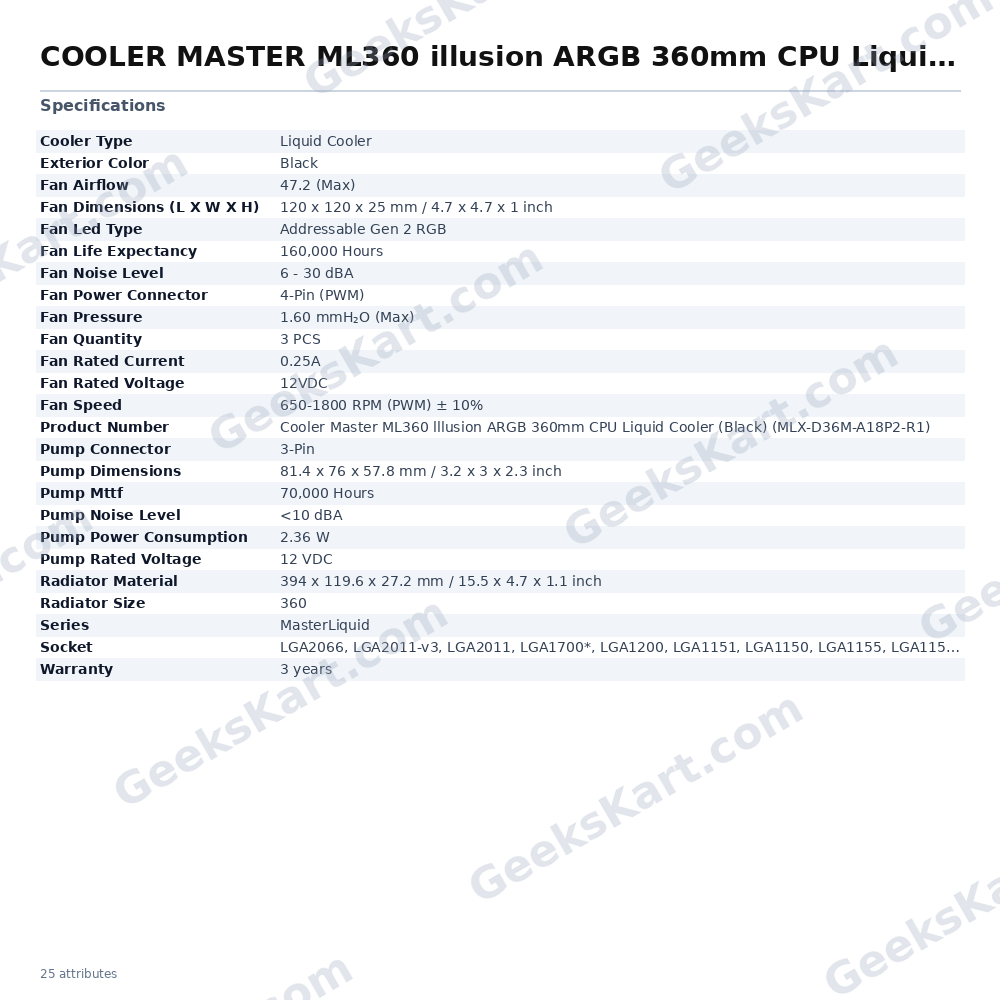

Specifications of COOLER MASTER ML360 illusion ARGB 360mm CPU Liquid Cooler (Black)
| Product Number | Cooler Master ML360 lllusion ARGB 360mm CPU Liquid Cooler (Black) (MLX-D36M-A18P2-R1) |
| Exterior Color | Black |
| CPU Socket | LGA2066, LGA2011-v3, LGA2011, LGA1700*, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
| Radiator Material | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Dimensions | 81.4 x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch |
| Pump MTTF | 70,000 Hours |
| Pump Noise Level | <10 dBA |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 2.36 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 650-1800 RPM (PWM) ± 10% |
| Fan Airflow | 47.2 (Max) |
| Fan Noise Level | 6 - 30 dBA |
| Fan Pressure | 1.60 mmH₂O (Max) |
| Fan Life Expectancy | 160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.25A |
| RAM Clearance | N/A |
| Series | MasterLiquid |
| Cooler Type | Liquid Cooler |
| Radiator Size | 360 |
| Warranty | 3 years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 3 Years |
|---|---|
| Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA2011, LGA2066 |
| Series | MasterLiquid |
| Fan Speed | 650-1800 RPM (PWM) ± 10% |
| Pump Mttf | 70,000 Hours |
| Cooler Type | Liquid Cooler |
| Fan Airflow | 47.2 (Max) |
| Fan Led Type | Addressable Gen 2 RGB |
| Fan Pressure | 1.60 mmH₂O (Max) |
| Fan Quantity | 3 PCS |
| Radiator Size | 360 |
| Exterior Color | Black |
| Product Number | Cooler Master ML360 lllusion ARGB 360mm CPU Liquid Cooler (Black) (MLX-D36M-A18P2-R1) |
| Pump Connector | 3-Pin |
| Fan Noise Level | 6 – 30 dBA |
| Pump Dimensions | 81.4 x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch |
| Pump Noise Level | <10 dBA |
| Fan Rated Current | 0.25A |
| Fan Rated Voltage | 12VDC |
| Radiator Material | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Rated Voltage | 12 VDC |
| Fan Life Expectancy | 160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Pump Power Consumption | 2.36 W |
| Fan Dimensions (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
