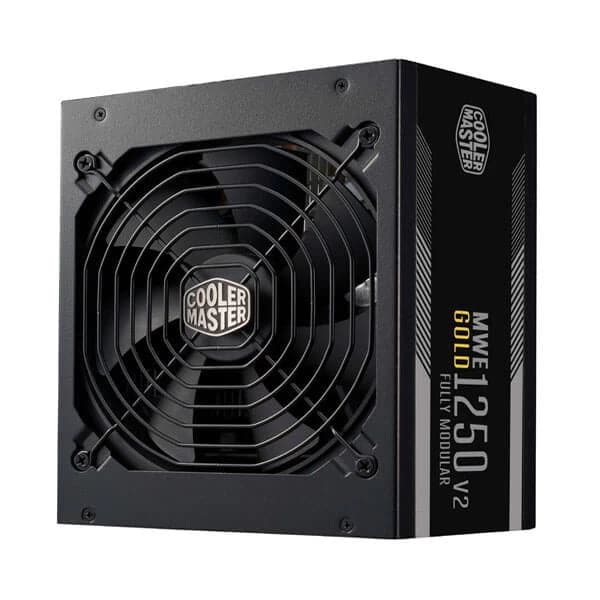

COOLER MASTER MWE 1250W V2 80+ Gold Fully Modular ATX 2.0 Power Supply
MPN CM-1250W-V2 · Brand Cooler Master
Features of COOLER MASTER MWE 1250W V2 COOLER MASTER Power Supply brings optimal performance for a classic configuration. The MWE Gold 1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience. POWER UP 80 PLUS GOLD CERTIFIED RTX READY SILENCE FAN WITH SMART TEMP. C
Inclusive of GST · GST invoice available
Overview
Features of COOLER MASTER MWE 1250W V2
COOLER MASTER Power Supply brings optimal performance for a classic configuration. The MWE Gold 1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
- POWER UP
- 80 PLUS GOLD CERTIFIED
- RTX READY
- SILENCE FAN WITH SMART TEMP. CONTROLLING FEATURE
- HIGH TEMPERATURE RESILIENCE
- FULL MODULAR CABLING
- 10 YEAR WARRANTY
Highly Efficient Performance
The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.

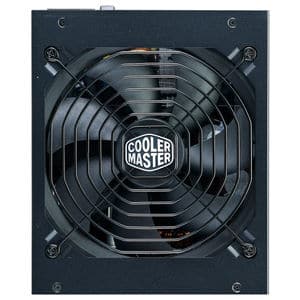

140mm FDB Fan
MWE Gold 1250W Power Supply has delivered to a premium high air flow and long life bearing fan, offering more effective cooling performance.
Fully support ATX 3.0
12VHPWR connector with a compact 12+4 pin cable can pump up to 600W of power to a GPU via a single cable.

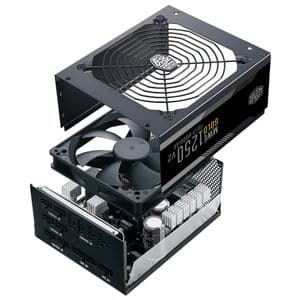

Fully Modular Cabling
MWE Gold - V2 comes with fully modular flat, black cables for increased airflow.
10 Year Warranty
MWE Gold 1250 – V2 model comes with a 10 year factory warranty from purchase date.
Get the best 80 Plus Gold psu power supply price from us today!

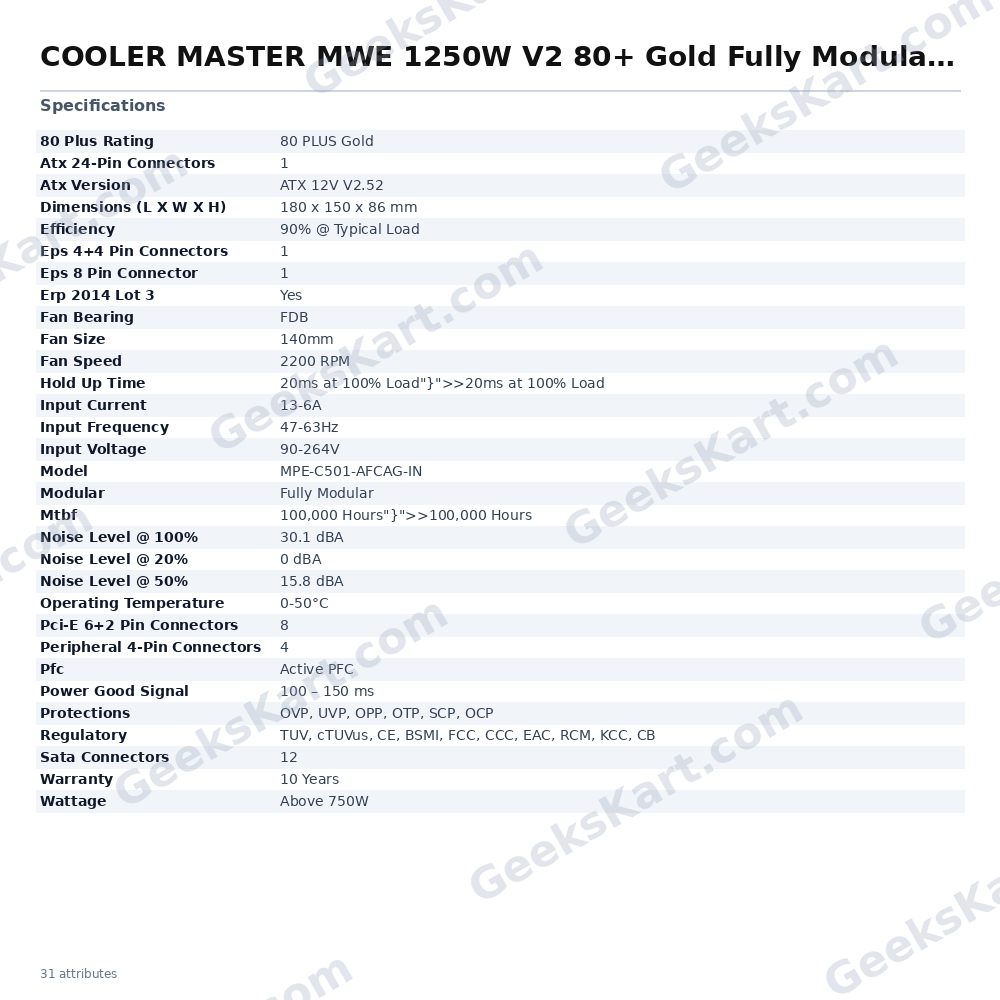

Specifications of COOLER MASTER MWE 1250W V2
| MODEL | MPE-C501-AFCAG-IN |
| ATX VERSION | ATX 12V V2.52 |
| PFC | Active PFC |
| INPUT VOLTAGE | 90-264V |
| INPUT CURRENT | 13-6A |
| INPUT FREQUENCY | 47-63Hz |
| DIMENSIONS (L X W X H) | 180 x 150 x 86 mm |
| FAN SIZE | 140mm |
| FAN BEARING | FDB |
| FAN SPEED | 2200 RPM |
| NOISE LEVEL @ 20% | 0 dBA |
| NOISE LEVEL @ 50% | 15.8 dBA |
| NOISE LEVEL @ 100% | 30.1 dBA |
| EFFICIENCY | 90% @ Typical Load |
| 80 PLUS RATING | 80 PLUS Gold |
| ERP 2014 LOT 3 | Yes |
| OPERATING TEMPERATURE | 0-50°C |
| POWER GOOD SIGNAL | 100 – 150 ms |
| HOLD UP TIME | 20ms at 100% Load"}">>20ms at 100% Load |
| MTBF | 100,000 Hours"}">>100,000 Hours |
| PROTECTIONS | OVP, UVP, OPP, OTP, SCP, OCP |
| REGULATORY | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
| ATX 24-PIN CONNECTORS | 1 |
| EPS 4+4 PIN CONNECTORS | 1 |
| EPS 8 PIN CONNECTOR | 1 |
| SATA CONNECTORS | 12 |
| PERIPHERAL 4-PIN CONNECTORS | 4 |
| PCI-E 6+2 PIN CONNECTORS | 8 |
| MODULAR | Fully Modular |
| WATTAGE | Above 750W |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 10 Years |
|---|---|
| Pfc | Active PFC |
| Mtbf | 100,000 Hours"}">>100,000 Hours |
| Model | MPE-C501-AFCAG-IN |
| Modular | Fully Modular |
| Wattage | Above 750W |
| Fan Size | 140mm |
| Fan Speed | 2200 RPM |
| Efficiency | 90% @ Typical Load |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
| Atx Version | ATX 12V V2.52 |
| Fan Bearing | FDB |
| Protections | OVP, UVP, OPP, OTP, SCP, OCP |
| Hold Up Time | 20ms at 100% Load"}">>20ms at 100% Load |
| Input Current | 13-6A |
| Input Voltage | 90-264V |
| 80 Plus Rating | 80 PLUS Gold |
| Erp 2014 Lot 3 | Yes |
| Input Frequency | 47-63Hz |
| Sata Connectors | 12 |
| Noise Level @ 20% | 0 dBA |
| Noise Level @ 50% | 15.8 dBA |
| Power Good Signal | 100 – 150 ms |
| Noise Level @ 100% | 30.1 dBA |
| Eps 8 Pin Connector | 1 |
| Atx 24-Pin Connectors | 1 |
| Operating Temperature | 0-50°C |
| Dimensions (L X W X H) | 180 x 150 x 86 mm |
| Eps 4+4 Pin Connectors | 1 |
| Pci-E 6+2 Pin Connectors | 8 |
| Peripheral 4-Pin Connectors | 4 |
