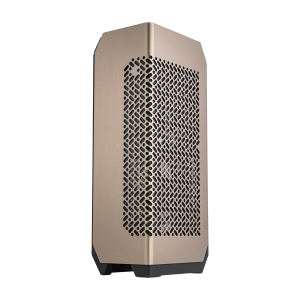

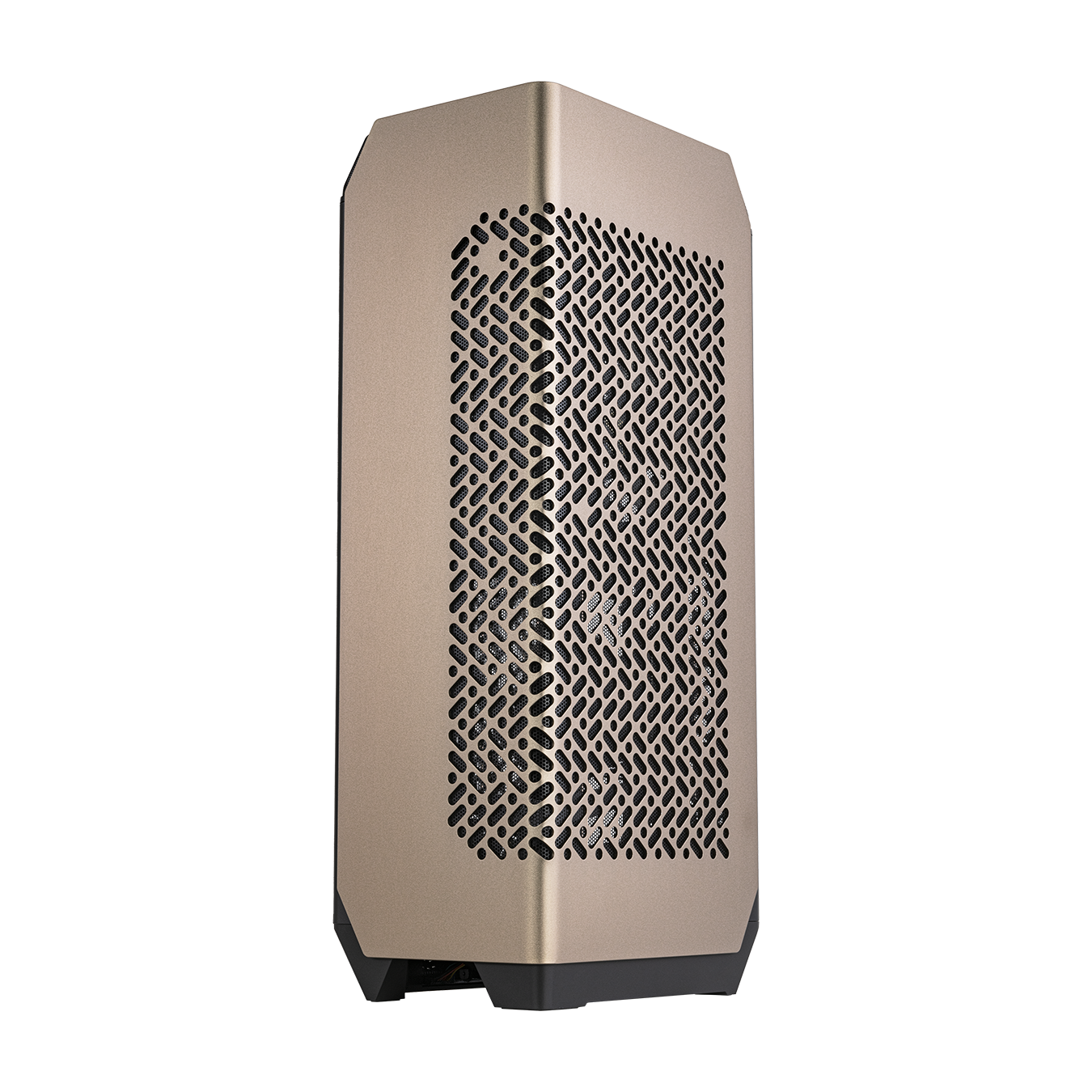

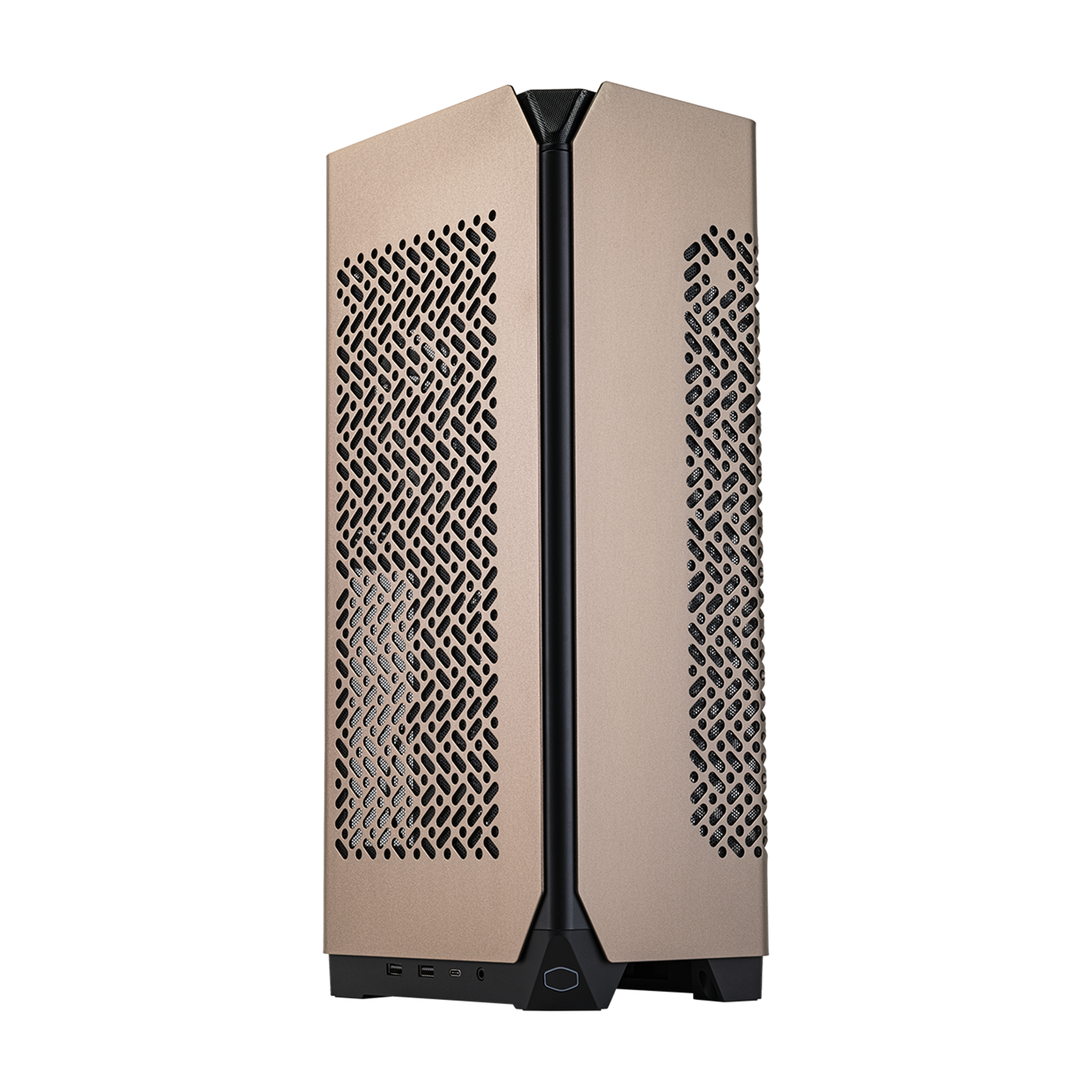

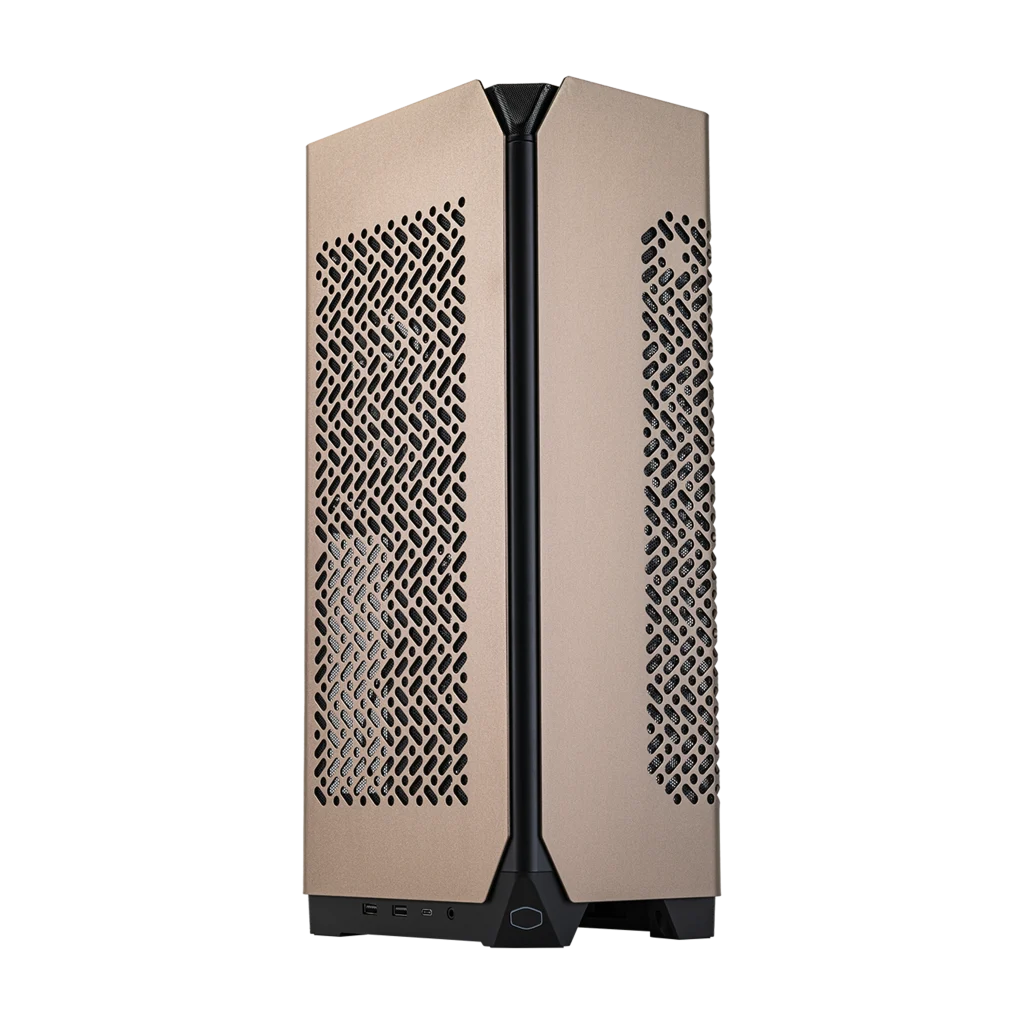

COOLER MASTER N-Core 100 Max ITX Mini Tower Cabinet (Bronze)

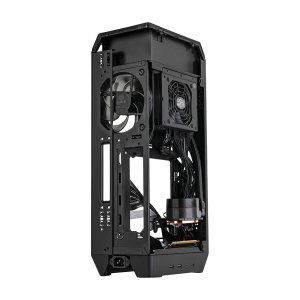

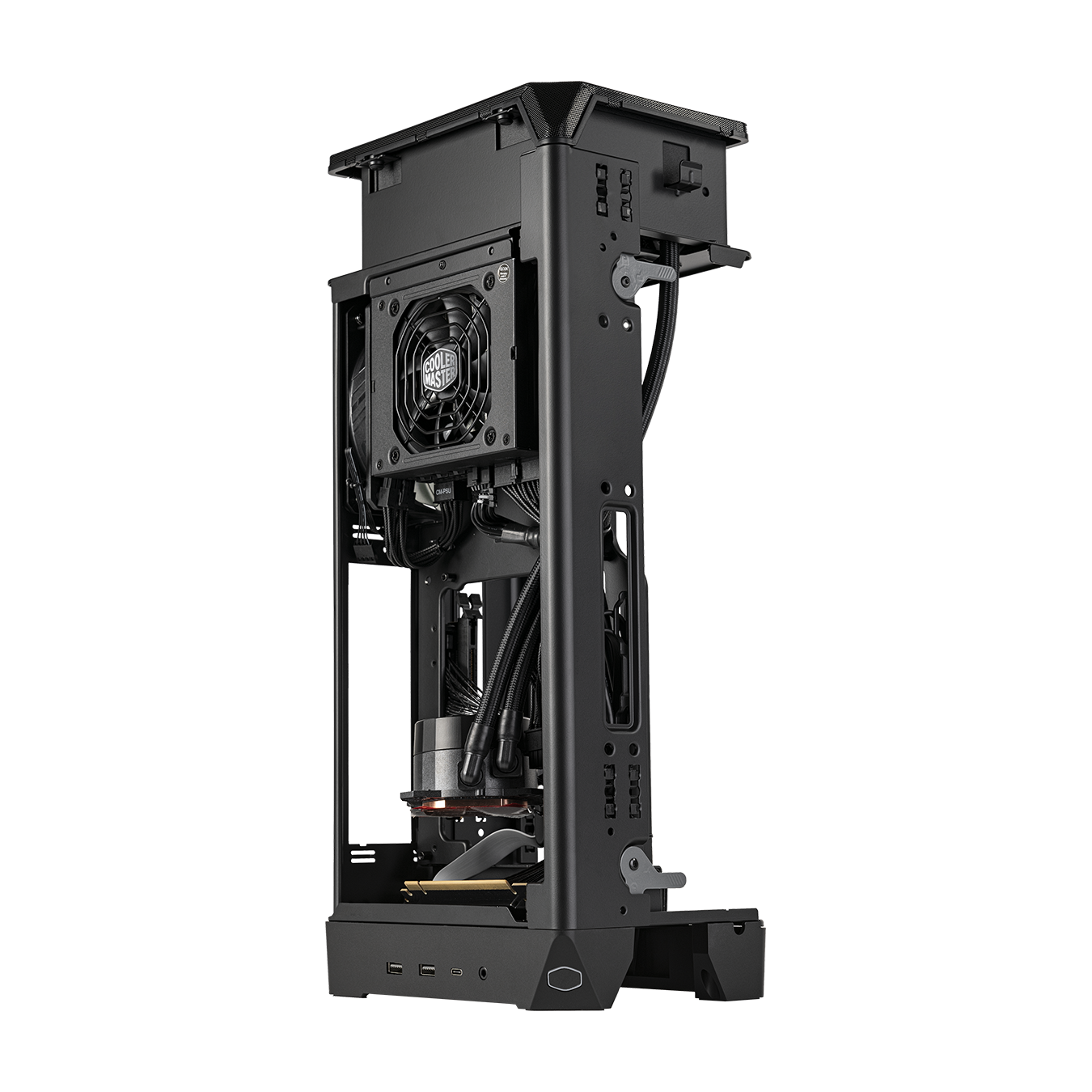

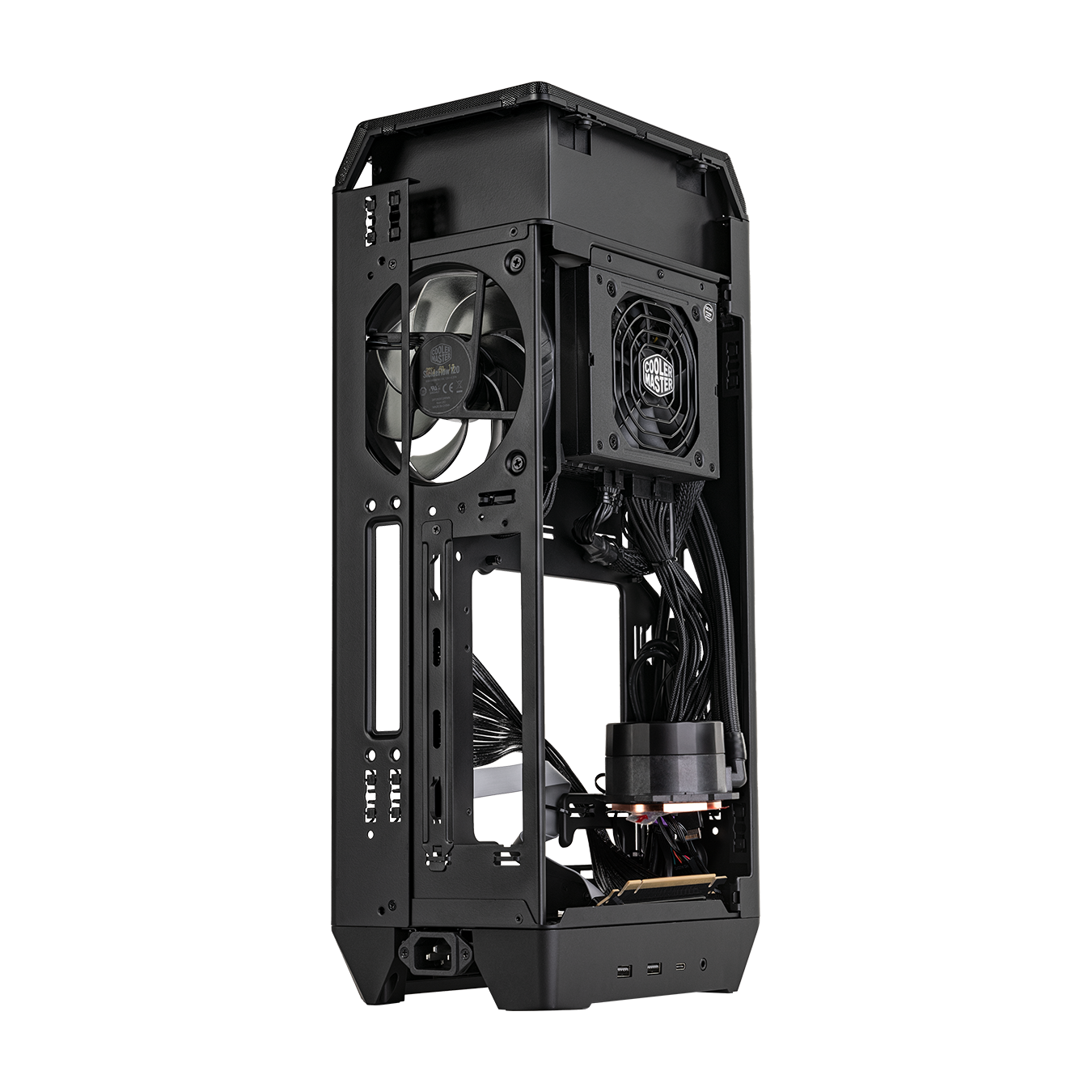

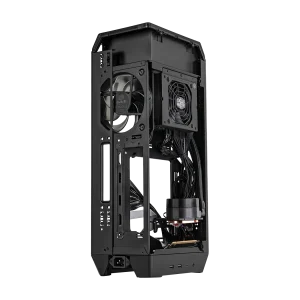

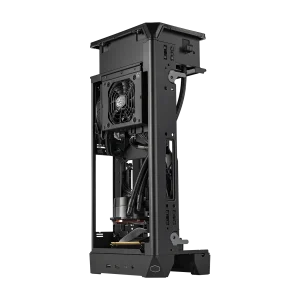

The Cooler Master NCORE 100 MAX is a compact mini-ITX tower cabinet designed for enthusiasts who want high-end performance in a small form factor. With a total internal volume of just 15.7 litres, it offers a footprint comparable to a small booklet while still supporting full-size, high-performance hardware. The expandable chassis design widens from 155 mm to 172 mm, creating space to accommodate triple-slot GPUs up to 336 mm in length and 140 mm in height — making it one of the more accommodating SFF cases available for large graphics cards. The NCORE 100 MAX ships as a complete system-ready solution. Included in the package is a Cooler Master V SFX Gold 850W PSU rated at ATX 3.0, complete with custom-length cables pre-routed throughout the chassis so they land exactly where your motherboard and GPU connectors are. A custom PCIe 4.0 riser cable handles the vertical GPU mount, ensuring signal integrity and compatibility with modern graphics cards. Four 6+2 pin PCIe power cables are also included to support demanding GPUs. Cooling is handled by a bundled custom 120 mm AIO liquid cooler that supports AMD AM5, AM4, and Intel LGA1700 sockets, making it compatible with current-generation Core i9 and Ryzen 9 processors. The open-frame layout draws air from the two largest side surfaces of the case, enabling an efficient thermal path without relying on restricted panel cutouts. The exterior panels are constructed from anodized aluminum alloy combined with steel and plastic structural components, giving the chassis a premium finish in the Bronze colourway. Three surfaces are eliminated compared to a standard tower design, allowing installation access from multiple angles. The cable cover features tool-less removal for added convenience. The front I/O panel provides 4 USB ports in total. The case does not require batteries and ships with 3 items in the box. Verifiable Specifications: - Model Number: NR100-ZNNN85-SL0 - Form Factor: Mini-ITX - Internal Volume: 15.7 litres - Dimensions: 15.49 × 48.08 × 21.21 cm - Weight: 6.3 kg - Included PSU: V SFX Gold 850W, ATX 3.0 - CPU Cooler Socket Support: AMD AM5 / AM4, Intel LGA1700 - Max GPU Length: 336 mm - Max GPU Height: 140 mm - Max GPU Slot Width: 3.9 slots (expandable chassis) - PCIe Riser: Custom PCIe 4.0 - USB Ports: 4 - Material: Anodized aluminum alloy, steel, plastic - Colour: Bronze
