Specifications: Model NCORE 100 MAX Color Bronze P/N NR100-ZNNN85-SL0 Materials – Exterior Steel, Plastic, Aluminum Materials – Side Panel Aluminum Dimensions (L x W x H) Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions) Volume 15.80L (Normal mode), 17.54L (Expansion mode) Motherboard Support ITX Expansion Slots 3x PCIe Slot mounting Drive Bays – 2.5″ SSD 1 I/O Panel 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm) Included Accessories 1x 240mm PCIe 4.0 x16 Included CPU Cooling Solution 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) Included Power Supply Unit V SFX Gold 850W ATX 3.0 Pre-installed Fan(s) – Rear 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) Clearances – CPU Cooler 48mm Clearances – Power Supply 100mm Clearances – RAM 48mm Clearances – Graphics Card 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector) Cable Routing – Behind MB Tray 11mm Dust Filters Side panels Power Supply Support SFX Warranty 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) Note Features, Price, Specifications are subject to change without notice. Images used for representation purpose only

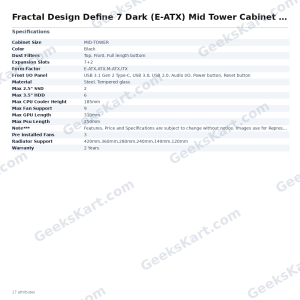

Fractal Design Define 7 Dark (E-ATX) Mid Tower Cabinet (Black)
₹25,975.00
DAWG Y 720 ARGB ATX Mid Tower Cabinet ( White )
₹6,705.00
Cooler Master Ncore 100 Max Bronze M-ITX Mini Tower Case
₹26,475.00

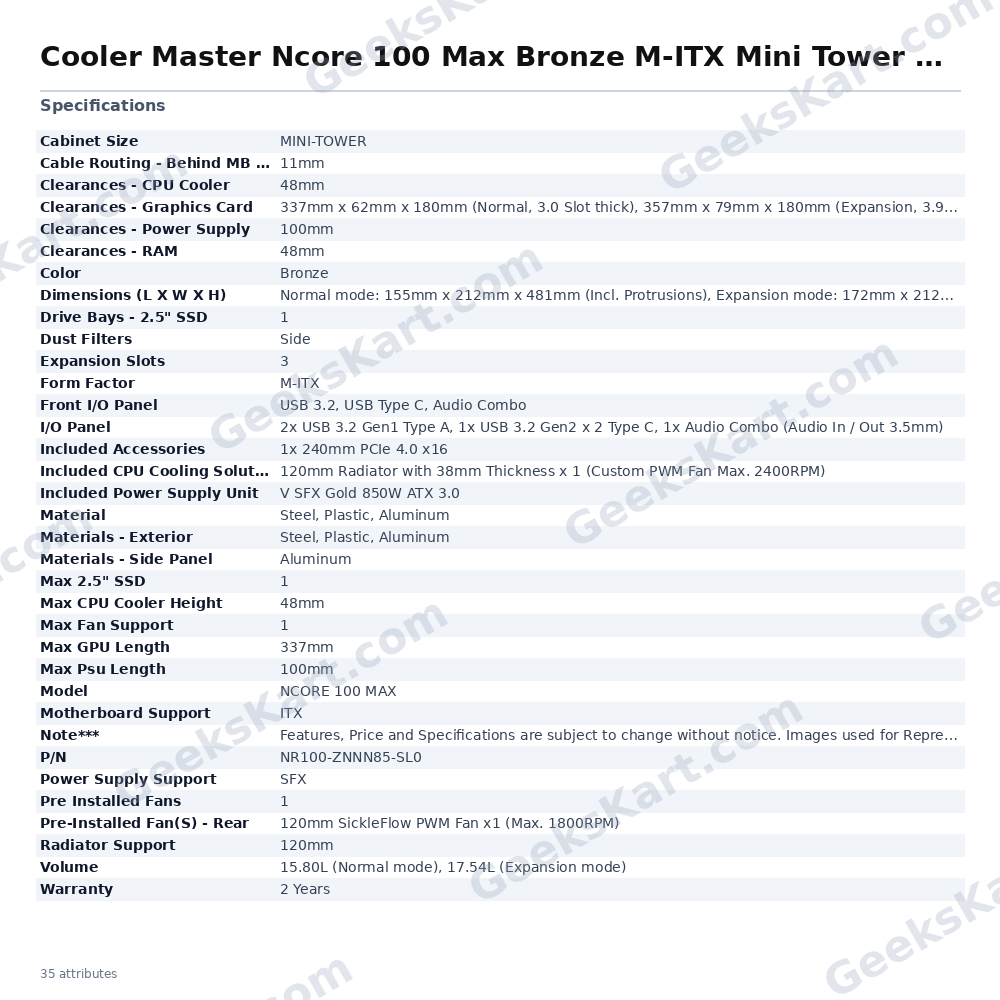

Specifications: Model NCORE 100 MAX Color Bronze P/N NR100-ZNNN85-SL0 Materials – Exterior Steel, Plastic, Aluminum Materials – Side Panel Aluminum Dimensions (L x W x H) Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions) Volume 15.80L (Normal mode), 17.54L (Expansion mode) Motherboard Support ITX Expansion Slots 3x PCIe Slot mounting Drive Bays – 2
Additional information
| Warranty | 2 Years |
|---|---|
| Form Factor | Mini-ITX |
| color | Bronze |
| P/N | NR100-ZNNN85-SL0 |
| Model | NCORE 100 MAX |
| Volume | 15.80L (Normal mode), 17.54L (Expansion mode) |
| Note*** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
| Material | Steel, Plastic, Aluminum |
| I/O Panel | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm) |
| Cabinet Size | MINI-TOWER |
| Dust Filters | Side |
| Max 2.5" SSD | 1 |
| Max GPU Length | 337mm |
| Max Psu Length | 100mm |
| Expansion Slots | 3 |
| Front I/O Panel | USB 3.2, USB Type C, Audio Combo |
| Max Fan Support | 1 |
| Clearances - RAM | 48mm |
| Radiator Support | 120mm |
| Pre Installed Fans | 1 |
| Motherboard Support | ITX |
| Included Accessories | 1x 240mm PCIe 4.0 x16 |
| Materials - Exterior | Steel, Plastic, Aluminum |
| Power Supply Support | SFX |
| Drive Bays - 2.5" SSD | 1 |
| Max CPU Cooler Height | 48mm |
| Dimensions (L X W X H) | Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions) |
| Materials - Side Panel | Aluminum |
| Clearances - CPU Cooler | 48mm |
| Clearances - Power Supply | 100mm |
| Clearances - Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector) |
| Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-Installed Fan(S) - Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Included CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Cable Routing - Behind MB Tray | 11mm |
