Features: Dimensions (L x W x H): Incl. Protrusions: 438.5 x 225 x 492.1 mm Dimensions (L x W x H): Excl. Protrusions: 425 x 225 x 425 mm Volume (w/o protrusions): 40.64 L Volume (with panel, protrusions and feet): 48.55 L Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm) Expansion Slots: 7 Drive Bays – 5.25″ ODD: N/A Drive Bays – 3.5″ HDD: 1 (Shared 3.5″ and 2.5″ mounting on PSU bracket) Drive Bays – 2.5″ SSD: 2 (Max. 5) Fan Support – Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm Fan Support – Top: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm Fan Support – Rear: 1x 120mm Fan Support – Bottom: 3 x 120 mm / 2 x 140 mm Pre-installed Fans – Rear: 1x 120mm Black Fan Radiator Support – Front: 140 / 280 / 360 mm (w/o I/O panel) Radiator Support – Top: 140 / 280 / 360 mm (w/o I/O panel) Radiator Support – Rear: 120 mm Radiator Support – Bottom: 140 / 280 / 360mm (w/o I/O panel) Clearances – CPU Cooler: 172 mm Clearances – Power Supply: 200 mm Clearances – Graphics Card: 415 mm (w/o Front Fan) Cable Routing – Behind Motherboard Tray: 27 mm Power Supply Support: ATX / SFX Perfect for small apartments, dorm rooms, and creators on the move, the QUBE 540 fits your life as well as your PC Compact Yet Capable Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components. Flexible Orientation Design Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it. Create Your Own Layout A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way. Repositionable I/O Panel and Movable Handles Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them. Versatile Modular Layout Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts. Vertical GPU Ready Supports vertical GPU installation to highlight premium graphics and aesthetics
ProLab Design AI748 E-ATX Full Tower Workstation Case
₹8,485.00
Gigabyte C301 Glass V2 ARGB E-ATX Mid Tower Case
₹7,160.00
Cooler Master Qube 540 Stardust Iron ATX Mid Tower Case
₹6,775.00
Features: Dimensions (L x W x H): Incl. Protrusions: 438.5 x 225 x 492.1 mm Dimensions (L x W x H): Excl. Protrusions: 425 x 225 x 425 mm Volume (w/o protrusions): 40.64 L Volume (with panel, protrusions and feet): 48.55 L Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm) Expansion Slots: 7 Drive Bays – 5.25″ ODD: N/A Drive Bays – 3.5″ HDD: 1 (Shared 3.5″ and 2.5″ mounting on PSU bracket) Drive Bays – 2.5″ SSD: 2 (Max. 5) Fan Support – Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm

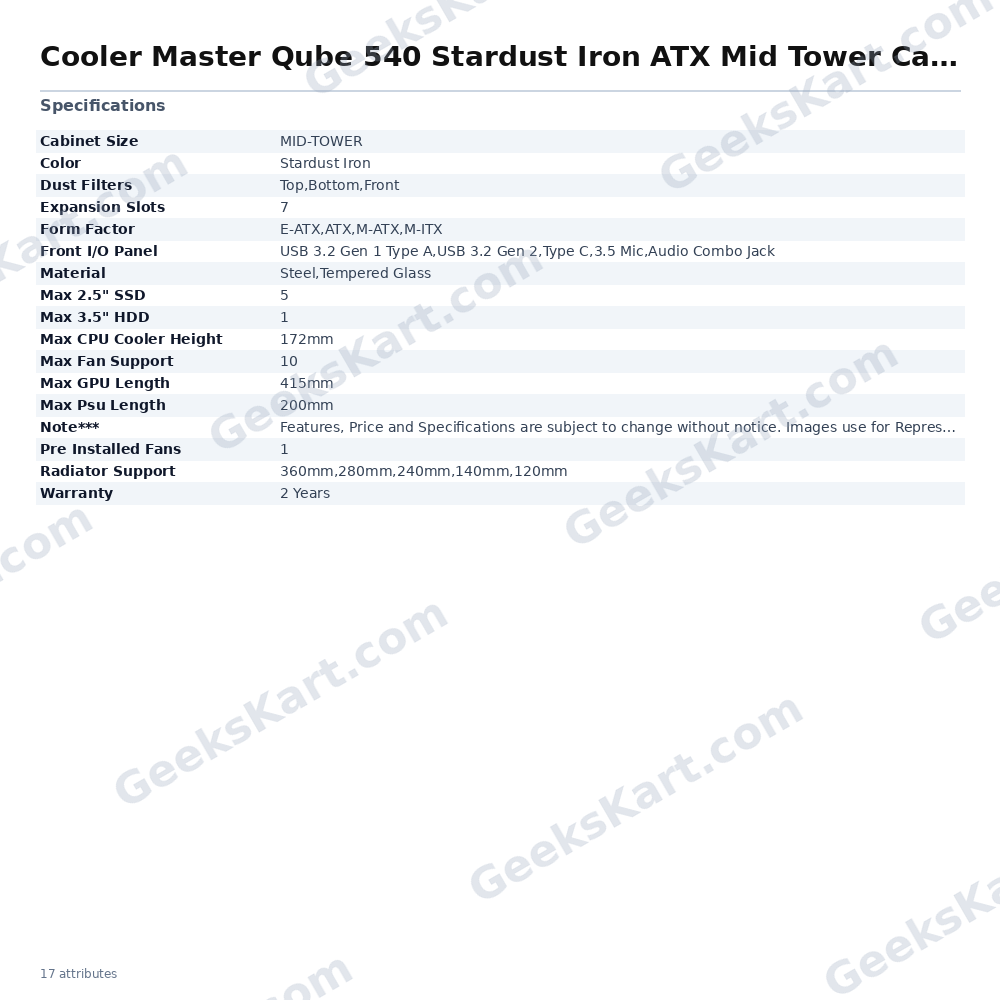

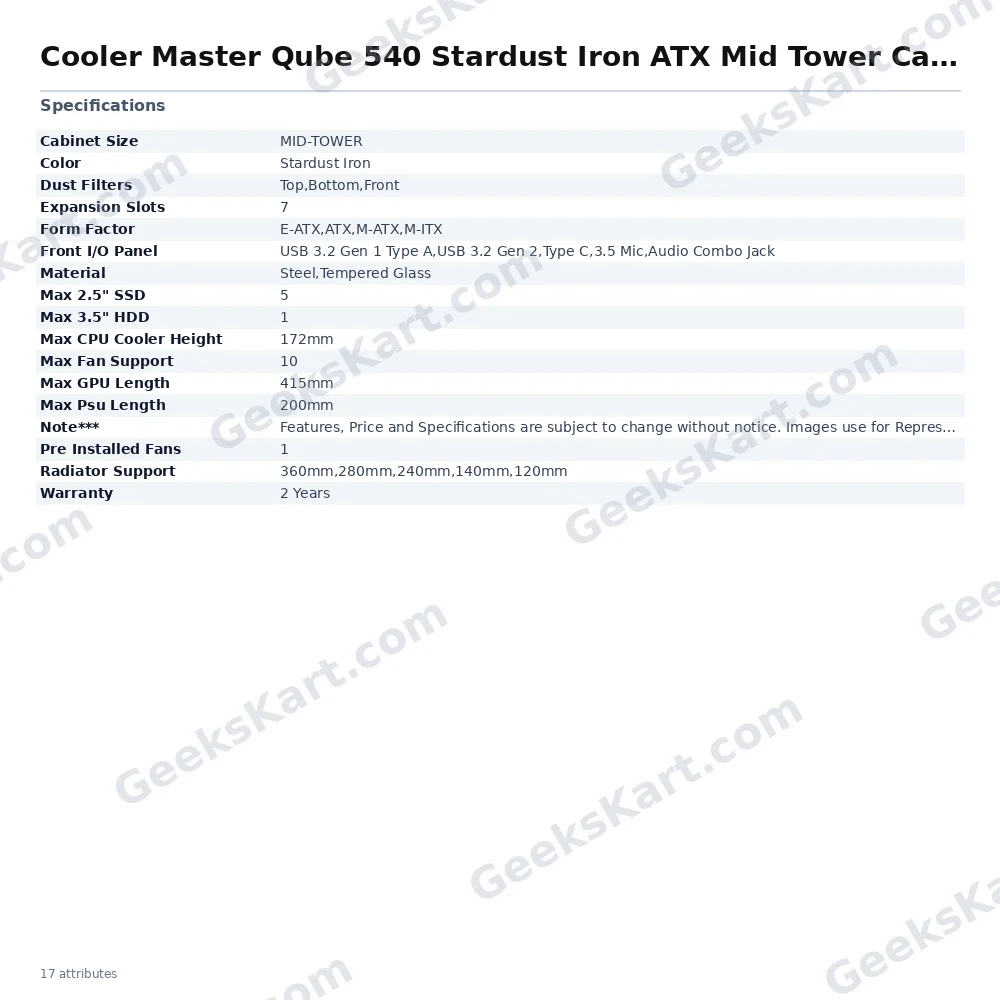

Additional information
| Warranty | 2 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel,Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top,Bottom,Front |
| Max 2.5" SSD | 5 |
| Max 3.5" HDD | 1 |
| Max GPU Length | 415mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 Gen 1 Type A,USB 3.2 Gen 2,Type C,3.5 Mic,Audio Combo Jack |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 1 |
| Max CPU Cooler Height | 172mm |
| Color | Stardust Iron |
Reviews
There are no reviews yet.
