Features of COOLER MASTER TD500 Mesh ATX Mid Tower Cabinet (Black)
COOLER MASTER MASTERBOX TD500 MESH (E-ATX) MID-TOWER Case WITH TEMPERED GLASS has finely mastered structure and elements. Proper cooling and dust protection are a must for any system! Hence the Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration. The front panel is offered with lighting while providing considerable airflow to the system with the help of included three pre-installed ARGB fans.
Compatibility at its best! As the COOLER MASTER, MASTERBOX TD500 MESH ATX Cabinet WITH TEMPERED GLASS is compatible with ASUS, Gigabyte, MSI, and ASRock motherboards. To keep the most extreme systems cool and safe two 360mm radiators are supported on the top and front panel. No need to compromise your performance with the seven 120mm fans and 360mm front and top radiator supported by stunning COOLER MASTER MASTERBOX TD500 MESH (E-ATX) MID-TOWER CABINET.COOLER MASTER MASTERBOX TD500 MESH (E-ATX) MID-TOWER CABINET provides room for an upgrade with a length of PCU up to 180mm.As an addition, the fabulous cabinet also supports a 410mm graphics card and a 165mm CPU cooler. COOLER MASTER MASTERBOX TD500 MESH (E-ATX) MID-TOWER CABINET comes with a warranty of two whole years!
- Polygonal Mesh
- Crystalline Tempered Glass
- Triple ARGB Fans
- Dual 360mm Radiator Support
- Versatile Cooling Options
- Room For Upgrades
Airflow in an Art Form
The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.
Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge.

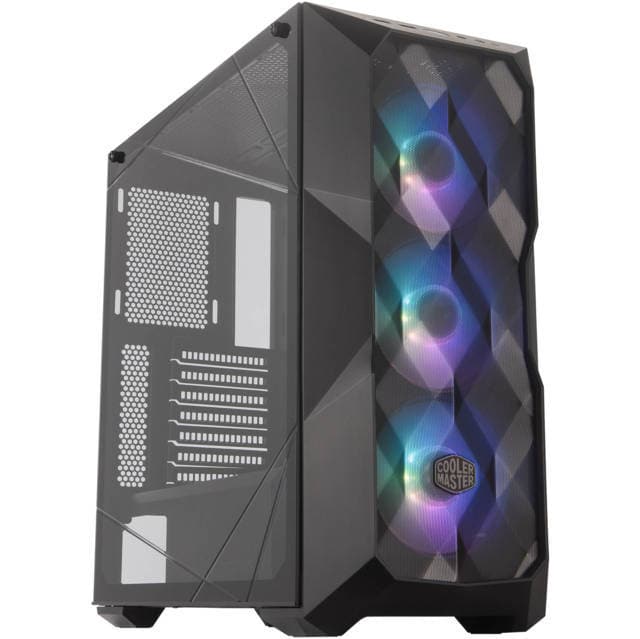

Polygonal Mesh
Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration.

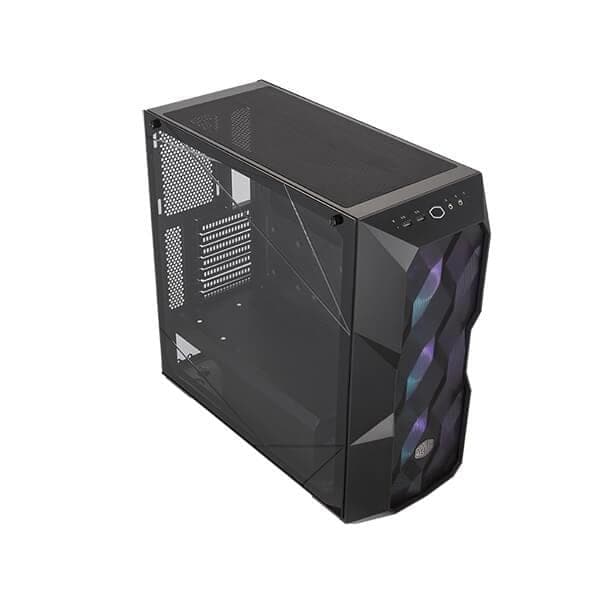

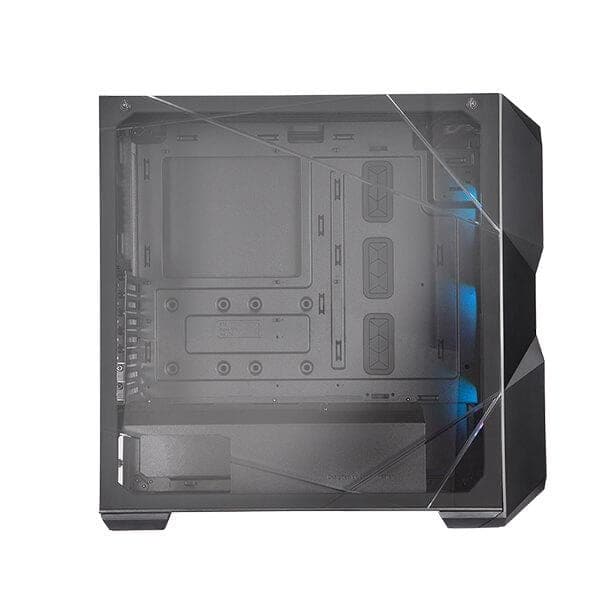

Crystalline Tempered Glass
A crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design.
ARGB/Fan HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

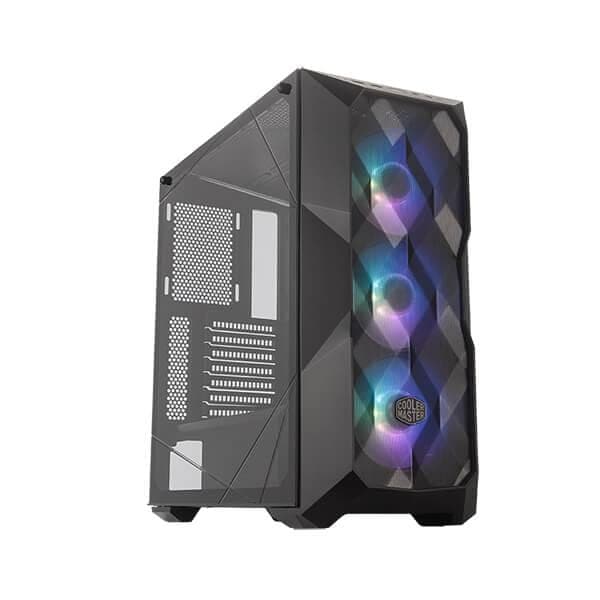

Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
Dual 360mm Radiator Support
For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.

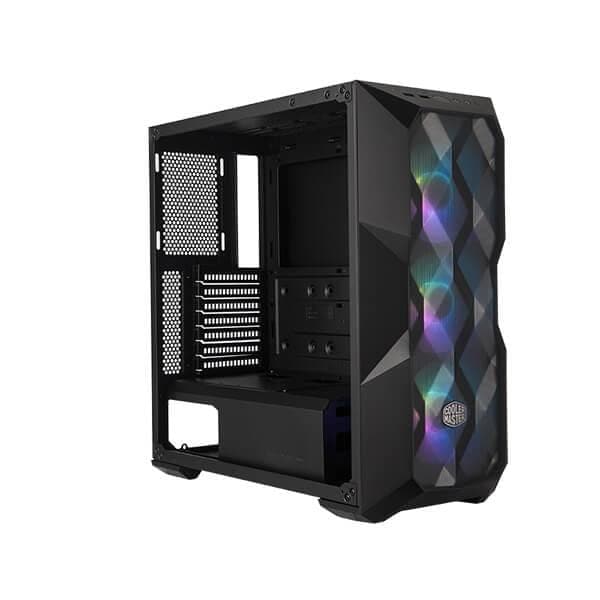

Room For Upgrades
This Coolermaster Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.

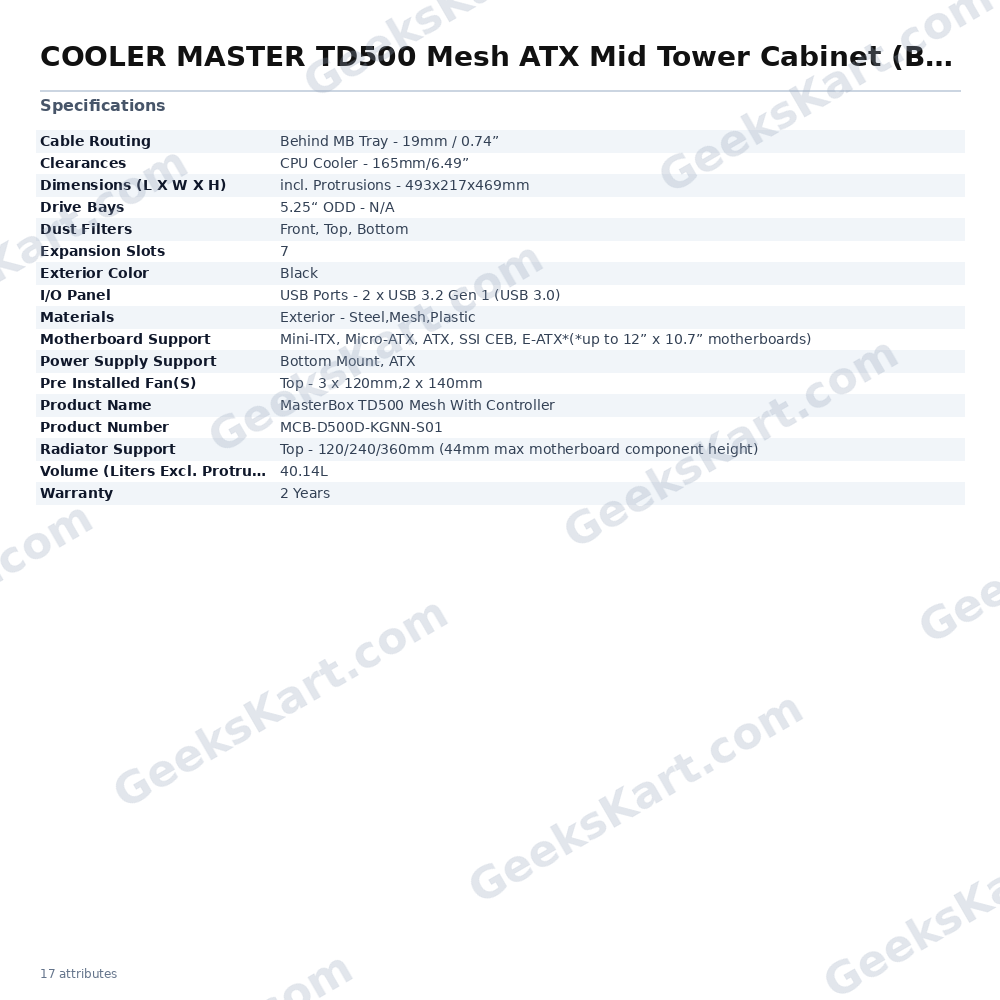

Specifications of COOLER MASTER TD500 Mesh ATX Mid Tower Cabinet (Black)
| Product Name | MasterBox TD500 Mesh With Controller |
| Product Number | MCB-D500D-KGNN-S01 |
| Exterior Color | Black |
|
Materials
|
Exterior – Steel,Mesh,Plastic |
| Left Side Panel – Tempered Glass | |
|
Dimensions (L x W x H)
|
incl. Protrusions – 493x217x469mm |
| excl. Protrusions – 429.5x205x447mm | |
| Volume (Liters excl. Protrusions) | 40.14L |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI CEB, E-ATX* (*up to 12” x 10.7” motherboards) |
| Expansion Slots | 7 |
|
Drive Bays
|
5.25“ ODD – N/A |
| 3.5” / 2.5” Combo – 2 | |
| 2.5” SSD – 4 (2 2 Combo) | |
|
I/O Panel
|
USB Ports – 2 x USB 3.2 Gen 1 (USB 3.0) |
| Audio In / Out – 1 x 3.5mm Audio Jack | |
| 1 x 3.5mm Mic Jack | |
| Other – 1 x ARGB Controller,1 x ARGB 2 to 3 Splitter | |
|
Pre installed Fan(s)
|
Top – 3 x 120mm,2 x 140mm |
| Front – 3 x 120mm,2 x 140mm. | |
| Rear – 1 x 120mm | |
|
Radiator Support
|
Top – 120/240/360mm (44mm max motherboard component height) |
| Front – 120/140/240/280/360mm | |
| Rear – 120mm | |
|
Clearances
|
CPU Cooler – 165mm/6.49” |
| Power Supply – 180mm/(295mm/11.61” with HDD cage removed) | |
| Graphics Card – 410mm / 16.10” | |
| Cable Routing | Behind MB Tray – 19mm / 0.74” |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
