CORSAIR 5000D EATX Mid Tower Cabinet ( White )
MPN CORSAIR-5000D-TG-EATX-MID-TOWER-WHITE · Brand CORSAIR · MID TOWER
The CORSAIR 5000D is a white mid-tower ATX case with a tempered glass side panel, E-ATX motherboard support, 360mm radiator compatibility, and RapidRoute hidden cable management — with two CORSAIR AirGuide fans included
Inclusive of GST · GST invoice available
Overview

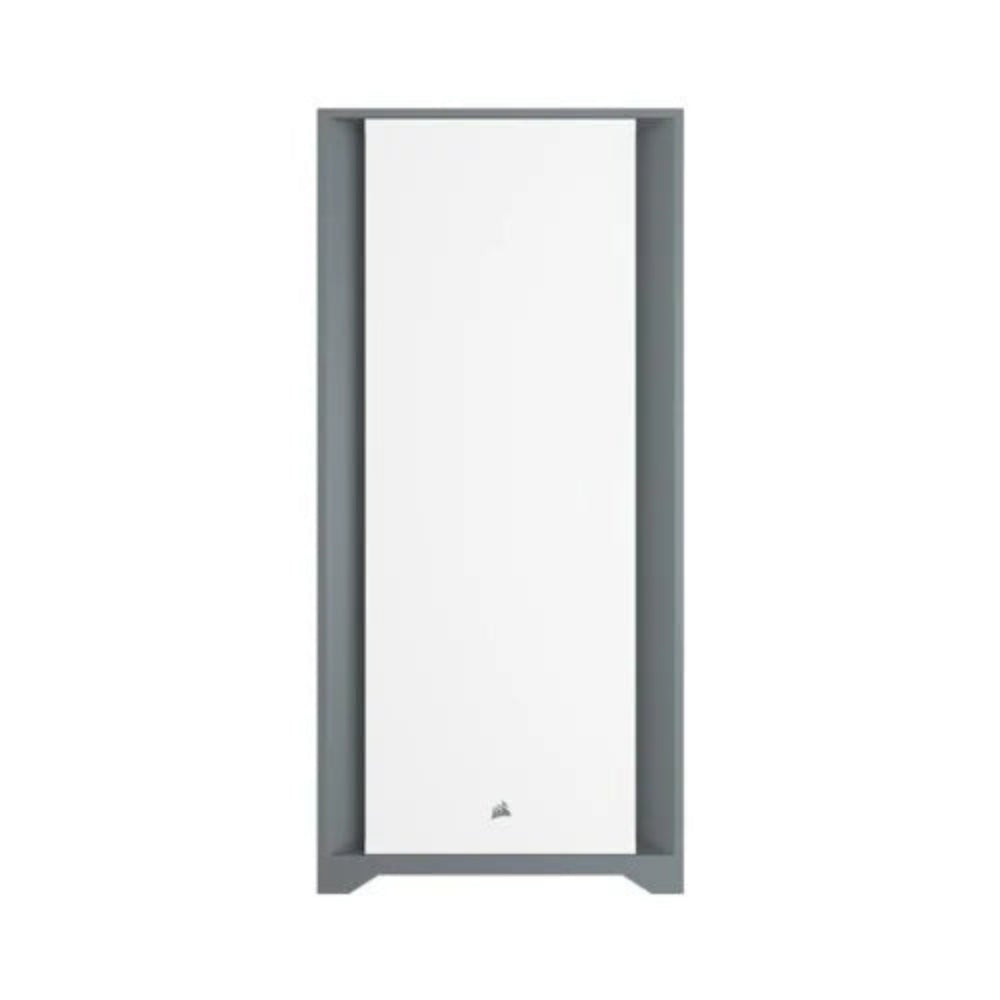

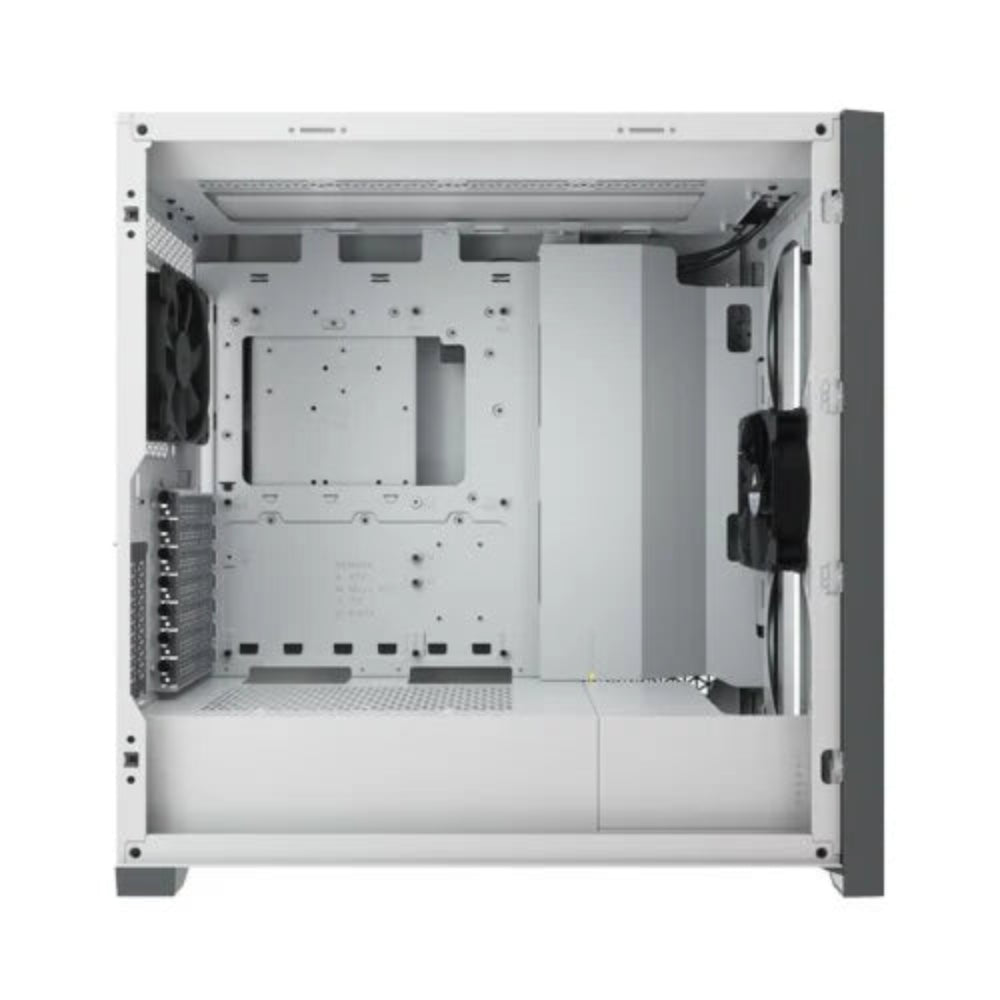

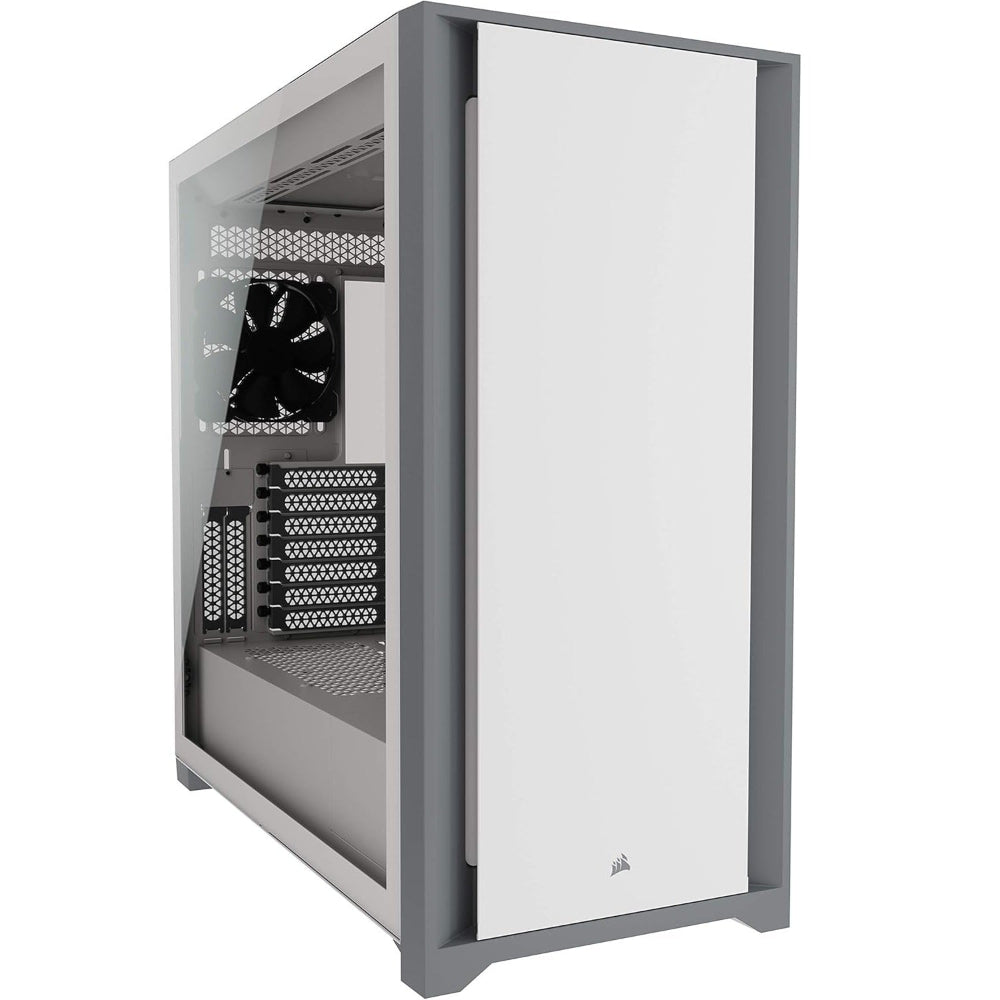

The CORSAIR 5000D is a mid-tower ATX PC case designed for builders who want a clean, well-cooled system without compromising on expansion potential. Finished in white with a tempered glass side panel, it delivers an unobstructed view of your components while a minimalist solid steel front panel adds structural rigidity and a sharp aesthetic. Cable management is handled through CORSAIR's RapidRoute system, which channels your major cables through a single hidden routing path with 43mm of clearance behind the motherboard tray, concealed by a hinged steel door. The result is a tidy interior that keeps clutter well away from the eye-catching side window. Cooling headroom is a standout strength of this enclosure. The spacious interior accommodates up to 10 × 120mm or 4 × 140mm fans and supports radiators ranging from 120mm up to 360mm. A 360mm radiator can be installed in the front or the top, with the roof capable of housing a 360mm push-pull configuration. Two CORSAIR AirGuide 120mm fans with anti-vortex vanes are included, and a PWM fan repeater allows up to six fans to be managed from a single 4-pin PWM header on the motherboard. For connectivity, the front I/O panel provides one USB 3.1 Type-C port, two USB 3.0 ports, and a combined audio/microphone jack. A maximum GPU length of 420mm ensures compatibility with today's largest graphics cards, while the included vertical PCIe slots and screw mount accommodate a CORSAIR PCIe 3.0 riser cable (sold separately) for a vertical GPU display orientation. Verified Specifications: - Dimensions: 520mm (H) × 245mm (W) × 520mm (L) - Weight: 15.63 kg - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm × 277mm) - Case Window: Tempered Glass - Material: Steel, Tempered Glass, Plastic - Fan Support: Up to 10 × 120mm or 4 × 140mm - Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm - Max CPU Cooler Height: 170mm - Max GPU Length: 420mm - Max PSU Length: 250mm - Drive Bays: 2 × 3.5-inch, 4 × 2.5-inch - Expansion Slots: 7 vertical + 2 horizontal - Front I/O: 1 × USB 3.1 Type-C, 2 × USB 3.0, 1 × Audio in/out - Cable Routing Space: 43mm behind motherboard tray - Power Supply: ATX - Warranty: 2 years
Datasheet
| color | White |
|---|---|
| Weight | 15.63 |
| Case Size | Mid-Tower |
| Case Width | 245 |
| Case Height | 520 |
| Case Length | 520 |
| Case Window | Tempered Glass |
| Case Front Io | (1x) USB 3.1 Type C, (2x) USB 3.0, (1x) Audio in/out |
| Case Material | Steel, Tempered Glass, Plastic |
| Case Warranty | 2 Year |
| Case Dimensions | 520mm x 245mm x 520mm |
| Case Drive Bays | (x2) 3.5in (x4) 2.5in |
| Case Form Factor | MID TOWER |
| Case Power Supply | ATX |
| Maximum GPU Length | 420mm |
| Maximum Psu Length | 250 |
| Cable Routing Space | 43mm |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Case Expansion Slots | 7 vertical + 2 horizontal |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Internal 2.5" Drive Bays | 2 |
| Internal 3.5" Drive Bays | 4 |
| Compatible Liquid Coolers | H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i |
| Maximum CPU Cooler Height | 170 |
