CORSAIR Air 5400 RS-R ARGB Triple Chamber Mid Tower Cabniet ( White )
MPN CORSAIR-AIR-5400-RS-R-ARGB-TRIPLE-CHAMBER-WHITE · Brand CORSAIR
The CORSAIR Air 5400 RS-R ARGB Mid-Tower Cabinet features a triple-chamber design with three preinstalled ARGB reverse-rotor fans, dual curved tempered glass French door panels, RapidRoute 2.0 cable management, and support for up to a 360 mm radiator — in a clean white finish
Inclusive of GST · GST invoice available
Overview

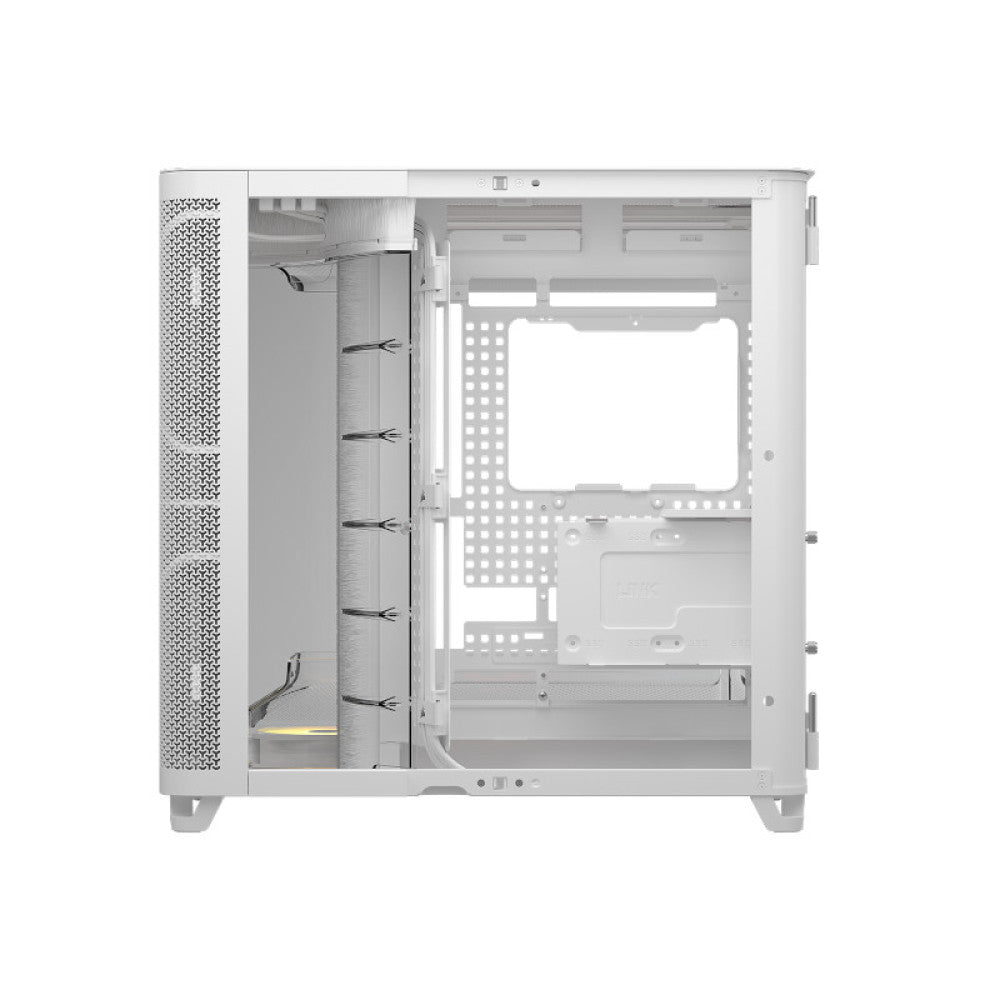

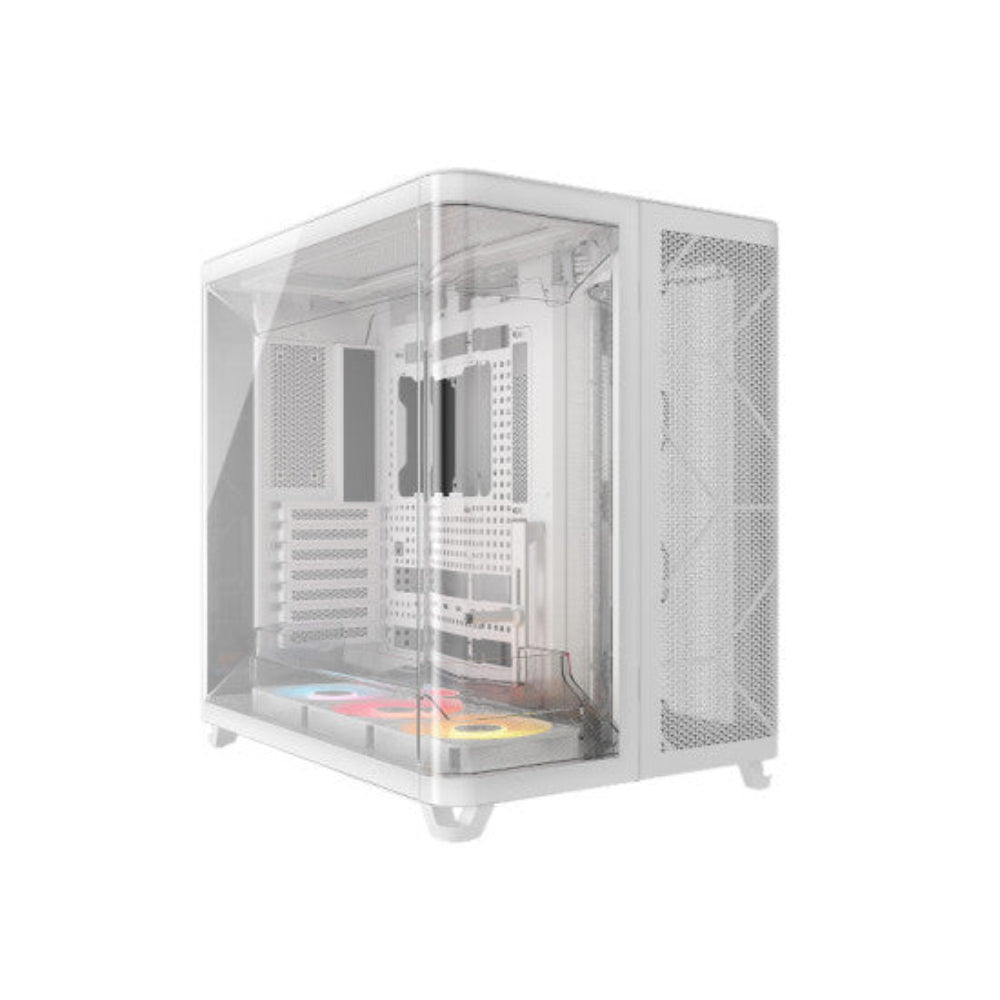

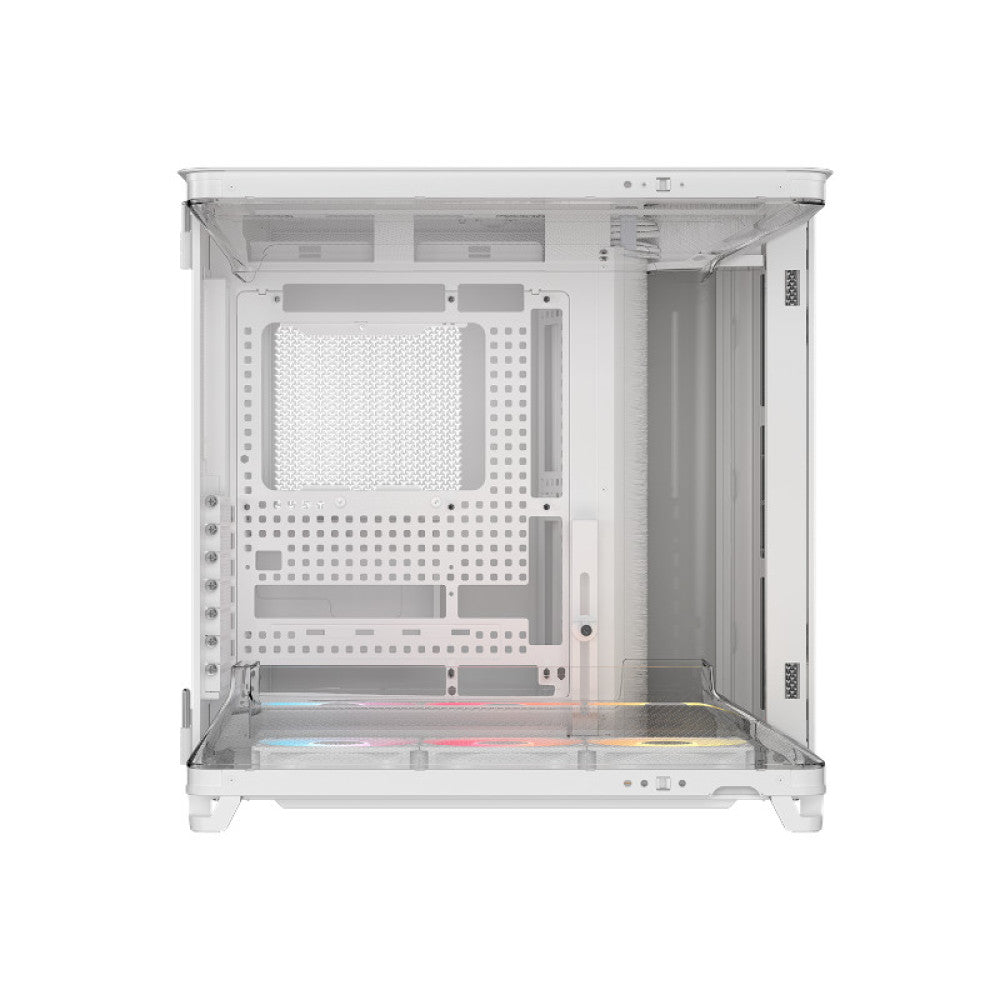

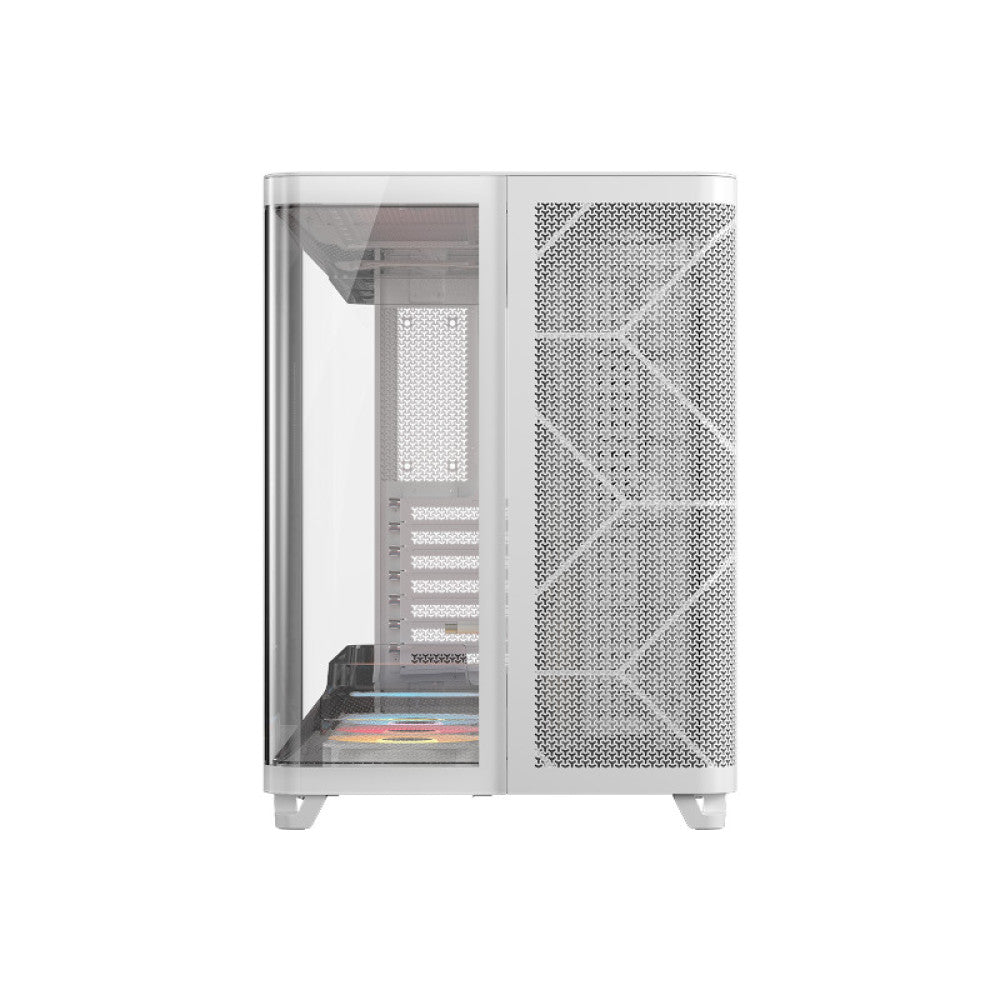

The CORSAIR Air 5400 RS-R ARGB is a mid-tower PC cabinet engineered around a distinctive triple-chamber layout that separates three key heat-producing zones: a dedicated CPU chamber, a combined GPU and motherboard chamber, and a third chamber housing the PSU, cabling, and storage. This physical separation promotes more targeted airflow through each zone, reducing thermal cross-contamination between components. Three preinstalled RS-R ARGB 120mm reverse-rotor fans sit in the bottom intake position, delivering cool air directly to the GPU. Their reversed blade geometry is designed to place the lighting array facing outward, giving an unobstructed ARGB glow without fan hubs blocking the view. These fans support daisy-chaining and connect to standard motherboard PWM and 5V ARGB headers. The front of the chassis features dual curved tempered glass French door panels that open outward on concealed hinges, offering wide access to the interior while maintaining a clean, seamless aesthetic. The left side panel is also tempered glass, and the right panel is steel. For builders who prefer minimal visible cabling, the Air 5400 supports reverse-connector motherboards from compatible ASUS, MSI, and GIGABYTE platforms. An adjustable GPU anti-sag stabilisation arm is included and is designed to sit discreetly behind the graphics card when a GPU is installed. The RapidRoute 2.0 cable management system incorporates a pegboard motherboard tray that lets cable tie anchors be repositioned freely, while nylon channel brushes between chambers keep routing paths tidy. Front panel I/O includes one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-C ports, and a combination audio and microphone jack — all accessible without reaching around to the rear of the tower. Verifiable Specifications: - Model: CC-9011319-WW - Form Factor: Mid-Tower - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305 mm × 277 mm) - Dimensions (H × L × W): 467 mm × 470 mm × 340 mm - Weight: 16.9 kg - Material: Steel and tempered glass - Included Fans: 3× RS-R ARGB 120 mm (bottom intake) - Total Fan Slots: 10× 120 mm (3 bottom, 3 front, 3 top, 1 rear) - Radiator Support — Front: 360 mm / 240 mm; Top: 360 mm; Bottom: 360 mm / 240 mm; Rear: 120 mm - Max GPU Length: 360 mm - Max CPU Cooler Height: 180 mm - Max PSU Length: 200 mm - Drive Bays: 1× 3.5", 2× 2.5" - Expansion Slots: 7 horizontal - Cable Routing Space: 134 mm - Front I/O: 1× USB 3.2 Gen 2x2 Type-C, 2× USB 3.2 Gen 1 Type-C, 1× Audio in/out - Dust Filtration: Yes - Vertical GPU Mount: Not supported - Warranty: 2 years

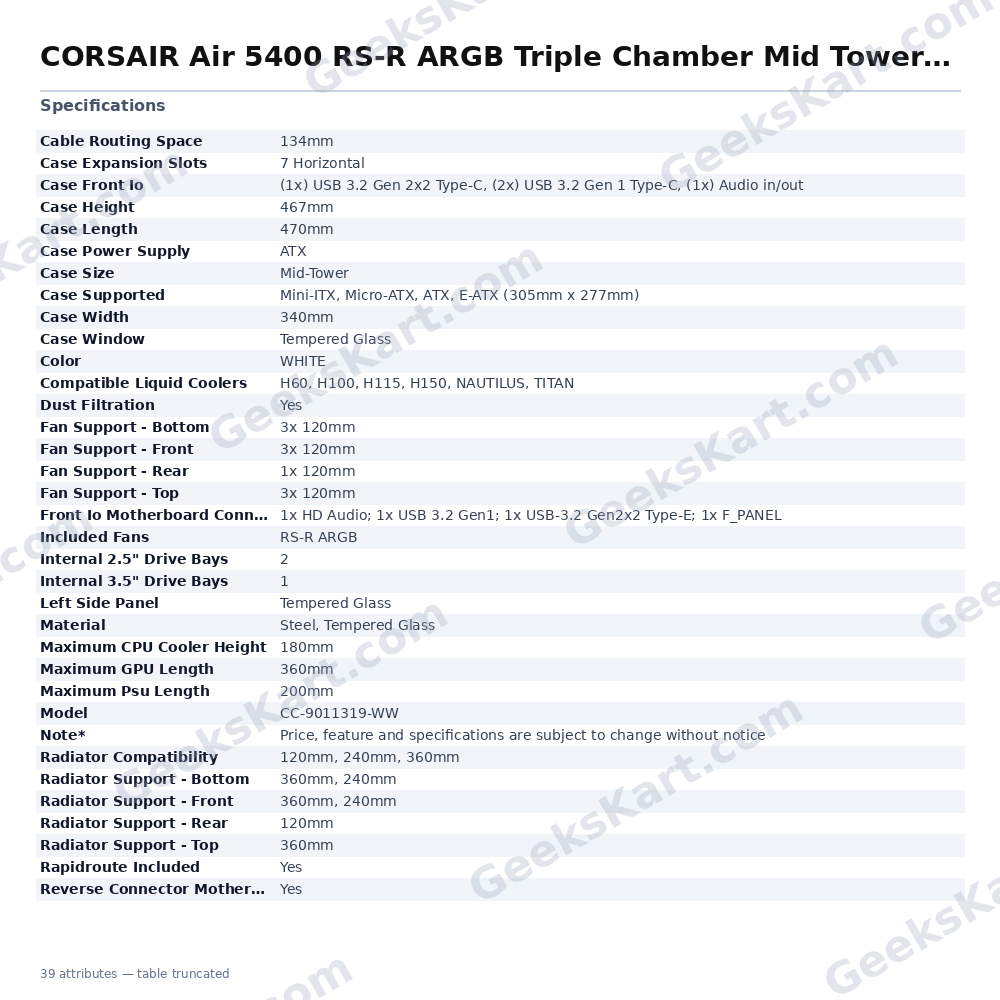

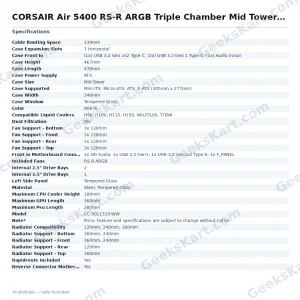

Datasheet
| Warranty | 2 Years |
|---|---|
| color | White |
| Model | CC-9011319-WW |
| Note* | Price, feature and specifications are subject to change without notice |
| Weight | 16.9kg |
| Material | Steel, Tempered Glass |
| Case Size | Mid-Tower |
| Case Width | 340mm |
| Case Height | 467mm |
| Case Length | 470mm |
| Case Window | Tempered Glass |
| Case Front Io | (1x) USB 3.2 Gen 2×2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out |
| Included Fans | RS-R ARGB |
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Dust Filtration | Yes |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Case Power Supply | ATX |
| Fan Support - Top | 3x 120mm |
| Fan Support - Rear | 1x 120mm |
| Maximum GPU Length | 360mm |
| Maximum Psu Length | 200mm |
| Cable Routing Space | 134mm |
| Fan Support - Front | 3x 120mm |
| Rapidroute Included | Yes |
| Case Expansion Slots | 7 Horizontal |
| Fan Support - Bottom | 3x 120mm |
| Radiator Compatibility | 120mm, 240mm, 360mm |
| Radiator Support - Top | 360mm |
| Vertical Mount Support | Unsupported |
| Radiator Support - Rear | 120mm |
| Internal 2.5" Drive Bays | 2 |
| Internal 3.5" Drive Bays | 1 |
| Radiator Support - Front | 360mm, 240mm |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Maximum CPU Cooler Height | 180mm |
| Radiator Support - Bottom | 360mm, 240mm |
| Front Io Motherboard Connections | 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2x2 Type-E; 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
