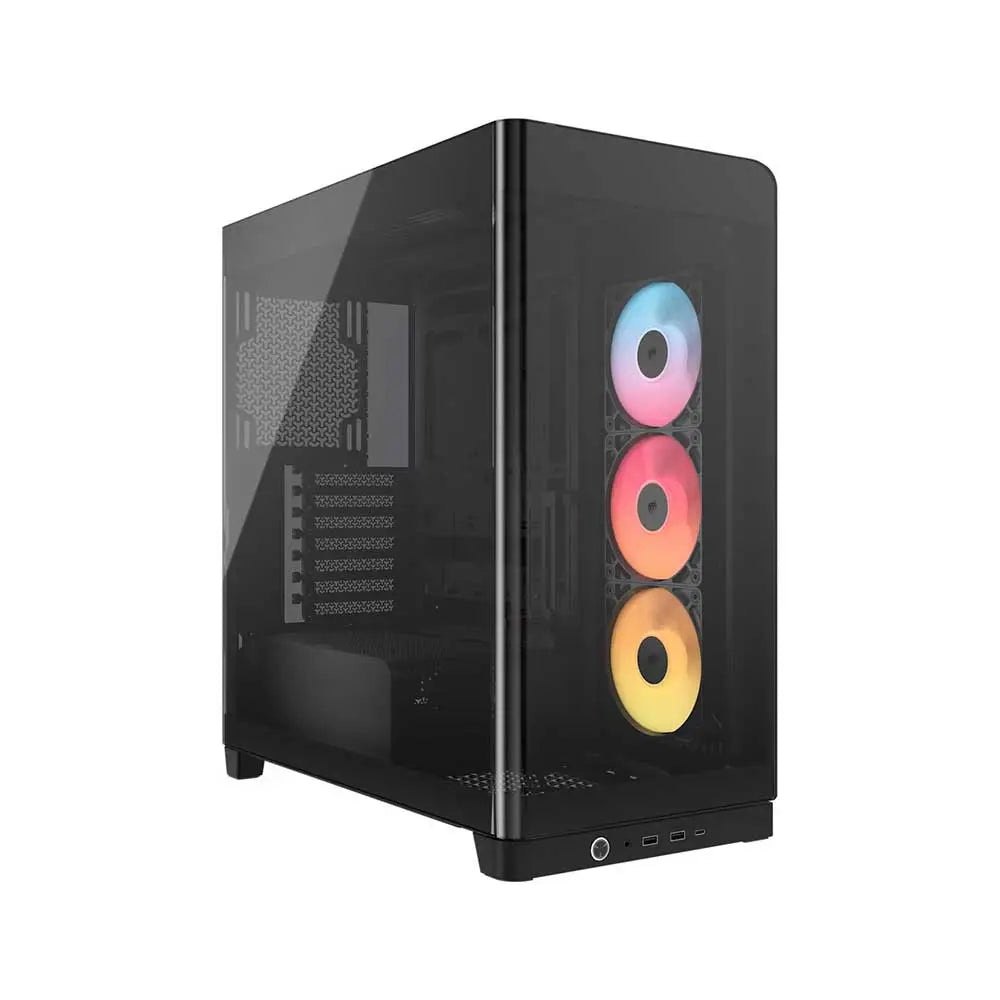

CORSAIR Frame 4500X RS Panoramic Glass ARGB EATX Mid Tower Cabinet ( Black )

The CORSAIR Frame 4500X RS Panoramic Glass ARGB EATX Mid Tower Cabinet in Black is a feature-rich mid-tower enclosure designed for enthusiast PC builders who value both aesthetics and thermal performance. Its defining visual element is a single-piece curved tempered glass panel that wraps continuously from the front to the side, delivering an unobstructed panoramic view of the system interior. Three pre-installed RS ARGB 120mm reverse-rotor fans provide intake airflow, and their ARGB lighting can be controlled directly through a compatible motherboard header—no proprietary lighting hub is required. The InfiniRail fan mounting system simplifies installation by allowing fans and radiators to be positioned along a continuous rail, eliminating the need to pre-align individual screw holes before tightening. Thermal headroom is generous: the top panel accommodates up to a 360mm radiator, and the side intake supports a 360mm radiator as well, enabling simultaneous dual-360mm liquid cooling configurations. The rear can house a 120mm or 140mm radiator or exhaust fan. CPU coolers up to 185mm tall fit without interference, and graphics cards up to 460mm in length are supported. A built-in GPU anti-sag stabilisation arm helps keep heavy modern graphics cards properly seated and level. The case is compatible with Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm × 277mm, and it explicitly supports reverse-connector motherboard layouts, making it a future-ready choice. ATX power supplies up to 250mm are accepted, with 37mm of cable routing space behind the motherboard tray. Storage consists of one internal 3.5-inch drive bay and two 2.5-inch bays. Seven horizontal or three vertical PCIe expansion slots are available; vertical GPU mounting is supported with a separately purchased riser card. Front I/O includes one USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a combined audio jack. Dust filters are fitted to prevent particulate build-up. Verified Specifications: - Model / SKU: CC-9011314-WW - Form factor: Mid-Tower - Motherboard support: Mini-ITX, Micro-ATX, ATX, E-ATX (max 305 mm × 277 mm) - Dimensions (H × L × W): 478 mm × 499 mm × 246 mm - Weight: 11.58 kg - Materials: Steel, tempered glass, 3D-Y airflow steel, plastic - Included fans: 3× RS ARGB 120mm reverse-rotor - Fan support – top: 3× 120mm / 2× 140mm; side: 3× 120mm / 2× 140mm; bottom: 3× 120mm / 1× 140mm; rear: 1× 120mm or 1× 140mm - Radiator support – top: 360/280/240mm; side: 360/280/240mm; rear: 140/120mm; front/bottom: none - Max CPU cooler height: 185 mm - Max GPU length: 460 mm - Max PSU length: 250 mm - Drive bays: 1× 3.5-inch, 2× 2.5-inch - Expansion slots: 7 horizontal or 3 vertical - Front I/O: 1× USB 3.2 Gen 2 Type-C, 2× USB 3.2 Gen 1 Type-A, 1× audio in/out - Cable routing space: 37 mm - Vertical GPU mount: supported (riser card sold separately) - Dust filters: yes - Warranty: 2 years
